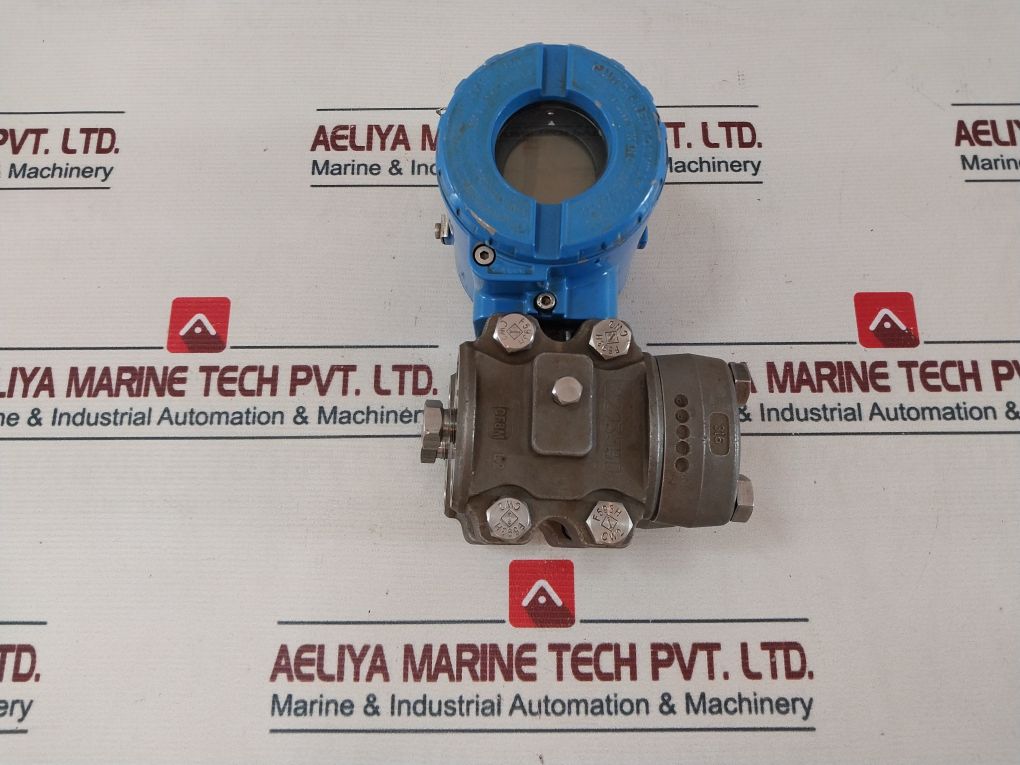

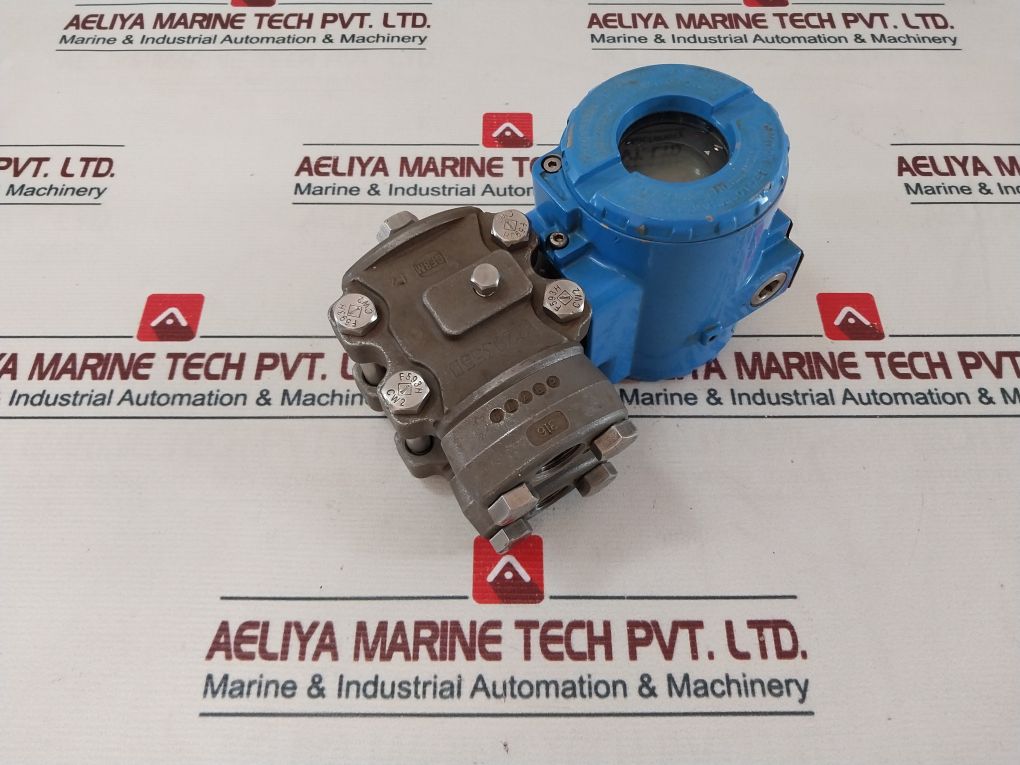

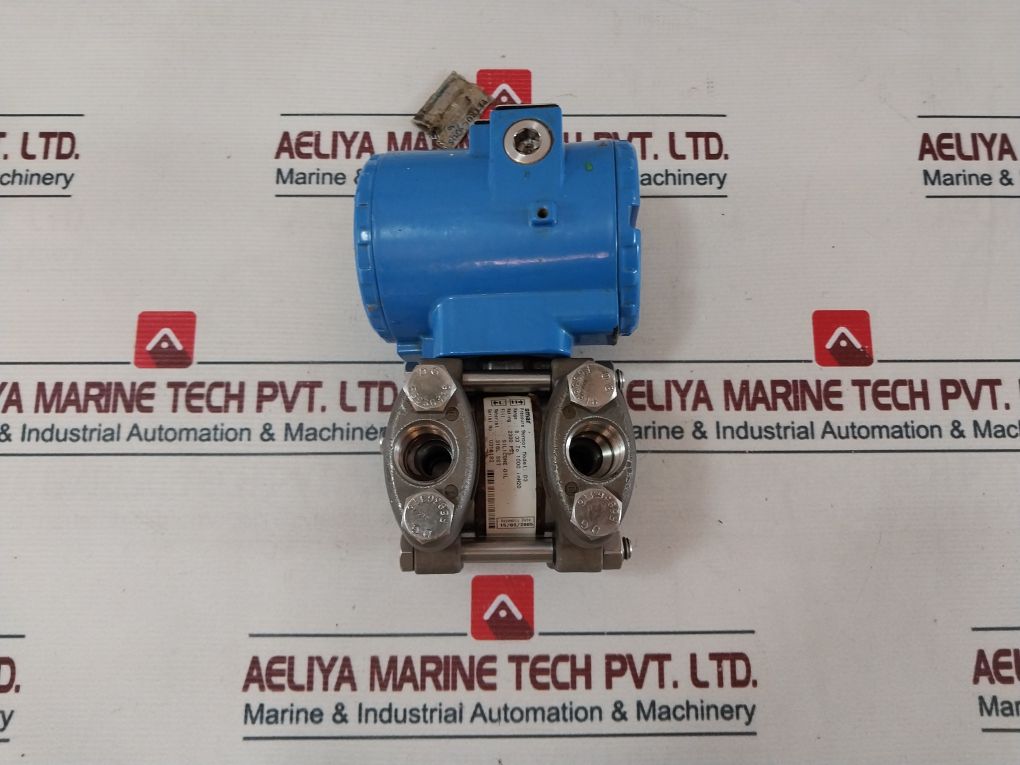

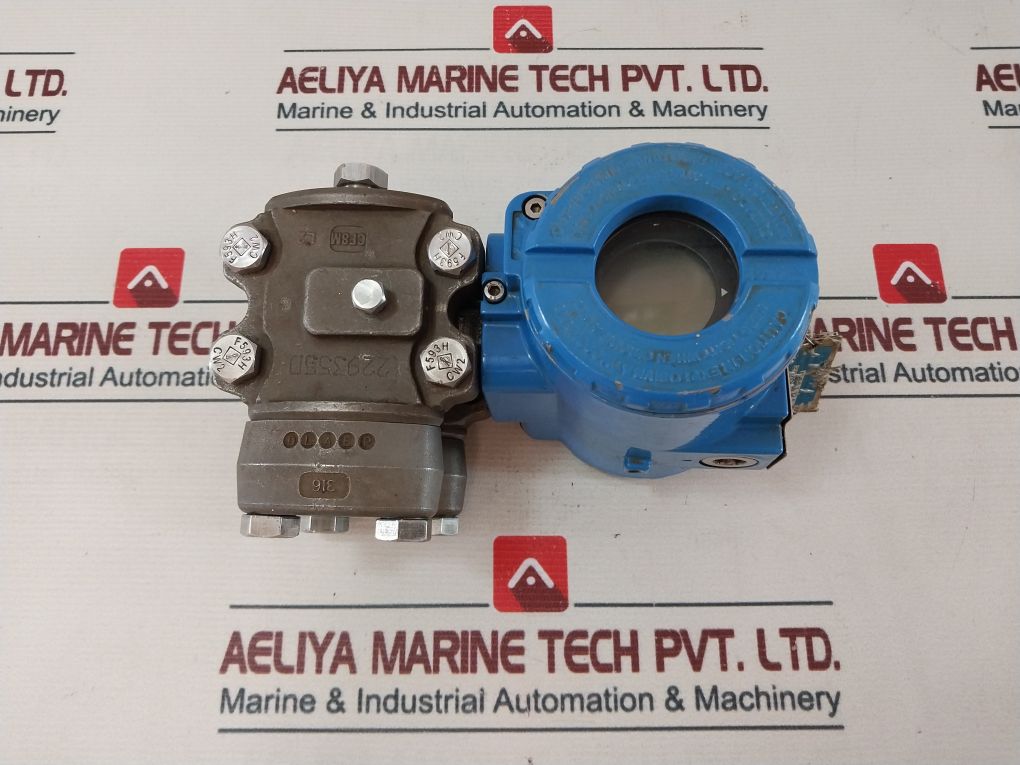

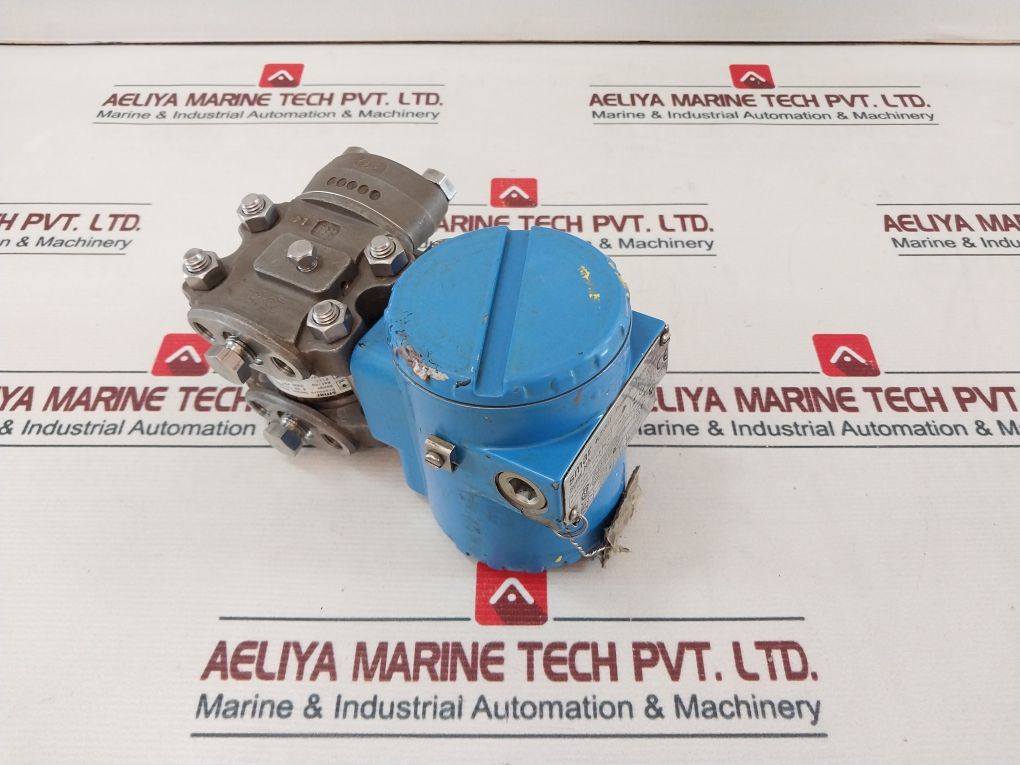

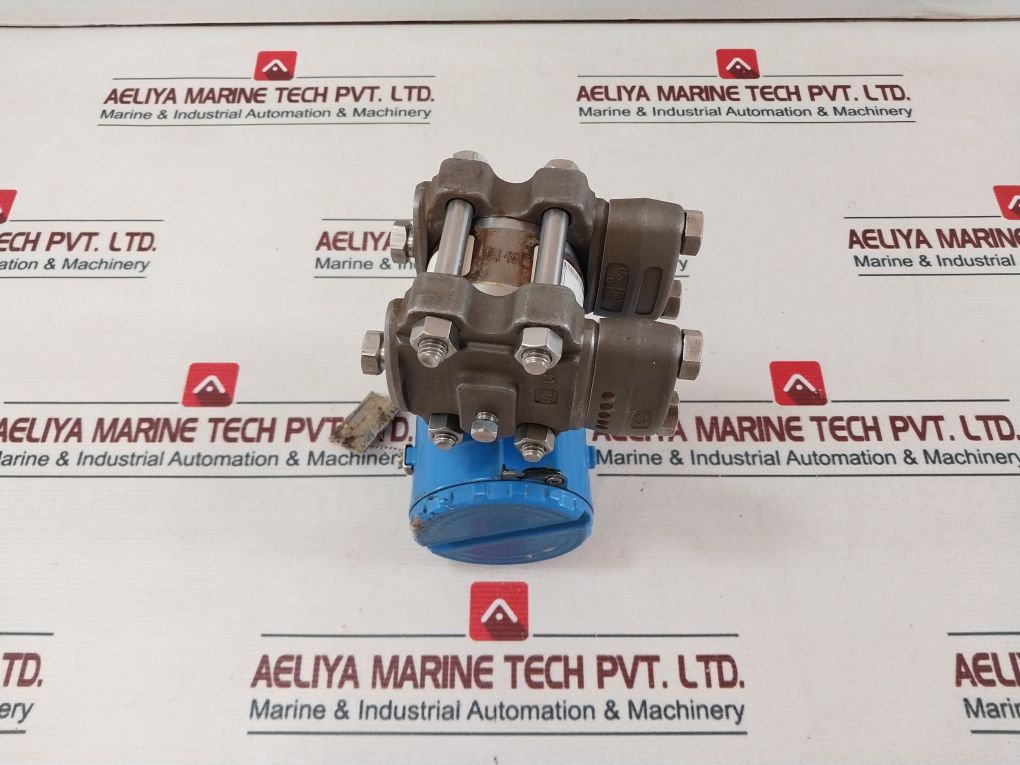

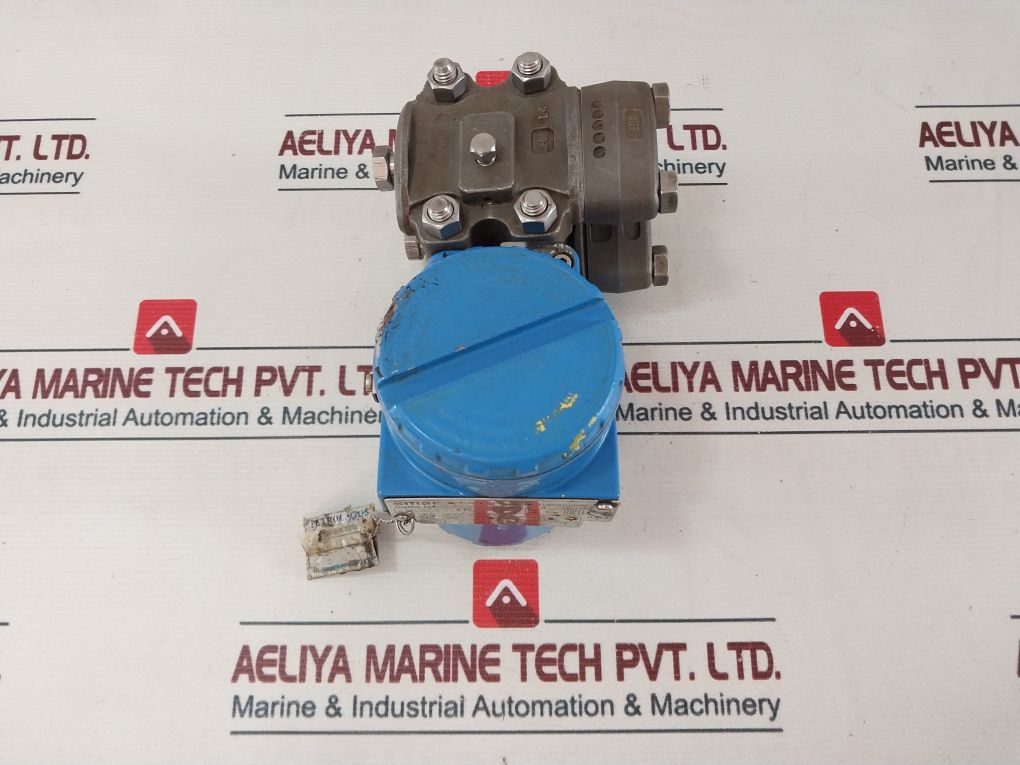

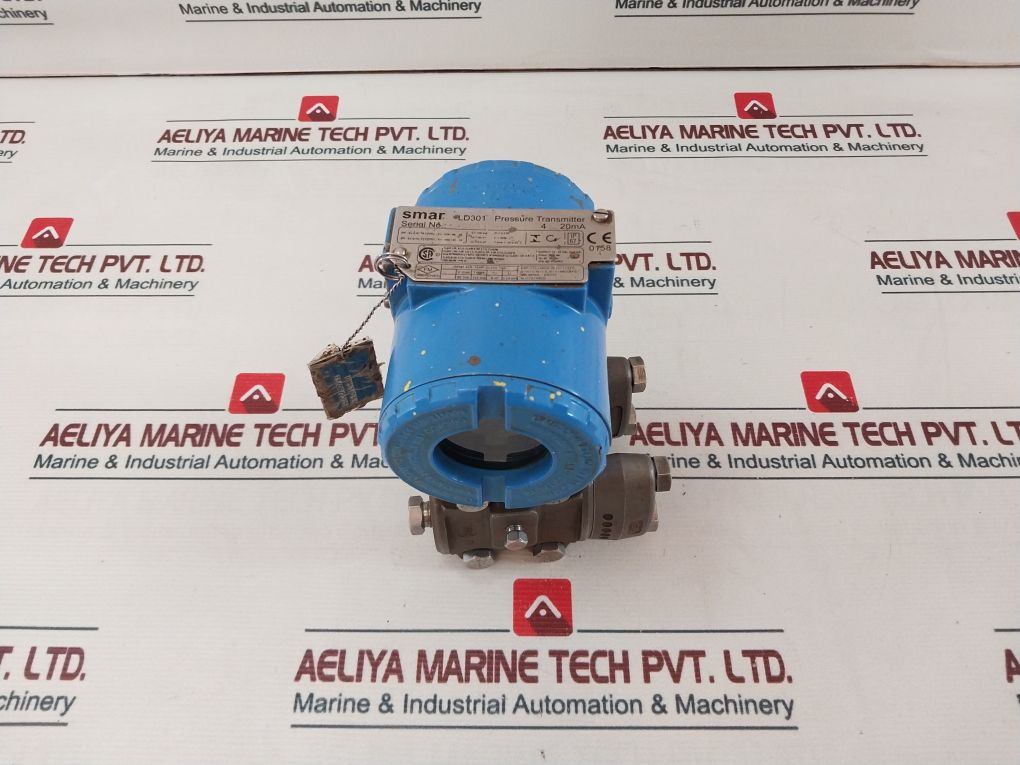

Smar Ld301 Pressure Transmitter Ip67

Smar Ld301 Pressure Transmitter Ip67
Smar

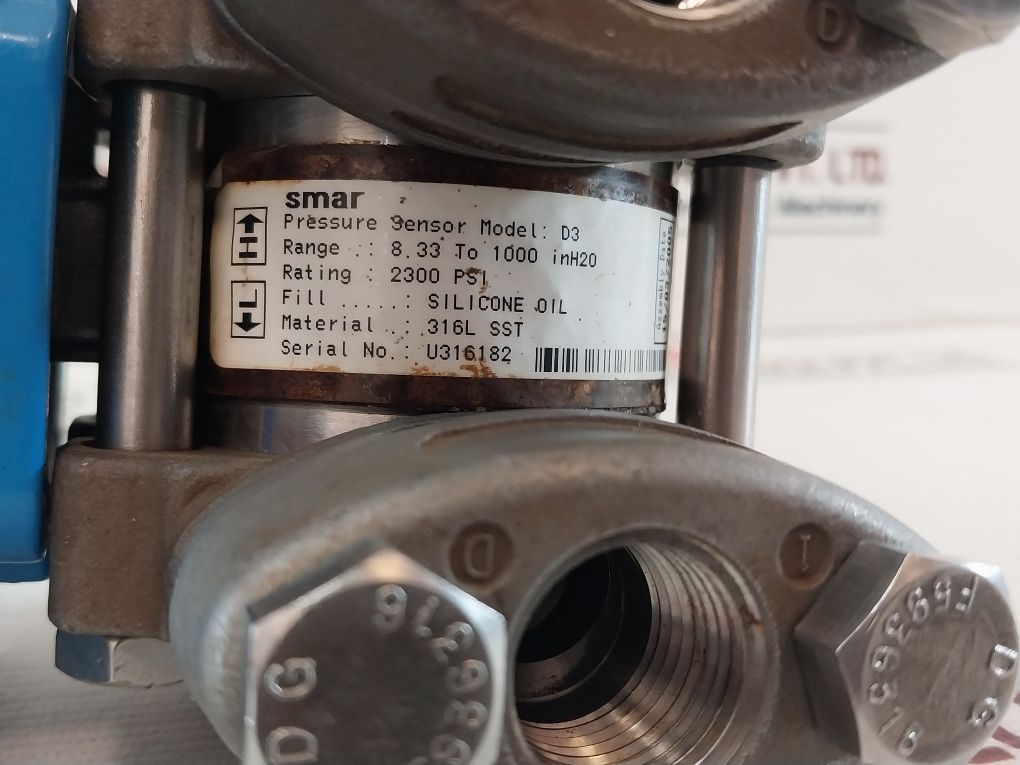

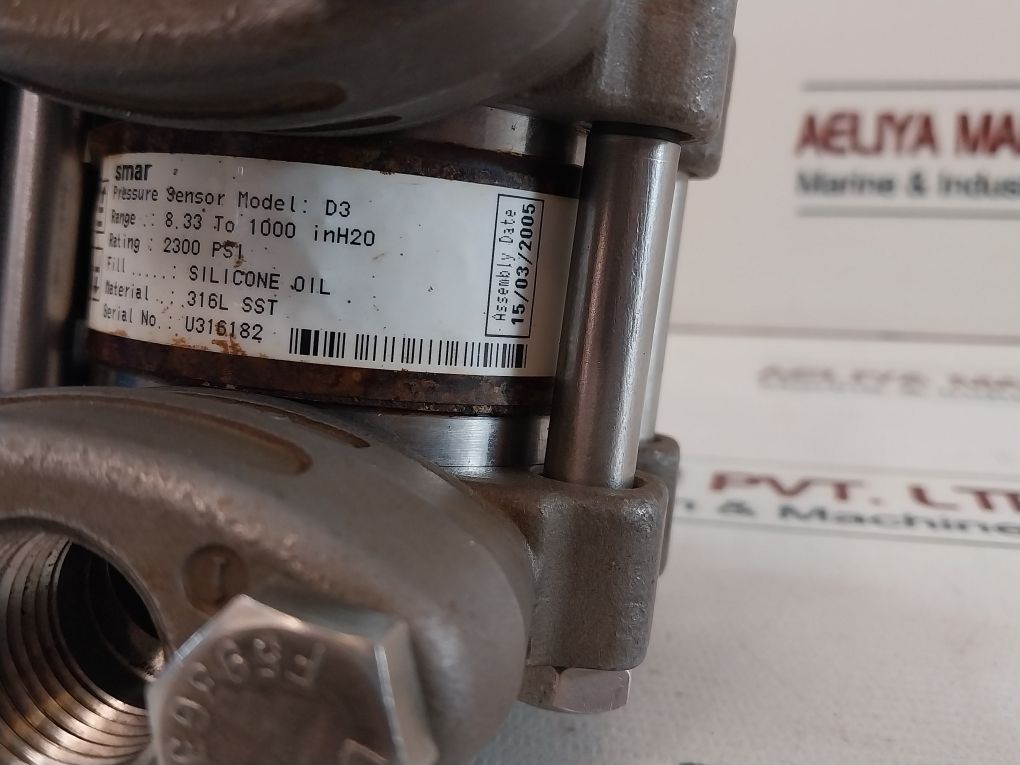

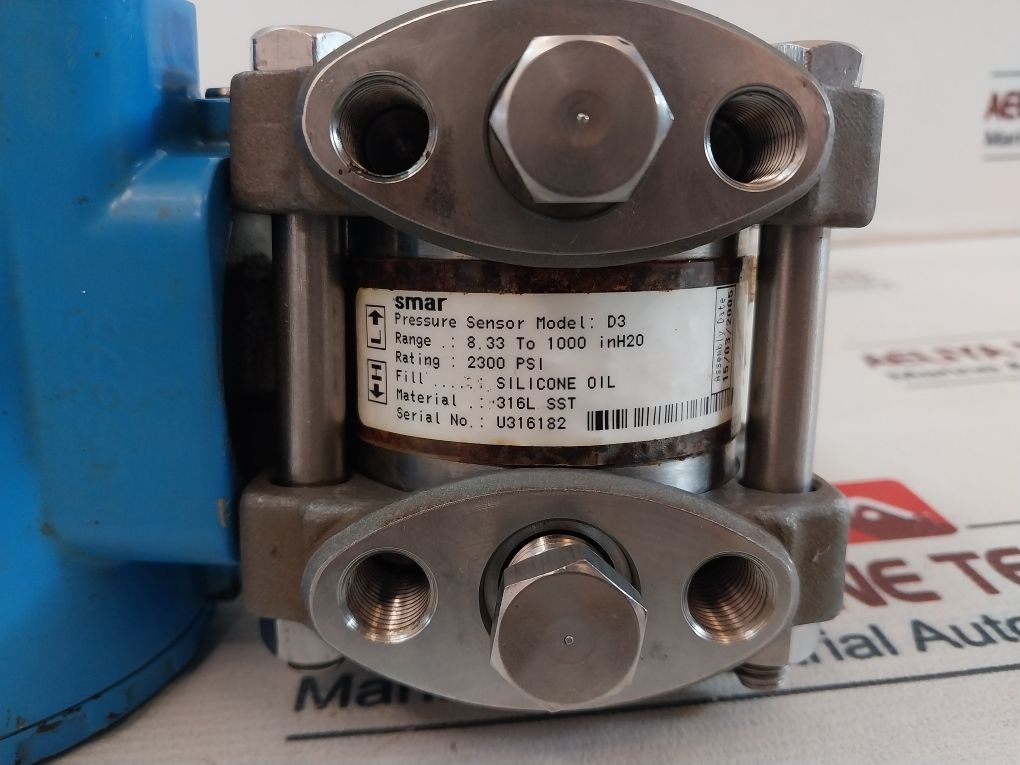

Pressure Sensor
Pressure Transmitter

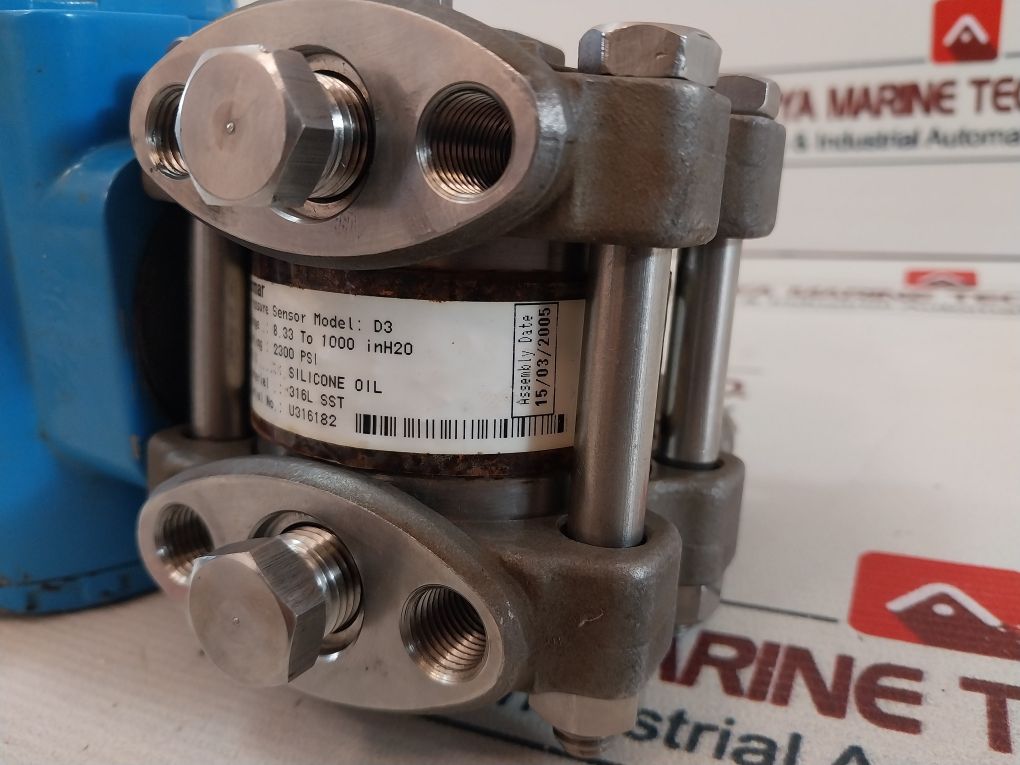

Model: D3
Ld301
Range: 8.33 To 1000 Inh20
Rating: 2300 Psi
Fill: Silicone Oil
Material: 316l Sst

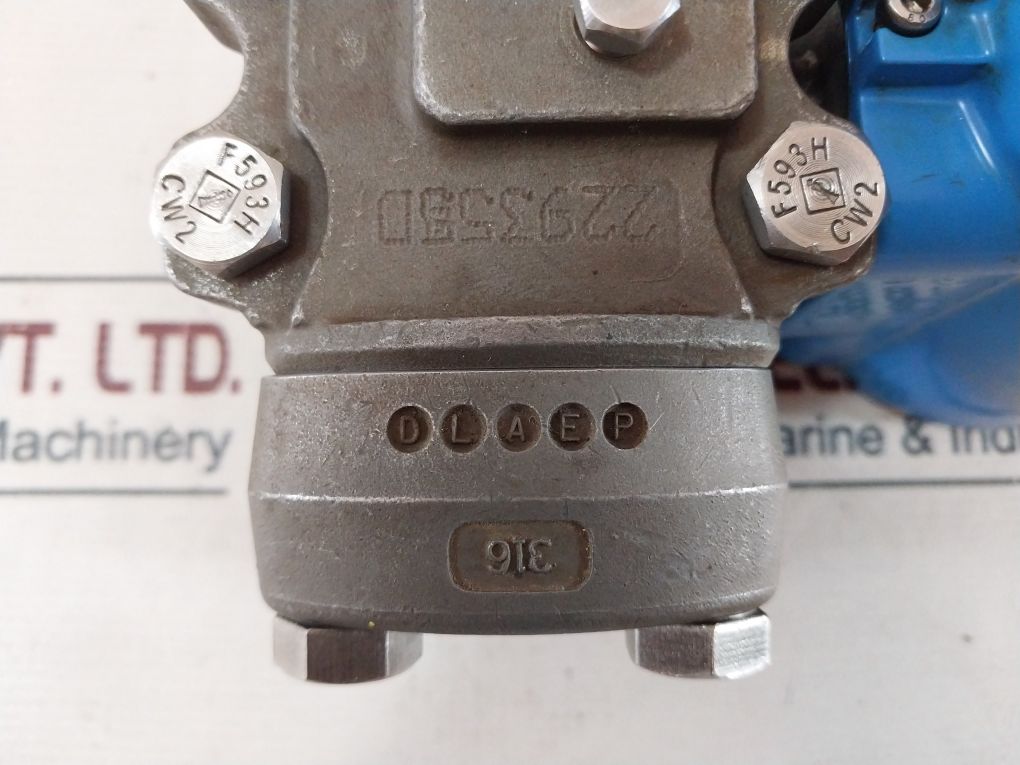

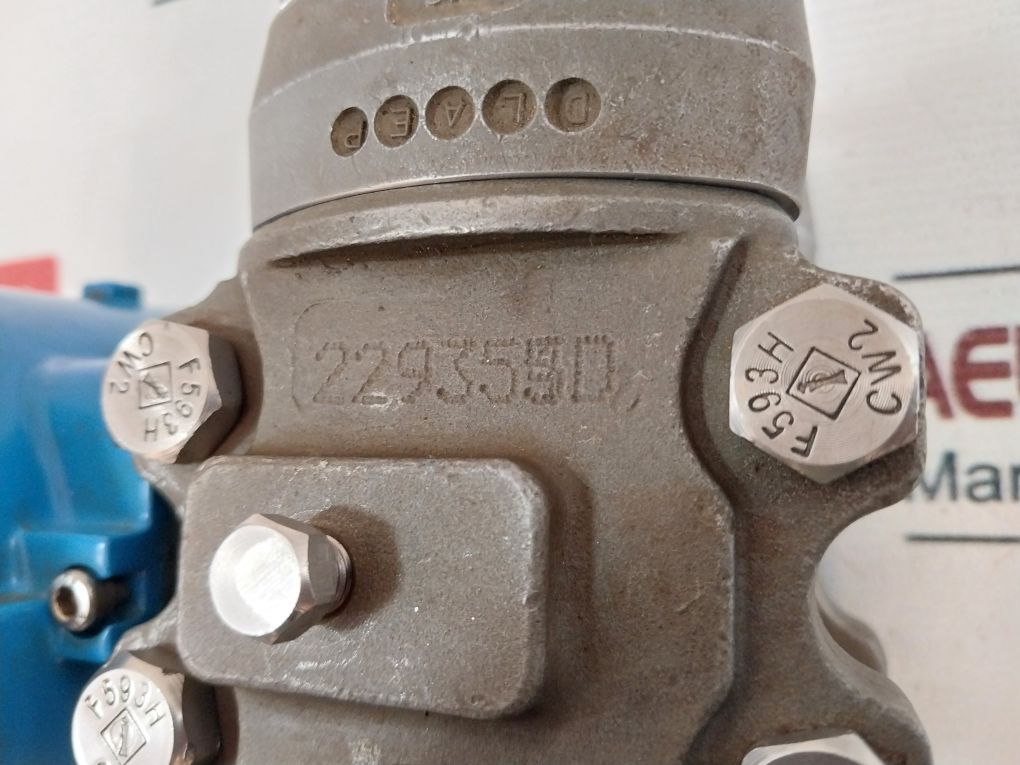

229355d
4…20ma

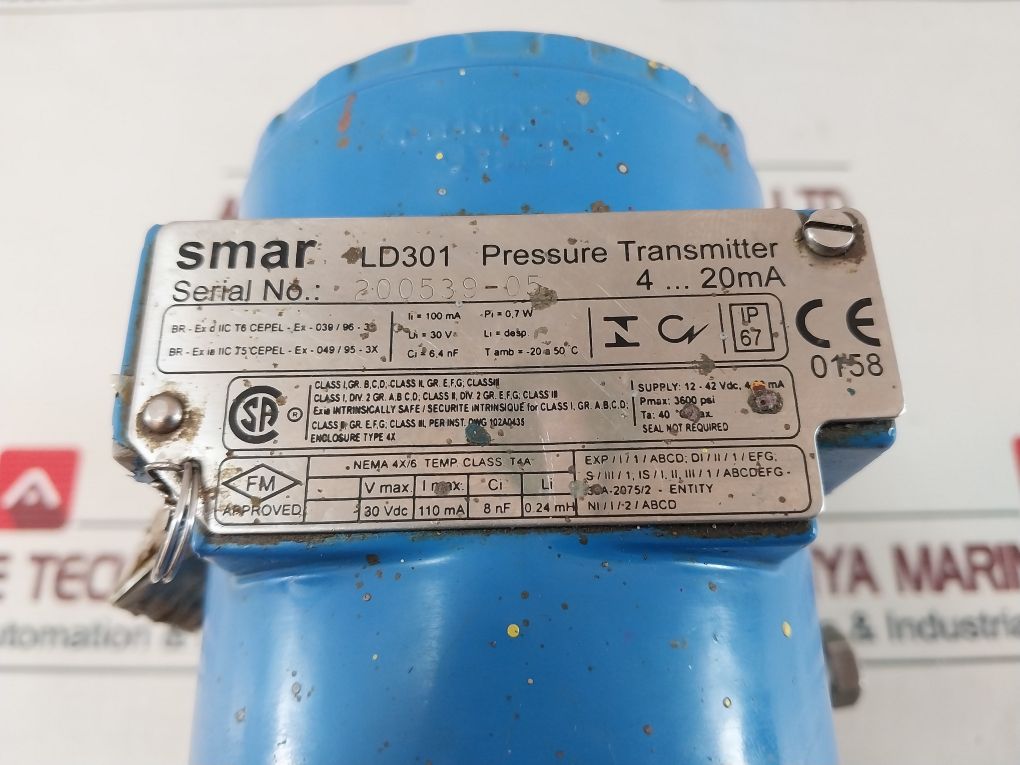

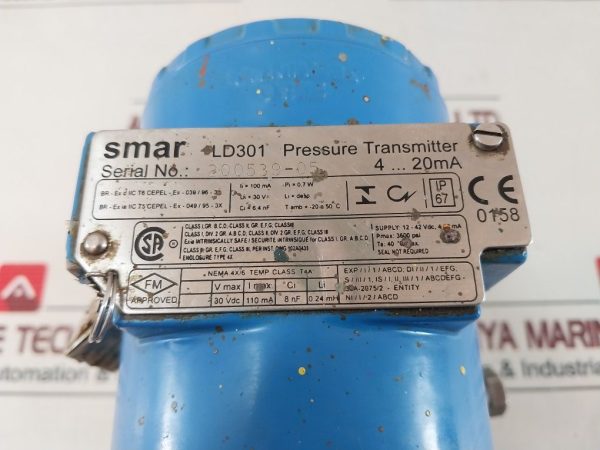

Br-ex D Iic T6 Cepel-ex-039/96-3x
Br-ex Ia Iic T5 Cepel-ex-049/95-3x
Ii=100 Ma Pi=0.7w
Ui=30v Li=desp.
Ci=6.4 Nf T Amb= -20a 50°c
Ip67
Class I, Gr. B, C, D; Class Ii, Gr. E, F, G; Class Iii
Class I, Div.2 Gr.a, B, C, D; Class Ii, Div.2 Gr. E, F, G; Class Iii
Class I, Gr. A, B, C, D;
Class Ii, Gr. E, F, G; Class Iii
Enclosure Type 4x
Supply: 12-42 Vdc, 4-20ma
Pmax: 3600 Psi
Ta: 40°c Max
Nema 4x/6 Temp.class: T4a
V Max.: 30 Vdc
I Max: 110 Ma
Ci: 8 Nf
Li: 0.24 Mh
Weight : 5.500 Kg
Ref No : 77940
