| Attribute | Value |
|---|---|
| Brand | Siemens AG |
| Series | Sirius |
| Product Type | Circuit Breaker |

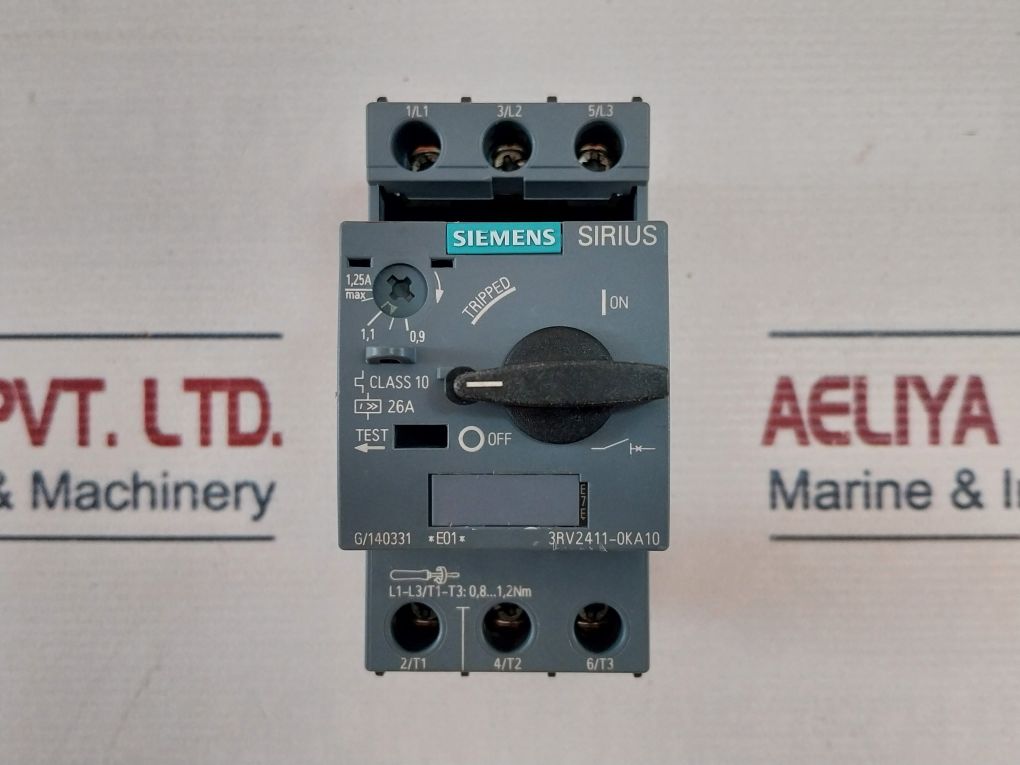

| Model | 3RV2411-0KA10 |
| Current Range | 0.9 – 1.25A Max |
| Class | Class 10 |
| Code | G/140331 |
| Marking | *E01* |

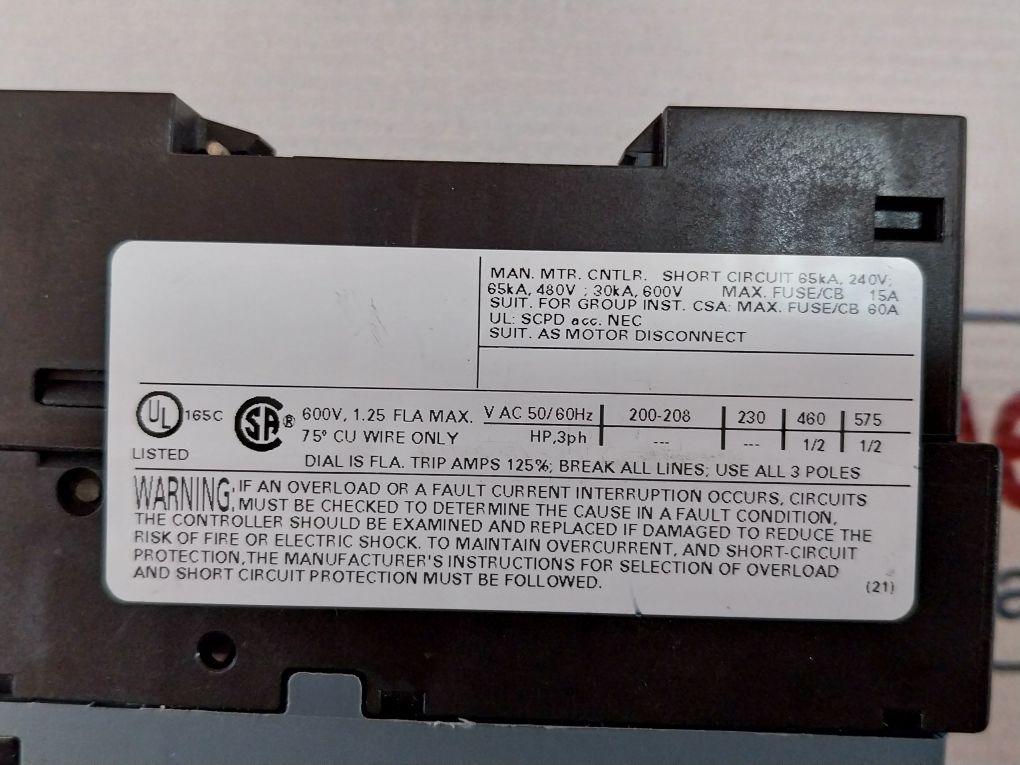

| Voltage | 600V |
| Wiring | 75° Cu Wire Only |
| Trip Amps | 125% |
| Poles | Use All 3 Poles |

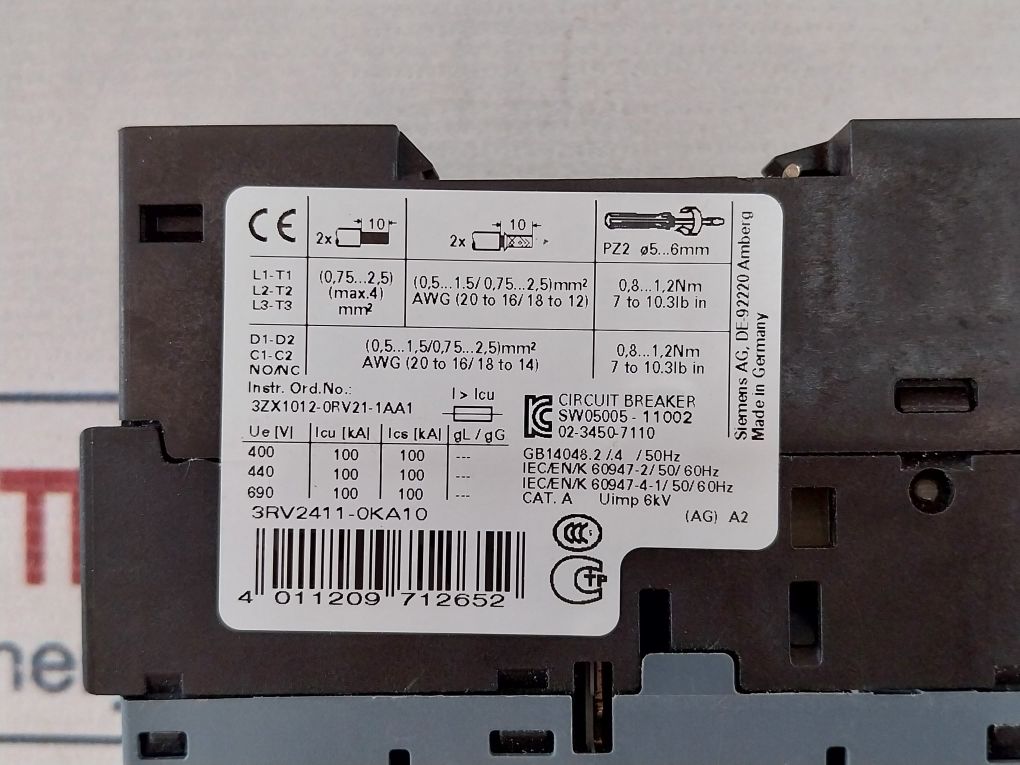

| Instruction Order No. | 3ZX1012-0RV21-1AA1 |
| SW No. | SW05005-11002 |
| Additional Code | 02-3450-7110 |
| Standards | GB14048.2/.4 / 50Hz |
| IEC/EN/K | 60947-2 / 50/60Hz 60947-4-1 / 50/60Hz |
| Category | Cat.A |
| Uimp | 6kV |
| Barcode | 4 011209 712652 |
| Country of Origin | Made in Germany |
| Weight | 320 gm |
| Ref No | 79312 |

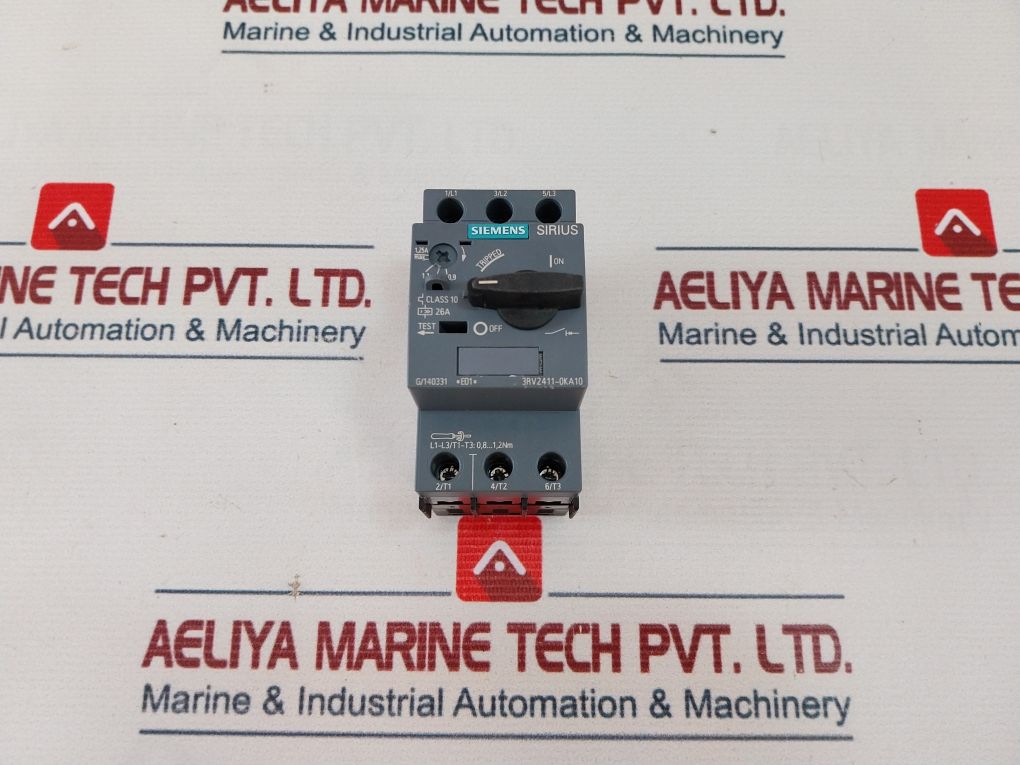

What is the Siemens 3RV2411-0KA10 Motor Protection Circuit Breaker?
The 3RV2411-0KA10 is a compact, current-limiting motor protection circuit breaker for protecting motors up to 0.55 kW at 400V. It protects against overload, short circuit, and phase failure, which ensures the durability and safety of your motor systems.
With a rating of 600V, this breaker is specifically designed for harsh industrial applications where motor reliability is paramount.
Key Features and Specifications
Here’s why the Siemens Sirius 3RV2411-0KA10 stands out:
Rated Operational Voltage: 600V
Rated Current: 1.6 A
Breaking Capacity: Excellent short-circuit protection
Control Type: Trip indicator with Manual ON/OFF
Design: Compact design to fit easily on a panel

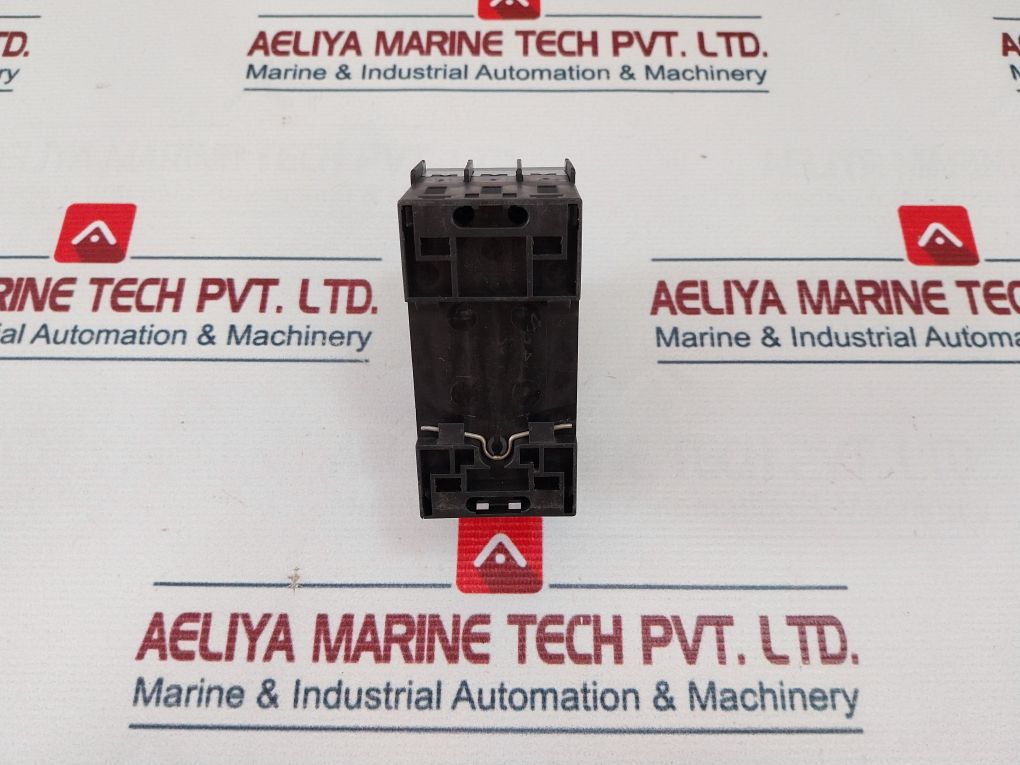

Mounting: DIN rail or screw mounting alternatives
Trip Class: Class 10 (most suitable for common motors)
Standard Compliance: IEC 60947-4-1, UL, CSA certified
This circuit breaker is also a part of the modular SIRIUS system, which means it is compatible with Siemens contactors, overload relays, and other control equipment.
Advantages of Utilizing the 3RV2411-0KA10
✅ Trustworthy Motor Protection: Avoids damage from short circuits and overloads.
✅ Space-Saving Design: Consumes less panel space and easy to install.
✅ Energy Efficient: Saves energy and reduces downtime.
✅ Simple Maintenance: Visual status indication and manual reset.
✅ Flexible Installation: Easily adapts to systems already installed with DIN or screw mounting.
✅ Long Lasting: Siemens build quality allows it to remain highly performing over its lifespan.
Applications
The circuit breaker can be ideally applied in the following:
Industrial automation systems
- HVAC devices
- Pumps and fans
- Conveyor belts
- Machine tools
- Control panels
Whether equipping a new installation or retrofitting a system, the 3RV2411-0KA10 assures peace of mind and steady motor performance.
