| Attribute | Value |
|---|---|

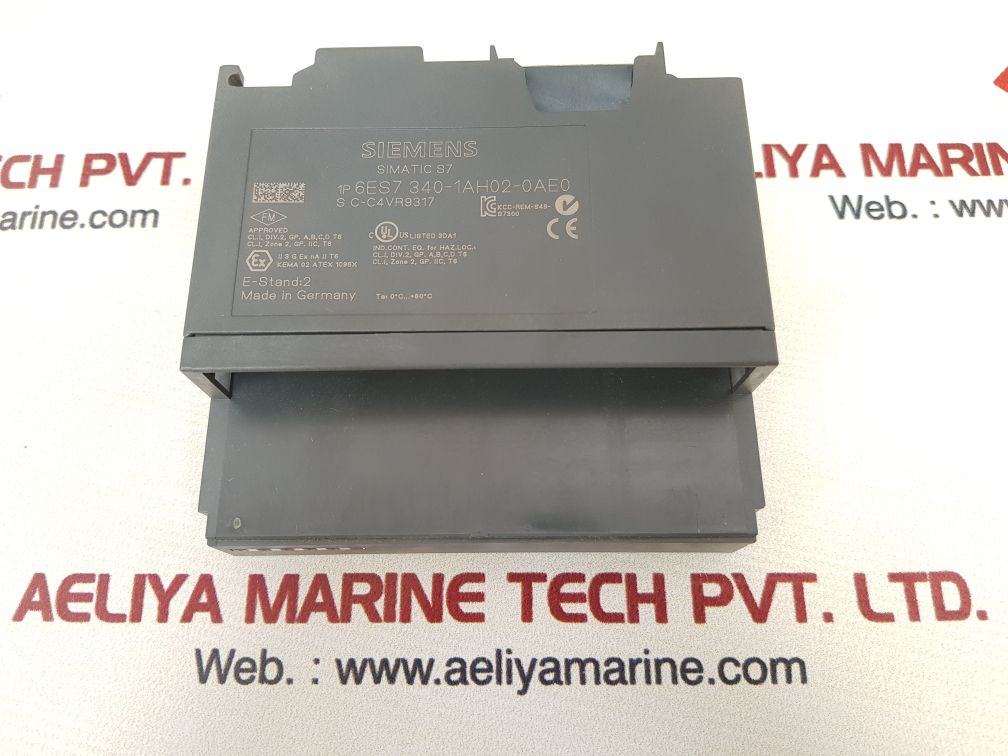

| Product Name | Siemens SIMATIC S7 6ES7 340-1AH02-0AE0
Communication Processor |
| Manufacturer | Siemens AG |
| Part Number | 1P 6ES7 340-1AH02-0AE0 |
| Module Type | CP340 |
| Model | 340-1AH02-0AE0 |
| Series | SIMATIC S7 |
| Serial Code | S C-C4VR9317 |
| KCC Certification | KCC-REM-S49-S7300 |
| Explosion Protection Class | CL.I, DIV.2, GP. A.B.C.D T6 |
| Zone Classification | CL.I, Zone 2, GP. IIC, T6 |
| ATEX Classification | II 3 G Ex na II T6 |
| ATEX Certificate | KEMA 02 ATEX 1096X |
| E-Stand | 2 |
| Temperature Range | TA: 0°C…+60°C |
| Platform | S7-300 |

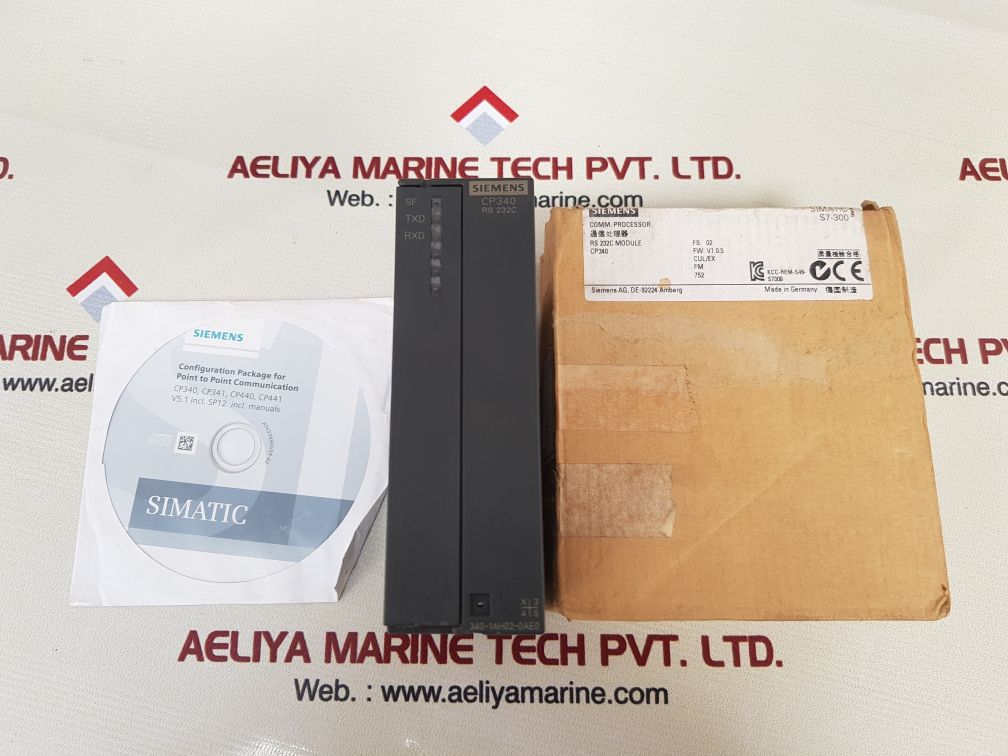

| Component Type | Communication Processor |
| Communication Interface | RS 232C Module |
| Feature Set | FS: 02 |
| Firmware Version | FW: V1.0.5 |
| Certifications | CUL/EX, FM |
| Approval Number | 752 |
| Document Number | A5E03690559-02 |
| Country of Origin | Made in Germany |
| Weight | 360 gm |
What is the Siemens SIMATIC S7 6ES7 340-1AH02-0AE0?
The 6ES7 340-1AH02-0AE0 is a communication processor that integrates perfectly with the SIMATIC S7-300 programmable logic controller (PLC) system. Being a part of Siemens’ reliable automation product family, this module facilitates smooth communication between PLCs and higher-level systems or networks.
It is MPI/DP interface compatible, and thus it can be integrated in complicated networks, particularly where devices need to share large volumes of data rapidly and efficiently.
Key Features
The following are some of the notable features of the Siemens 6ES7 340-1AH02-0AE0:
1. Improved Data Communication
The module enables rapid and secure communication through the PROFIBUS DP protocol. It’s designed to manage intensive data exchange between controllers, HMIs, and other equipment.
2. Compatibility
It is fully compatible with SIMATIC S7-300 CPUs, particularly those that need additional communication features. The module extends the communication horizon of the PLC, and the possibilities become enormous for scalable industrial solutions.
3. Compact Modular Form
Being a part of the S7-300 series, the processor has a modular design. This saves space while offering easy setup and expansion.
4. Diagnostic Functions
With LED indicators and comprehensive diagnostic features, the module facilitates rapid troubleshooting and system monitoring—cutting downtime and enhancing maintenance efficiency.
5. Multi-Protocol Support
In addition to PROFIBUS alone, the processor is versatile enough to accommodate MPI (Multi-Point Interface) so that it can be used to connect to Siemens programming devices or other automation systems.
Technical Specifications
Order Number: 6ES7 340-1AH02-0AE0
Type: Communication Processor
Bus Type: PROFIBUS DP / MPI
Communication Rate: Up to 12 Mbps
Mounting: DIN Rail (S7-300 rack)
Power Supply: Through backplane bus
Diagnostic LEDs: Yes
Programming Software: SIMATIC STEP 7
Applications in Industrial Automation
The 6ES7 340-1AH02-0AE0 finds extensive applications across different industries where communication must be dependable. Some of the popular applications are:
1. Manufacturing Plants
In automated production lines, the processor facilitates efficient data exchange among programmable controllers, operator interfaces, and SCADA systems.
2. Water Treatment Facilities
Right and timely data exchange is important in controlling water flow and quality. This module facilitates real-time communication between control units and monitoring equipment.
3. Food and Beverage Industry
In areas that demand cleanliness and precise control, the communication processor facilitates flexible automation in adherence to industry standards.
4. Material Handling Systems
Where conveyors, robotics, or automated warehouses are involved, the module offers strong network connectivity for efficient logistics management.
Why Choose Siemens 6ES7 340-1AH02-0AE0?
Selecting this communication processor is a decision based on reliability, performance, and compatibility. Here’s why it’s superior:
Trusted Brand: Siemens is the world leader in automation technology.
Future-Proof: Is compatible with scalable automation solutions.
User-Friendly Tools: Simple to configure via STEP 7 software.
Industry-Proven: Installed in thousands of automation installations around the globe.
