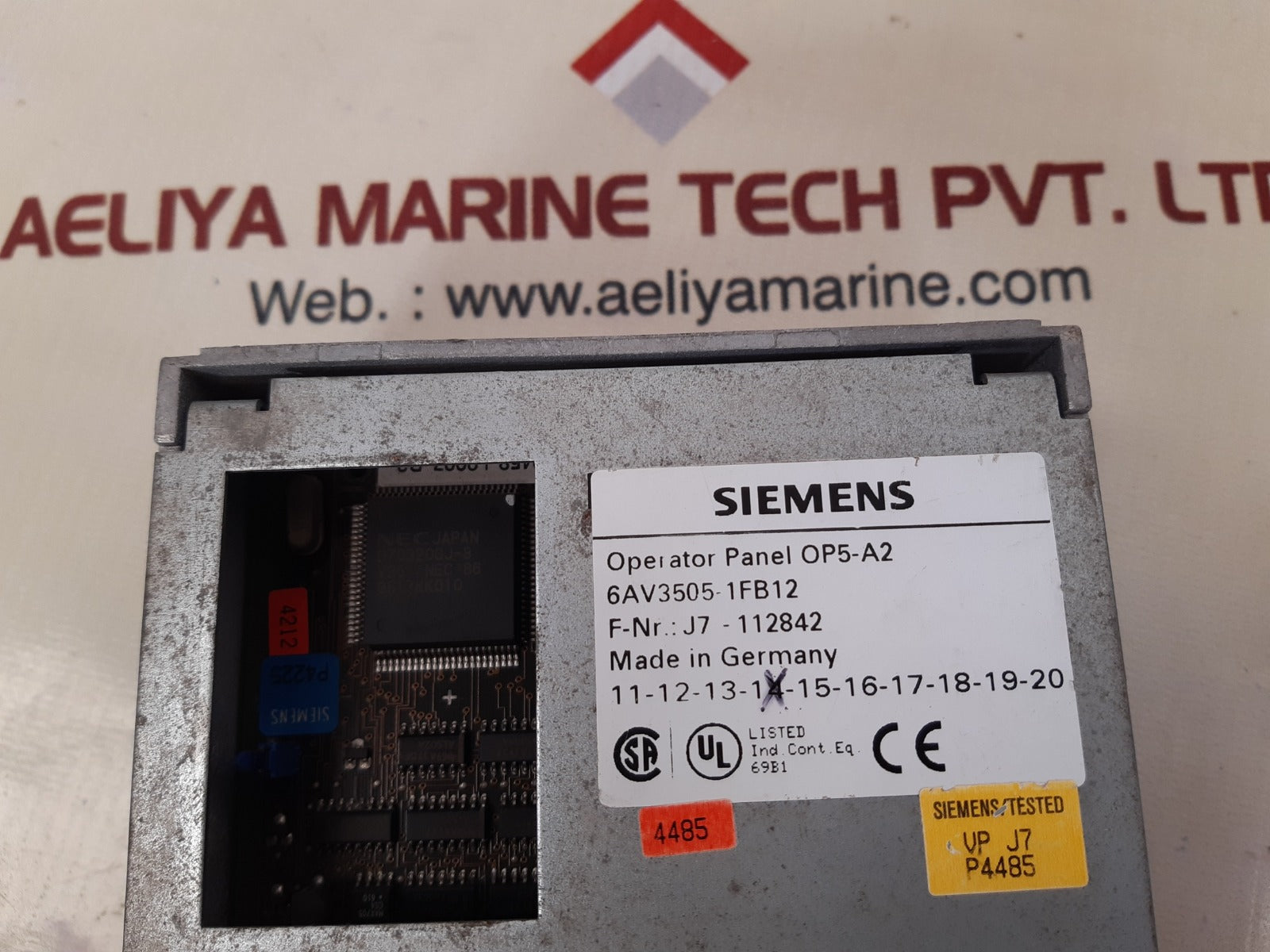

| Attribute | Value |
|---|---|
| Brand | Siemens |
| Product Type | Operator Panel OP5-A2 |
| Model Number | 6AV3505-1FB12 |
| Serial / F-Nr. | J7-112842 |
| Terminal Range | 11 to 13, 15 to 20 |
| Voltage | 24VDC |
| Max Current | 0.25 A |
| Country of Origin | Made in Germany |
| Weight | 620 gm |
What is the Siemens 6AV3505-1FB12 Operator Panel?
The Siemens 6AV3505-1FB12, or OP5, is a small Human Machine Interface (HMI) that provides easy interaction with industrial control systems and machines. Developed under the COROS OP5 series, this panel is famous for its sturdy construction, useful display, and programmable interface—perfect for legacy and current industrial automation systems.
Its part designation J7-112842 switch suggests compatibility with certain controller units or input systems, and thus it is a must-have interface for machine control and data input.
Features of the Siemens 6AV3505-1FB12 Operator Panel
Compact Design
The OP5 is suitable for mounting in compact control cabinets and therefore great for restricted automation areas.
Reliable Display Interface
It features a monochrome display that facilitates easy display of process variables and system status.

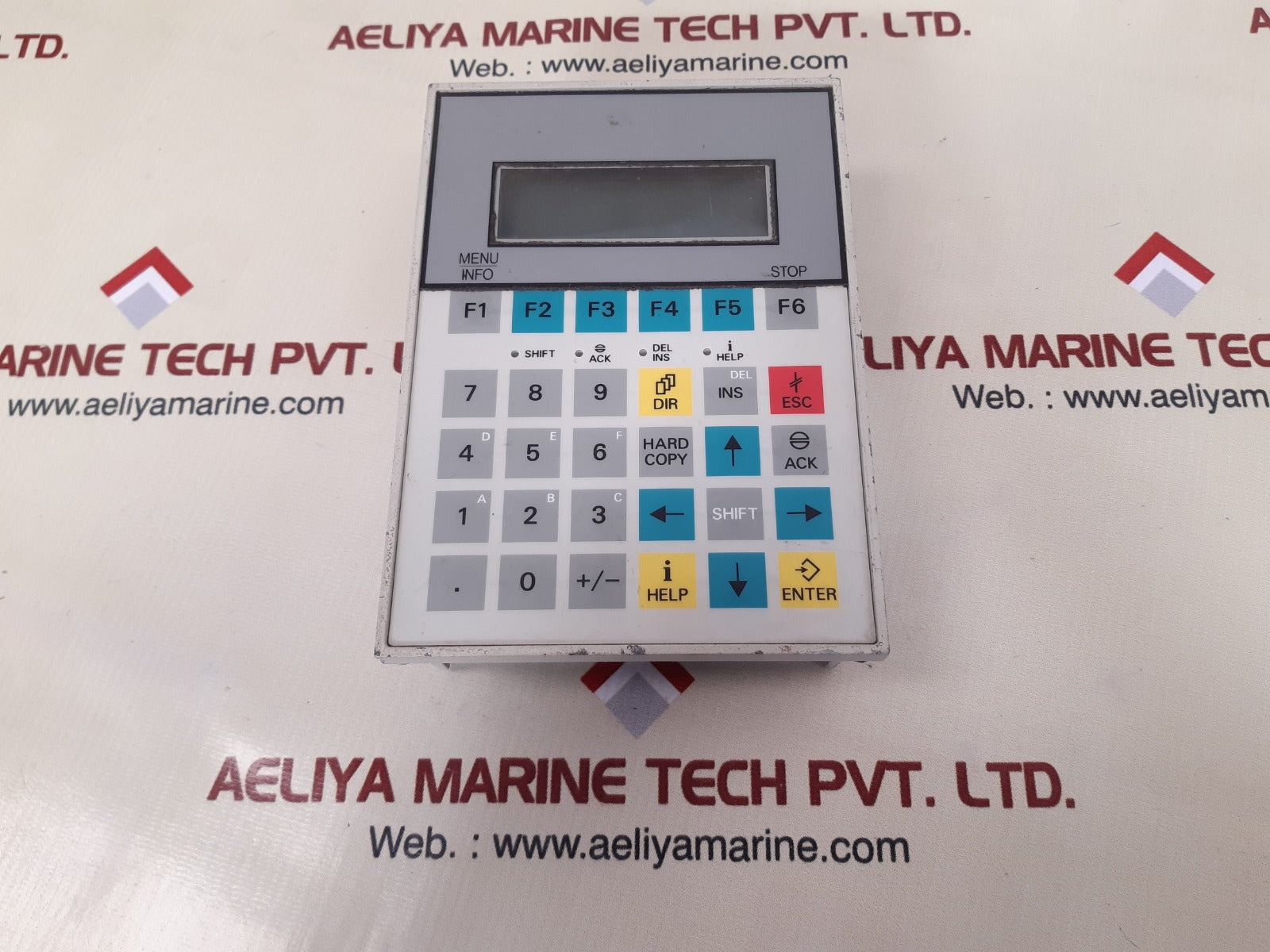

Programmable Function Keys
Multiple soft keys for custom operations allow greater control flexibility.
Friendly Navigation
The panel is designed to be easy to use, letting operators minimize errors and training.
RS232 Communication Port
Facilitates efficient serial communication with PLCs or controllers.
Robust Industrial Construction
The panel is constructed to endure industrial environments such as dust, vibration, and heat.
Applications
The 6AV3505-1FB12 OP5 is employed across a broad spectrum of automation environments:
Industrial Machinery Control
Typically configured on manufacturing lines to communicate between operators and machines.
Marine Automation Systems
Effective in controlling onboard HVAC, pump, and engine systems.
Packaging and Processing Equipment
Facilitates parameter entry, status display, and manual override.
Power Distribution Panels
Employed in control rooms for observing and setting power supply metrics.
Legacy System Integration
Effective in integrating older Siemens PLCs or S5/S7 systems in service worldwide.
Why Purchase the Siemens 6AV3505-1FB12 from Aeliya Marine?
Tested Used Panels in Stock
We at Aeliya Marine provide quality-tested used OP5 units to help businesses achieve dependable legacy replacements.
Cost-Effective Solution
Save tens of thousands of dollars versus new panel costs—great for maintenance and retrofit applications.
Quick Shipping & Support
With ready stock and technical assistance, we assist in reducing downtime.
Authenticity Guaranteed
Each unit is checked for model number authenticity such as 6AV3505-1FB12 and J7-112842 to ensure perfect compatibility.
