| Attribute | Value |
|---|---|

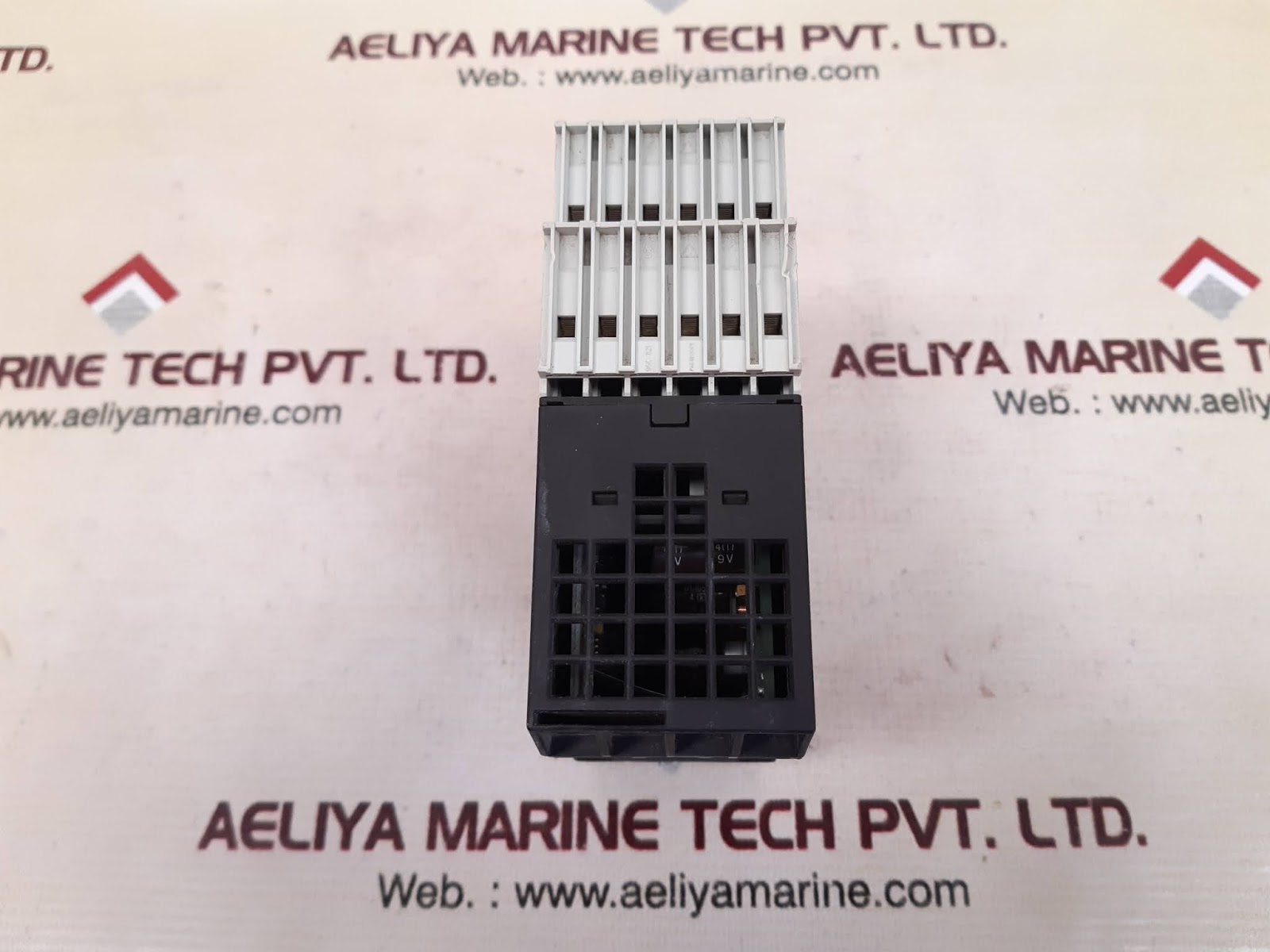

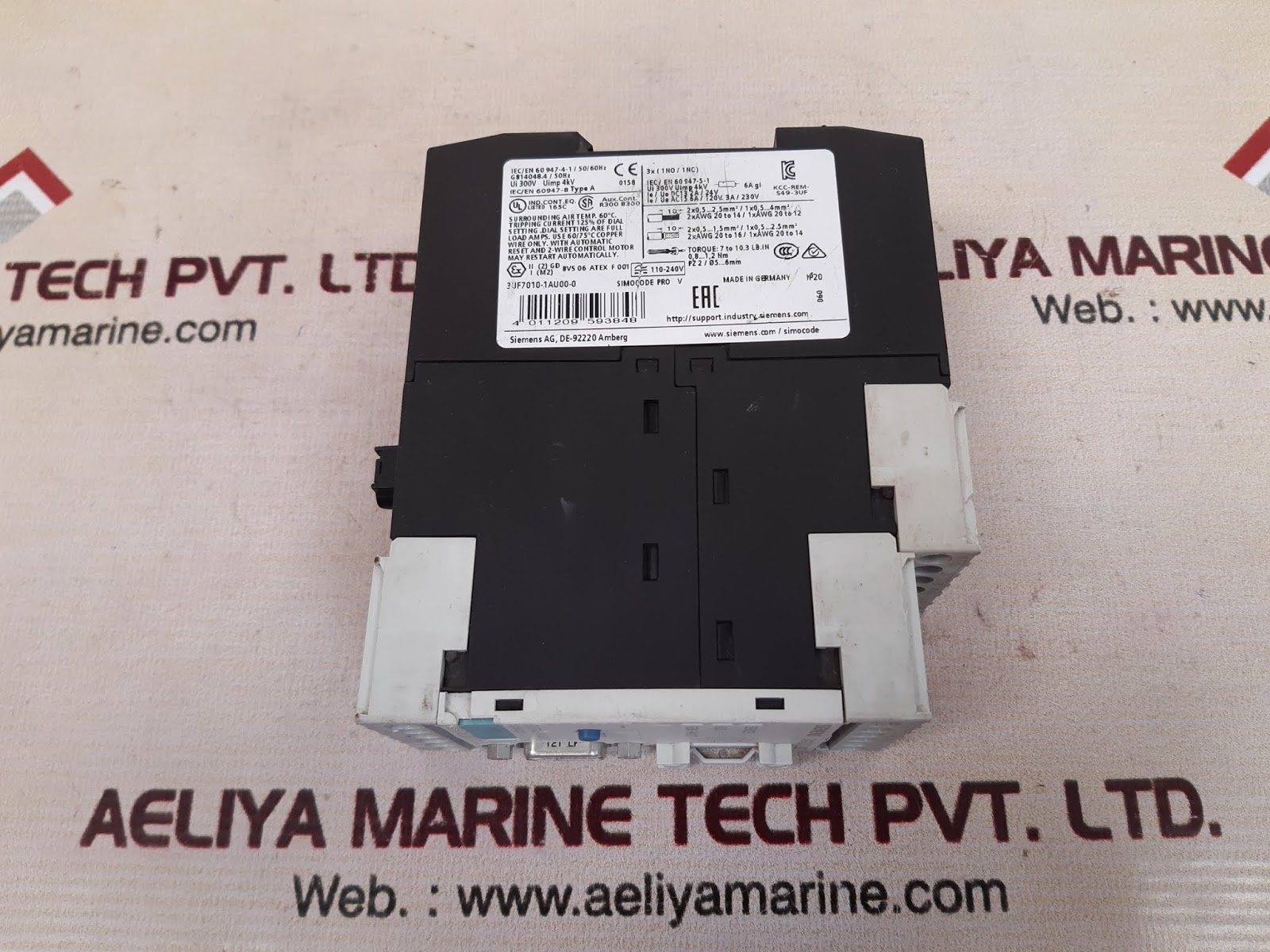

| Product Name | Siemens 3UF7010-1AU00-0 Relay Motor Control |
| Manufacturer | Siemens AG |
| Model Number | 3UF7010-1AU00-0 |
| Serial/Batch Code | G/160229 |
| Series | SIMOCODE Pro V |
| Firmware Version | *E11* V3.2.0 |
| Standards | IEC/EN 60947-4-1 / 50/60Hz |
| Additional Standard | GB14048.4 / 50 Hz |
| Rated Insulation Voltage (Ui) | 300V |
| Impulse Withstand Voltage (Uimp) | 4kV |
| Auxiliary Device Standard | IEC/EN 60947-8 Type A |
| EAN Code | 4 011209 593848 |
| Operating Voltage | ~110-240V |
| Certification | KCC-REM-S49-3UF |
| Contact Configuration | 3x (1NO / 1NC) |
| Auxiliary Contact Standard | IEC / EN 60947-5-1 |
| Ui / Uimp (Auxiliary) | 300V / 4kV (6AGL) |
| DC13 Rated Current | 2A / 24V |
| AC15 Rated Current | 6A / 120V, 3A / 230V |
| IP Rating | IP 20 |
| Country of Origin | Made in Germany |
| Weight | 330 gm |
What is the Siemens 3UF7010-1AU00-0 Relay?
Siemens 3UF7010-1AU00-0 is a SIMOCODE pro V basic unit. SIMOCODE is an abbreviation for Siemens Motor Control Device, a line of intelligent motor management devices. This model is specifically intended for low-voltage motors and offers extensive protection and monitoring capabilities. It is instrumental in prolonging motor lifespan, minimizing downtime, and maximizing operating efficiency.
Key Features of the Siemens 3UF7010-1AU00-0
Following are the highlights of this state-of-the-art relay:
Smart Motor Protection: Shields motors from overloads, phase failure, phase unbalance, and short circuits.
Accurate Monitoring: Monitors motor current, voltage, temperature, and operating hours for condition-based maintenance.
Modular Architecture: The SIMOCODE pro V system is modular, so it can be customized and extended with extra modules.
Smooth Integration: Integrates easily with automation systems through PROFIBUS and PROFINET, facilitating real-time data transfer.
User-Friendly Interface: Software configuration (e.g., SIMOCODE ES) makes setup and diagnostics easier.
Uses of the Siemens 3UF7010-1AU00-0 Relay
This motor protection relay is extensively applied in manufacturing facilities that rely on electric motors. Some typical uses are:
Manufacturing Plants: Provides consistent motor operation in assembly lines and conveyor systems.
Water Treatment Facilities: Controls pumps and motors for effective water and wastewater treatment.
Chemical Processing: Safeguards motors in corrosive or dangerous environments with precise diagnostics.
HVAC Systems: Manages fan and compressor motors, enhancing energy efficiency and system availability.
Mining and Metals: Offers heavy-duty motor protection in tough and extreme working conditions.
Advantages of Utilizing This Relay
Installation of the Siemens 3UF7010-1AU00-0 provides a number of operational benefits:
Less Downtime: Real-time alerts and diagnostics avoid unexpected failures.
Cost Savings: Timely detection of faults results in fewer repairs and longer motor life.
Scalability: The modular design can expand with your application’s sophistication.
Improved Safety: Total protection protects both equipment and people.
Why Siemens?
Siemens is a world-leading industrial automation and electrical engineering company. With decades of innovation and a legacy of quality, their motor control products are relied upon by industries worldwide. The SIMOCODE series, such as the 3UF7010-1AU00-0, is representative of Siemens’ dedication to smart, dependable, and future-proof technology.
