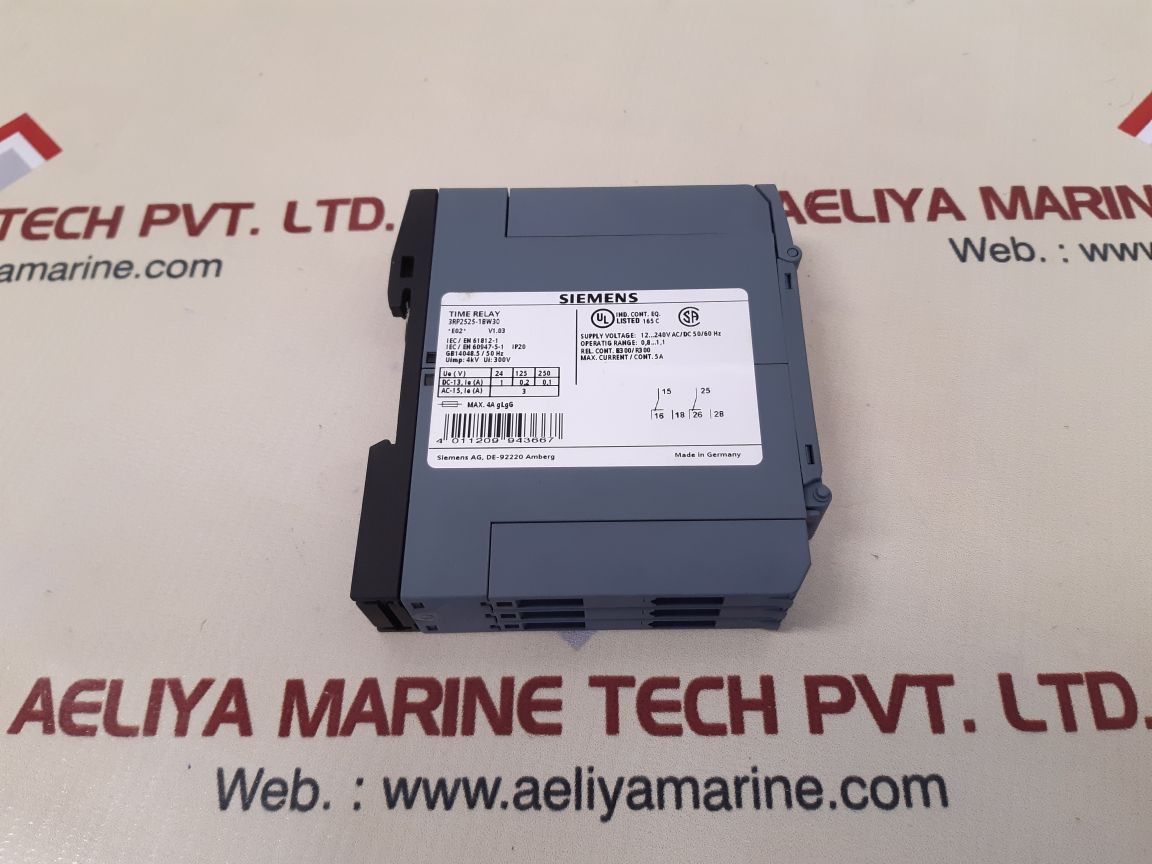

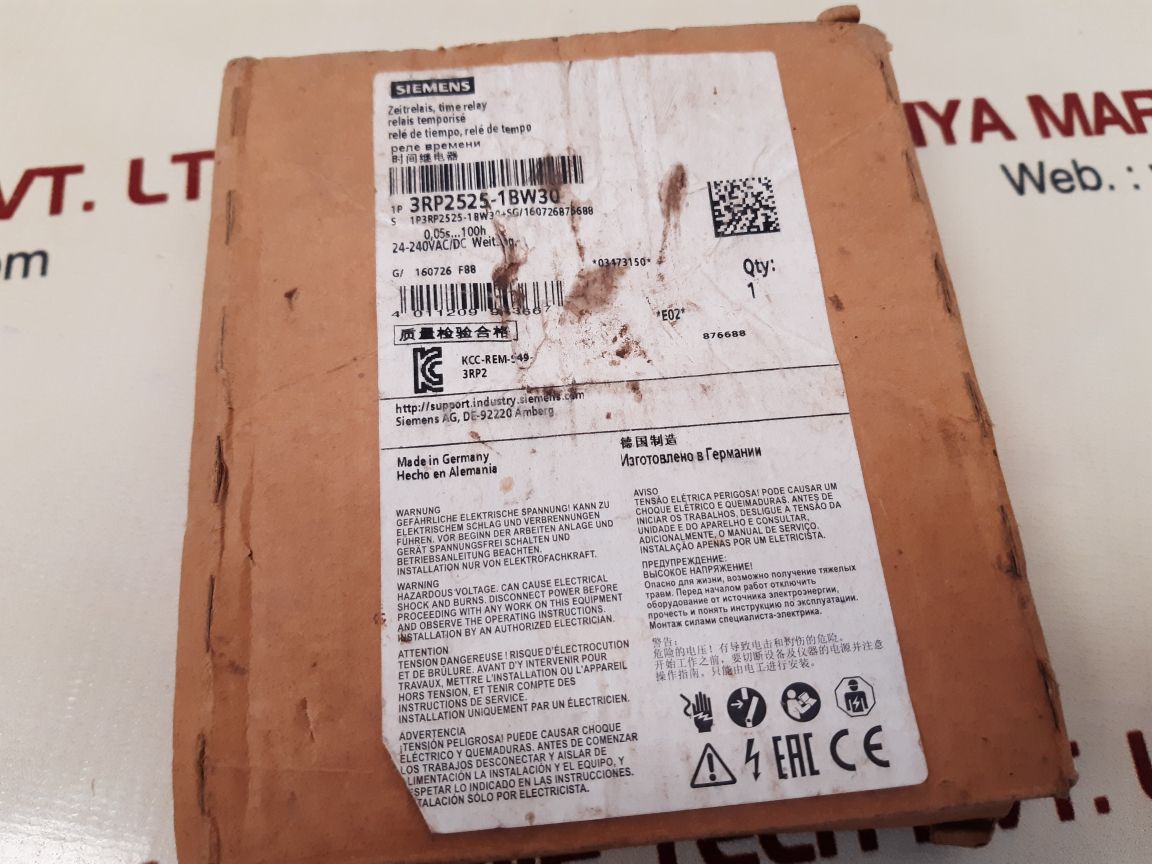

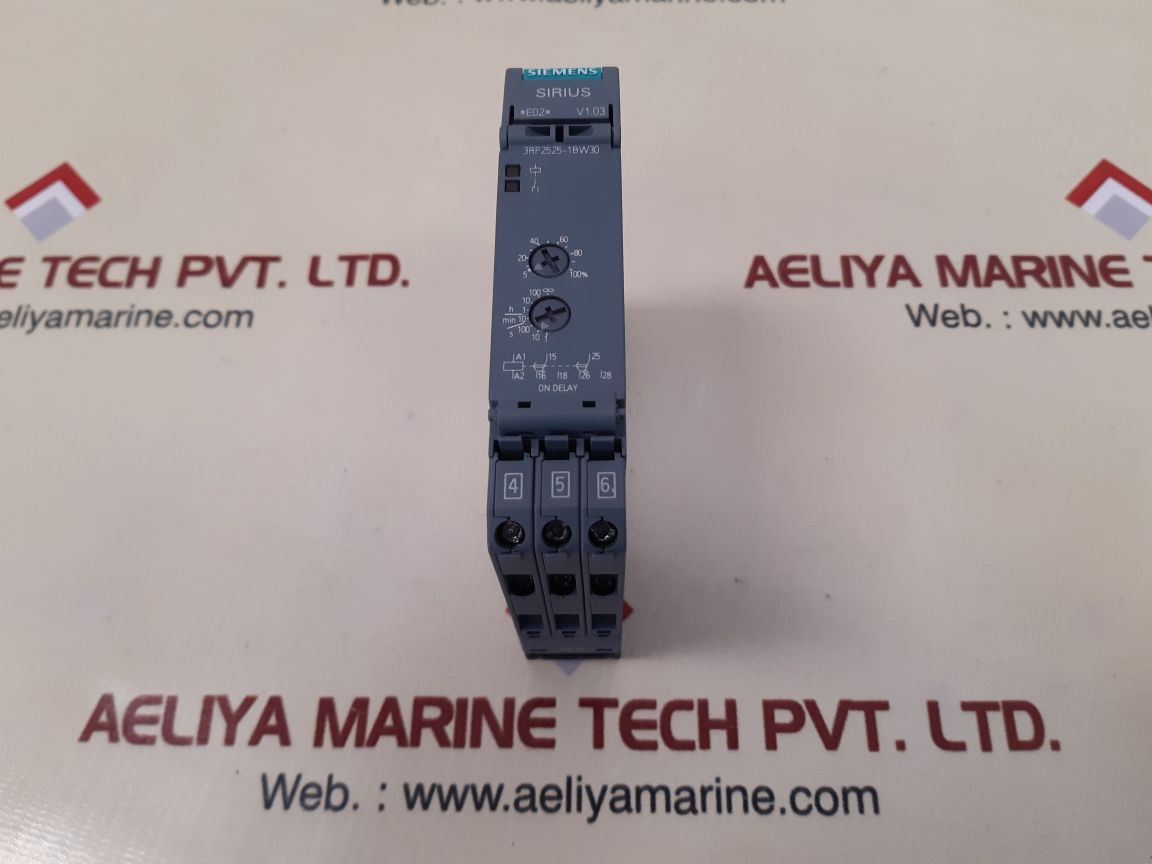

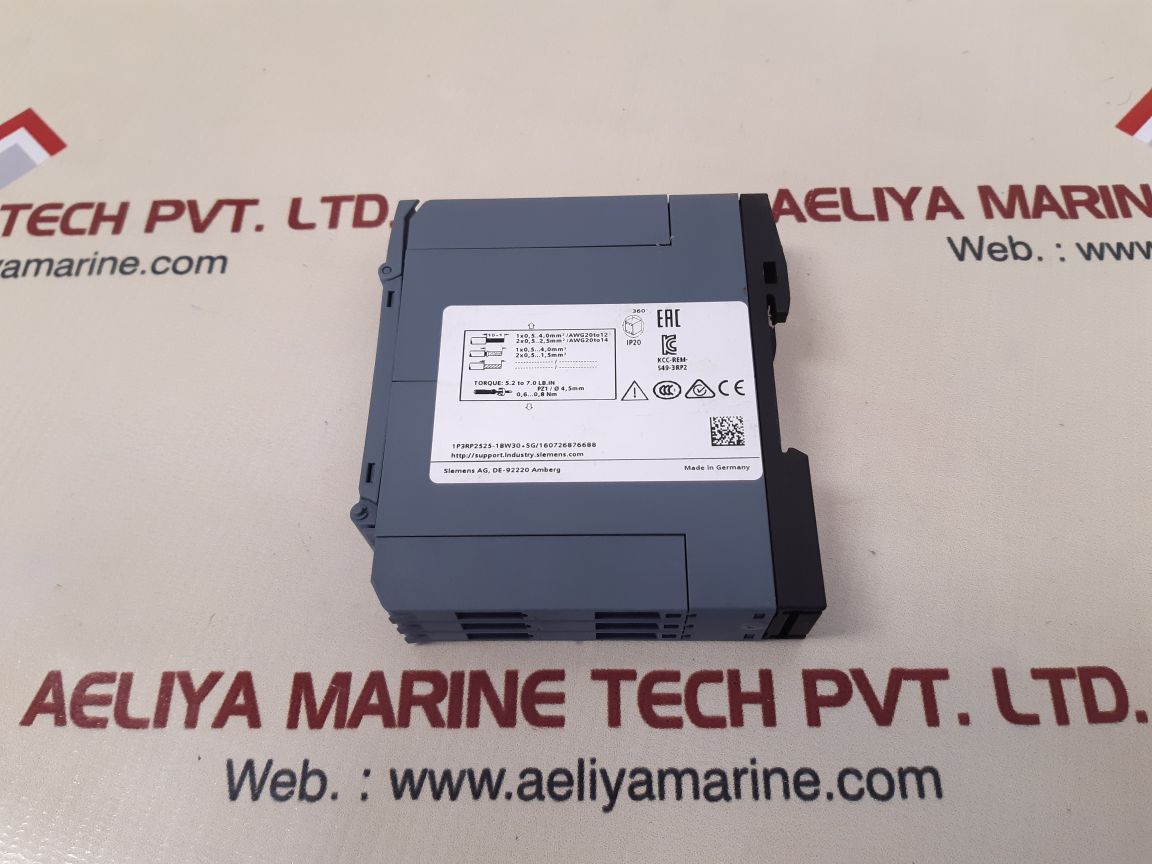

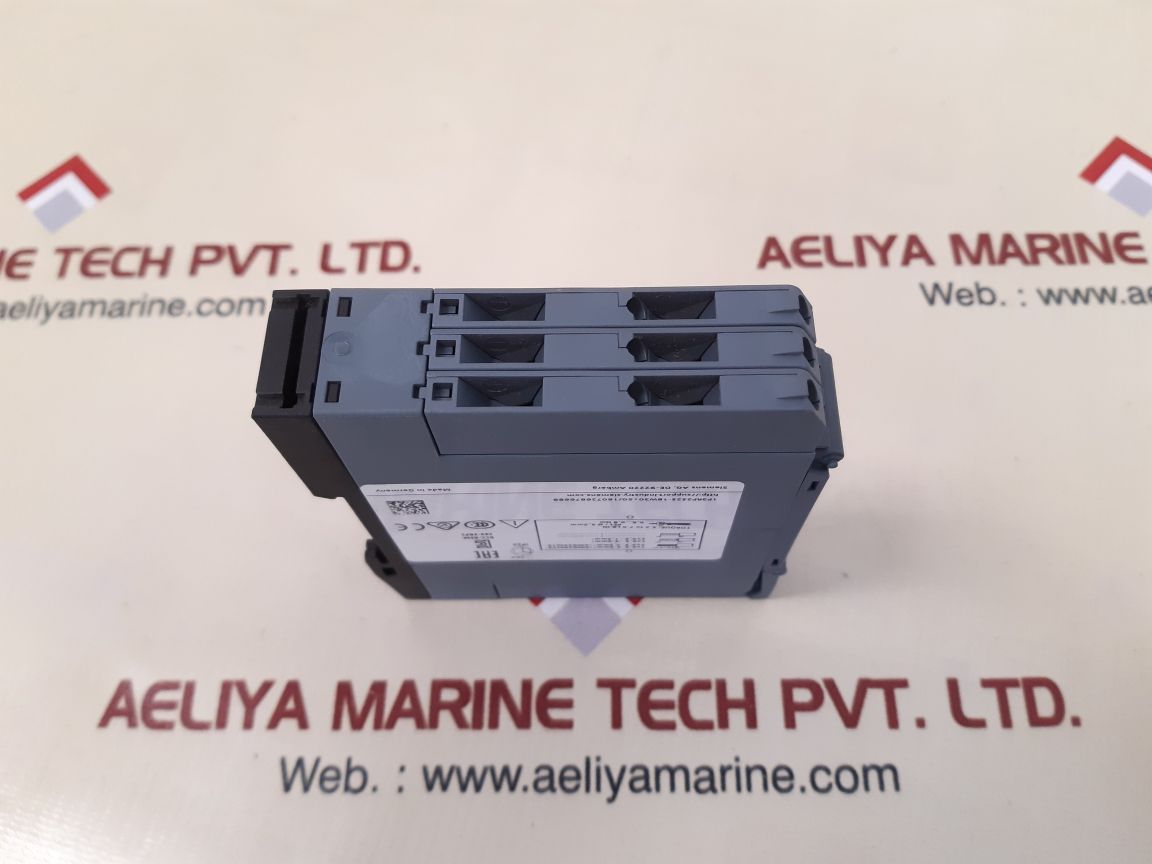

Siemens 3rp2525-1bw30 time relay

Siemens 3rp2525-1bw30 time relay
siemens ag
sirius
5 to 100 %
1 to 100s
10 min
1 to 100∞h
on delay
time relay
1p 3rp2525-1bw30
*e02* v1.03
iec/en 61812-1
iec/en 60947-5-1 ip20
gb14048.5/50 h
uimp: 4kv ui: 300v
ue (v) 24 125 250
dc-13, ie (a) 1 0.2 0.1
ac-15, ie (a) 3
max. 4a glgg
4 011209 943667
supply voltage: 12…240v ac/dc 50/60 hz
operating range: 0, 8…1,1
rel. cont. b300/r300
max.current/cont. 5a
torque: 5.2 to 7.0 lb.in
pz1/ø 4,5mm
0,6…0,8 nm
ip20 360°
kcc-rem-s49-3rp2
1p3rp2525-1bw30+sg/160726876688
s 1p3rp2525-1bw30+sg/160726876688
0,05s…100h
g/ 160726 f88 *03473150*
876688
made in germany
weight: 180 gm
