| Attribute | Value |
|---|---|

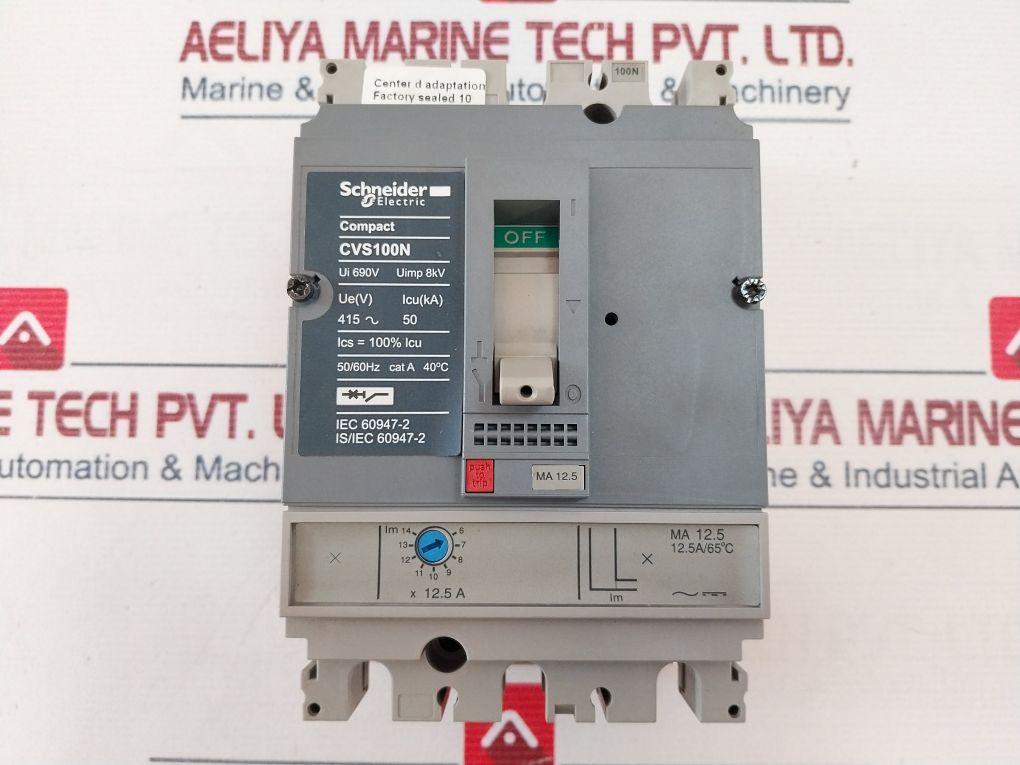

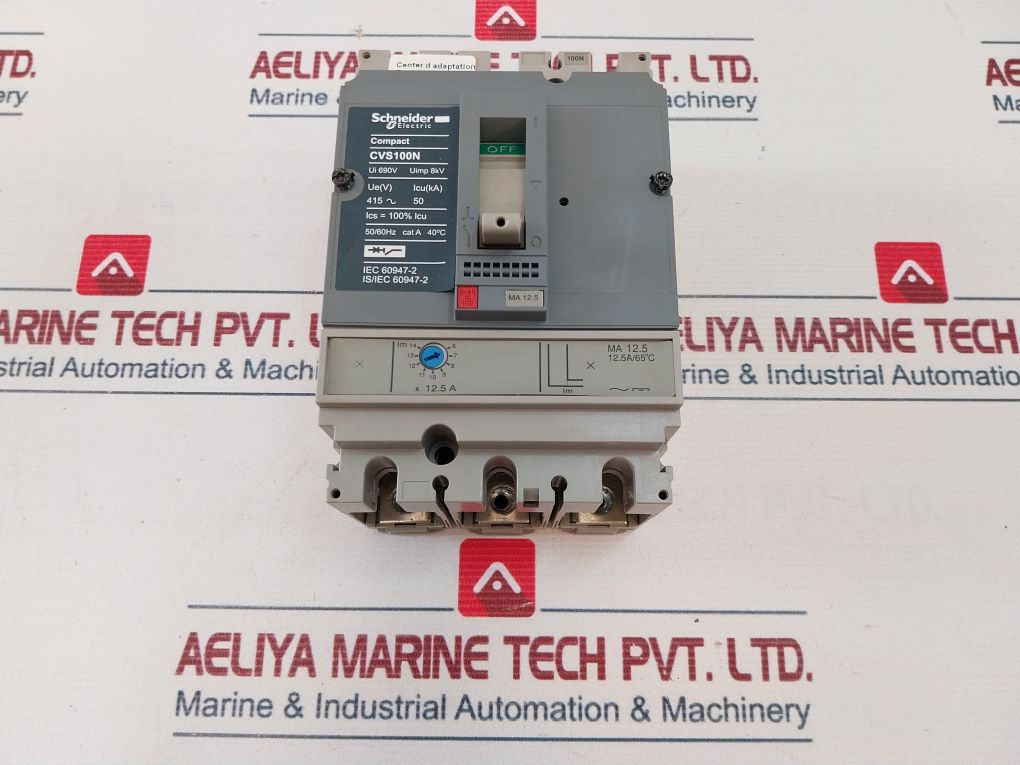

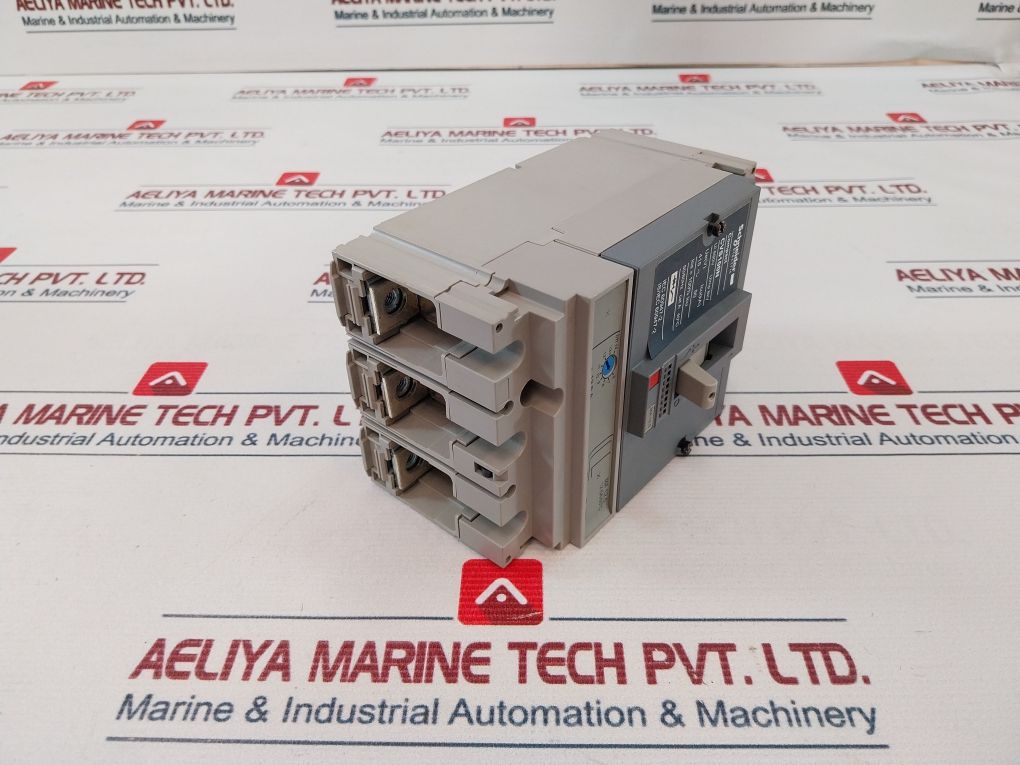

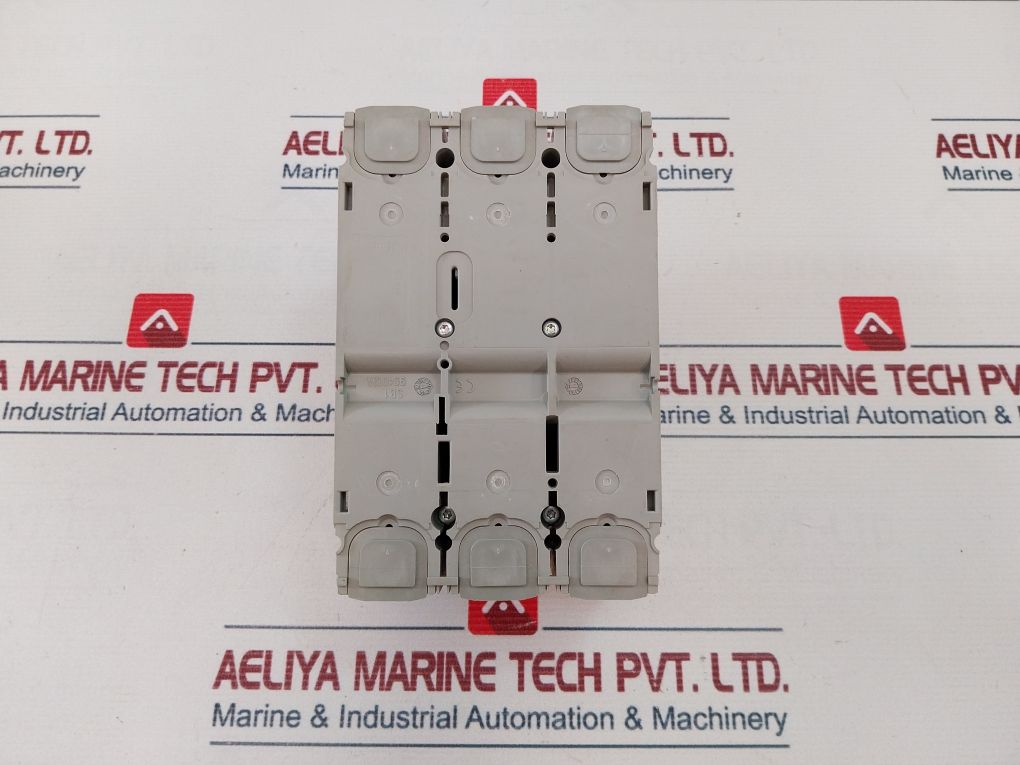

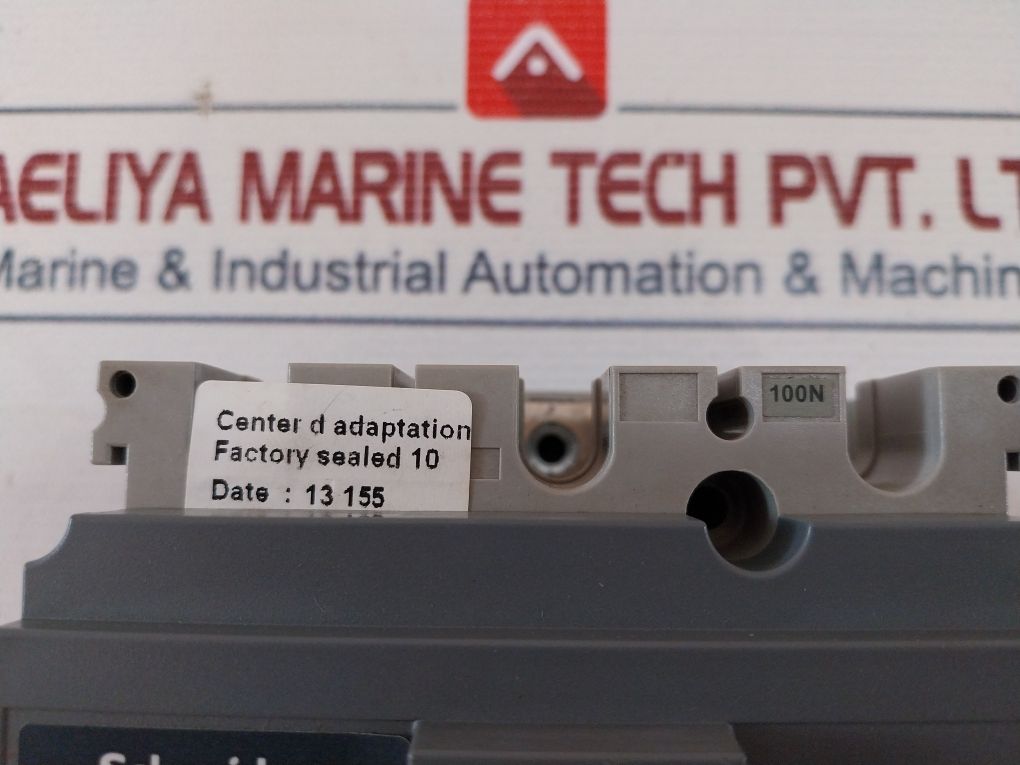

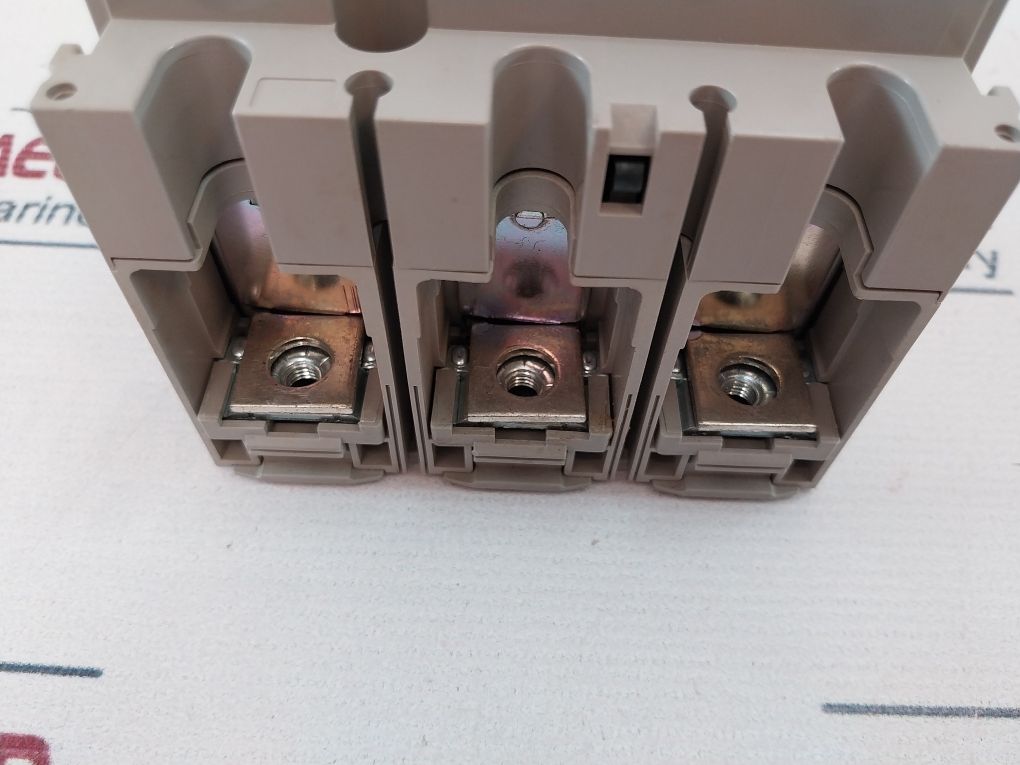

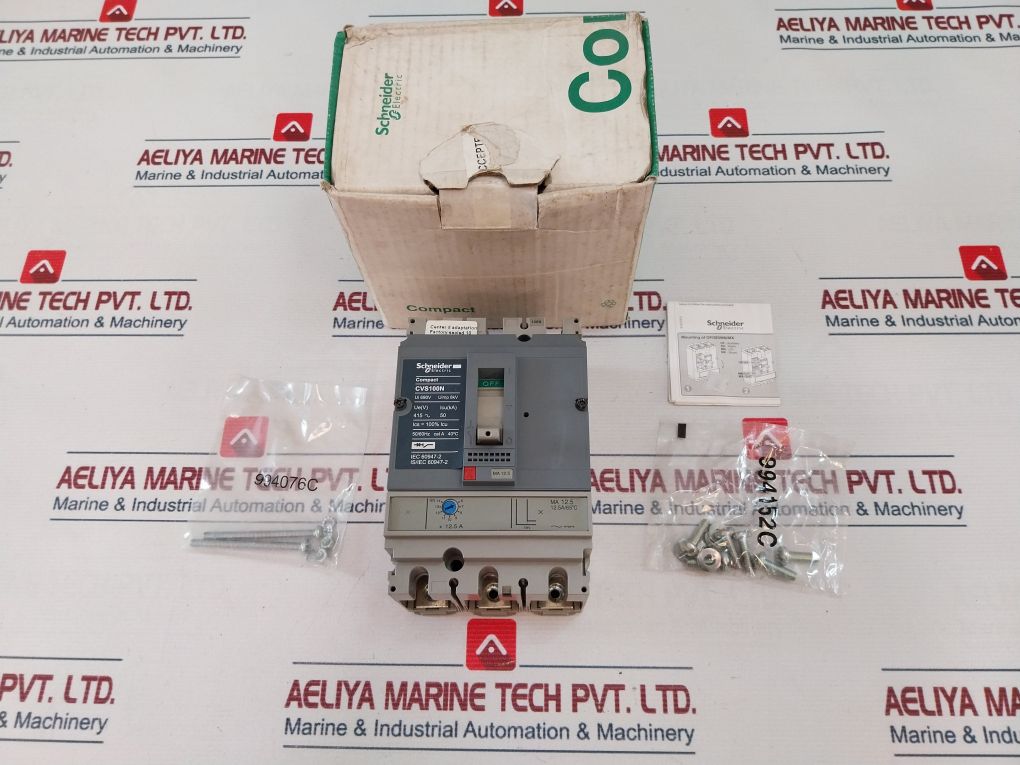

| Product Name | Schneider Electric Cvs100n Moulded Case Circuit Breaker 690v |
| Brand | Schneider Electric India Pvt. Ltd. |
| Type | Moulded Case Circuit Breaker |
| Series | Compact Cvs |
| Model | Cvs100n |

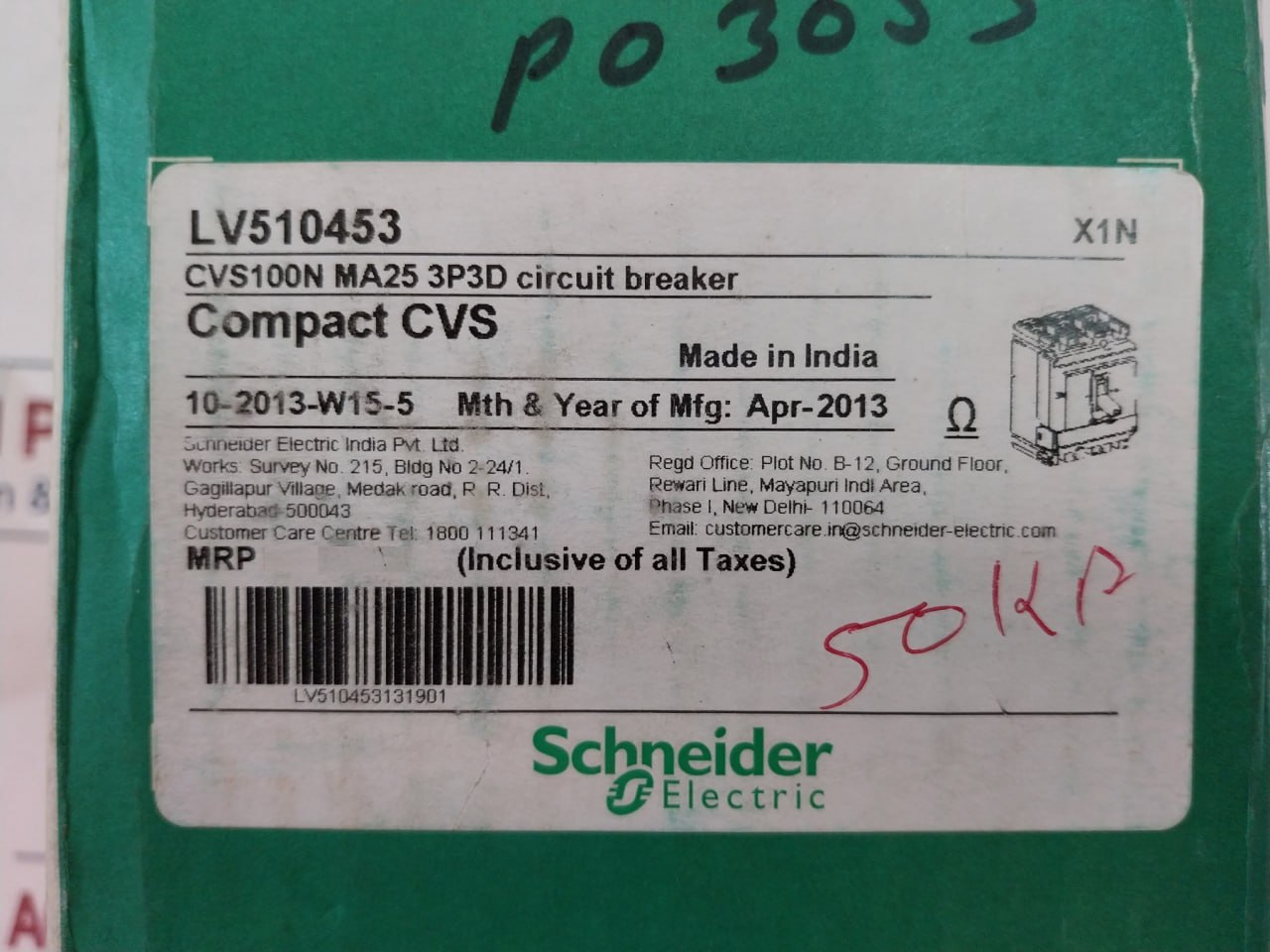

| Part Number | Lv510453 |
| Additional Model Info | Ma25 3p3d |
| Rated Voltage (Ui) | 690V |
| Impulse Voltage (Uimp) | 8kV |
| Rated Voltage (Ue) | 415V ~ |
| Breaking Capacity (Icu) | 50 kA |
| Rated Short-circuit Breaking Capacity (Ics) | 100% Icu |
| Frequency | 50/60Hz |
| Category | Cat A |
| Operating Temperature | 40°C |
| Standard | IS/IEC 60947-2 |
| Rated Current | 12.5A / 65°C |
| Operating Time | 100n |

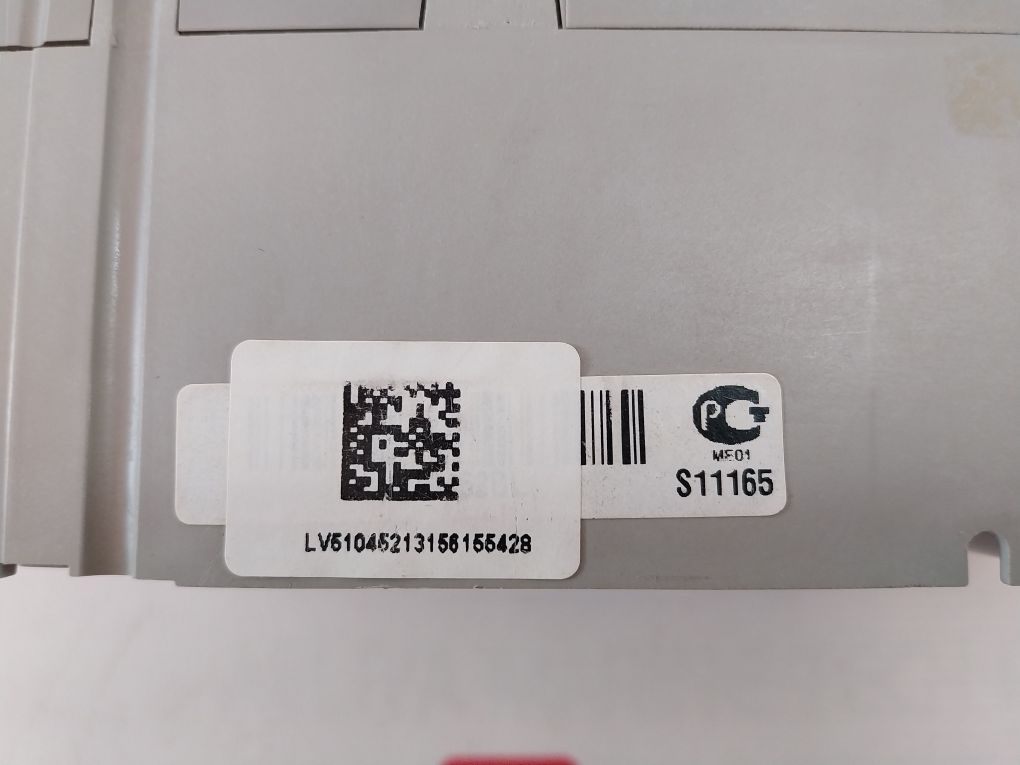

| Product Code | Lv51045213156155428 |
| Alternate Product Code | Lv510453131901 |
| Other Part Number | S11165 |

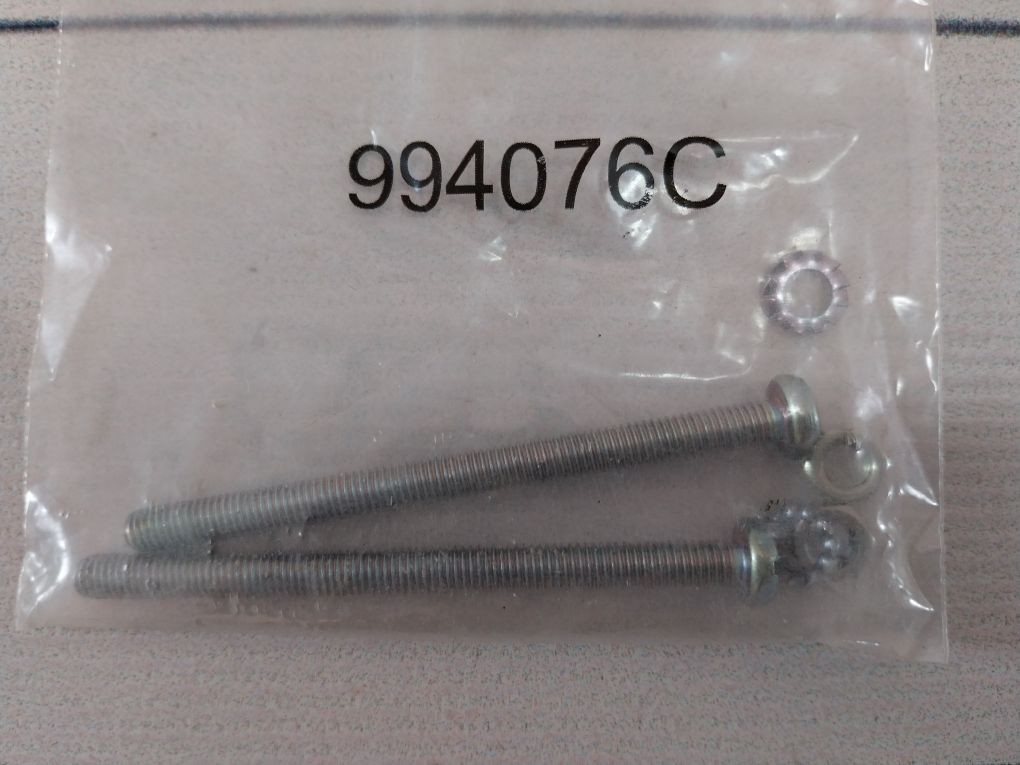

| Additional Codes | 994152c, 994076c |
| Made In | India |
| Weight | 1.820 Kg |
| Reference No | 79476 |
Key Specifications
Model: CVS100N
Breaking Capacity (Icu): 50kA
Rated Voltage (Ue): Up to 690V
Rated Insulation Voltage (Ui): 690V
Impulse Withstand Voltage (Uimp): 8kV
Poles: 3P3D (Three poles, three-phase)
Standard Compliance: IS/IEC 60947-2
Frequency: 50/60Hz
Temperature Rating: 40°C
Mounting: Fixed
Weight: 1.820 Kg
Part Number: LV510453 / LV510452
Applications
Whether you are operating a marine control panel, a factory floor, or an energy distribution board, the CVS100N MCCB provides unparalleled reliability. Here are key applications:
Marine Automation Systems
Guarantees reliable protection in changing marine power conditions.
Industrial Electrical Panels
Optimal for overload and short-circuit protection in industrial buildings.
Data Centers & Commercial Buildings
Protect your data and infrastructure with reliable load management.
Power Distribution Boards
A proven solution for the safe distribution of power to machinery and subsystems.
Renewable Energy Systems
Protect solar inverter equipment or wind power components from electrical errors.
Why Schneider Electric CVS100N MCCB?
Compact yet robust: Space-efficient design with uncompromising performance.
Global Standards: Fully in line with international electrical safety standards.
Thermal-Magnetic Trip: Double protection against both overloads and short circuits.
High Breaking Capacity: Up to 50kA maintains system integrity even in case of faults.
Trusted Brand: Schneider Electric is a world leader in energy management.
