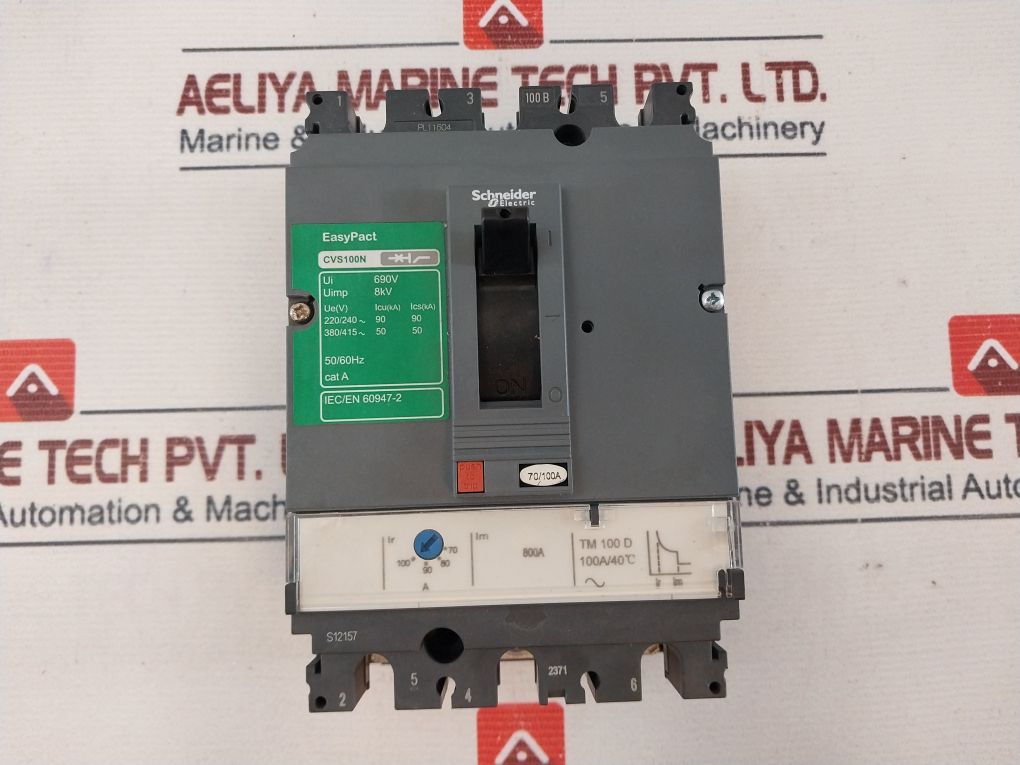

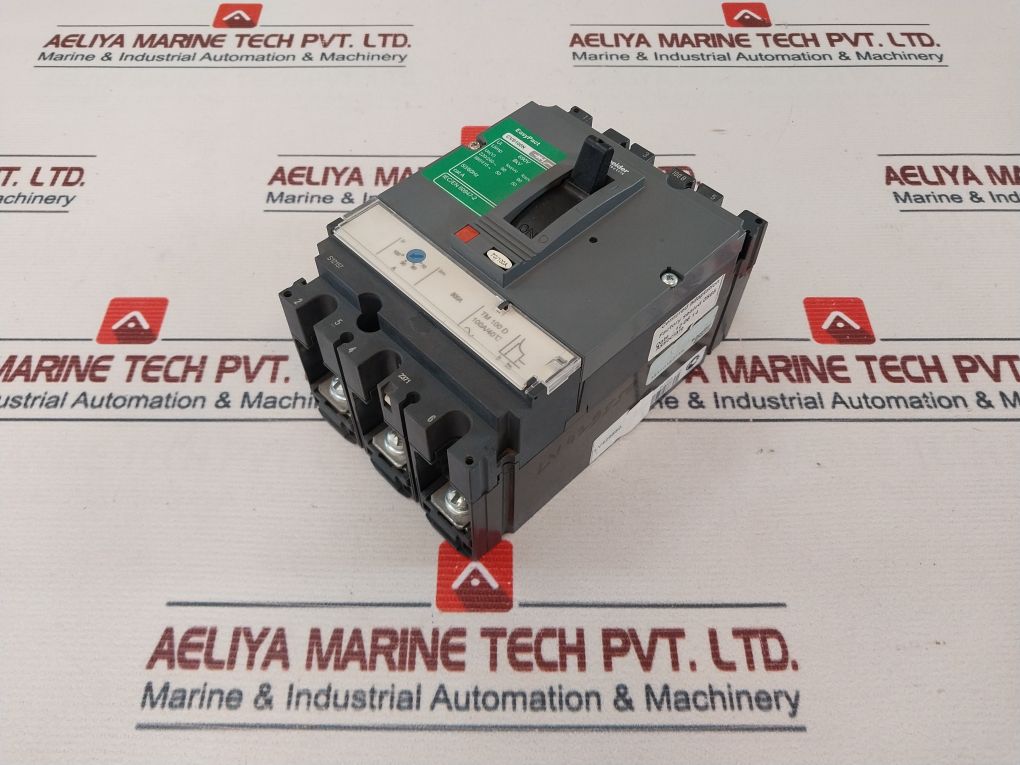

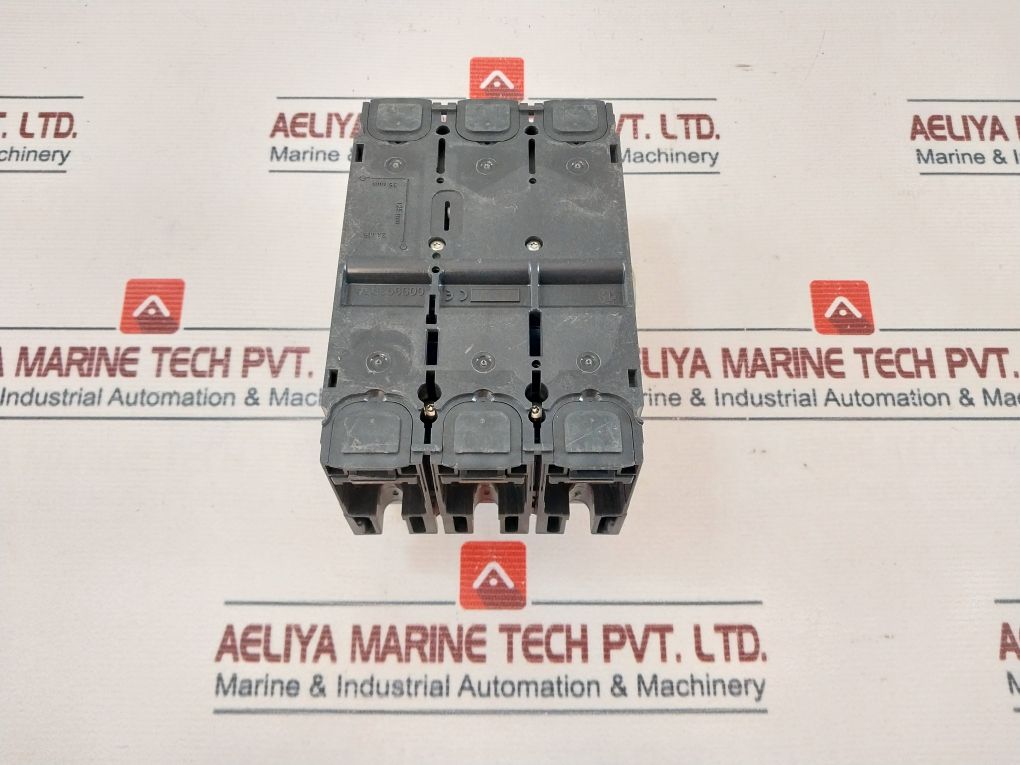

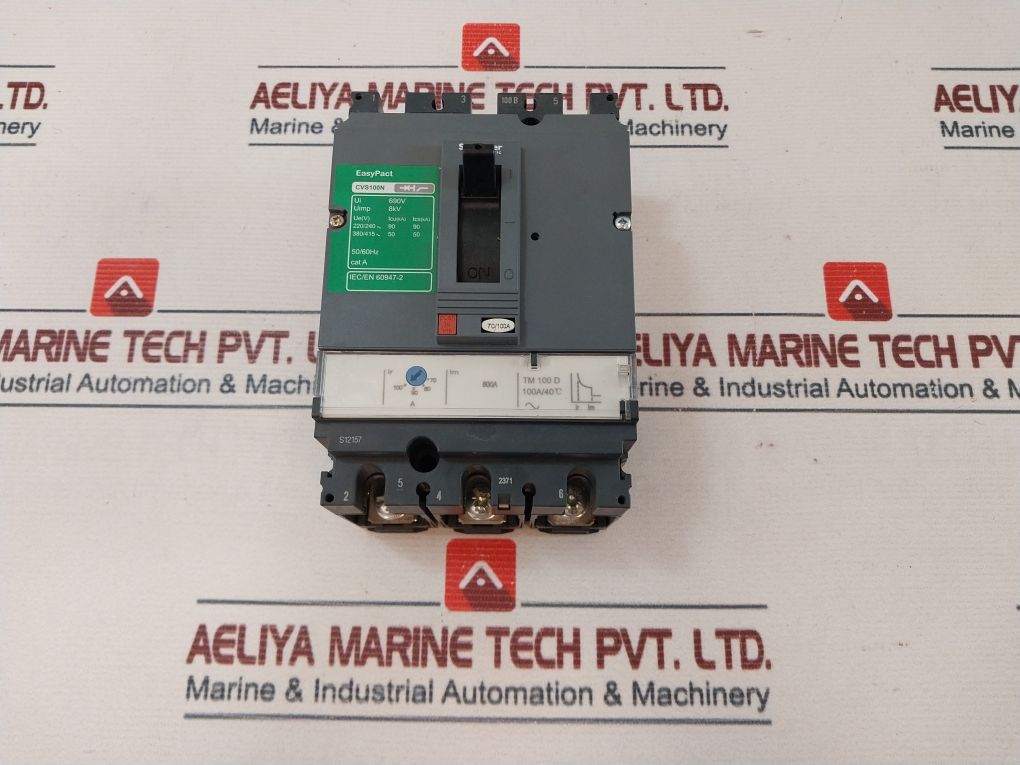

| Attribute | Value |
|---|---|
| Brand | Schneider Electric Industries Sas |
| Product Type | Circuit Breaker |
| Series | Easypact |
| Model | CVS100N |
| UI | 690V |
| Uimp | 8kV |
| Frequency | 50/60Hz |
| Category | A |
| Standard | IEC/EN 60947-2 |
| Current Rating | 70/100A |
| Inrush Current | 800A |
| Temperature Rating | 100D, 100A/40°C, 100B |

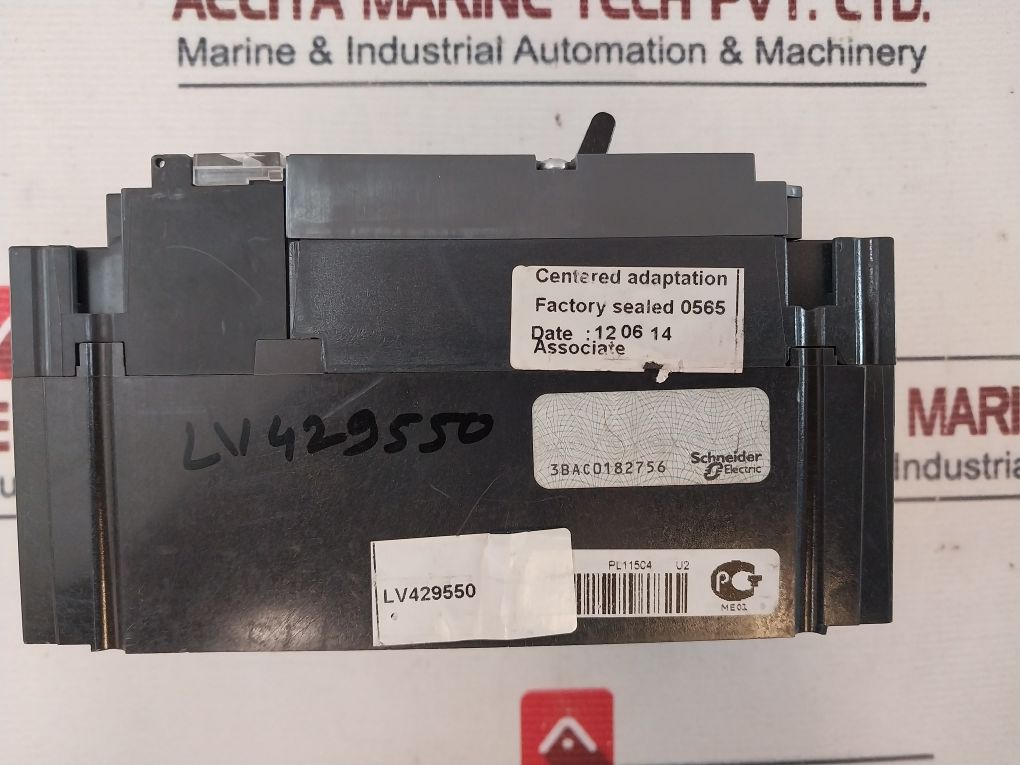

| Model Numbers | S12157, PL11504, 3BAC0182756 |
| Reference Number | 79746 |
| Weight | 1.780 Kg |
Key Features
Rated Voltage: Up to 690V AC—ideal for high-load electrical installations.
Breaking Capacity: Superior short-circuit breaking capabilities, providing highest level of safety.
Trip Unit Technology: Comprises electronic or thermal-magnetic trip units with accurate fault detection.
Modular Design: Sleek form factor with front and rear connections to enable easy panel integration.
Standards Compliance: Designed to IEC/EN 60947 standards for guaranteed safety and reliability.
Durability: High mechanical and electrical durability—capable of handling severe environments.
Ease of Maintenance: Simple access to parts and replaceable components minimize downtime.
Flexible Mounting Options: May be DIN rail or panel-mounted depending on need.
Applications
Marine Vessels: Applied in shipboard switchboards and control systems where voltage conditions are stringent and dependability is paramount.
Industrial Plants: Guards motors, transformers, and control panels in manufacturing facilities.
Data Centers: Provides reliable power supply and surge or overload protection.
Infrastructure: Installed in commercial building distribution boards, airports, and hospitals.
Energy Industry: Also critical for renewable energy installations and substation.
