| Attribute | Value |
|---|---|
| Product | Schneider Cvs100n Circuit Breaker 690v |
| Brand | Schneider Electric Industries Sas |
| Type | Circuit Breaker |
| Series | Easypact Cvs100n |

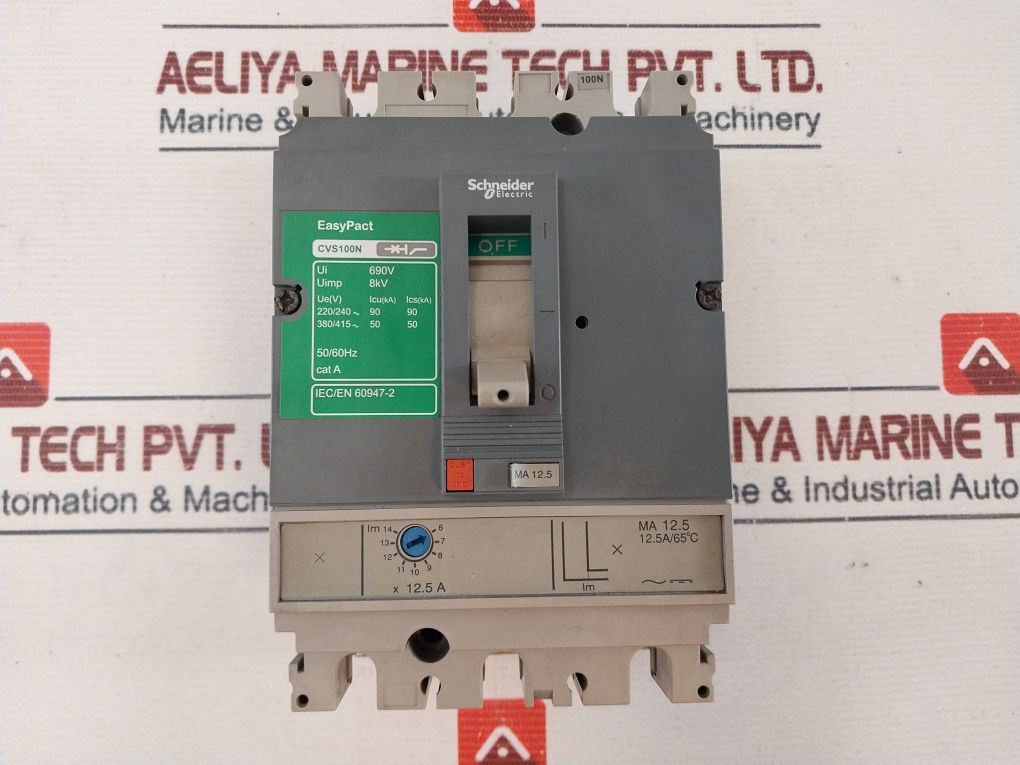

| Ui | 690v |
| Uimp | 8kv |
| Frequency | 50/60hz |
| Category | A |
| IEC/EN Standard | IEC/EN 60947-2 |
| MA | 12.5 |
| Current | 12.5a/65°C |
| Breaking Capacity | 100n |
| Weight | 1.800 Kg |
| Reference No | 79744 |

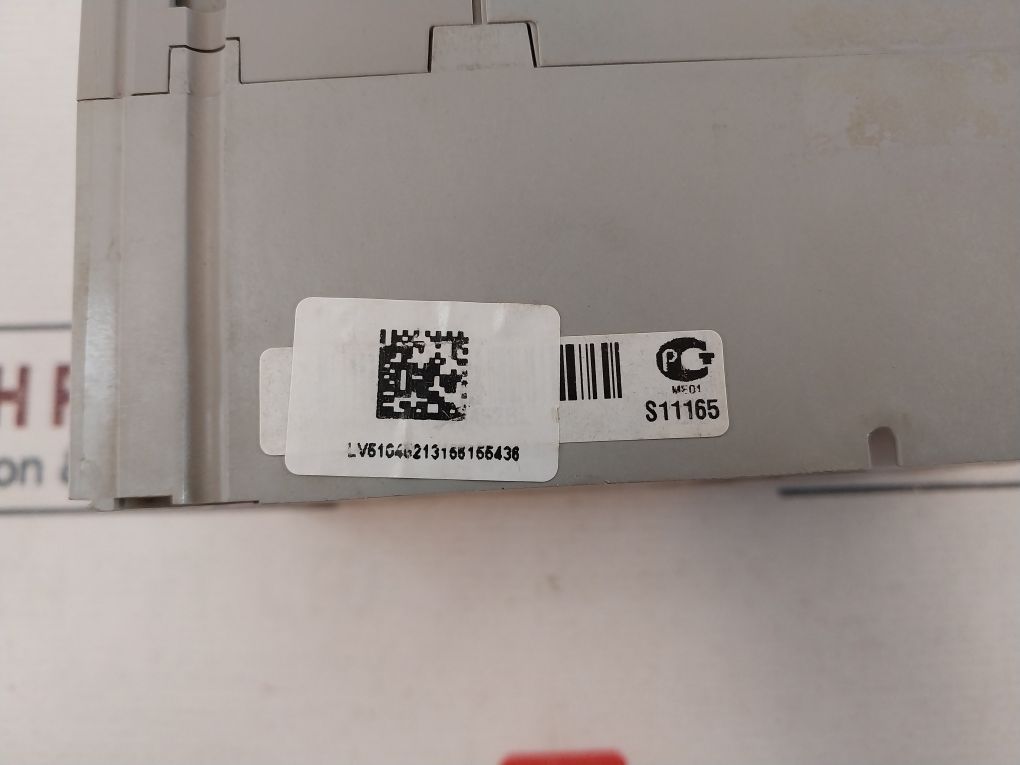

| Product Code | Lv51045213155155436 |
| Serial Number | S11165 |
Key Characteristics
Rated Voltage: Up to 690V AC – Suitable for industrial use
Breaking Capacity: Large breaking capacity for short-circuit protection
Current Rating: 100A – Ideal for medium-range load protection
Design: Minimal size fits comfortably in compact enclosures
Trip Unit: Fixed thermal-magnetic trip for overload and fault protection
Standards: IEC 60947-2 compliant for universal usage
Durability: High mechanical and electrical lifespan
Mounting: DIN rail or panel mounting for convenient installation
Applications
This 690V MCCB finds extensive application in numerous industries, including:
Marine automation panels – Fault protection for engine and deck power systems
Industrial machinery – Safeguards equipment from overloads or faults
Control panels – Central to electrical distribution systems
HVAC systems – Provides safety in industrial heating and cooling circuits
Energy plants – Efficient protection of low-voltage circuits in power stations
