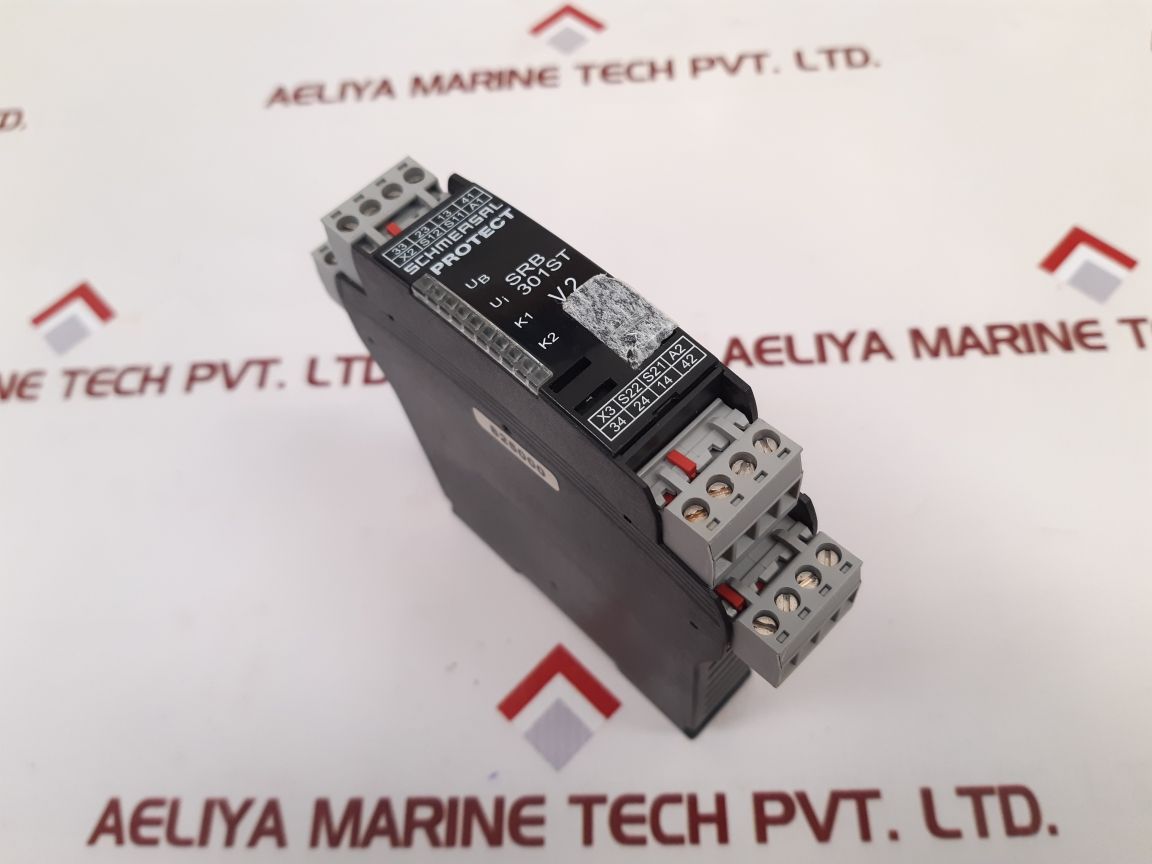

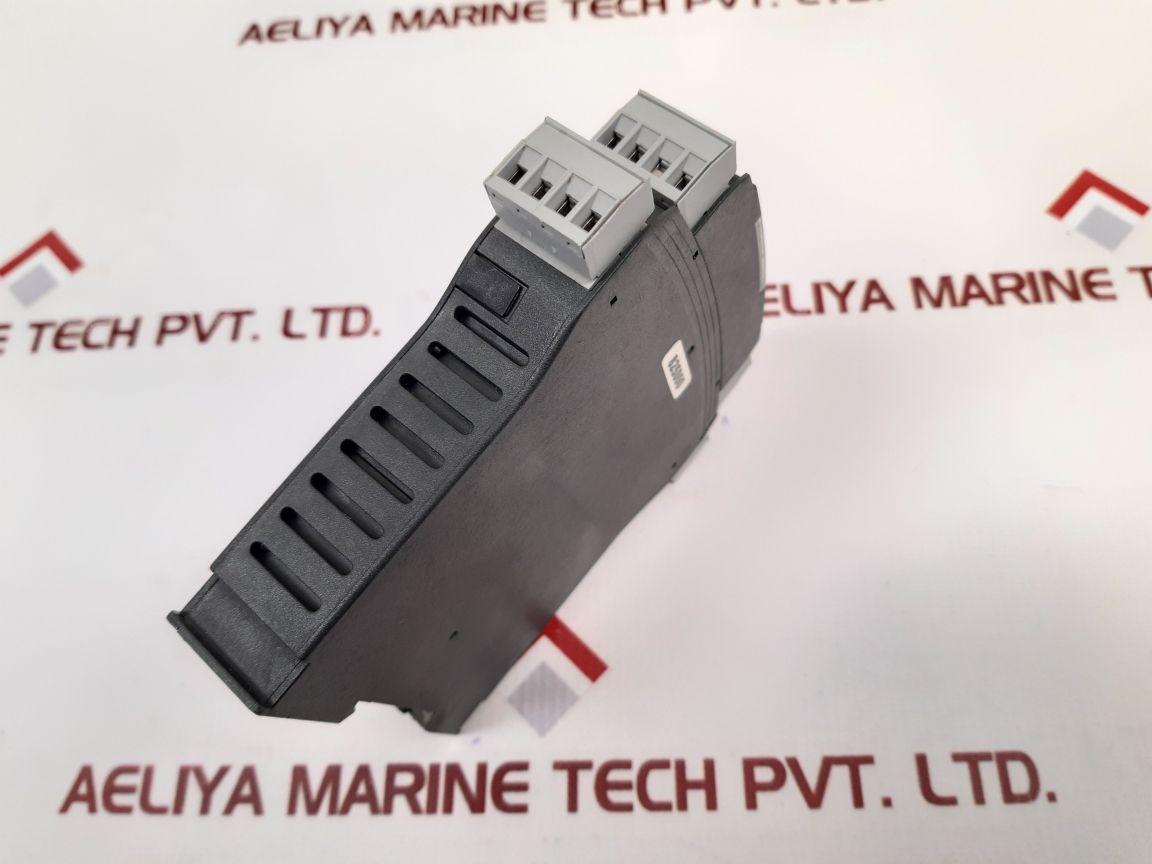

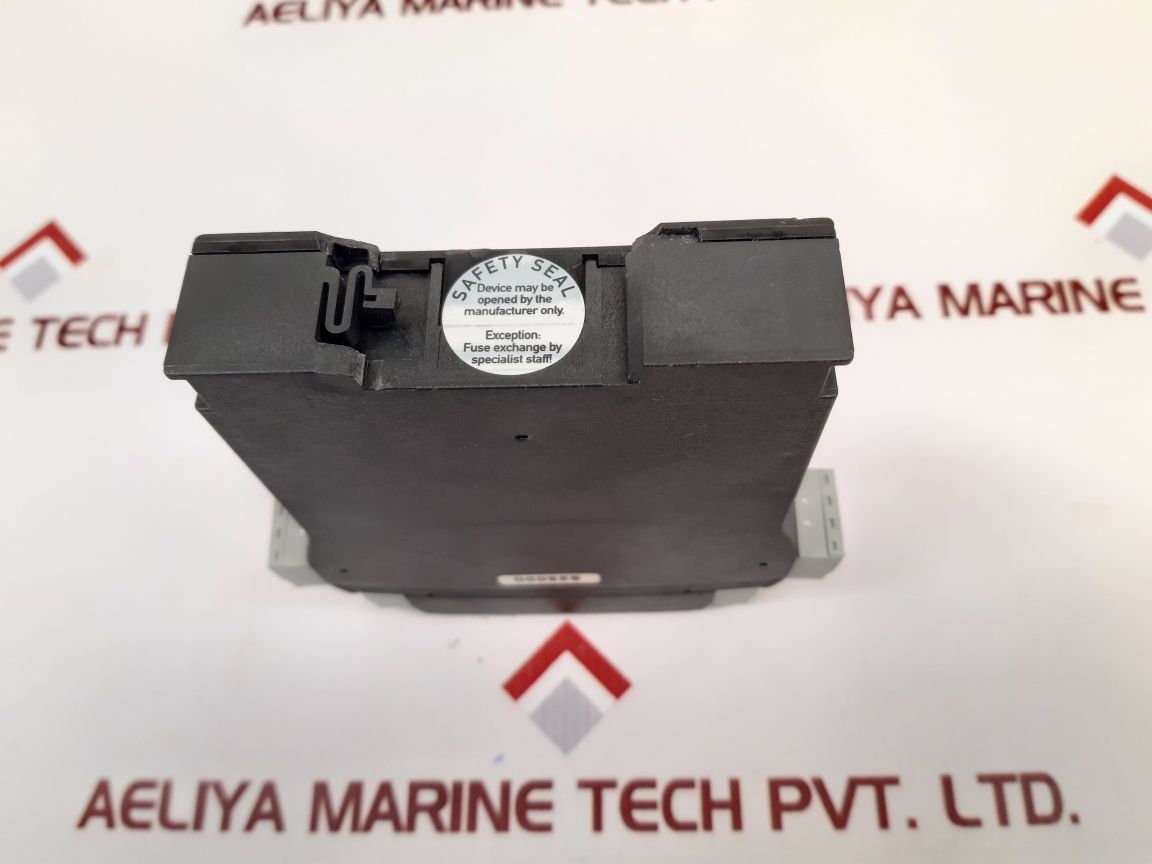

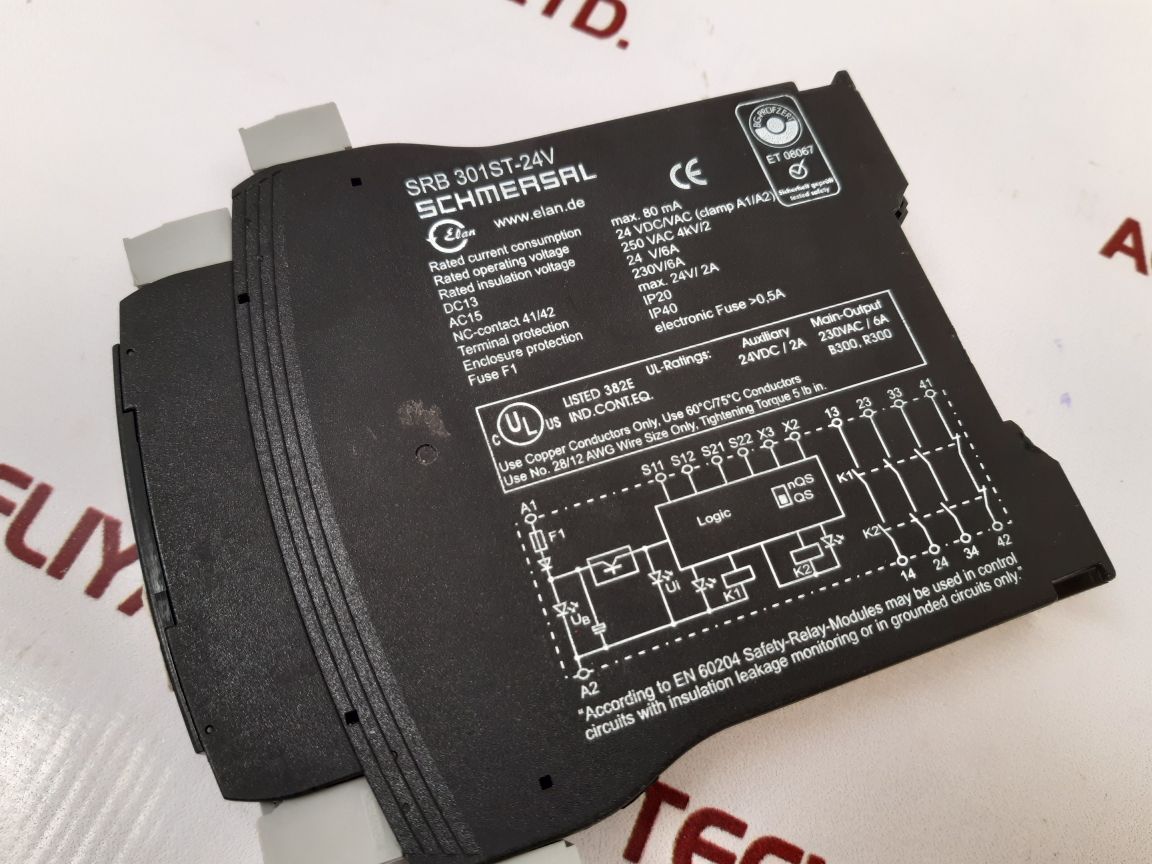

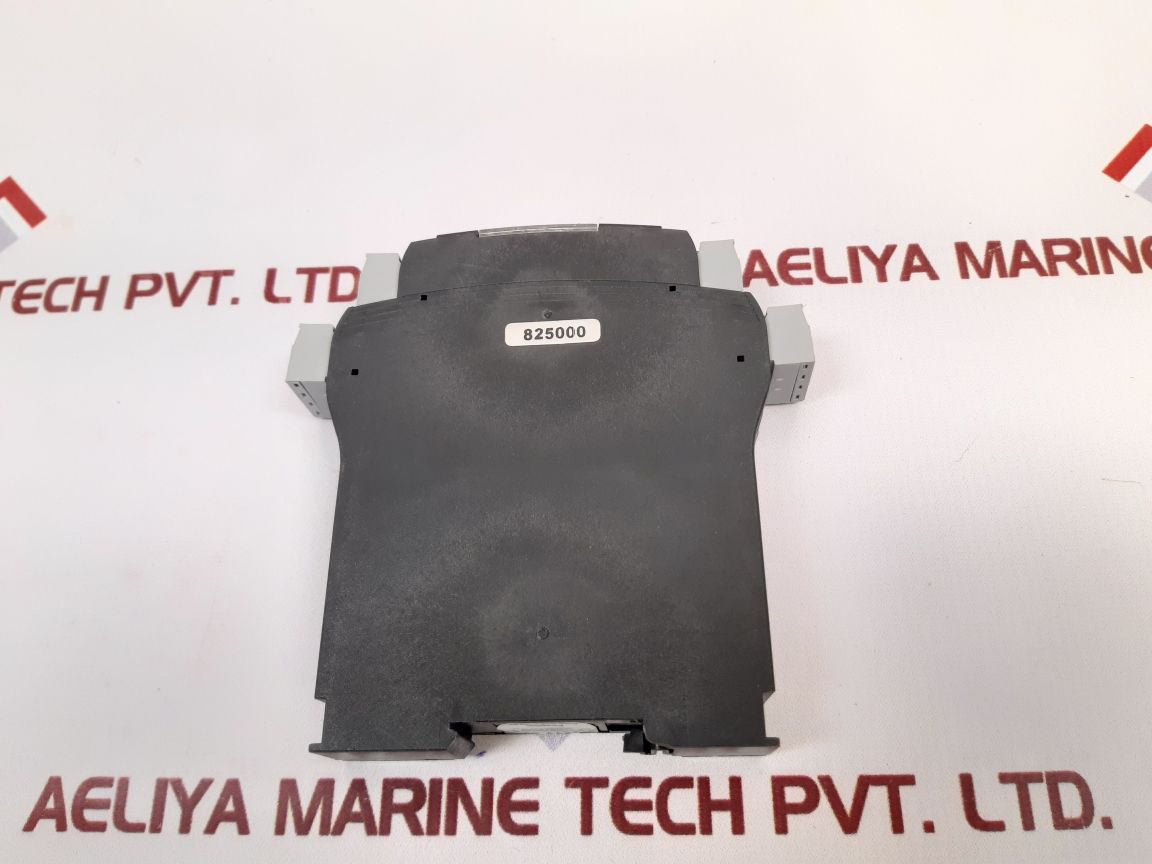

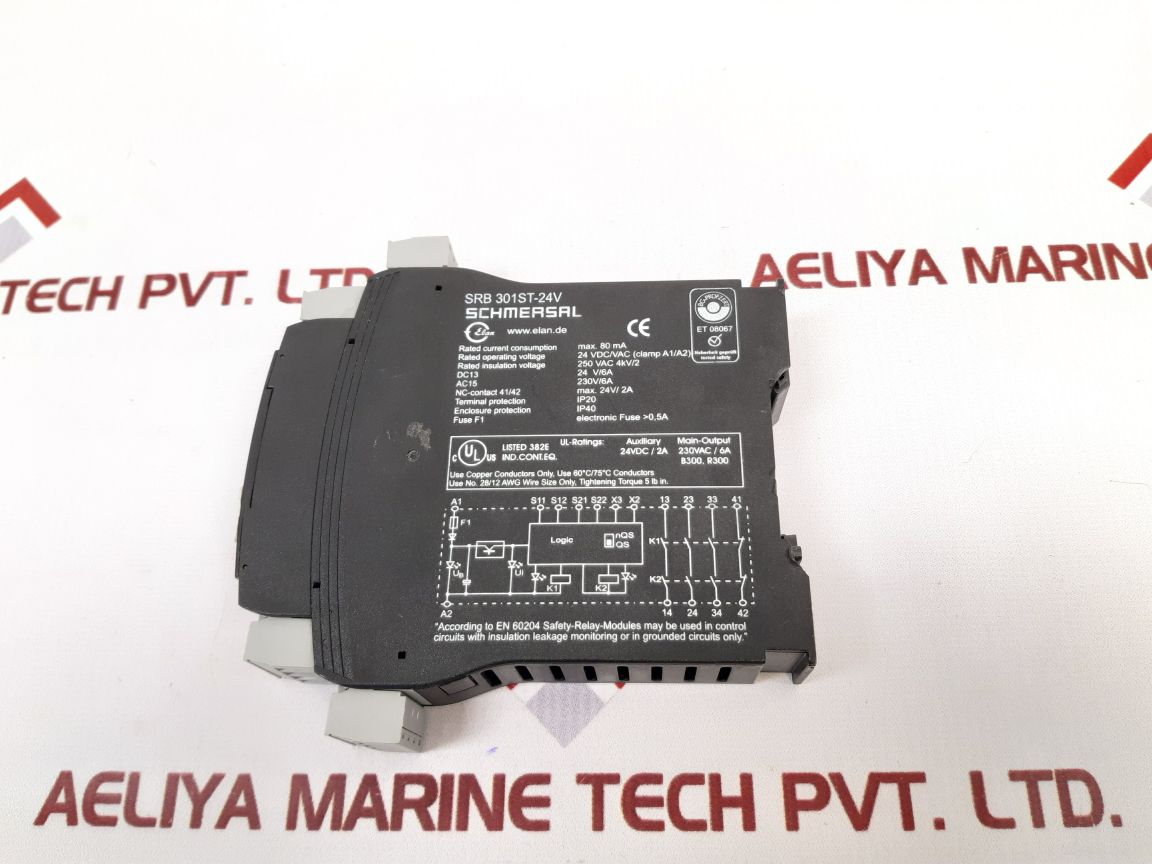

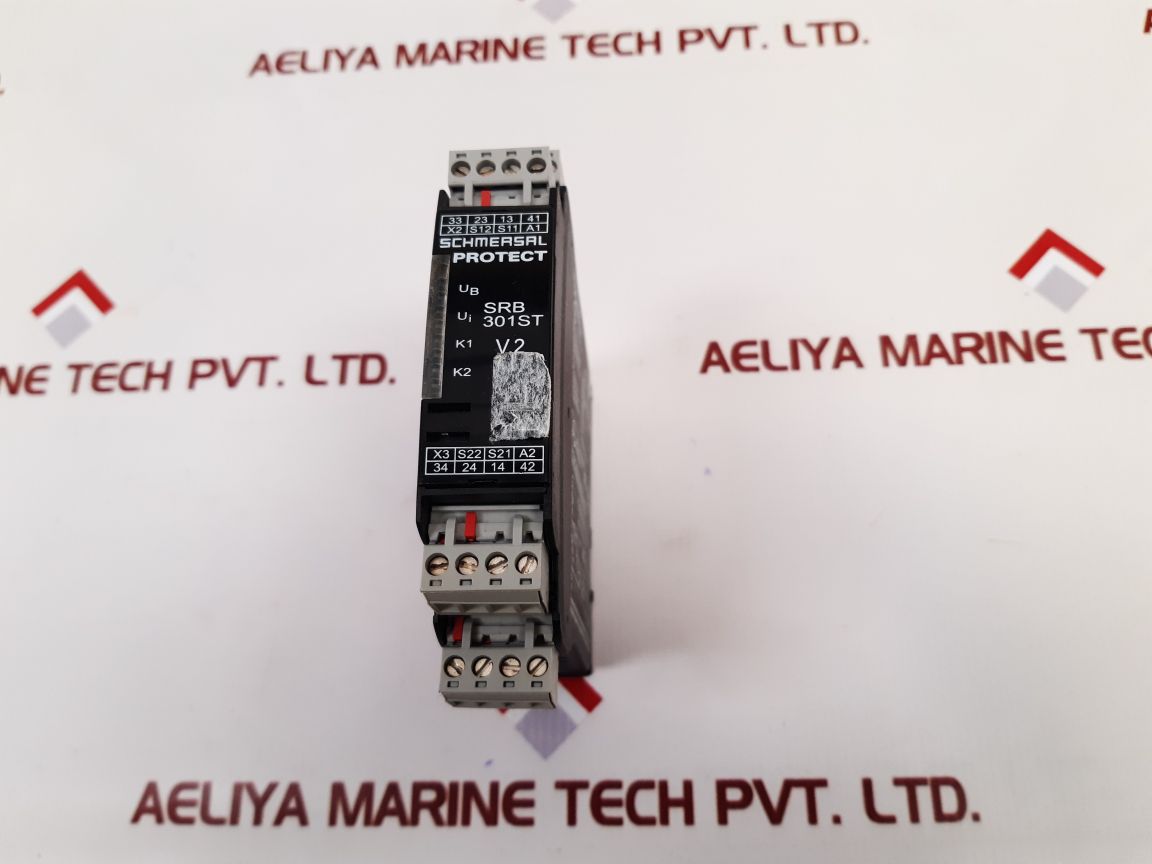

Schmersal Srb 301St-24V Safety Relay 230Vac/6A

Schmersal Srb 301St-24V Safety Relay 230Vac/6A
Schmersal
Protect
Elan
Srb 301St
V.2
Srb 301St-24V
Rated Current Consumption: Max.80 Ma
Rated Operating Voltage: 24 Vdc/Vac (Clamp A1/A2)
Rated Insulation Voltage: 250 Vac 4Kv/2
Dc13: 24V/6A
Ac15: 230V/6A
Nc-contact 41/42: Max. 24V/2A
Terminal Protection: Ip20
Enclosure Protection: Ip40
Fuse 1: Electronic Fuse Greater Than 0,5A
Ul Ratings:
Auxiliary: 24Vdc/2A
Main Output: 230Vac/6A
B300,R300
Use Copper Conductors Only,
Use 60°C/75°C Conductors
Use No. 28/12 Awg Wire Size Only,
Tightening Torque 5 Lb In.
Weight: 250 Gm
