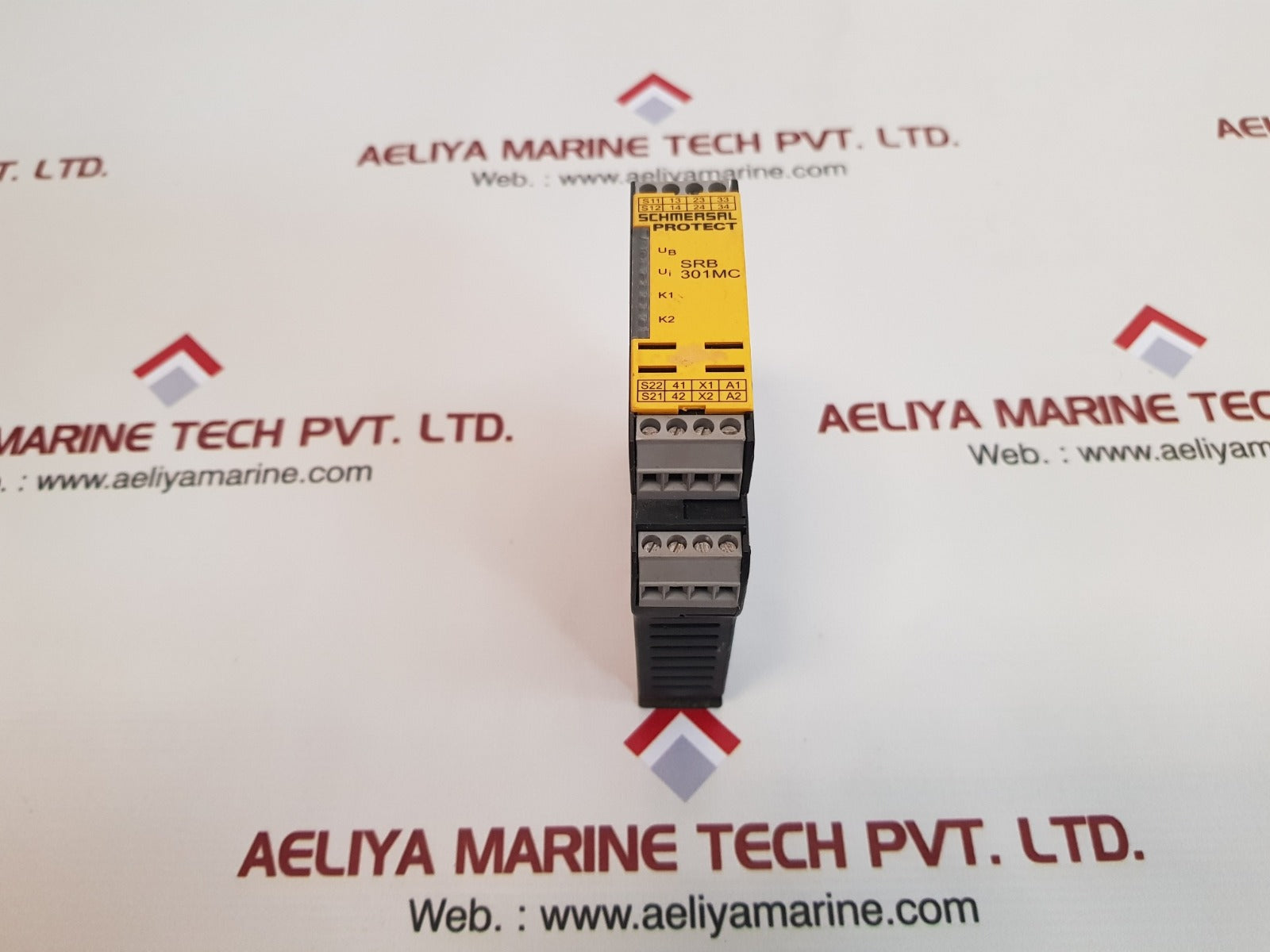

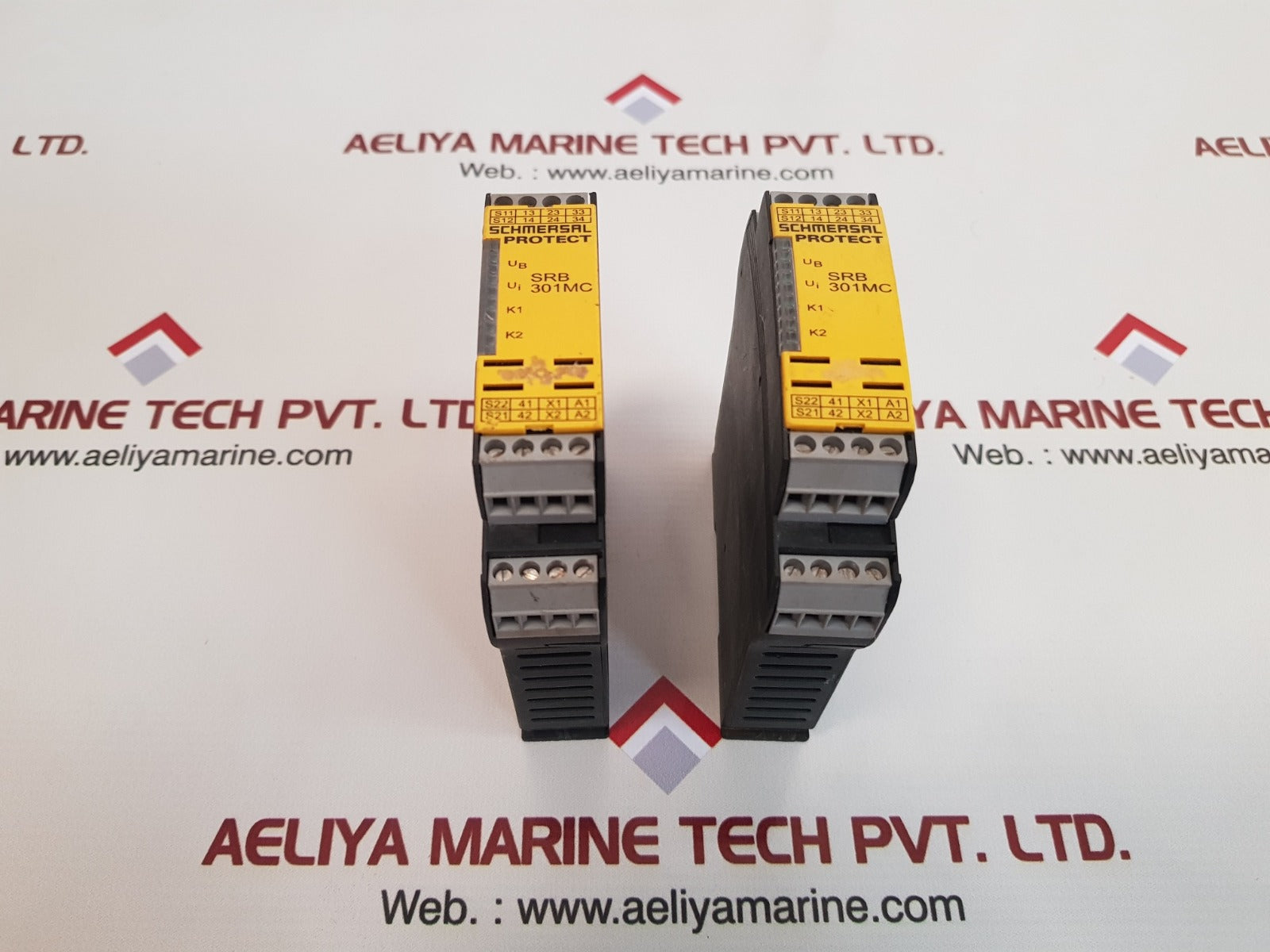

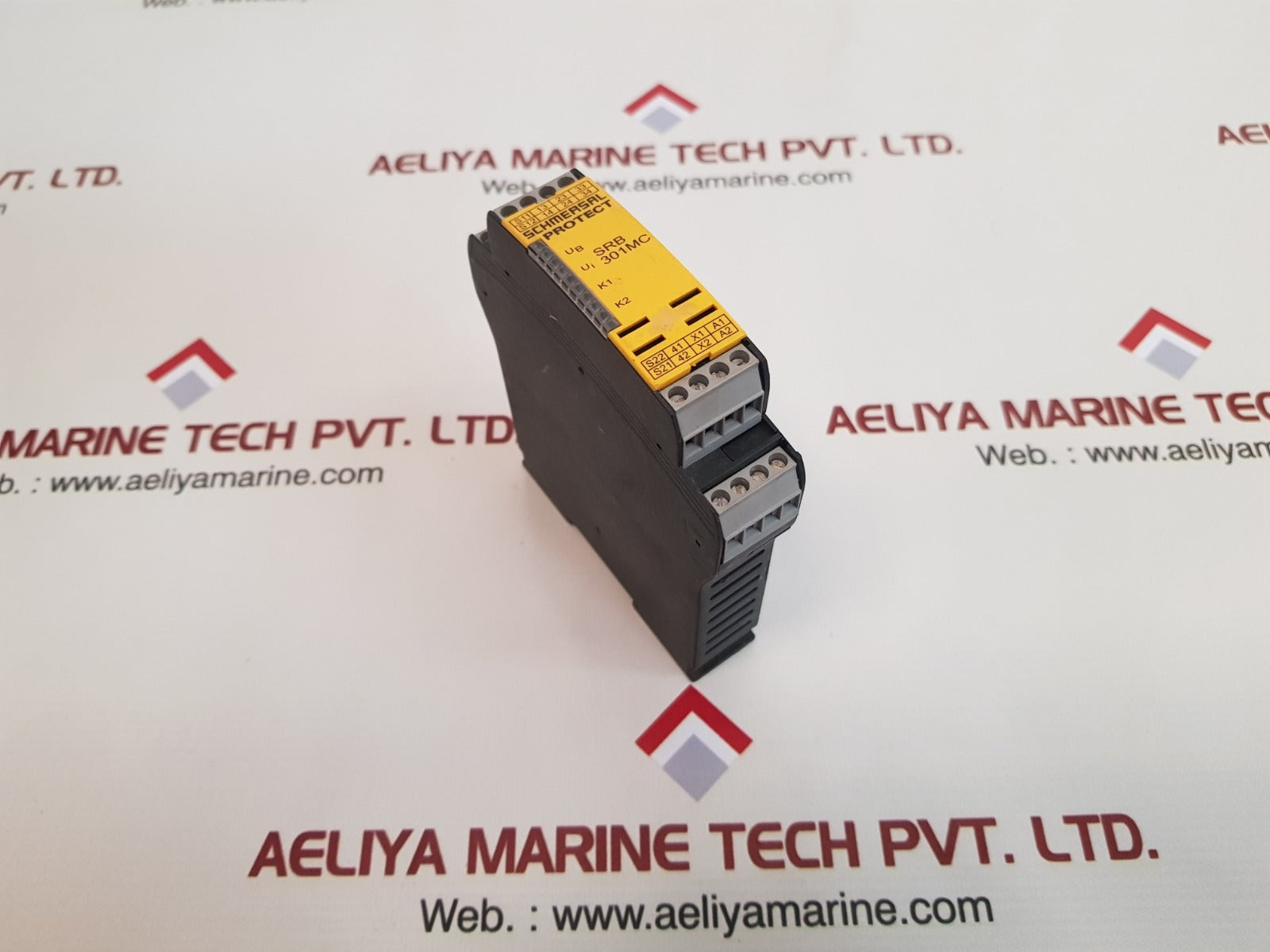

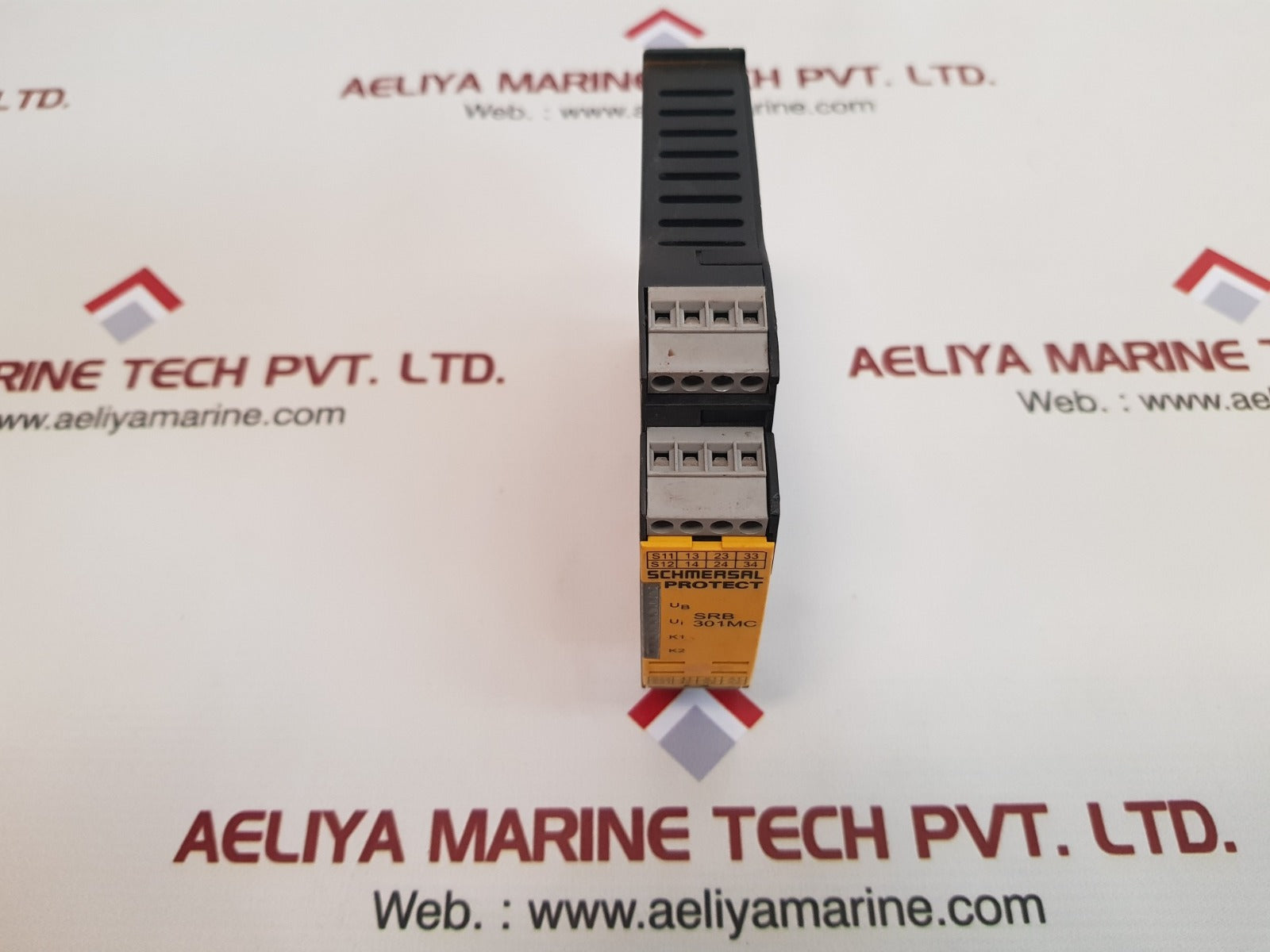

Schmersal protect srb 301mc-24v safety relay

Schmersal protect srb 301mc-24v safety relay
schmersal protect
elan schaltelemente gmbh & co. kg
srb 301mc

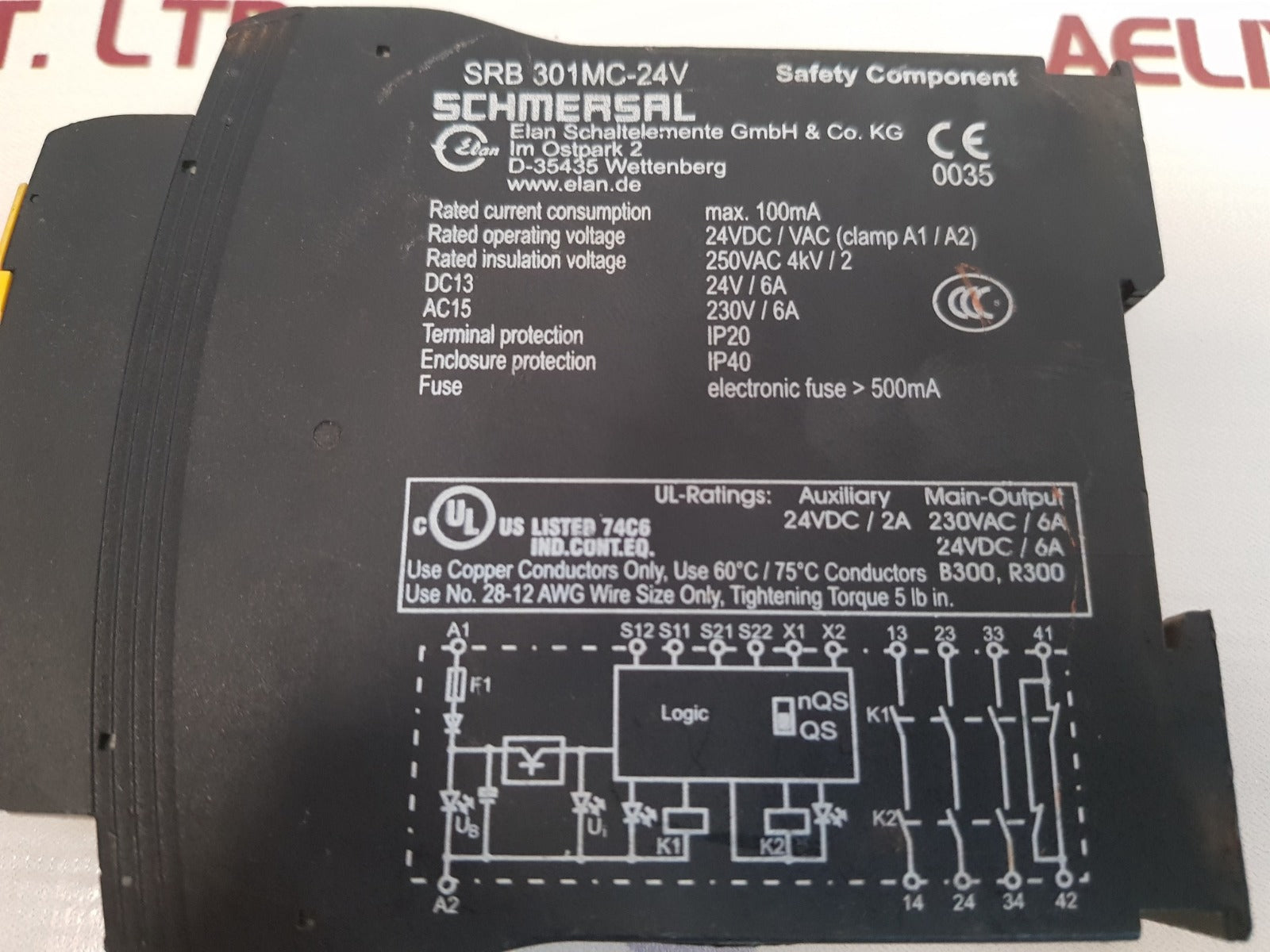

srb 301mc-24v
rated current consumption: max. 100ma
rated operating voltage: 24vdc / vac (clamp a1/a2)
rated insulation voltage: 250vac 4kv/2
dc13: 24v/6a
ac15: 230v /6a
terminal protection: ip20
enclosure protection: ip40
fuse: electronic fuse greater than 500ma
ul ratings: auxiliary 24vdc/2a
main-output: 230vac/6a
24vdc/6a
b300, r300
use copper conductors only, use 60°c/75°c conductors
tightening torque 5 lb in.
safety component
weight: 215 gm
