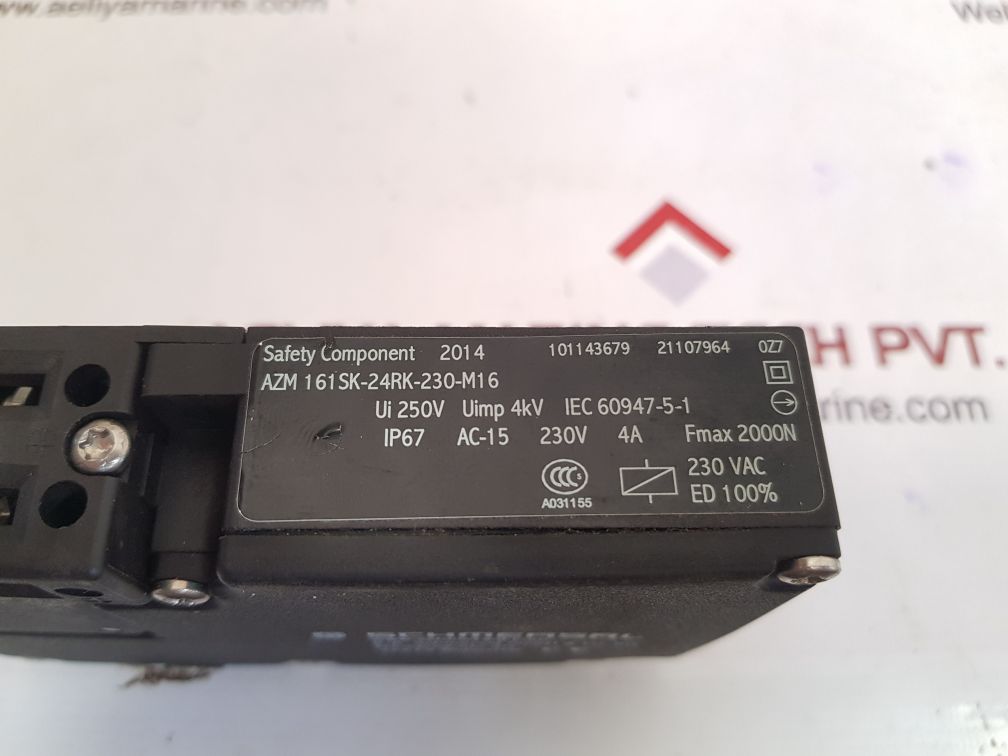

| Attribute | Value |
|---|---|
| Product Name | Schmersal AZM 161SK-24RK-230-M16 Safety Interlock Switch |

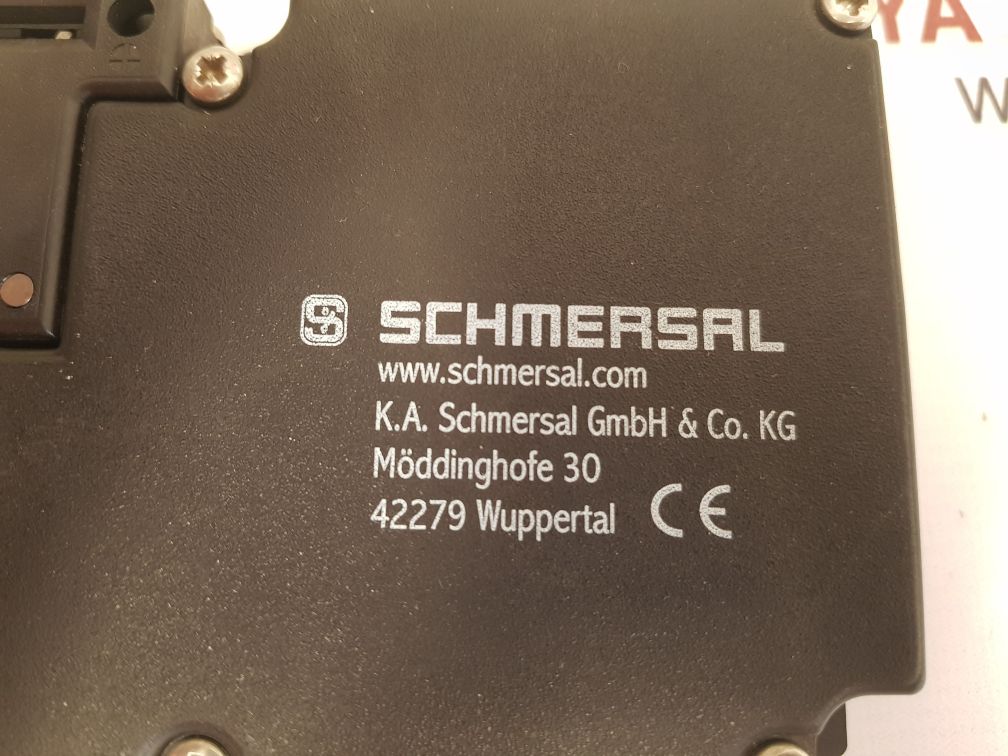

| Manufacturer | Schmersal GmbH & Co. KG |
| Component Type | Safety Component |
| Model Number | AZM 161SK-24RK-230-M16 |
| Part Numbers | 101143679, 21107964, 0Z7 |
| UI | 250V, Uimp 4kV, IEC 60947-5-1 |
| IP Rating | IP67 |
| AC Rating | AC-15, 230V, 4A |
| Fmax | 2000N |
| Voltage | 230VAC |
| ED | 100% |
| Weight | 400g |

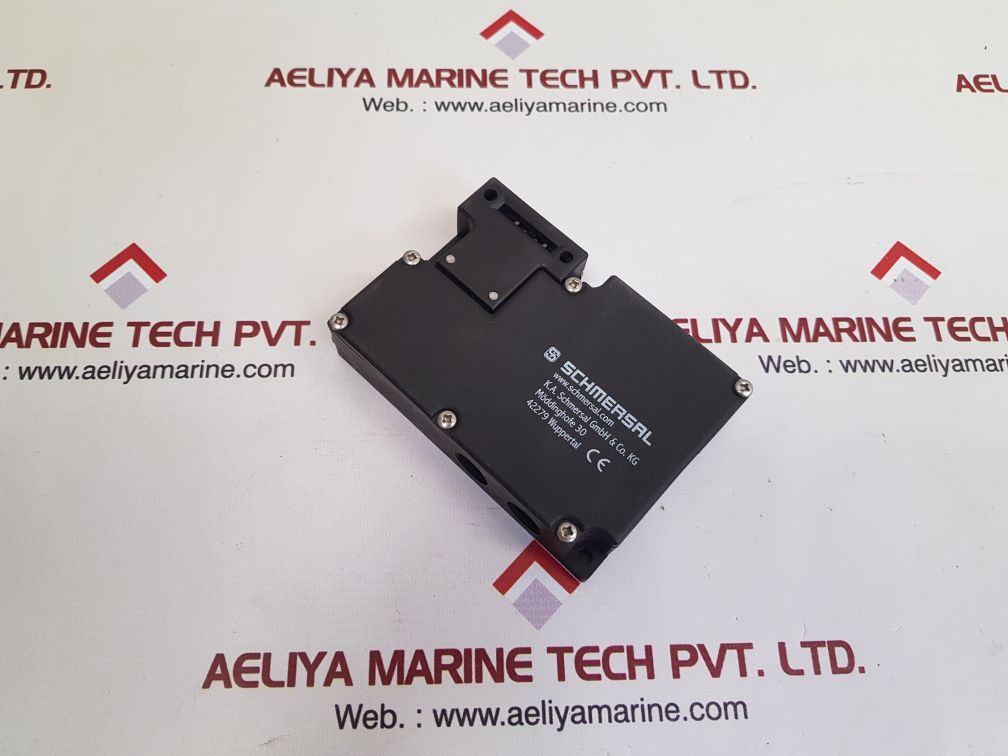

What is the Schmersal AZM 161SK-24RK-230-M16 Safety Interlock Switch?
The Schmersal AZM 161SK-24RK-230-M16 is an interlock safety switch used to lock movable safety guards like doors and covers in the industrial setting. The switch is made by Schmersal, a world-famous company in machine protection, and comes under the AZM161 series of switches, which features an electromechanical locking operation and heavy-duty construction.
This model uses a 230V AC power supply, and has a rotating head and metal actuator, which makes it suitable for high-demanding safety applications. Its construction accommodates guard locking until hazardous movements cease, facilitating compliance with machine safety standards such as ISO 14119.
Applications of Schmersal AZM 161SK Safety Interlock Switch
This safety switch is designed to protect people and equipment in industrial environments where movable guards or access doors are employed. Typical application areas are:
- Production lines with robotic arms or revolving equipment
- CNC machines and lathes that need access protection
- Safety doors in automated warehouse facilities
- Packaging machinery to keep it out of access while in operation
- Power tools and presses in fabrication facilities
By securing the guard in position until the system is in a secure state, it complies with EN ISO 12100 and IEC 60204-1 safety standards.
Why to Choose the Schmersal AZM 161SK-24RK-230-M16?
Trustworthy Safety Performance: Complies with the highest Performance Level (PL e) in safety standards, reducing machine-related injuries.
Good Durability: IP67-rated with rugged housing that resists industrial environments such as dust, oil, and water.
Adaptable Mounting: Rotatable head and multiple directions of actuating make it versatile to various guard configurations.
Fail-Safe Operation: Locking only when powered guarantees that the guard remains locked during power loss or malfunction.
Reliable Brand: Schmersal is a world-class brand for machine safety with decades of research and development in interlock systems.
