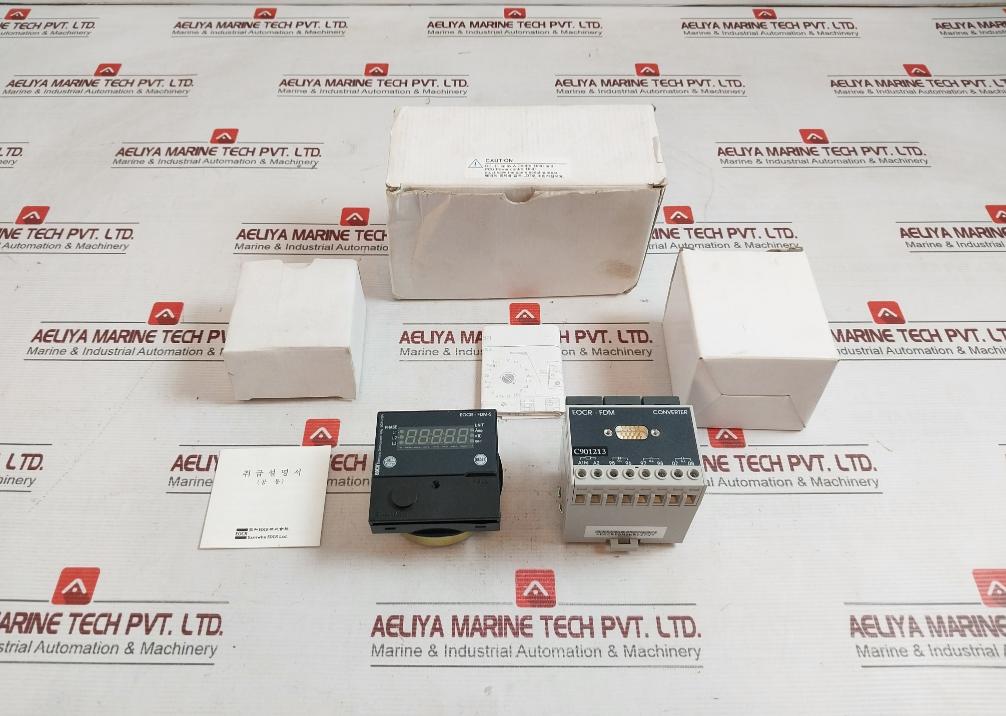

Samwha Eocr-Fdm-S Flush Mounting Multi-Functional Relay 250v

Samwha Eocr-Fdm-S Flush Mounting Multi-Functional Relay 250v
Samwha Eocr Ltd.
Flush Mounting Multi-Functional Relay
Electronic (Digital) Overload Relay
Converter
Eocr-Fdm
C901213
Model: Eocr-Fdm-S
Eocr-Fdm-S-220
Over Current Setting (Is): 0.1-3600a
Under Current Setting: Less Than O.C Setting
Time Setting:
Sw3. Off(Definite) I On(Inverse)
Start (D-Time) Off, 1-480s
Trip (O-Time) 0.2-30s 1-30
Alert Setting: 50~100% Of Is
Power Supply: 85~250vac/Dc, 50/60hz
Output Relay:
O.L 2-Spst
A.L 1-Spst
3a/250vac Resistive
Trip Time:
Over-Current: O-Time In Greater Than Is
Phase Loss: Within 0.7s 1a(05 Type)
Phase Unbalance: Within 8s Deviation Greater Than 50%
Phase Reverse: 0.1s Rpr Sw2. On
Locked Rotor: 0.5s 2~10 Times Of O.C
Electronic Over-Current Relay/Uc85-250v
A/S: 82-2-3473-2340
Ammeter Type Digital Multi-Function Protection Relay
Panel-Mounted Current Meter Type
Current Range: 0.1~3600a
15pin
*Eocrfdmswrdz7w*
Made In Korea
Weight : 510 Gm
Ref No : 169864
