Samwha Eocr-Fdm-200-S-220 Power Converter With Current Transformer 250v

Samwha Eocr-Fdm-200-S-220 Power Converter With Current Transformer 250v
Samwha Eocr Ltd.
Converter
Current Transformer
Eocr-Fdm
Eocr-Fdm-200-S-220
Over Current Setting (Is): 0.1~800a
Under Current Setting: Less Than O.C. Setting
Time Setting:
Start (D-Time): Off, 1~200s
Trip (O-Time): 0.2~30s | 1~30s
Alert Setting (Alert): 50~100% Of Is
Power Supply: 85~250vac/Dc, 50/60hz
Output Relay:
Ol 2-Spst
Al 1-Spst
3a/250vac Resistive
Trip Time:
Over Current: O-Time: In Greater Than Is
Phase Loss: Within 0.7s 1a (05 Type)
Phase Unbalance: 8s: Deviation Greater Than 50%
Phase Reverse: 0.1s: Rpr Sw. On
Locked Rotor: 0.5s 2~10times Of O.C.

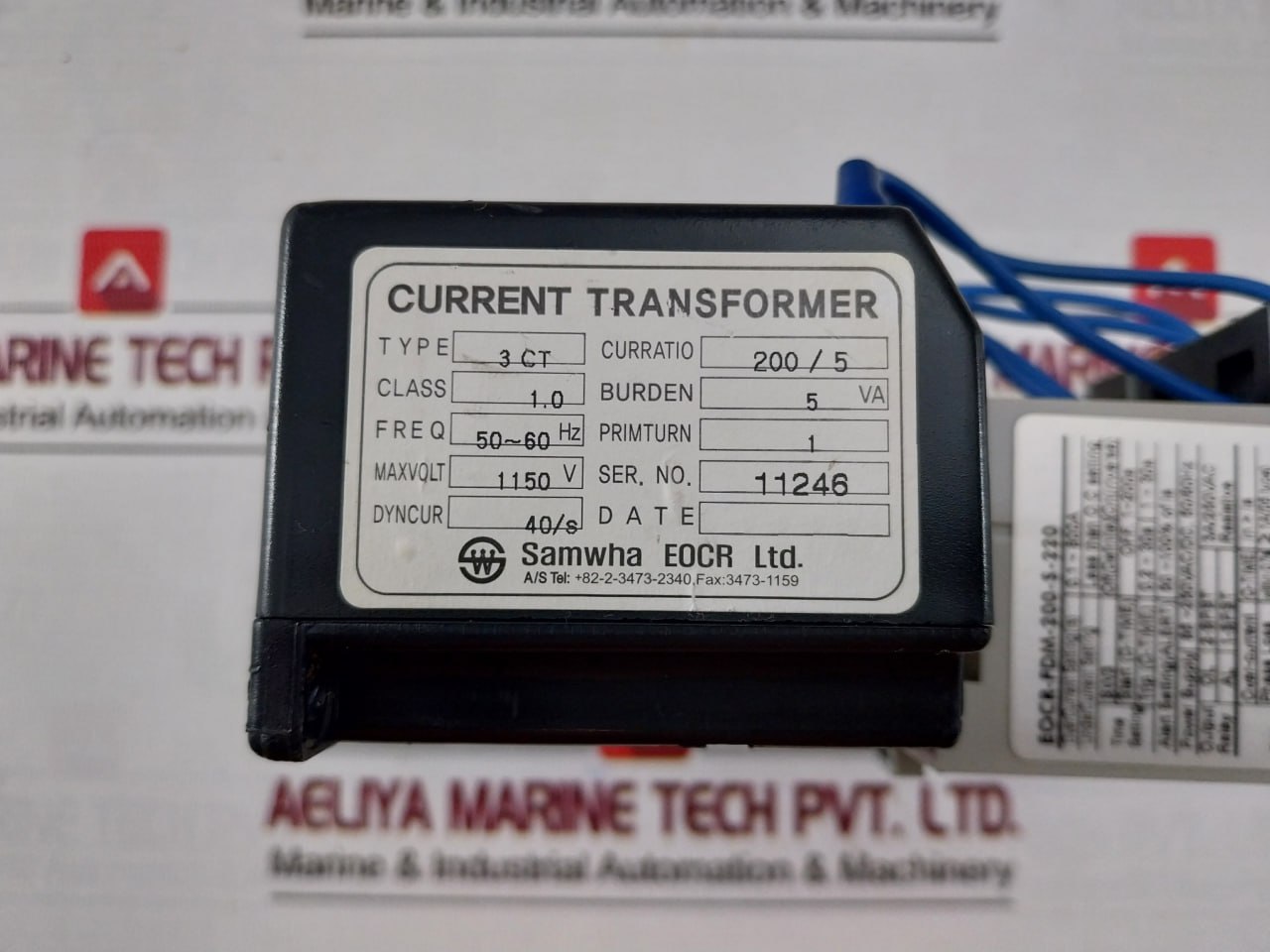

Type: 3 Ct
Class: 1.0
Freq: 50~60hz
Max Volt: 1150v
Dyncur: 40/S
Curratio: 200/5
Burden: 5 Va
Primturn: 1
Made In Korea
Weight : 920 Gm
Ref No : 179368
