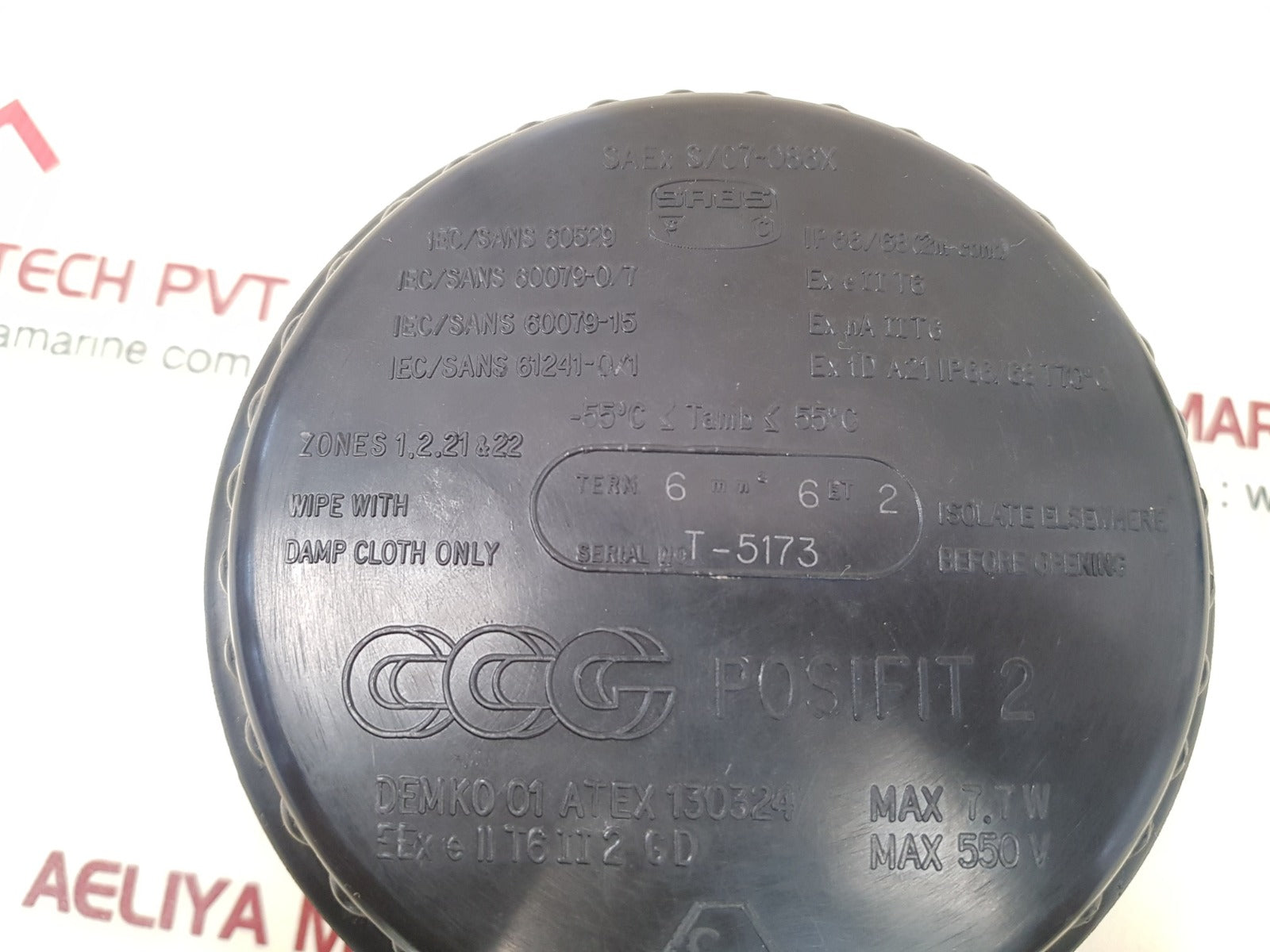

| Attribute | Value |
|---|---|
| Brand | Sabs |
| Model | SAEX S/07-086X |
| Compliance | IEC/SANS 60529, IEC/SANS 60079-0/7, IEC/SANS 60079-15, IEC/SANS 61241-0/1 |
| Zones | 1, 2, 21 & 22 |
| Temperature Range | -55°C to +55°C |
| Ingress Protection | IP 66 / 68 (2m conc) |
| Ex Ratings | Ex E II T6, Ex NA II T6, Ex ID A21 IP66 / 68 T70°C |
| Terminal Size | 6 mm² 6 ET 2 |
| Model Name | CCG Posifit 2 |
| Certification | DEMKO 01 ATEX 130324 |
| Max Power | 7.7W |
| Max Voltage | 550V |
| Weight | 1.260 kg |

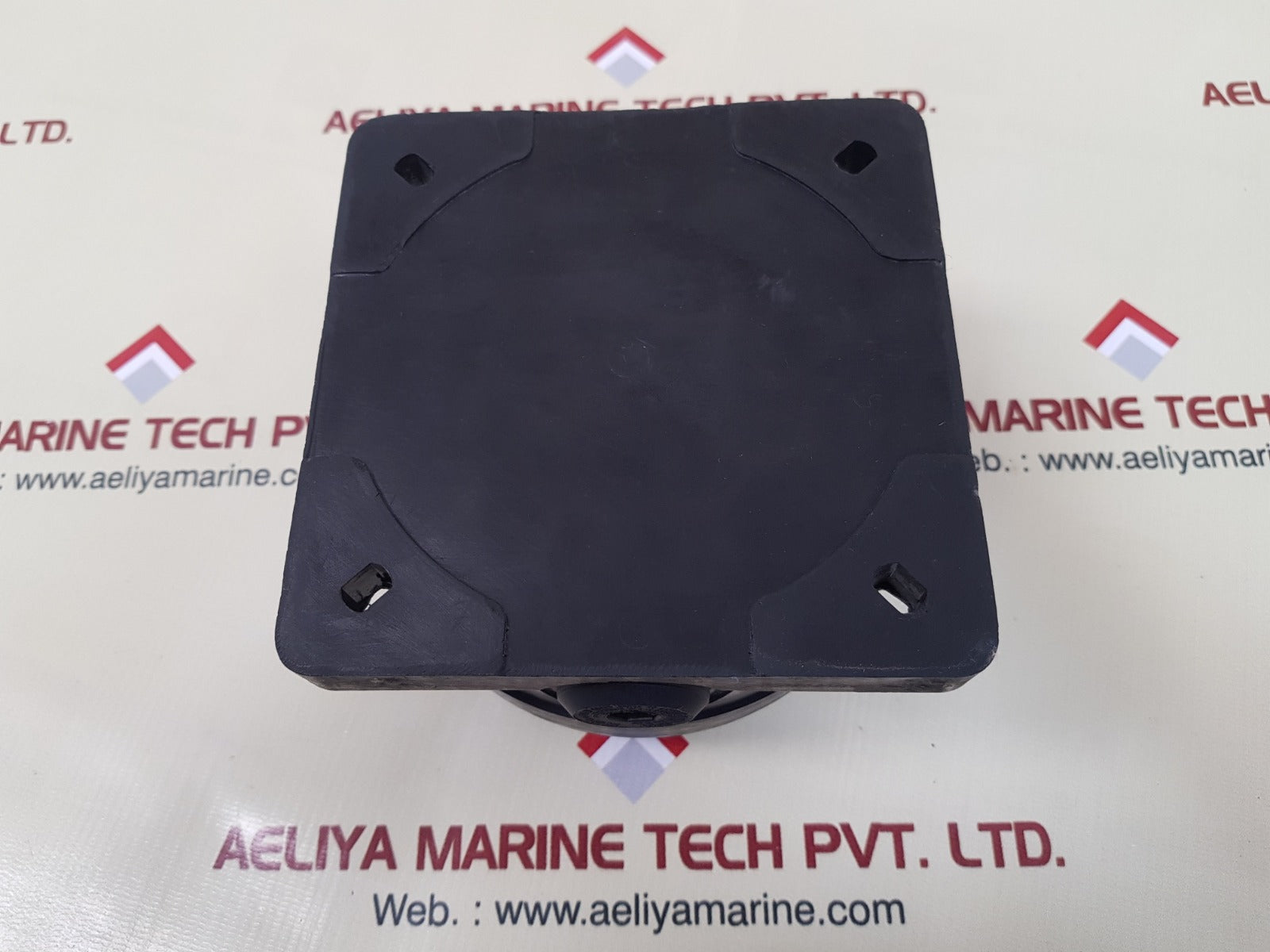

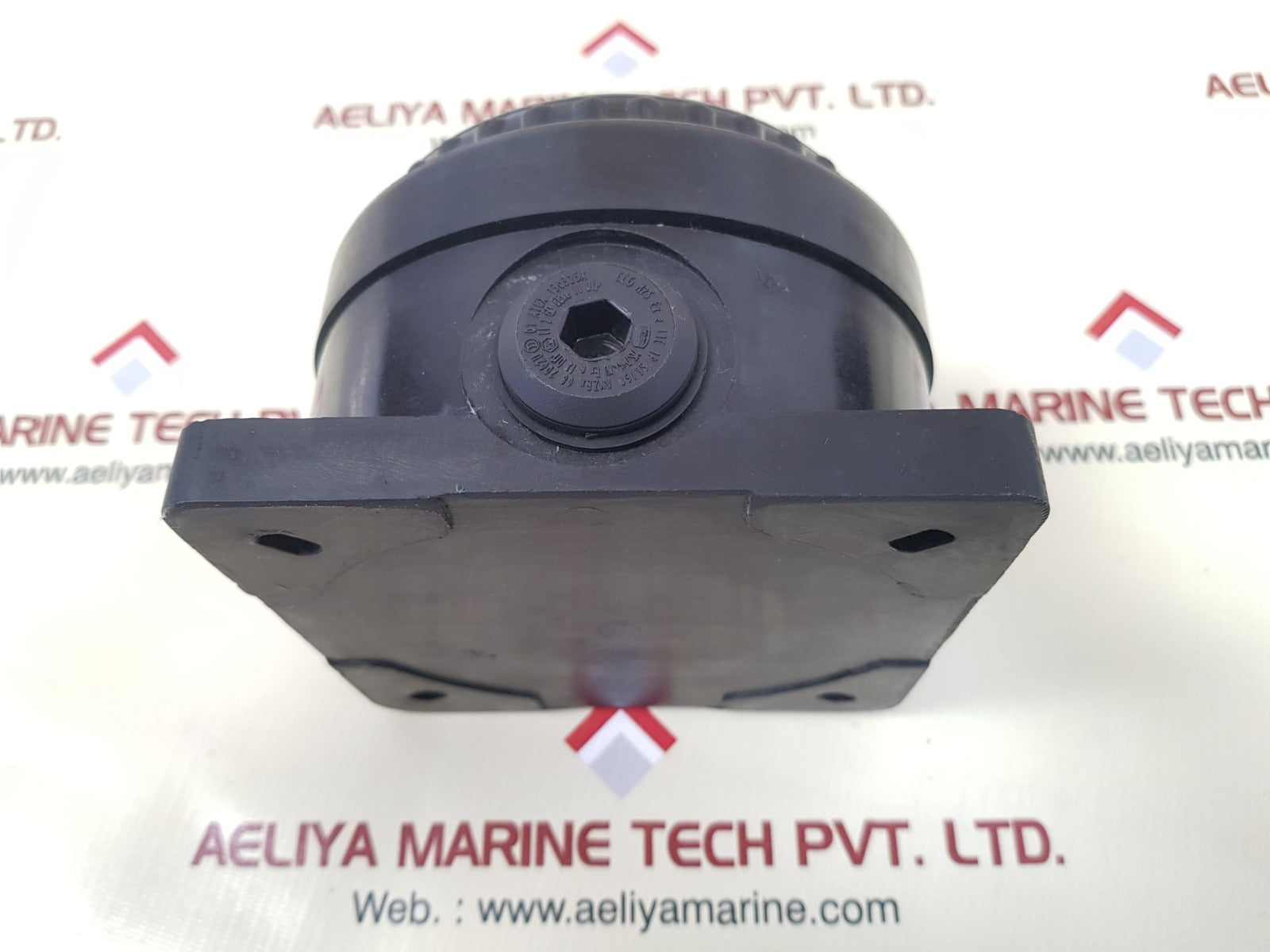

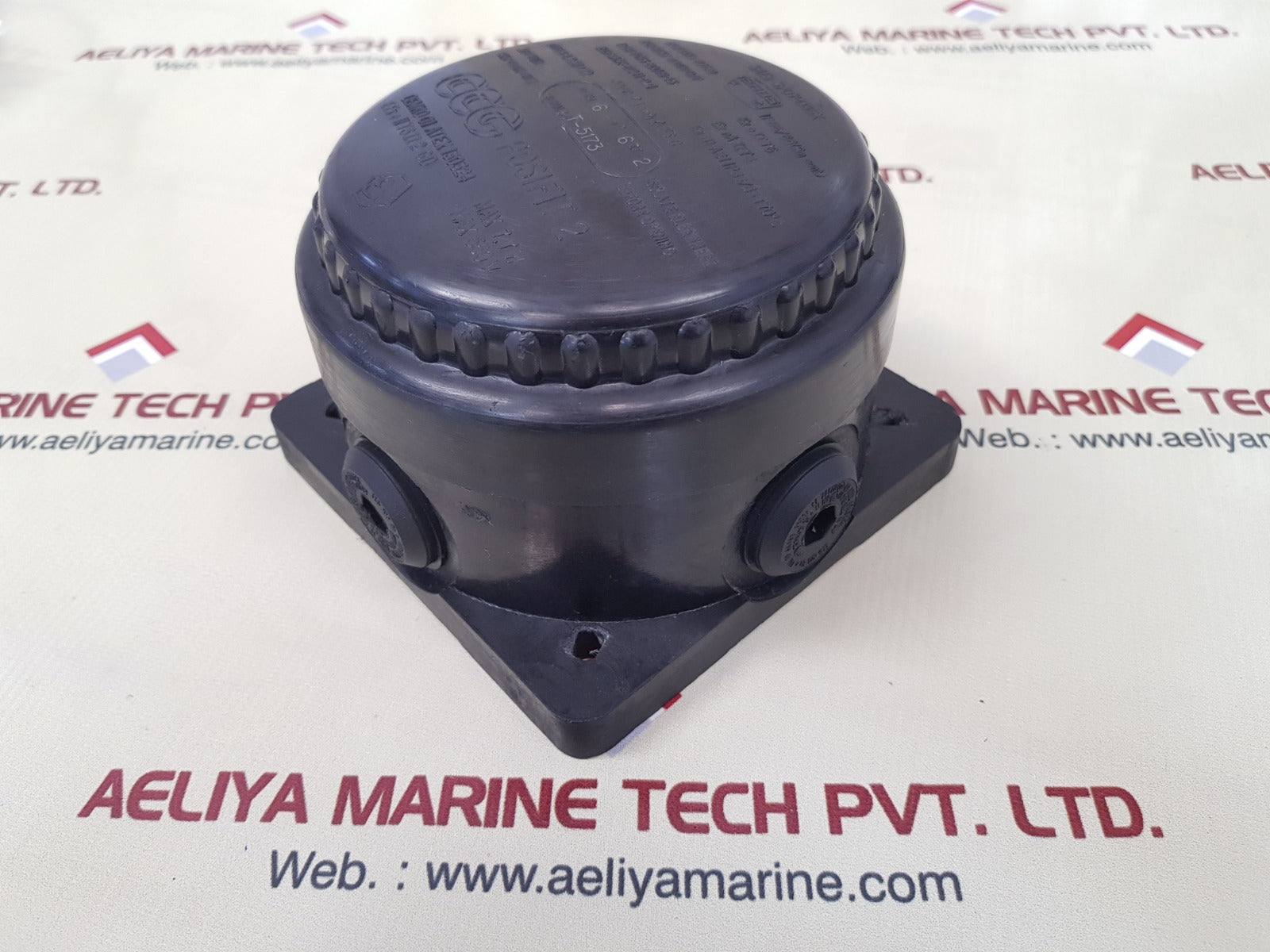

What is SABS CCG Posifit 2 Junction Box?
The SABS CCG Posifit 2 Junction Box EEx e II T6 II 2 GD is a flameproof, explosion-protected electrical enclosure for application in explosive gas or dust hazardous areas. Produced to high IECEx and ATEX standards, this junction box provides safe connection and termination of electrical cables in harsh industrial and marine applications.
With the EEx e and T6 temperature classification, it ensures safe operation in dangerous applications. Its heavy-duty build and water ingress protection make it a safe option for outdoor as well as indoor installations.
Main Features
Explosion Protection: EEx e II T6 II 2 GD certified, which is appropriate for application in Zone 1 and Zone 2 hazardous locations.
Strong Material: Constructed from impact-resistant, corrosion-resistant, and UV-resistant materials.
Ingress Protection: High IP66/IP67 rating with resistance against dust and strong water jets or submergence.
Protected Cable Entry: Can be supplied with a variety of cable glands, such as flameproof and added safety types.
Simplified Installation: U-shaped terminal blocks and fixing points ensure simple installation and inspection.
Temperature Class T6: Safe operation in surroundings with surface temperatures up to 85°C.
Maintenance Friendly: Modular design and screw-on lids facilitate easy inspection and maintenance.
SABS Certified: Constructed to meet South African Bureau of Standards standards, guaranteeing utmost industrial compliance.
Uses of the CCG Posifit 2 Junction Box
This junction box is used extensively in industrial automation and marine settings, such as:
Marine Electrical Systems: Provides secure wire distribution in ships, oil rigs, and port installations.
Petrochemical Plants: Finds application in refineries and gas processing plants where there are harmful gases.
Mining Operations: Provides effective electrical protection in underground and open-cast mining activities.
Food & Beverage Plants: Safe to use where wash-down and cleaning activities are routine.
Renewable Energy Installations: Provides protection in solar farms, offshore wind turbines, and power plants.
Industrial Manufacturing Plants: Guards sensitive electrical equipment on factory shop floors and processing plants.
Why Select SABS CCG Posifit 2 Junction Box?
Selecting this product ensures long-term reliability, safety compliance, and flexibility in hazardous and difficult conditions. Here’s why the Posifit 2 is trusted by professionals:
Trusted Compliance: Complies with IEC and ATEX standards for flameproof and enhanced safety requirements.
Rugged Durability: Designed to perform under harsh environmental conditions such as marine corrosion.
Flexible Configurations: Offered in a range of sizes and gland entry arrangements.
Ideal for Retrofitting: Ideally suited to replace existing outdated boxes in risk areas without sacrificing standards.
Supported by CCG Systems: A globally recognized name in electrical protection solutions, especially within the oil & gas and marine industries.
