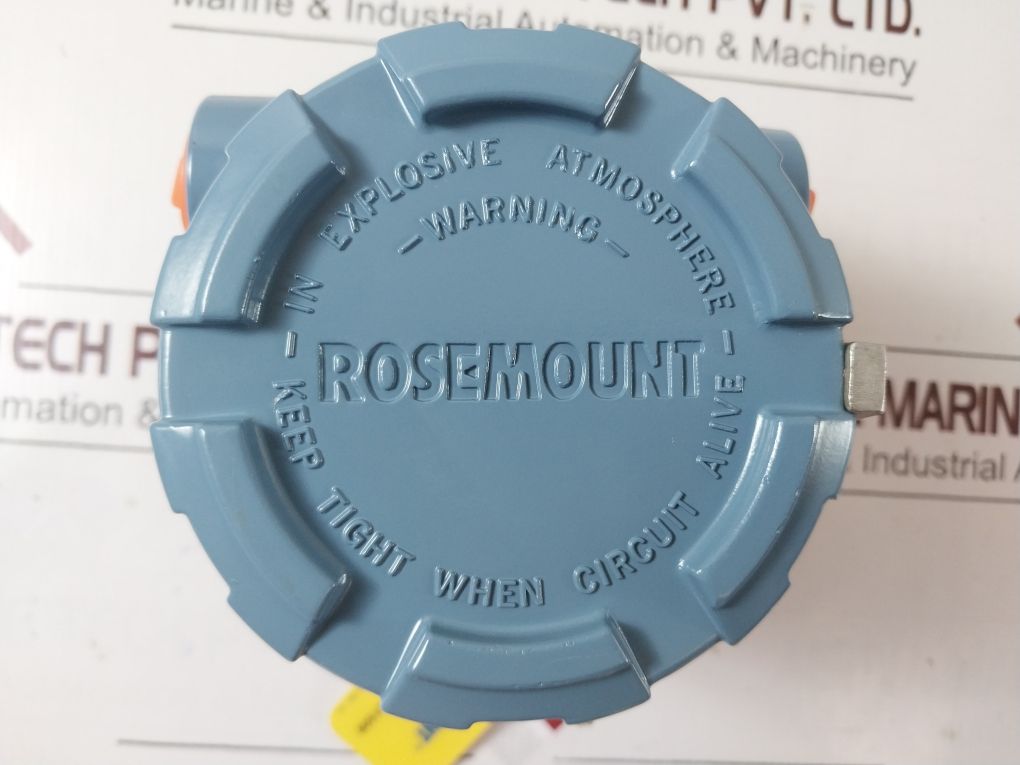

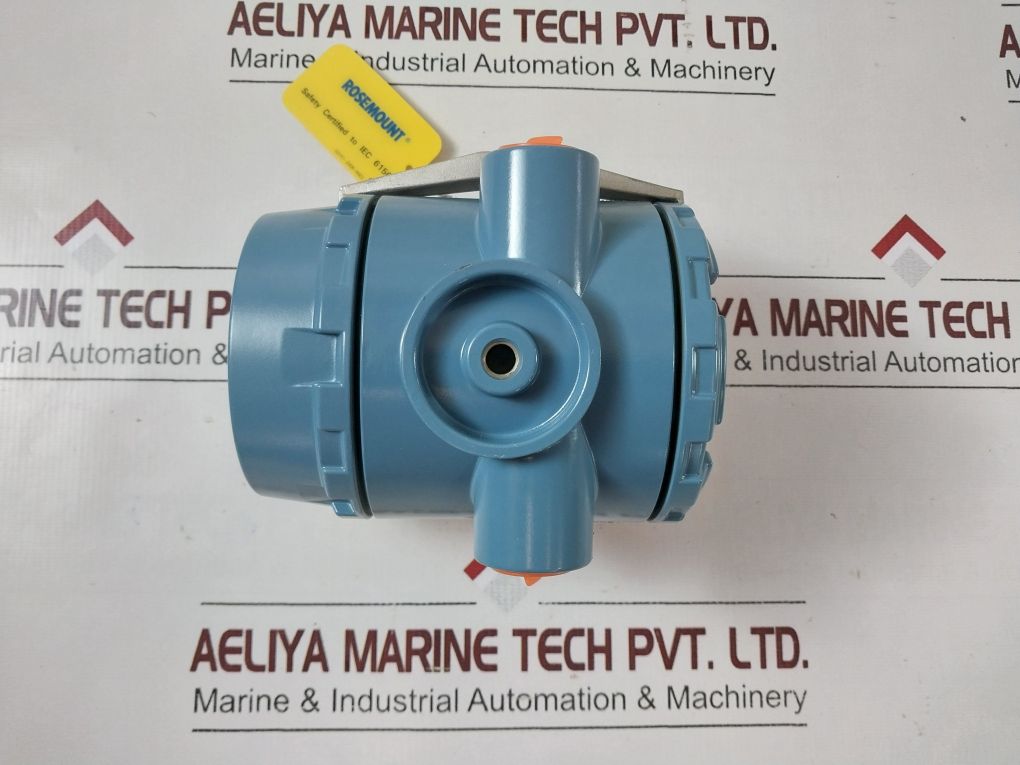

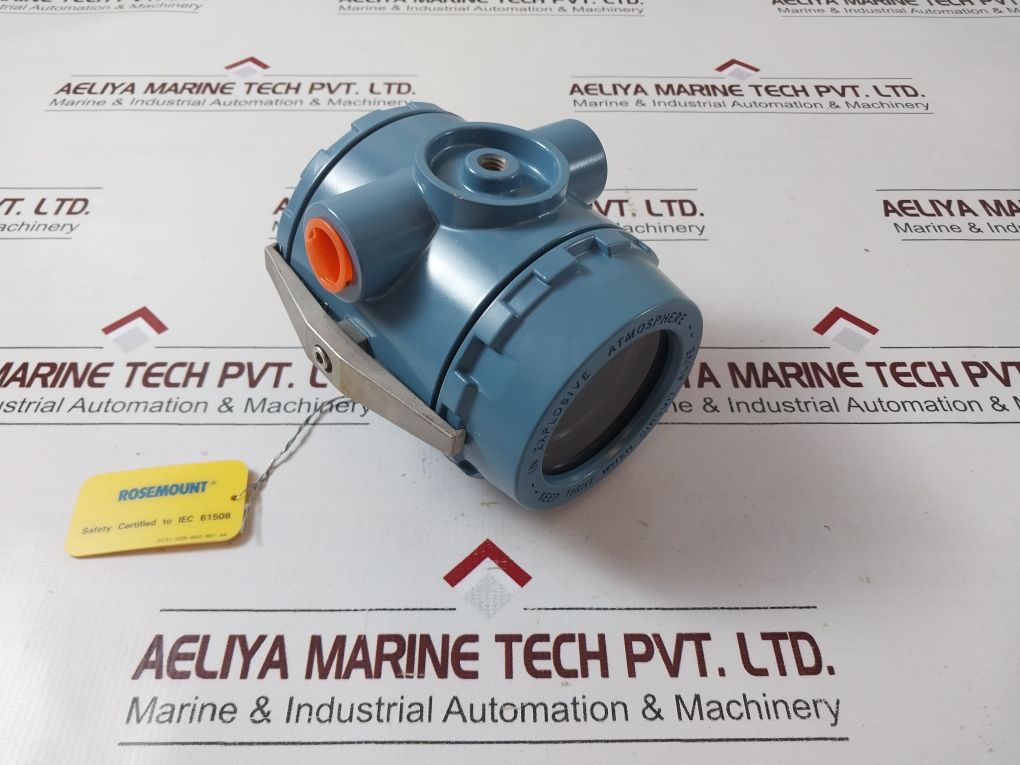

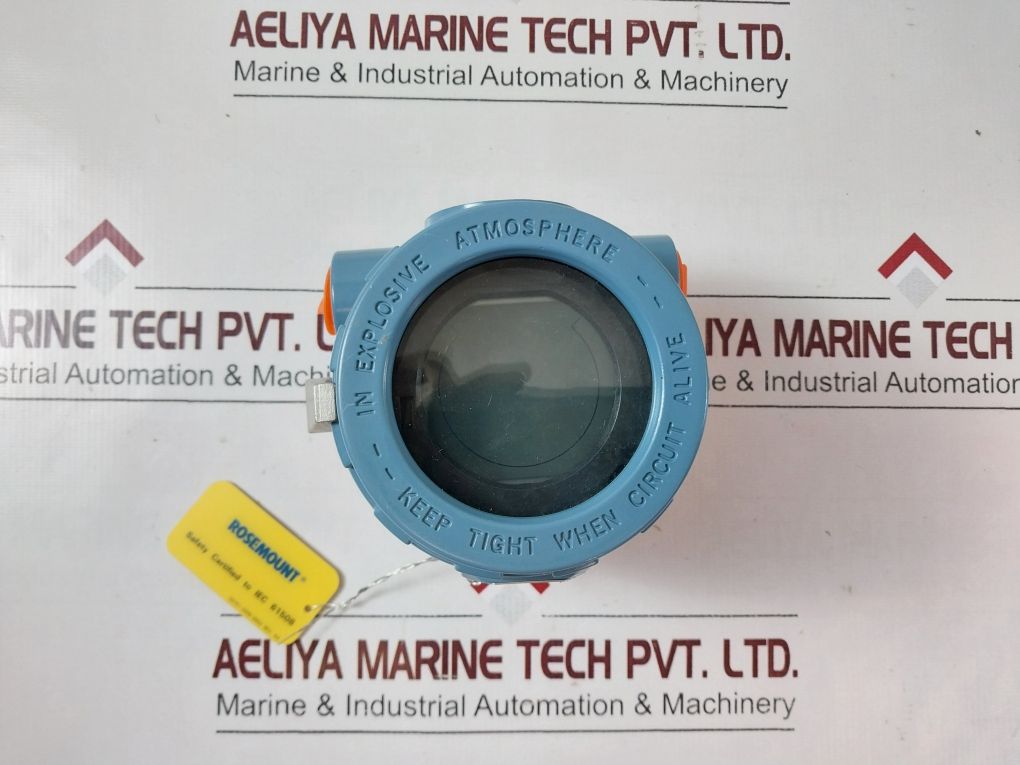

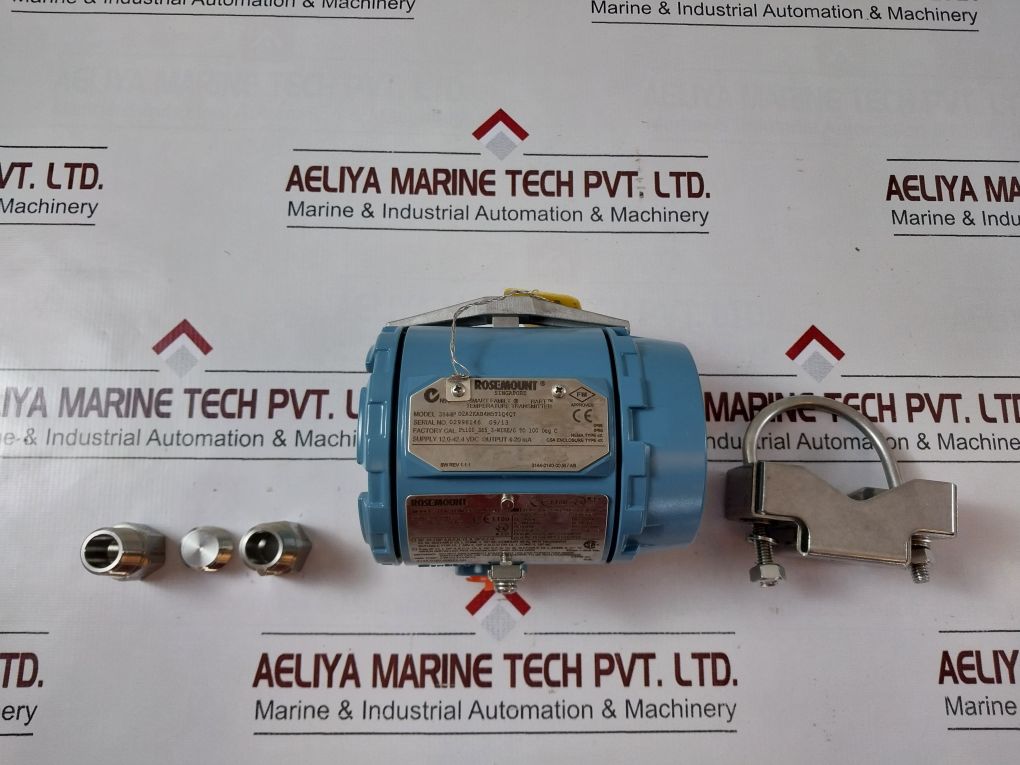

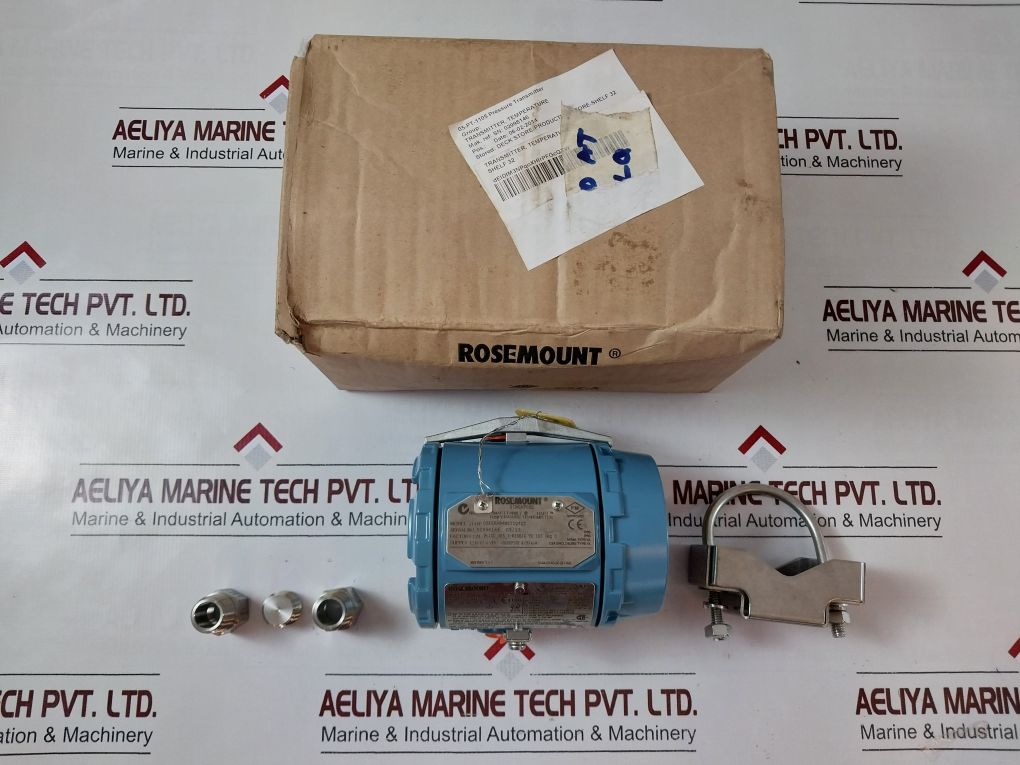

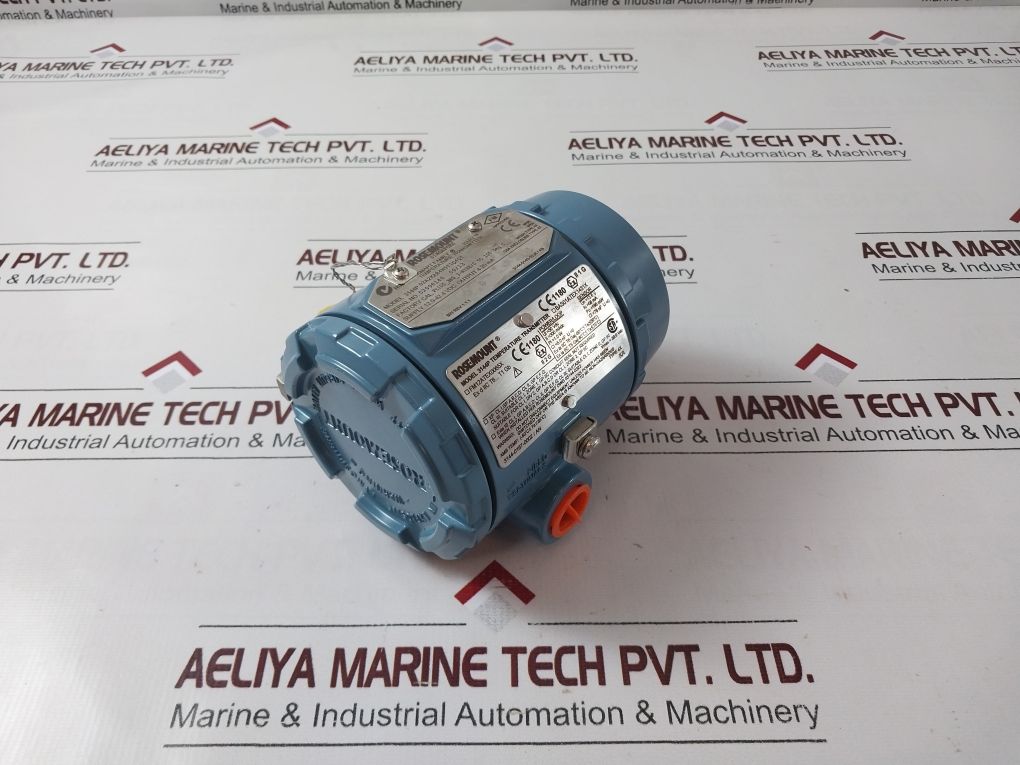

Rosemount Emerson 3144p D2a2kab4m5t1q4qt Temperature Transmitter

Rosemount Emerson 3144p D2a2kab4m5t1q4qt Temperature Transmitter
Rosemount
Emerson Process Management
Smart Family
Hart
Temperature Transmitter

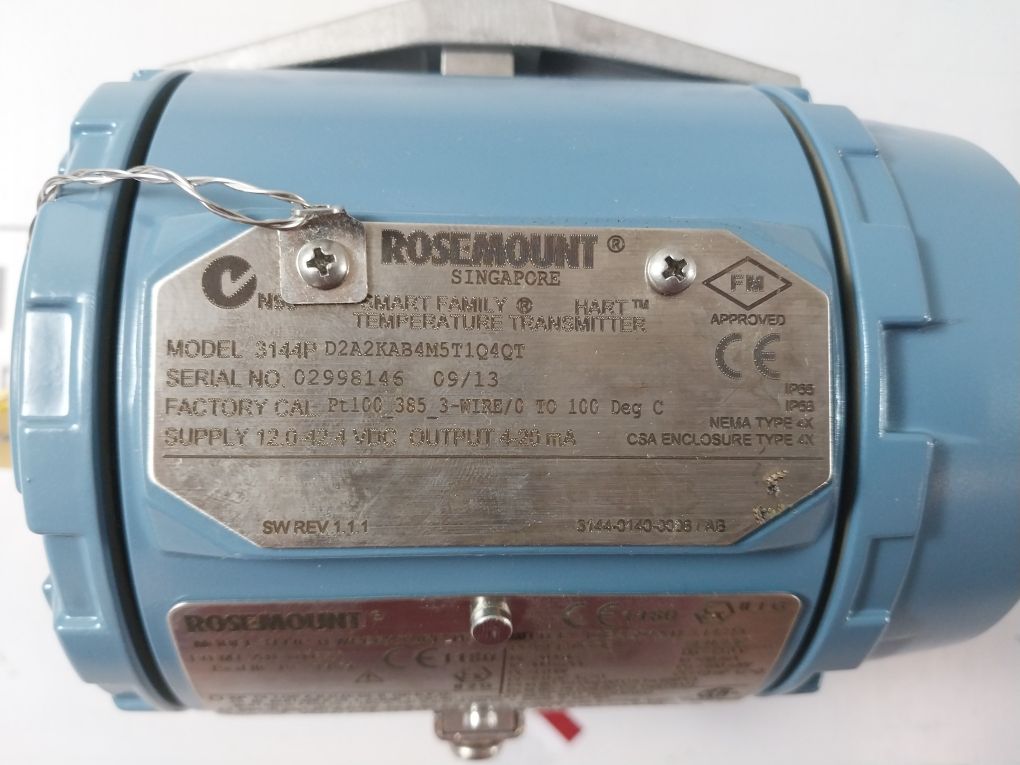

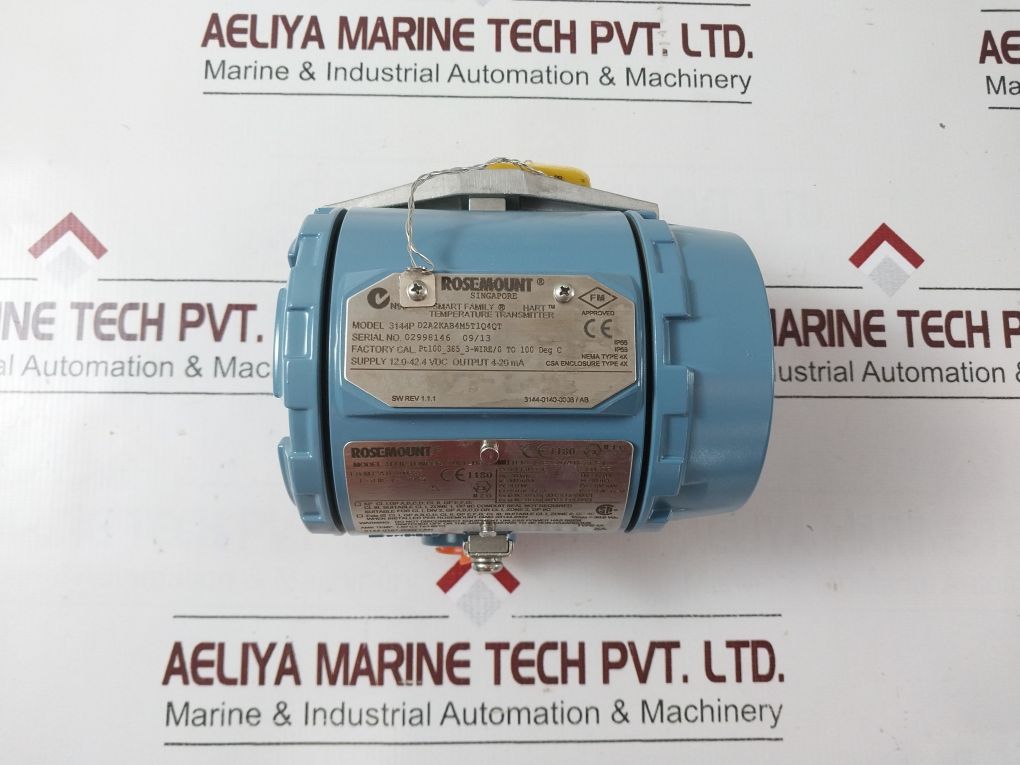

Model/part: 3144p D2a2kab4m5t1q4qt
Factory Cal.: Pt100_385_3-wire/0 To 100 Deg C
Supply: 12.0-42.4 Vdc
Output: 4-20 Ma
Ip66
Ip68
Nema Type 4x
Csa Enclosure Type 4x
Sw Rev 1.1.1
3144-0140-0006/ab

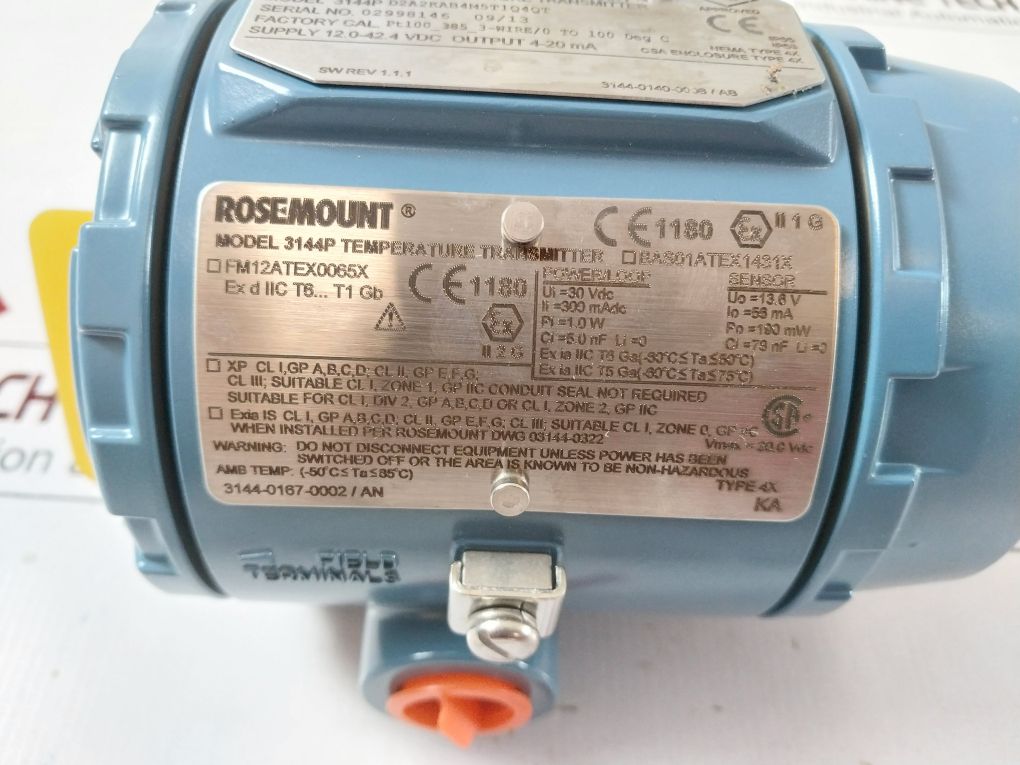

Model 3114p
1180
Ii 1 G
Bas01atex1431x
Fm12atex0065x
Ex D Iic T6…t1 Gb
Power/loop:
Ui= 30vdc
Ii= 300 Madc
Pi= 1.0w
Ci= 5.0 Nf Li= 0
Ex Ia Iic T6 Ga(-60°c Ta 50°c)
Ex Ia Iic T5 Ga(-60°c Ta 75°c)
Sensor:
Uo= 13.6v
Io= 56 Ma
Po= 190 Mw
Ci= 78 Nf Li= 0
Cl I, Gp A,b,c,d;
Cl Ii, Gp E,f,g;
Cl Iii; Cl I, Zone 1, Gp Iic
Cl I, Div 2, Gp A,b,c,d Or Cl I, Zone 2, Gp Iic
Vmax= 30.0vdc
Amb Temp: (-50°c Ta 85°c)

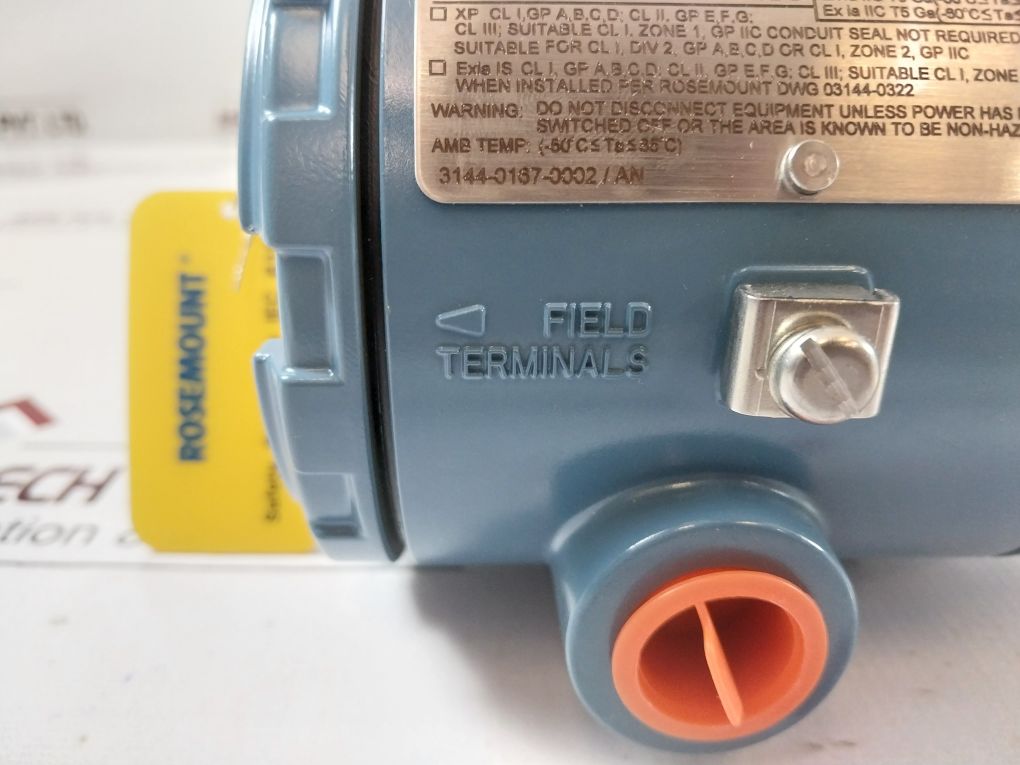

3144-0167-0002/an

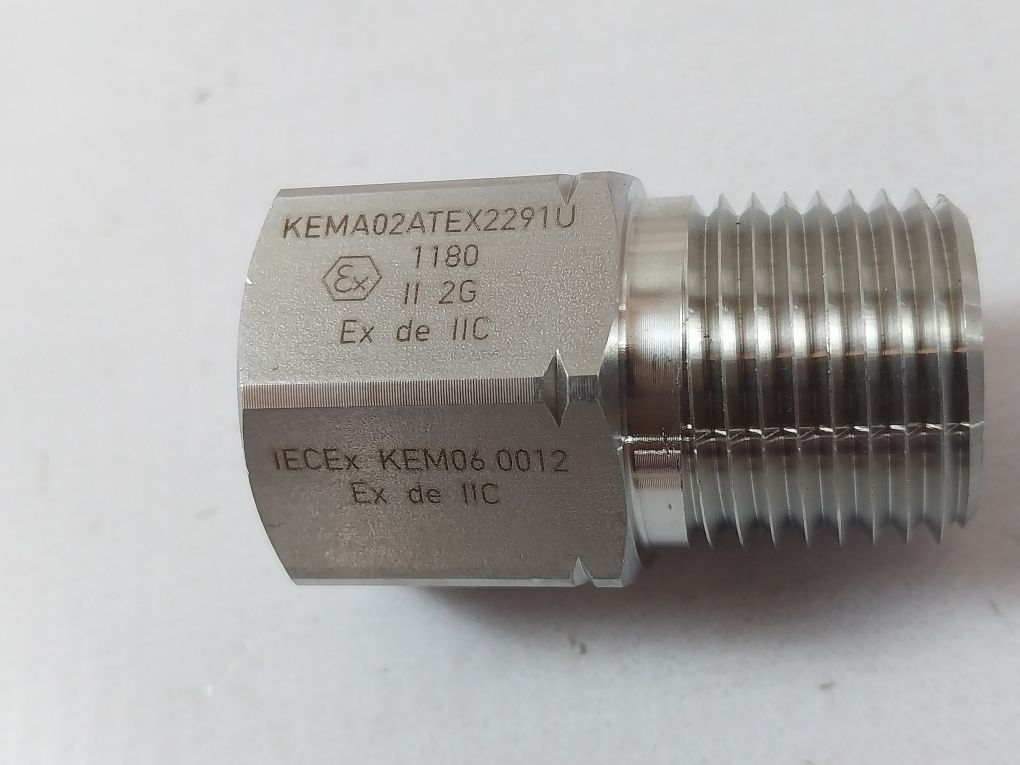

Kema02atex2291u
Ex De Iic
Iecex Kem06.0012

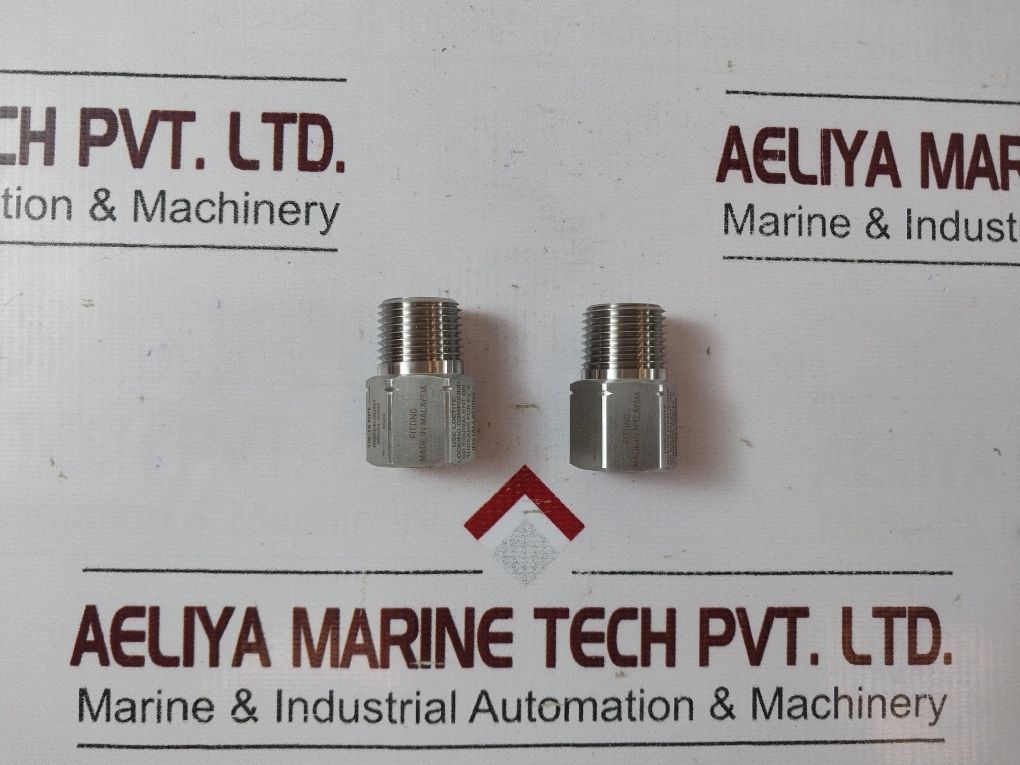

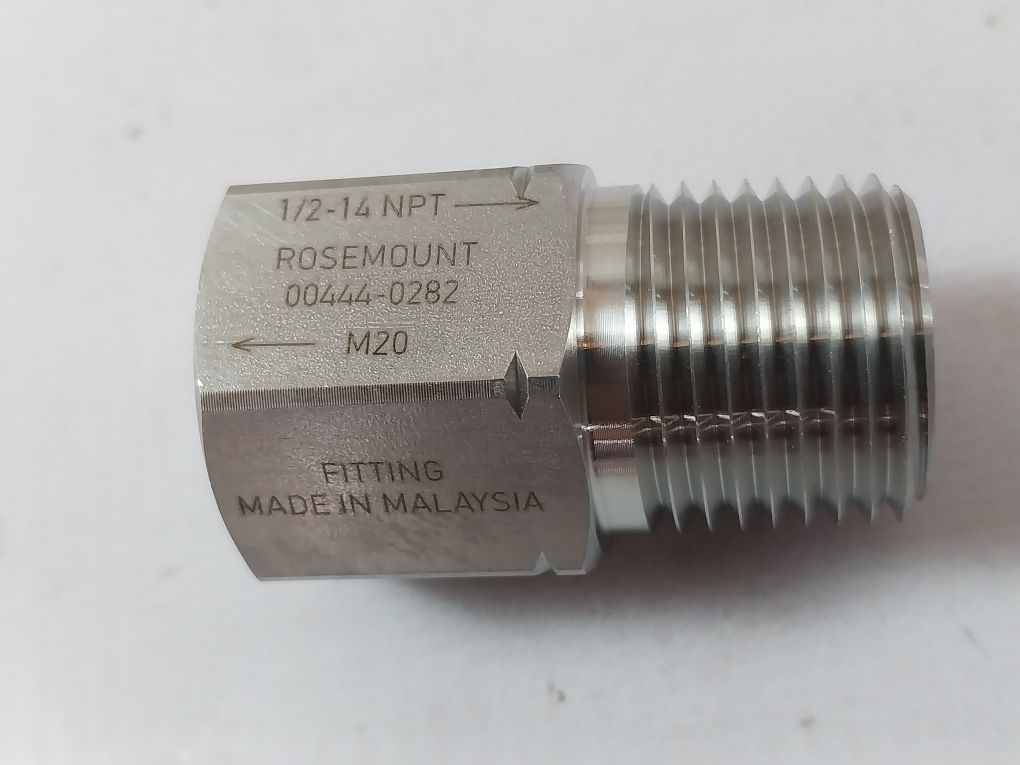

1/2-14 Npt
00444-0282
M20

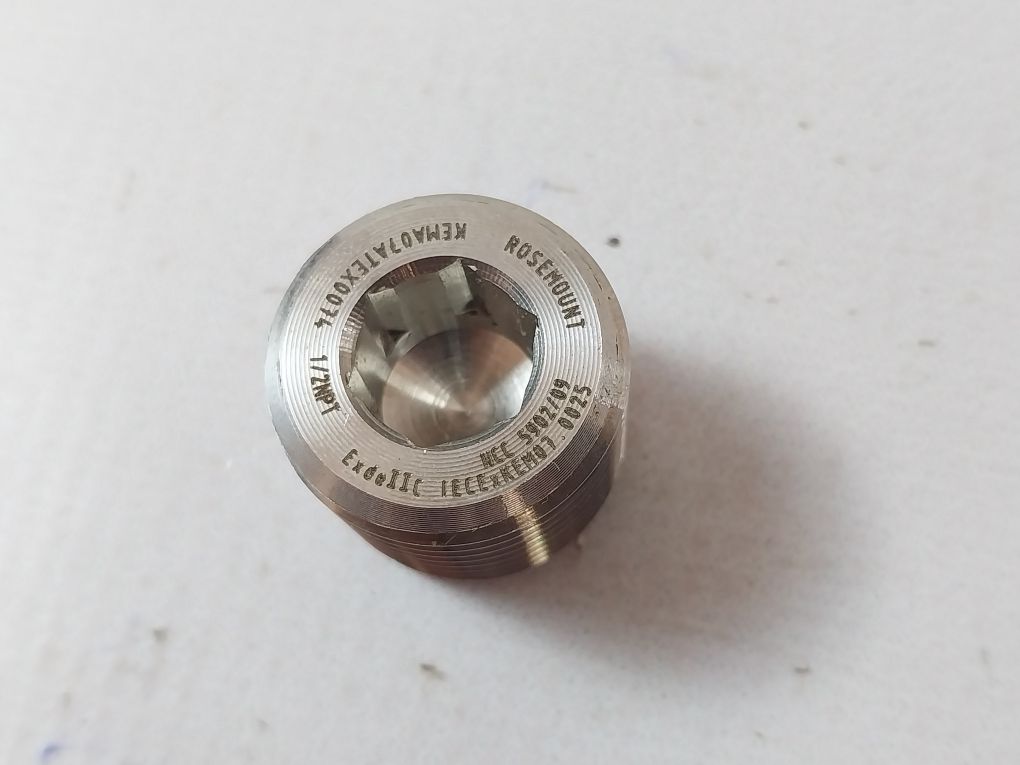

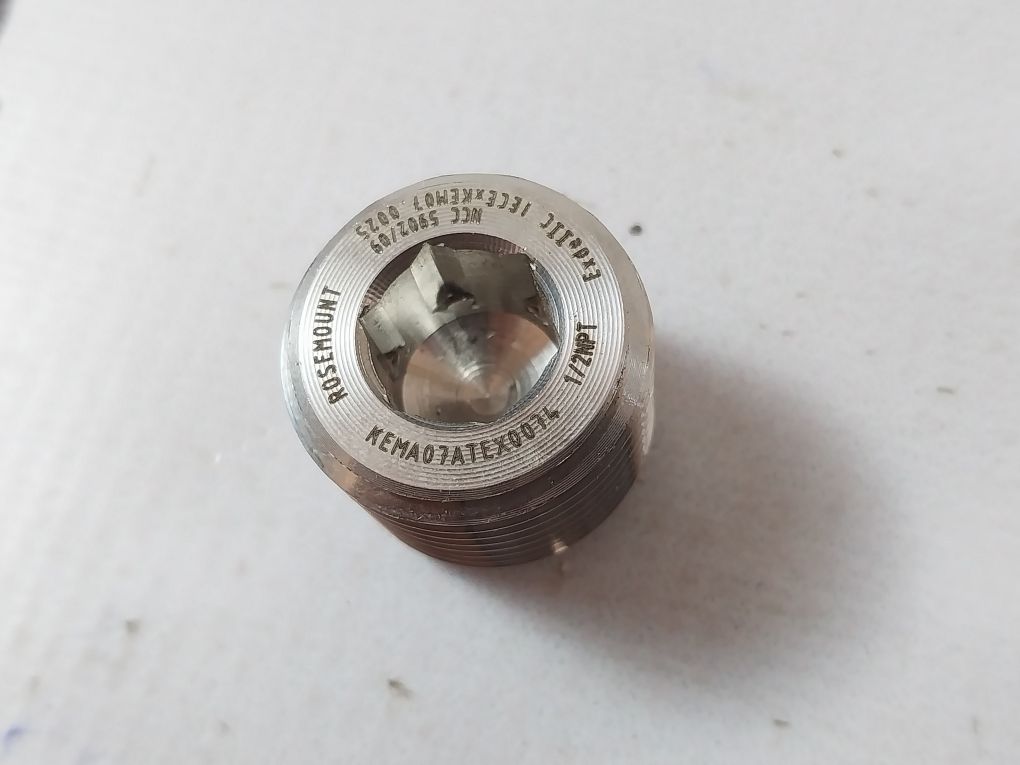

Kema07atex0074
1/2npt
Ncc 5902/09
Iecexkem07.0025

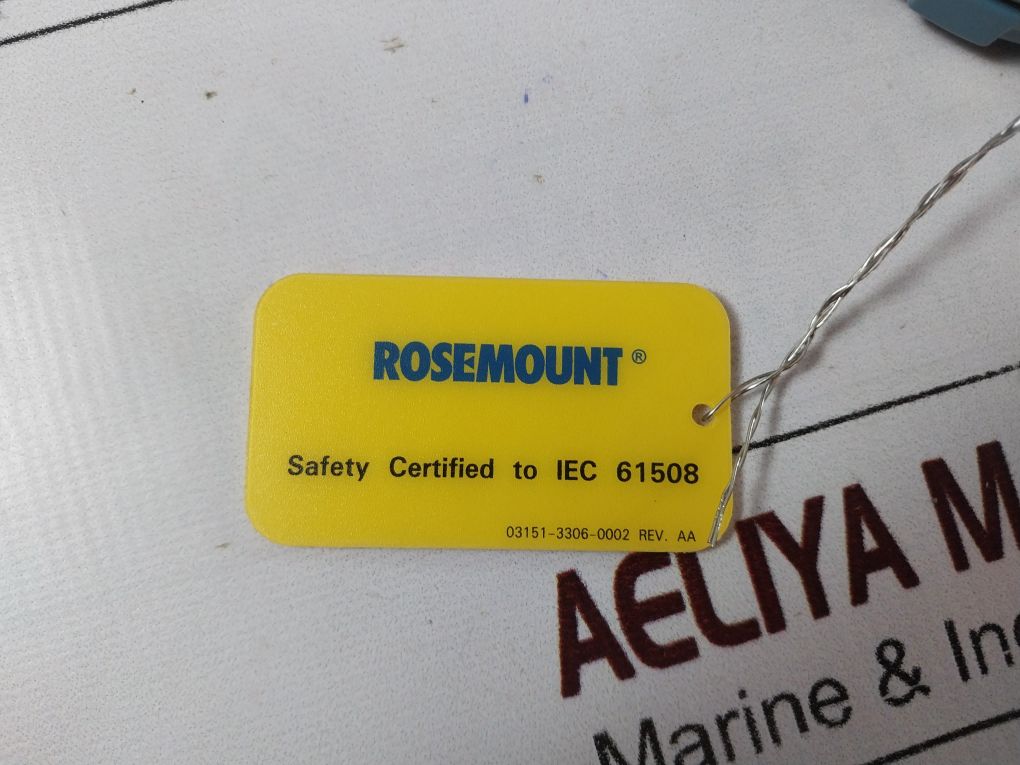

03151-3306-0002 Rev. Aa
Made In Singapore

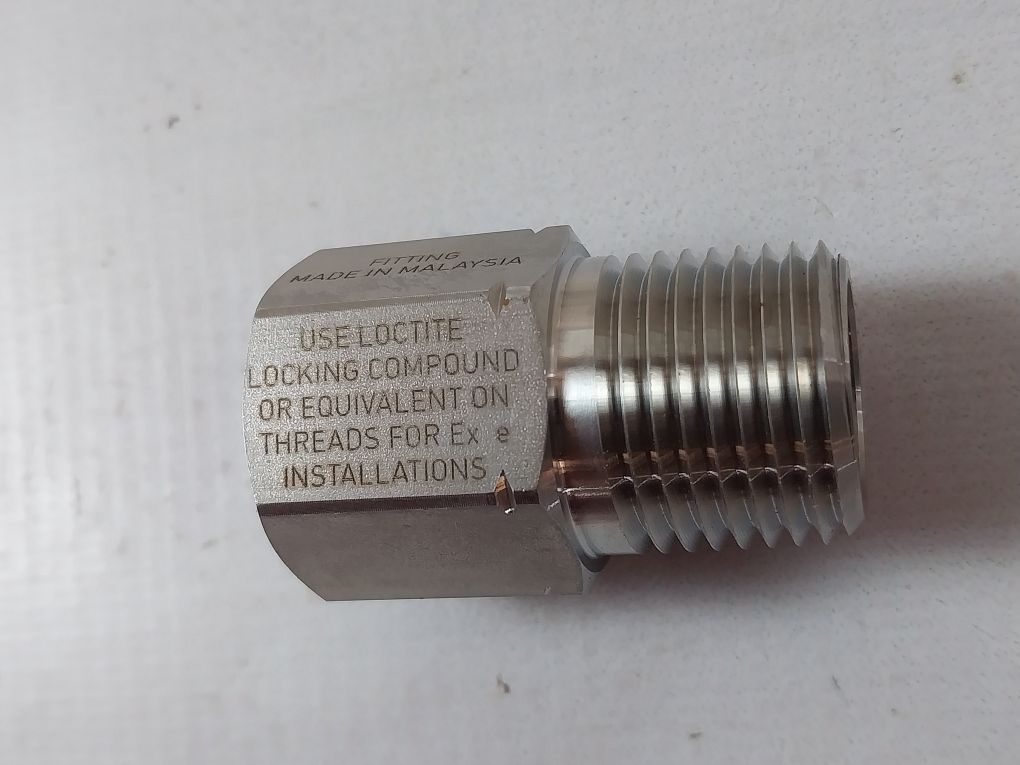

Made In Malaysia
Weight : 2.430 Kg
Ref No : 66536
