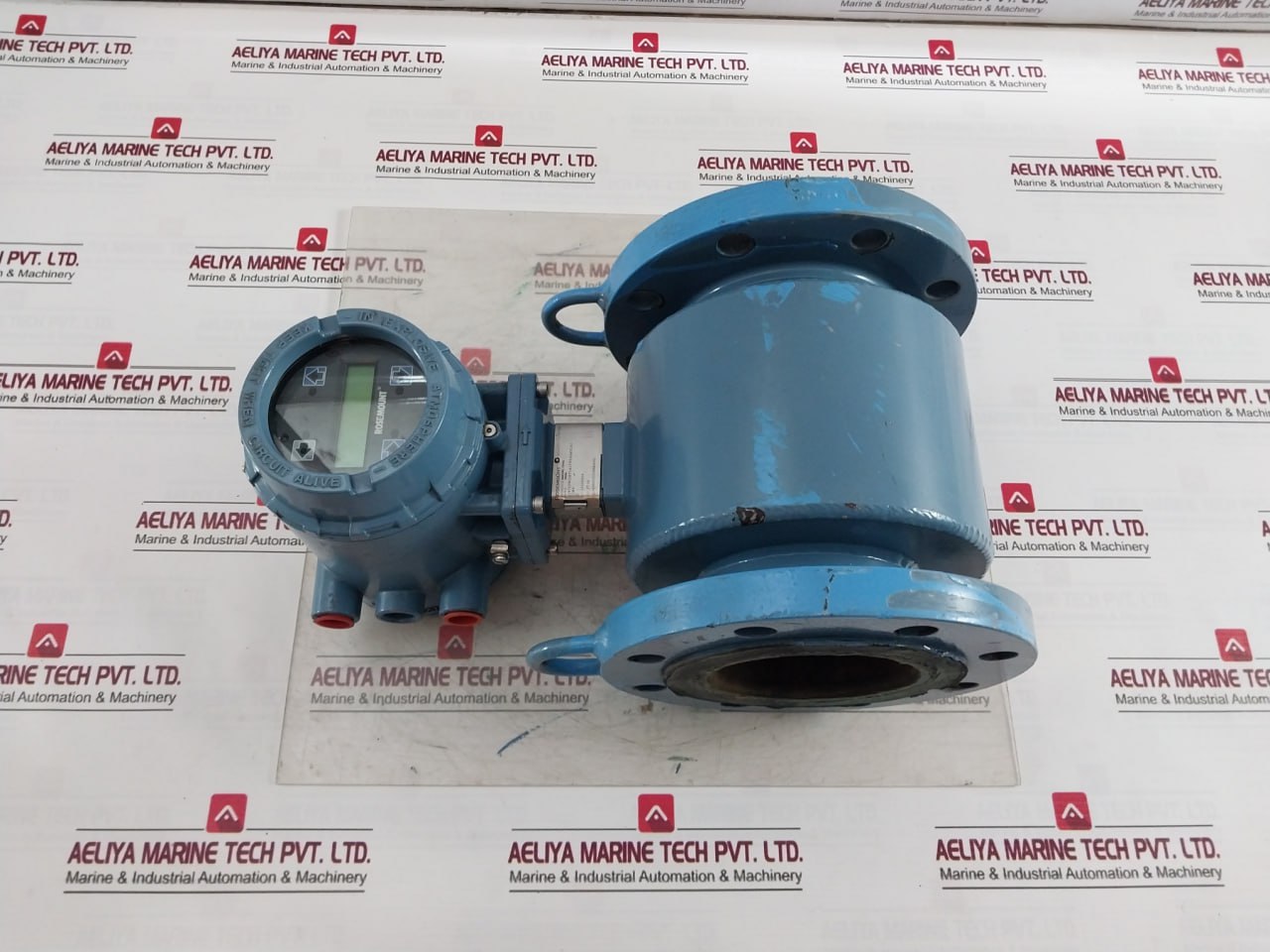

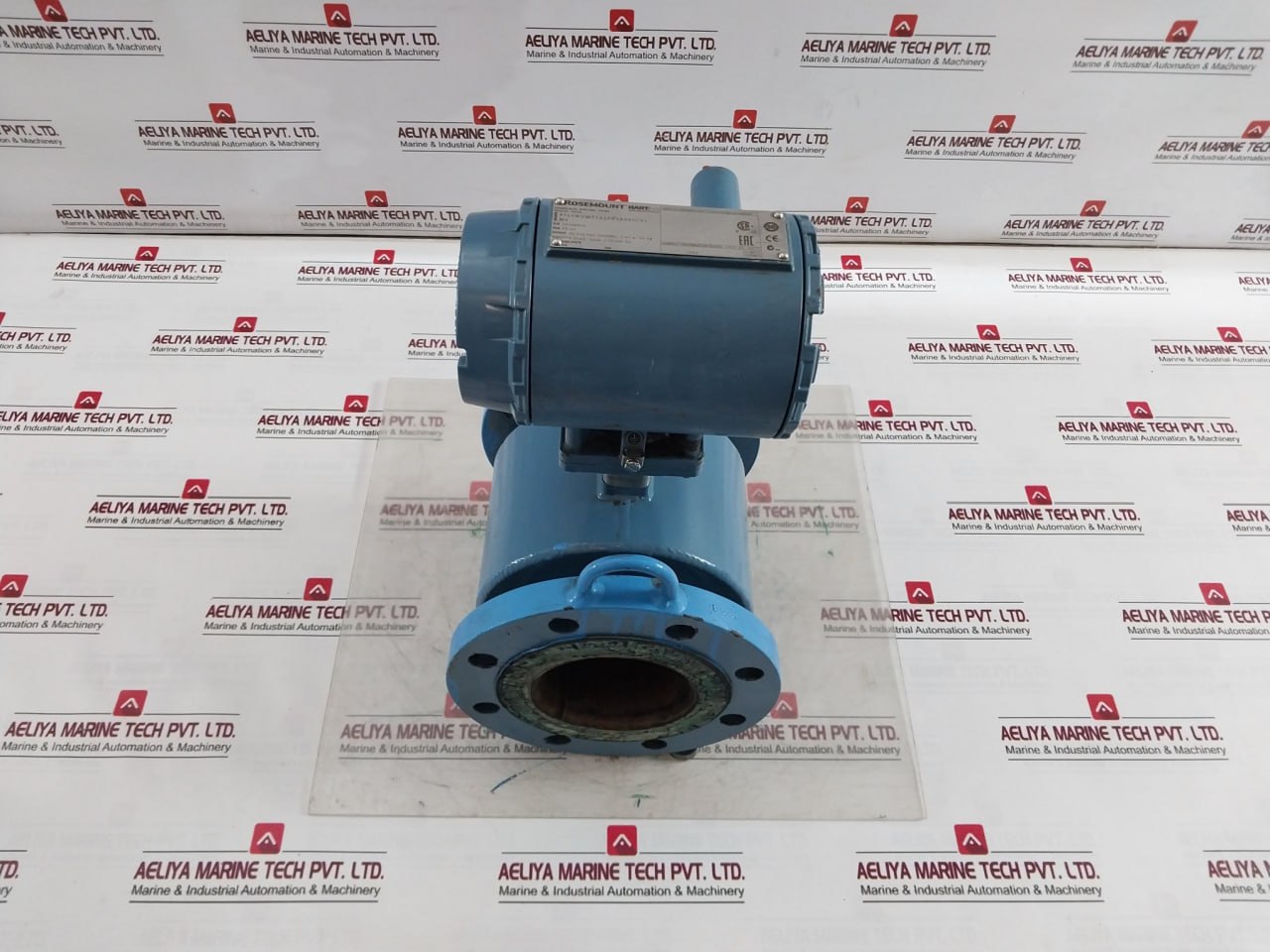

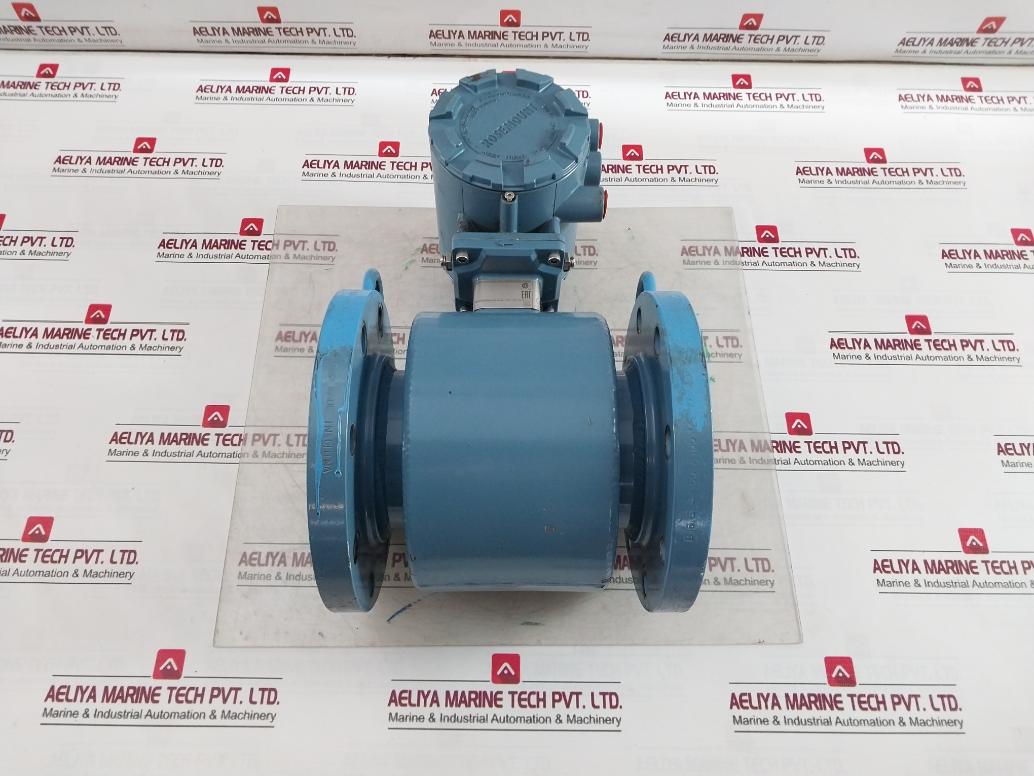

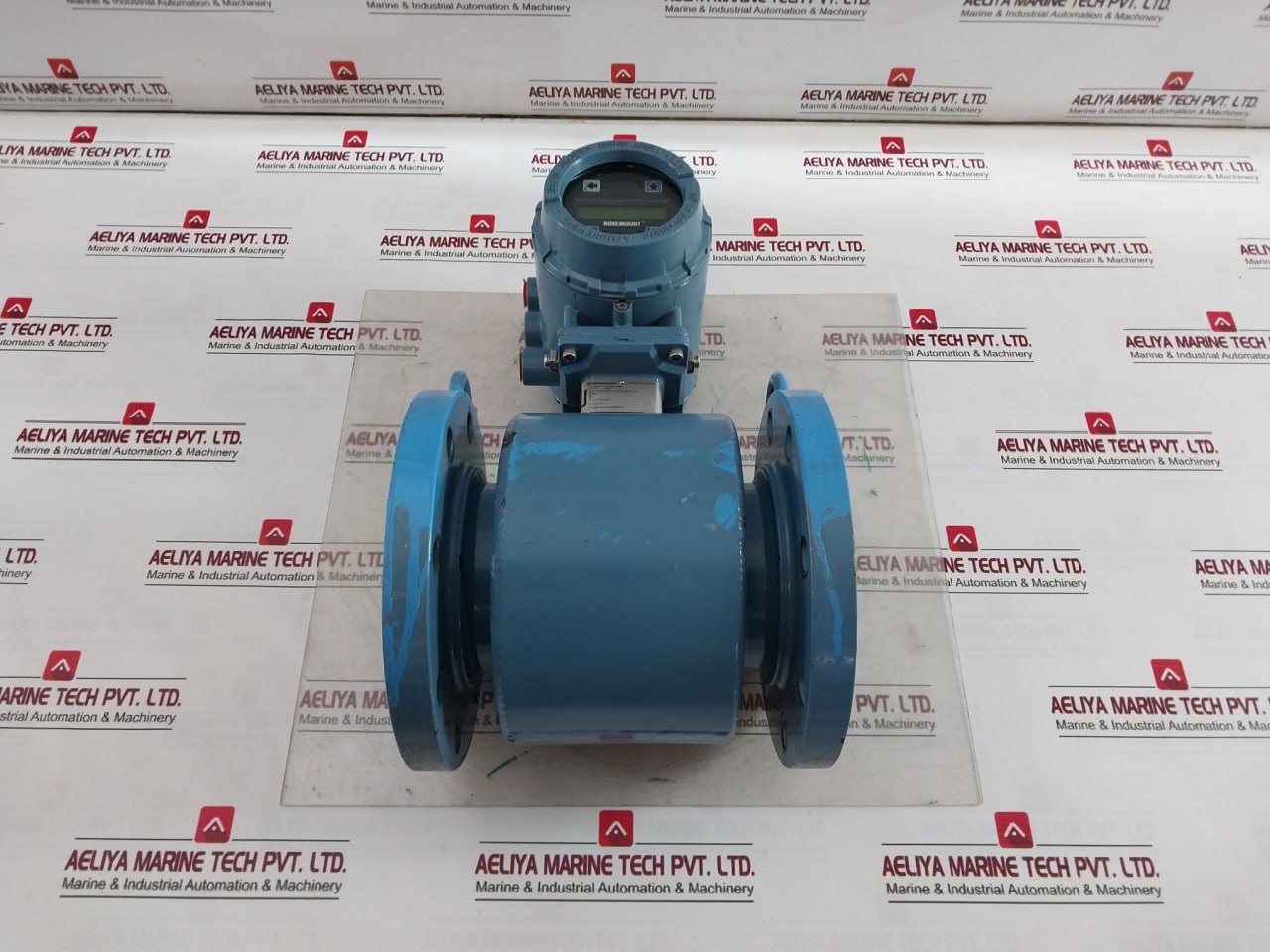

Rosemount 8750wdmt1a1fnsa040ca1m4 Magnetic Flowmeter 250v

Rosemount 8750wdmt1a1fnsa040ca1m4 Magnetic Flowmeter 250v
Rosemount
Hart Communication Protocol
Magnetic Flowtube

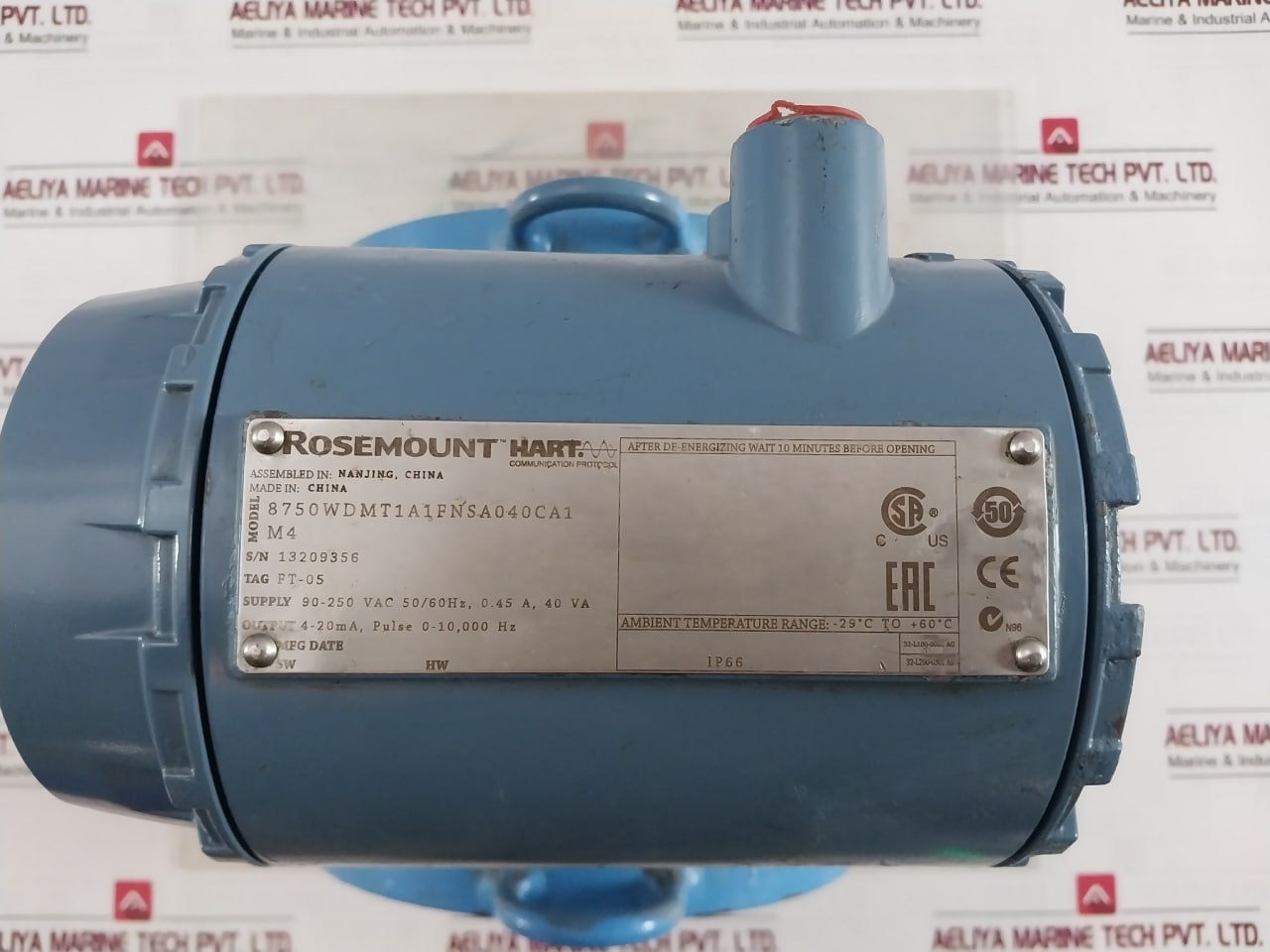

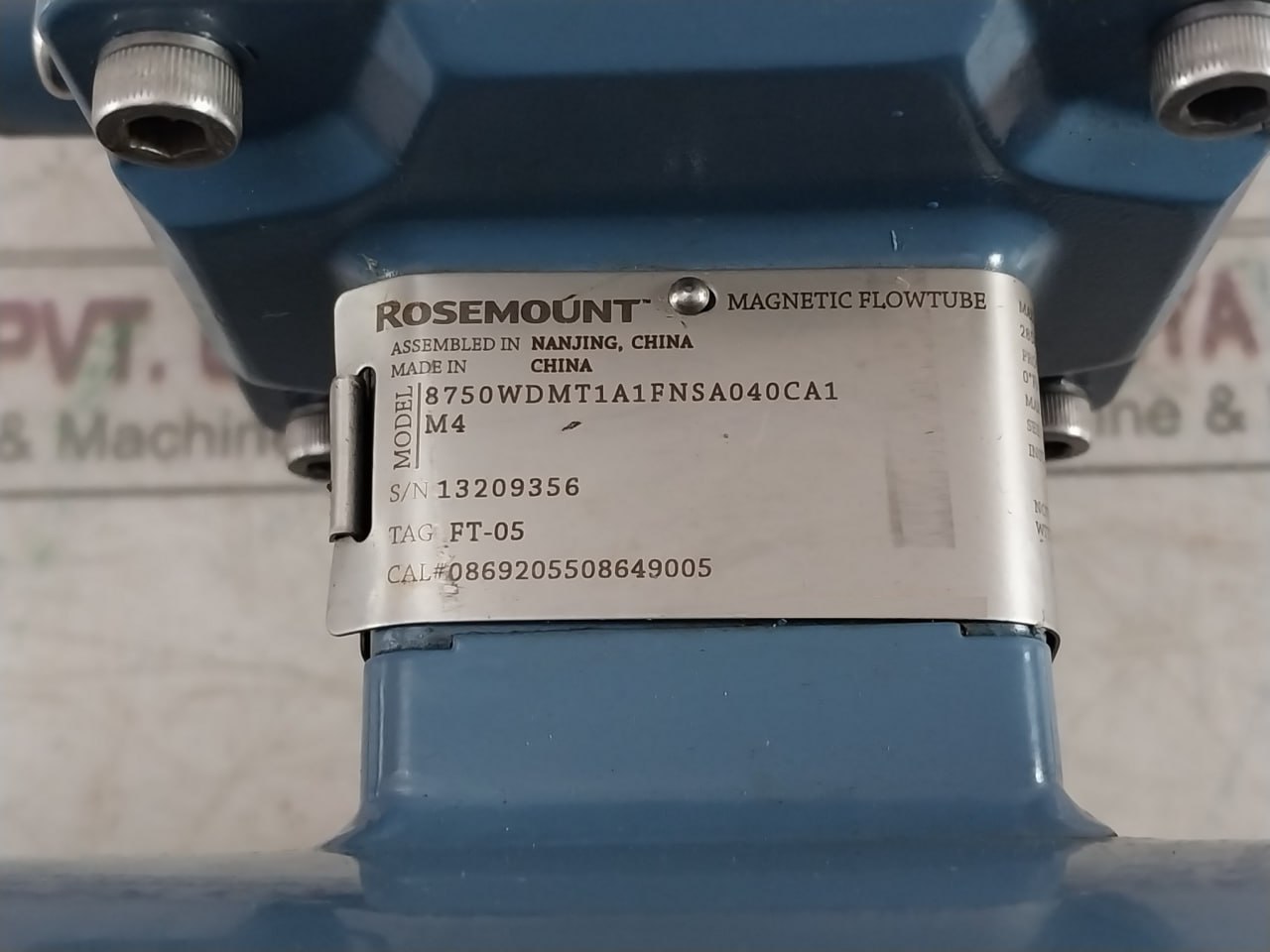

Model: 8750wdmt1a1fnsa040ca1m4
Cal#: 0869205508649005
Supply: 90-250 Vac 50/60hz, 0.45a, 40va
Output: 4-20ma, Pulse: 0-10,000 Hz

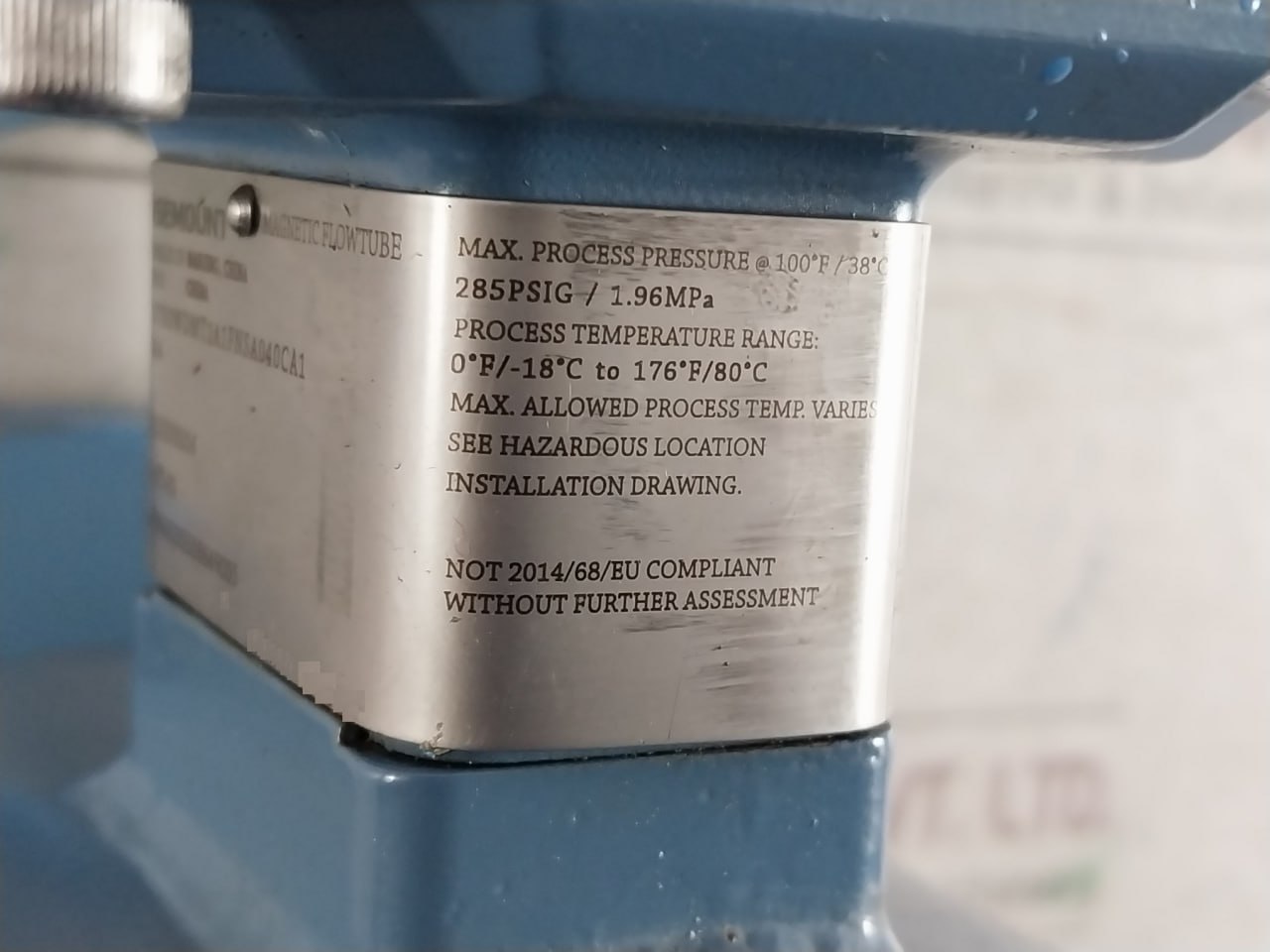

Max.Process Pressure @ 100°F/38°C
285psig/1.96mpa
Process Temperature Range:
0°F/-18°C To 176°F/80°C
Ambient Temperature Range: -29°C To +60°C
05-L100-0003 Ag
05-L200-0301 Ab
Electrical Parameters
Coil Electrode
Excitation: Circuit
500ma 5v
40v Max 200µA
20w Max 1mw
Type 4x Ip66/68/69k
32-L100-0001 Ag
32-L200-0301 Ab
Label: 08732-0829-0011 Rev: Ac
08712-0571-0008 Rev: Ac
B654 150 A105 Cs 17-106042
Made In China
Assembled In China
Weight : 22.150 Kg
Ref No : 177686
