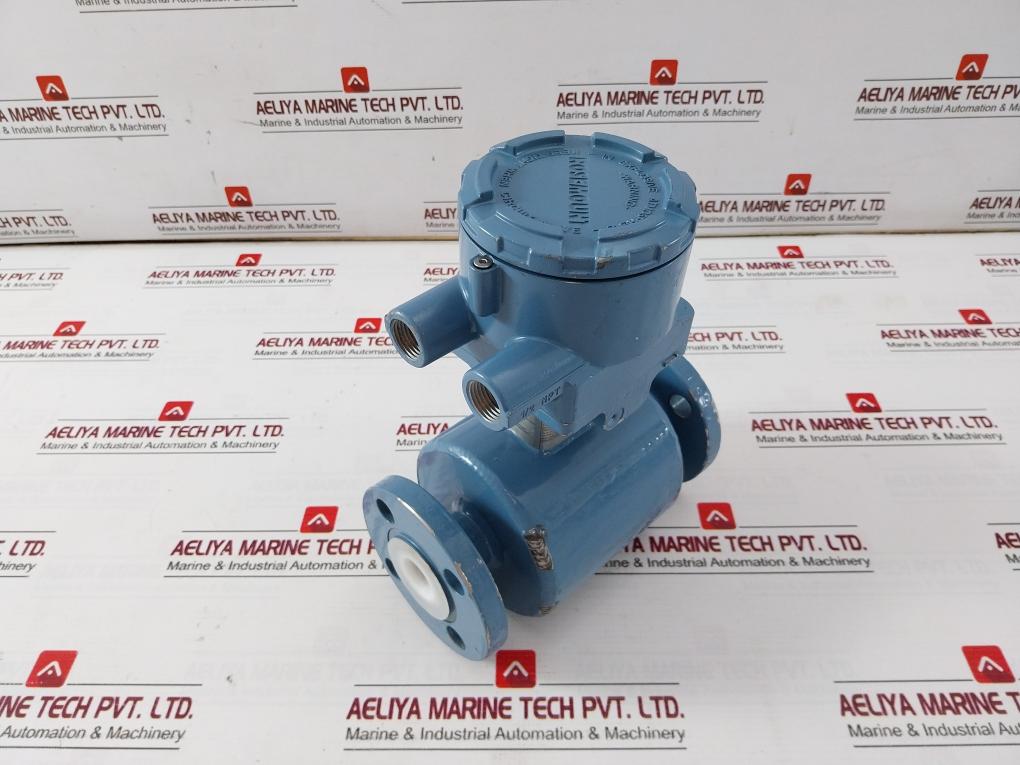

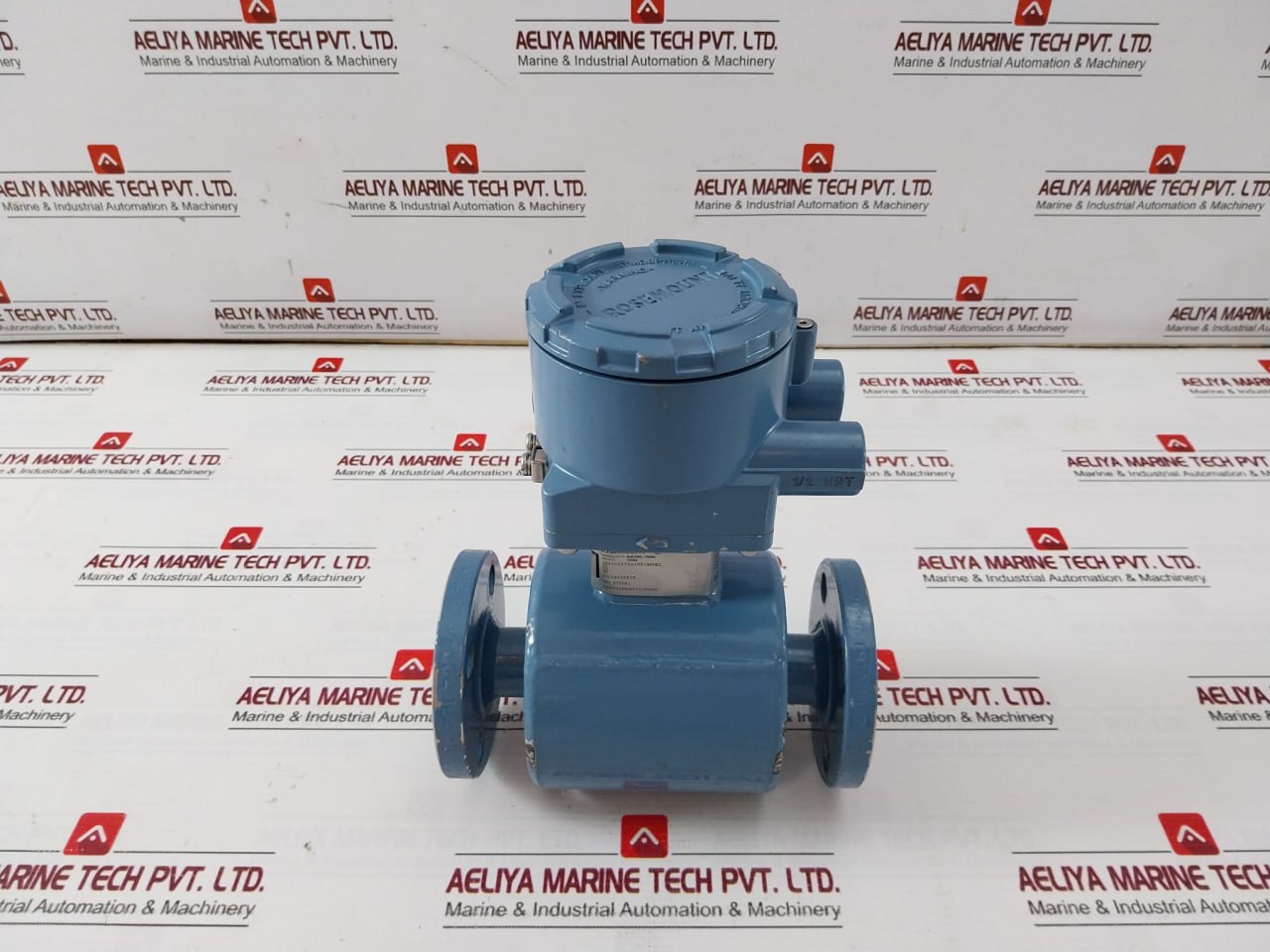

Rosemount 8705ate010p1m0k1 Magnetic Flow Meter Sensor 40v

Rosemount 8705ate010p1m0k1 Magnetic Flow Meter Sensor 40v

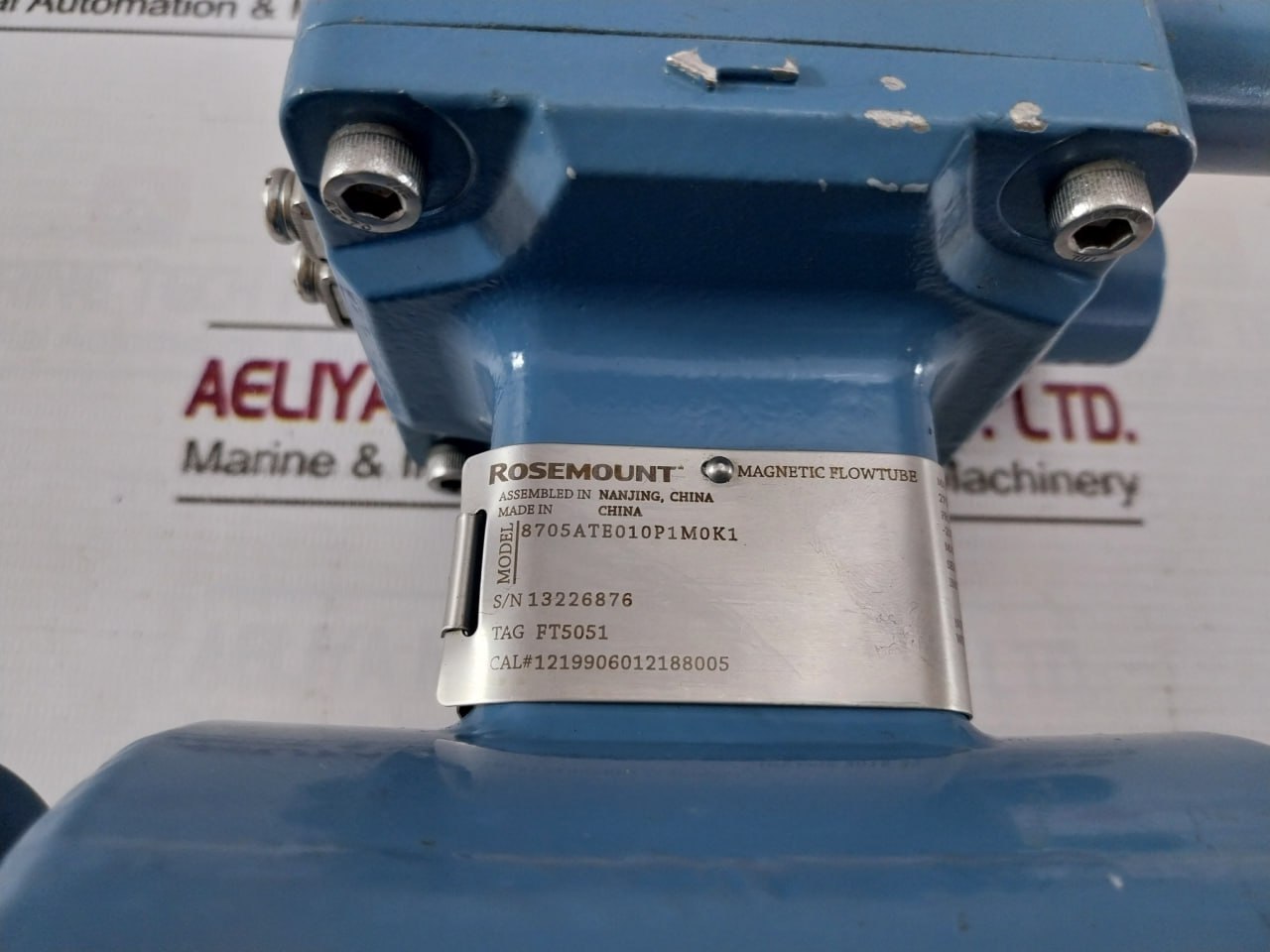

Rosemount
Magnetic Flowtube
Model: 8705ate010p1m0k1
Cal#: 1219906012188005
Max Process Pressure: 100°F / 38°C
275 Psig / 1.90 Mpa
Process Temperature Range: -20°F / -29°C To 350°F / 177°C
Dekra 14atex0071x
Ex Eb Ib Iic T5…T3 Gb
Ex Tb Iiic T80°C…T200°C Db
Ambient Temperature Range: -29°C To +60°C
05-L100-0003 Ag
05-L200-1006 Ae
Electrical Parameters

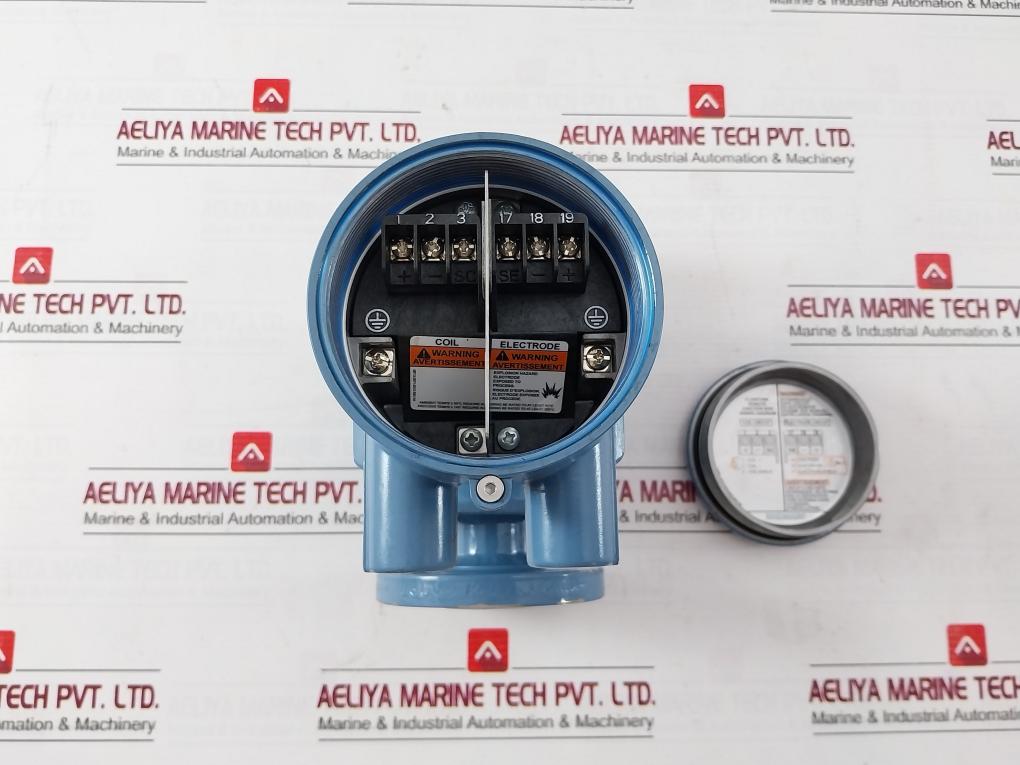

Coil Electrode
Excitation: Circuit:
500ma 5v
40v Max 200µA
20w Max 1mw
Type 4x Ip66/68
Label: 08732-0829-0022
Rev: Ab
08712-0571-0011
08712-0571-0012
Rev: Aa
Ambient Temps 50°C Require All Wiring Be Rated To At Least 90°C
Process Temps 140° Require All Wiring Be Rated To At Least 125°C
Assembled In China
Made In China
Weight : 6.550 Kg
Ref No : 180275
