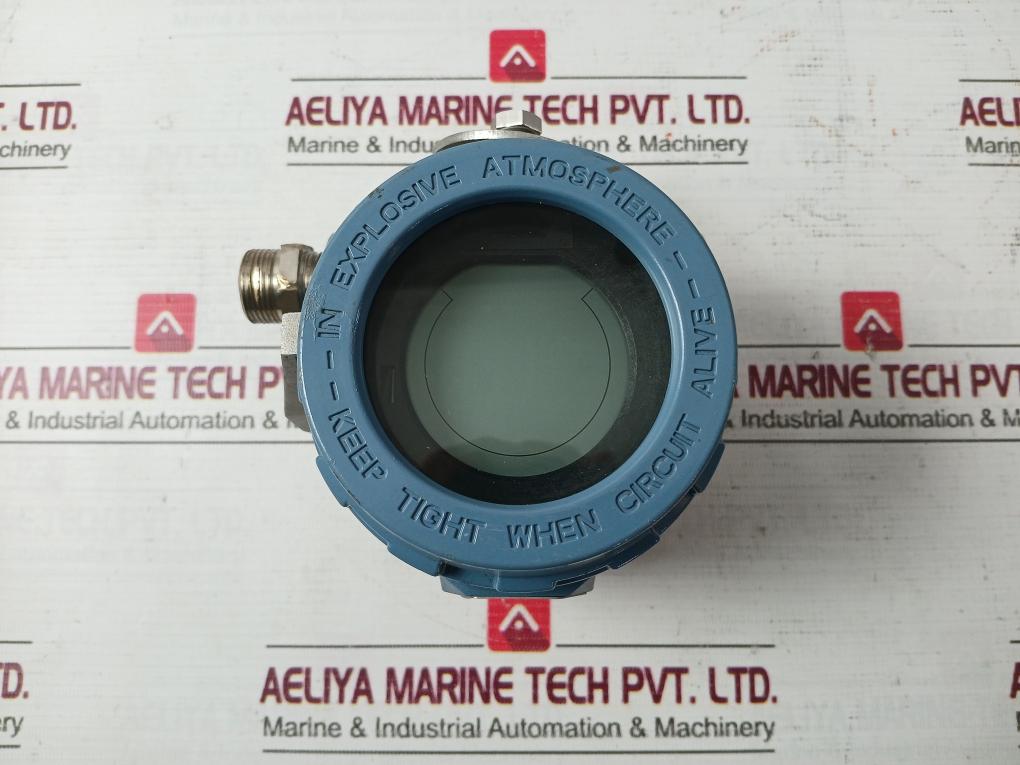

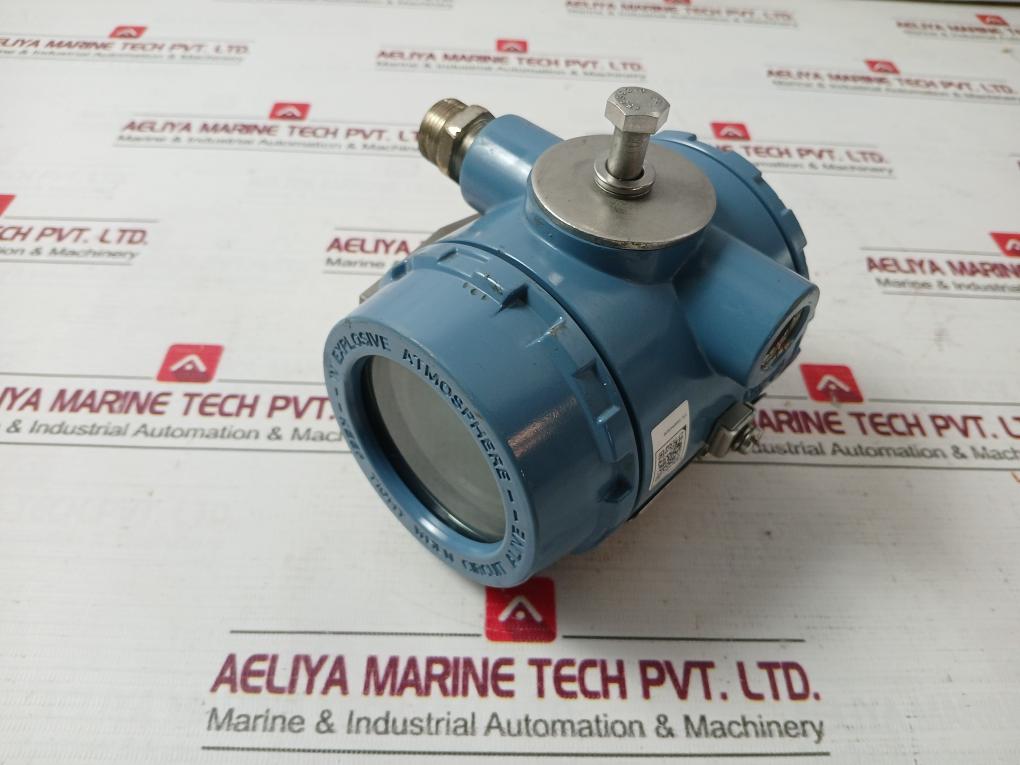

Rosemount 3144p D1a1k1b5m5t1c4q4 Temperature Transmitter 42.4v

Rosemount 3144p D1a1k1b5m5t1c4q4 Temperature Transmitter 42.4v

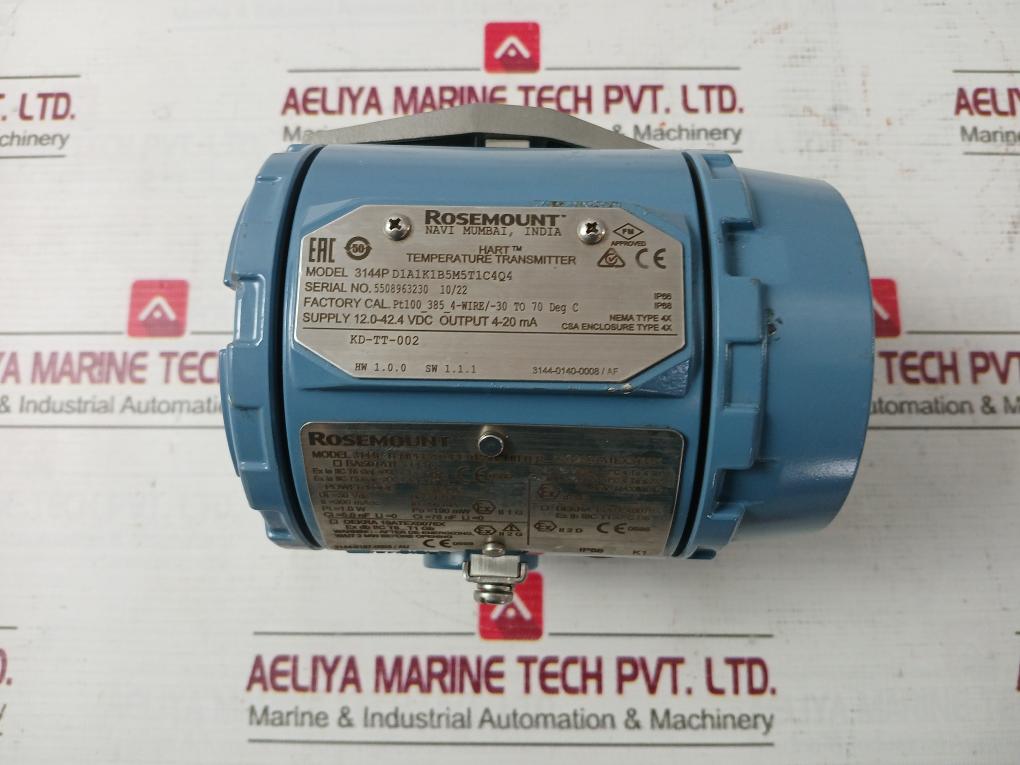

Rosemount
Hart
Temperature Transmitter
Model: 3144p D1a1k1b5m5t1c4q4
Factory Cal: Pt100_385_4-Wire/-30 To 70 Deg C
Supply: 12.0-42.4 Vdc
Output: 4-20 Ma
Ip66
Ip68
Nema Type 4x
Csa Enclosure Type 4x
Kd-Tt-002
Hw: 1.0.0
Sw: 1.1.1
3144-0140-0008/Af
Model 3144p
Ex Ia Iic T6 Ga(-60˚C Ta 50˚C)
Ex Ia Iic T5 Ga(-60˚C Ta 75˚C)
Power/Loop
Ui=30 Vdc
Ii=300 Madc
Pi=1.0w
Ci=5.0 Nf
Li=0
Sensor
Uo=13.6v
Io=56 Ma
Po=190 Mw
Ci=75 Nf
Ii 1 G
Ii 2 G
Ex Na Iic T6 Gc(-40˚C Ta 50˚C)
Ex Na Iic T5 Gc(-40˚C Ta 75˚C)
42.4vdc Maximum
Ii 3 G
3144-0167-0003/ Au
K1
Hart/Sis
For Connection In Ambients Above 60˚C, Use Wiring Rated For At Least 90˚C
03144-0151-0001 Rev. Af
India
Weight : 1.870 Kg
Ref No : 178129
