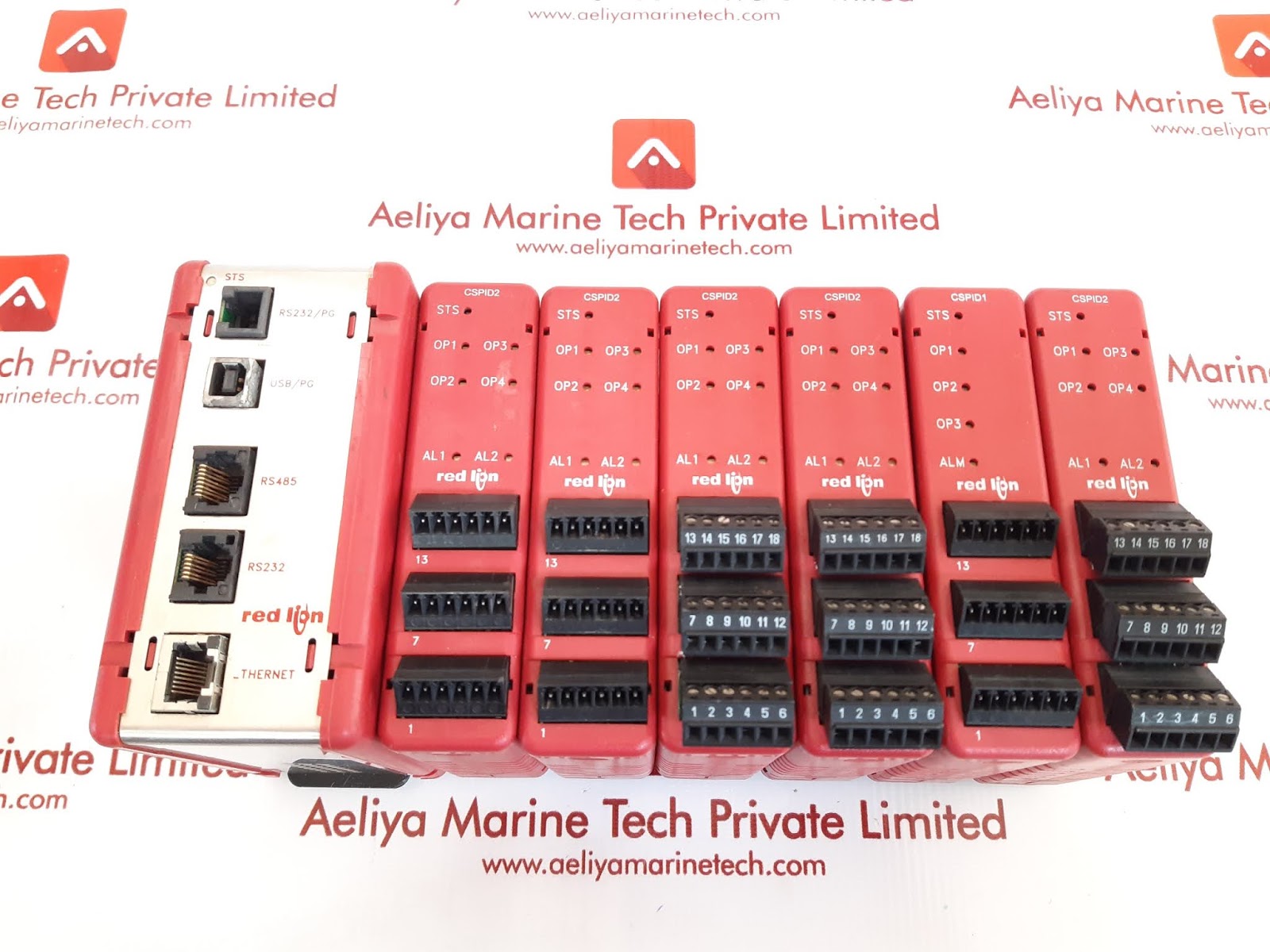

RED LION CSMSTRV2 MODULAR CONTROLLER

Red lion cspid2s0,csmstrv2,cspid2,cspid1 ethernet module
red lion controls
model: csmstrv2
sts
cspid2
cspid2s0
19141
op1 op4 ss out 30 vdc @ 1a
“power input supplied from master via
backplane 24vdc @ 125ma,5vdc @ 70ma”
for haz loc.3pwl
cl i.div 2.gp a,b,c,d
operating temp code t4a
maximum ambient 50°c
m3797c
_ _ _+24v±10%
( class 2 power supply)
400ma minimum
3 amps maximum
(16 modules)
mac id
0005e4034db8
pt#: csmstrv2
18144
m3561b
made in u.s.a
weight: 1.380 kg
