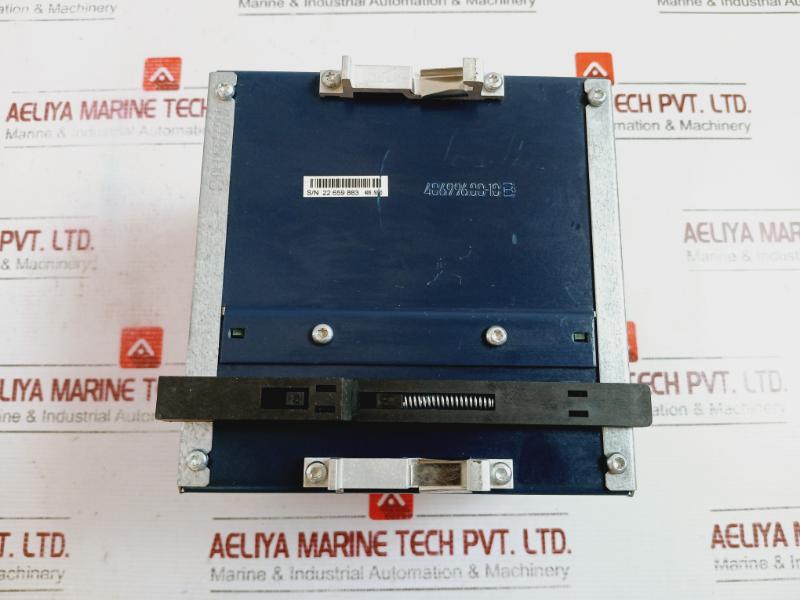

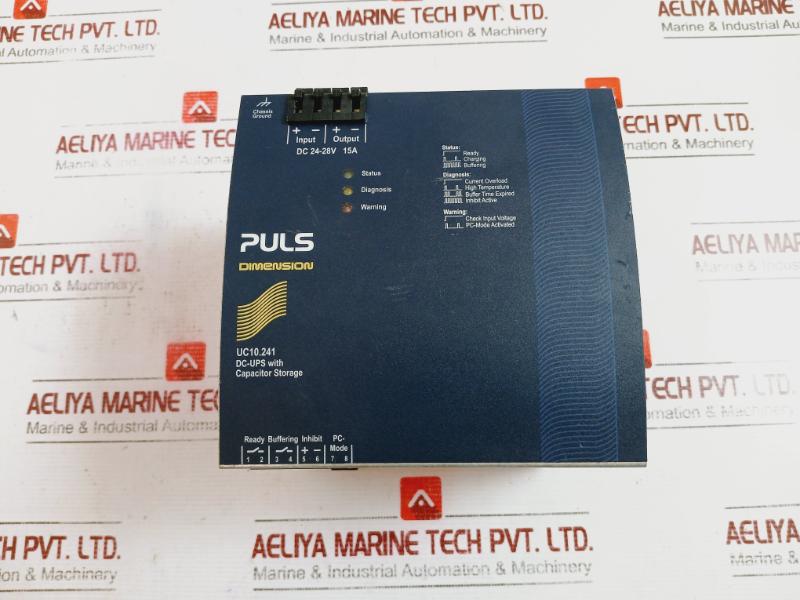

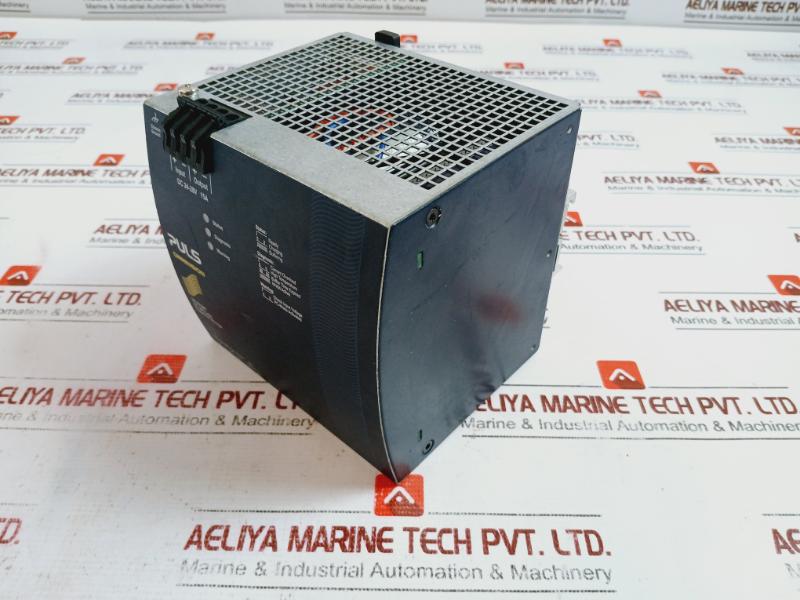

Puls Uc10.241 Dc-ups With Capacitor Storage 28v

Puls Uc10.241 Dc-ups With Capacitor Storage 28v
Puls Gmbh
Dimension
Uc10.241
Dc-ups With
Capacitor Storage,
24v,15a,360w,6kws
Dc 24-28v 15a
Input:
Dc 24v (-20%/+25%), Max .17a
Turn-on Voltage: Typ.22.8vdc
Threshold Voltage For Capacitor Mode:
Typ.22.5vdc
Output In Power Supply Mode:
Input Voltage-0.3v, 15a (Max. +60°c)
Output In Capacitor Mode:
22.3vdc, 15a (Max.+60°c)
Back-up Time:
Typ. 16.5s At 10a Or 9.0s At 15a
Operational Temp.range: -40°c To +60°c
Iecex Eps 15.0049x
Atex: Eps 15 Atex 1 025 X
Ii 3g Ex Ec Nc Iic T4 Gc
Iec 60950-1
182790
Class I Div 2, T4
Group A,b,c,d
Im-406.920.50b
40699600-10b
Designed In Germany
Assembled In The Czech Republic
Weight : 1.220 Kg
Ref No : 153308
