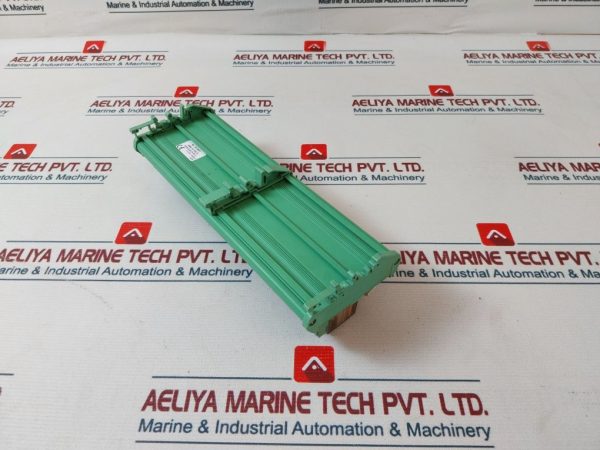

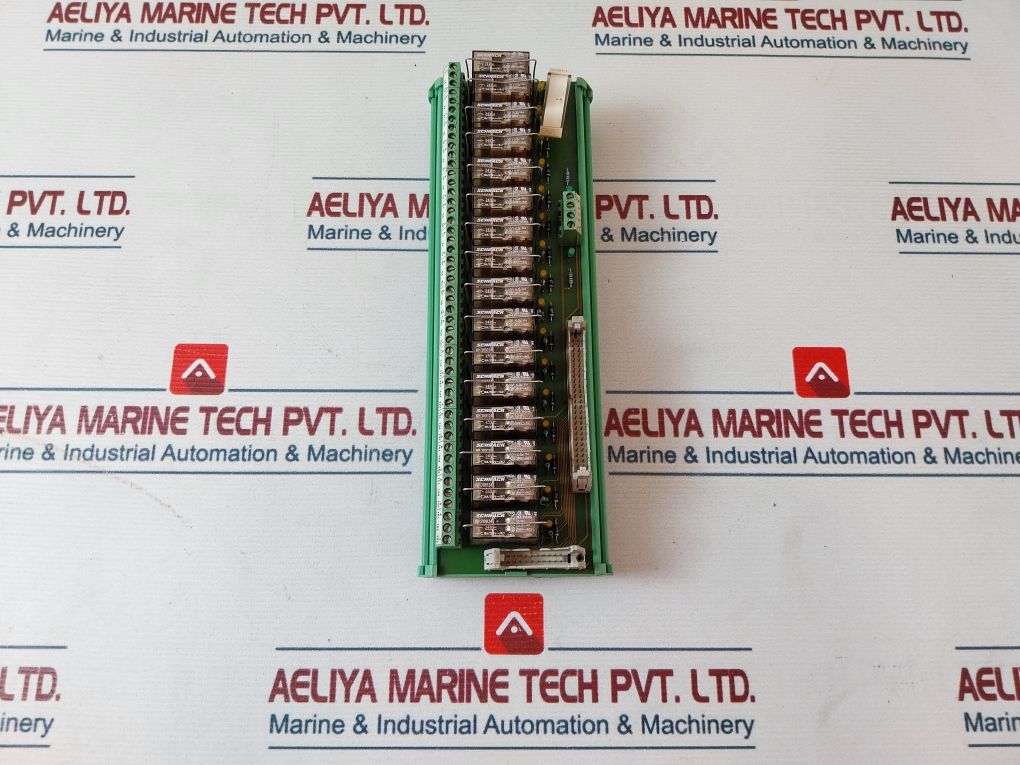

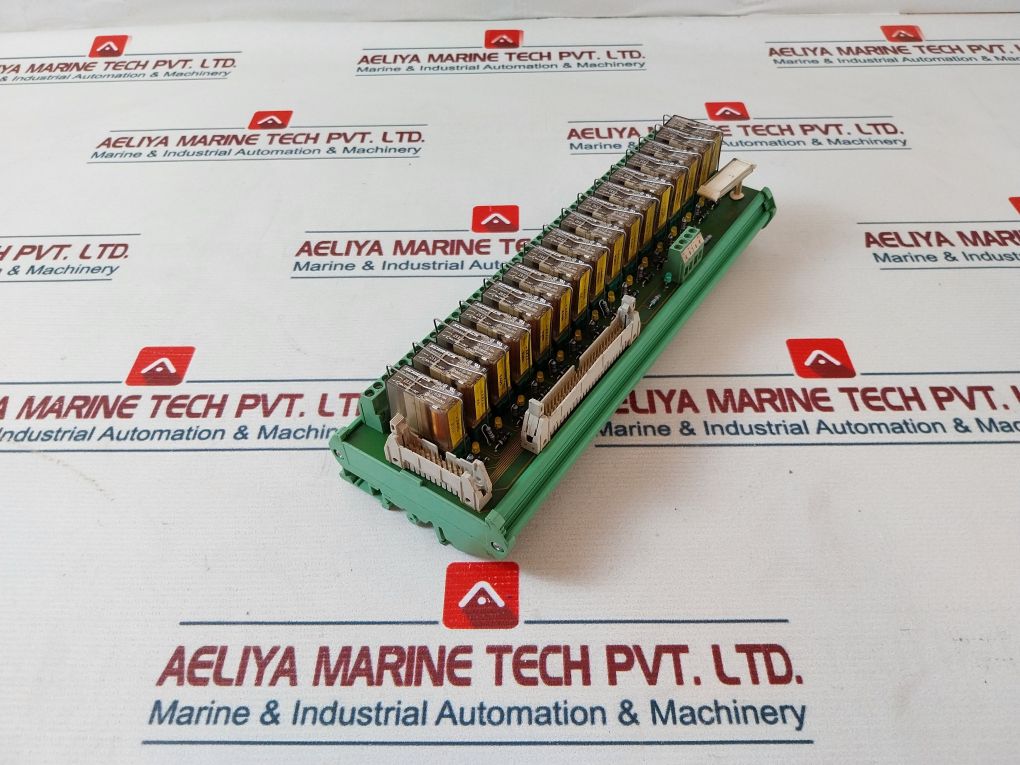

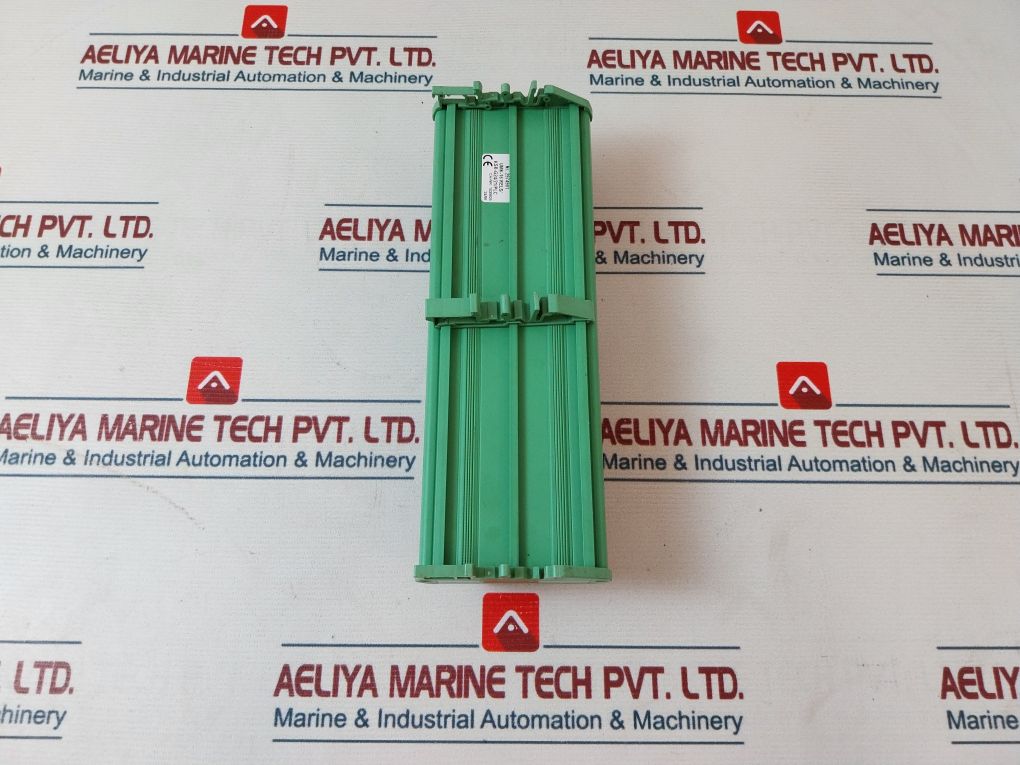

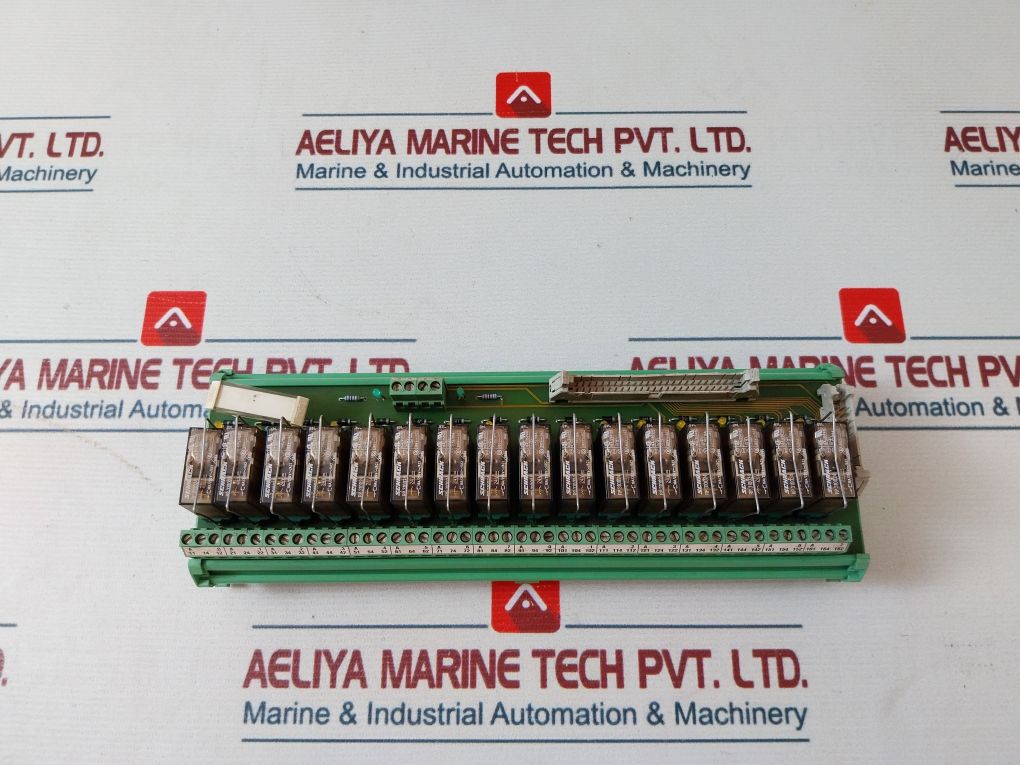

Phoenix Contact Umk-16 Rels/ksr-g24/21/plc Active Module 2974901

Key Specifications :

• Manufacturer : Phoenix Contact – a global leader in electrical connection and industrial automation technology, known for its high-quality and reliable products.
• Order Number (Nr.) : 2974901 – The unique identifier for this specific product, crucial for ordering and technical documentation.
• Batch Number (Ch-nr) : 1030928 – A manufacturing batch identifier for quality control and traceability.
• Date Code/Internal Marking : 24/98 – Could be a date code (e.g., Week 24 of 1998 if it’s an older model, or an internal tracking number).
• Weight : 670 Gm – Indicates a substantial and well-built unit.
• Reference Number (Ref No) : 77481 – An internal reference number, possibly for inventory or customer tracking.

key applications:

1. Manufacturing and Production Lines :

• Actuator Control : Directly switching solenoids, small motors, pneumatic valves, and hydraulic valves on and off based on PLC logic to control machine movements.
• Indicator and Alarm Activation : Turning on lights, buzzers, and signal lamps to provide operational status or alert operators to specific conditions.
• Conveyor System Control : Starting and stopping conveyor belts or diverting products based on sensor inputs and PLC programs.

2. Process Control Systems :

• Valve Actuation : Interfacing with electrically actuated process valves (e.g., for controlling fluid flow in pipelines) where the PLC’s direct output current might be insufficient.
• Pump and Fan Control : Switching small pumps or fans on/off for cooling, mixing, or material transfer, ensuring isolation from the PLC.

3. Building Automation and HVAC Systems:

• Lighting Control : Switching lighting circuits, especially in industrial or large commercial buildings, based on schedules or occupancy sensors.
• Damper and Fan Control : Operating dampers in ventilation systems or controlling smaller fans for climate regulation.
• Access Control Systems : Interfacing with door locks, gates, or security barriers.

4. Packaging Machinery :

• Controlling various mechanisms like grippers, feeders, and cutting tools that require precise on/off switching.
• Interfacing with auxiliary equipment such as label applicators or coding machines.

5. Material Handling and Logistics : Managing sorting systems, palletizers, and automated storage and retrieval systems (AS/RS) where numerous discrete outputs are required.

6. General Industrial Control Panels : Serving as a universal interface for any application where a PLC needs to control 24VDC loads with reliable isolation and space-efficient wiring. Its 16 channels make it particularly useful for applications with a high density of digital outputs.

Why Choose the Phoenix Contact UMK-16 RELS/KSR-G24/21/PLC?

• Reliable Signal Isolation : The integrated relays provide robust electrical isolation between your sensitive PLC outputs and higher power field devices, protecting your control system from spikes and noise.
• Simplified Wiring : As an interface module, it condenses complex wiring from multiple field devices into a single, organized connection to your PLC, significantly reducing installation time and potential wiring errors.
• Enhanced Diagnostics : Many active modules, including those from Phoenix Contact, feature status LEDs for each channel, allowing for quick visual diagnostics and troubleshooting, minimizing downtime.
• Space-Saving Design : The compact UMK series design allows for high-density wiring in control cabinets, optimizing panel space.
• Industrial-Grade Quality : Phoenix Contact’s reputation for quality ensures that this module is built to withstand harsh industrial environments, providing long-term reliability and performance.
• Versatile Application : Ideal for connecting a wide array of field devices such as solenoids, motors, indicators, and actuators to your PLC, making it suitable for diverse automation tasks.
