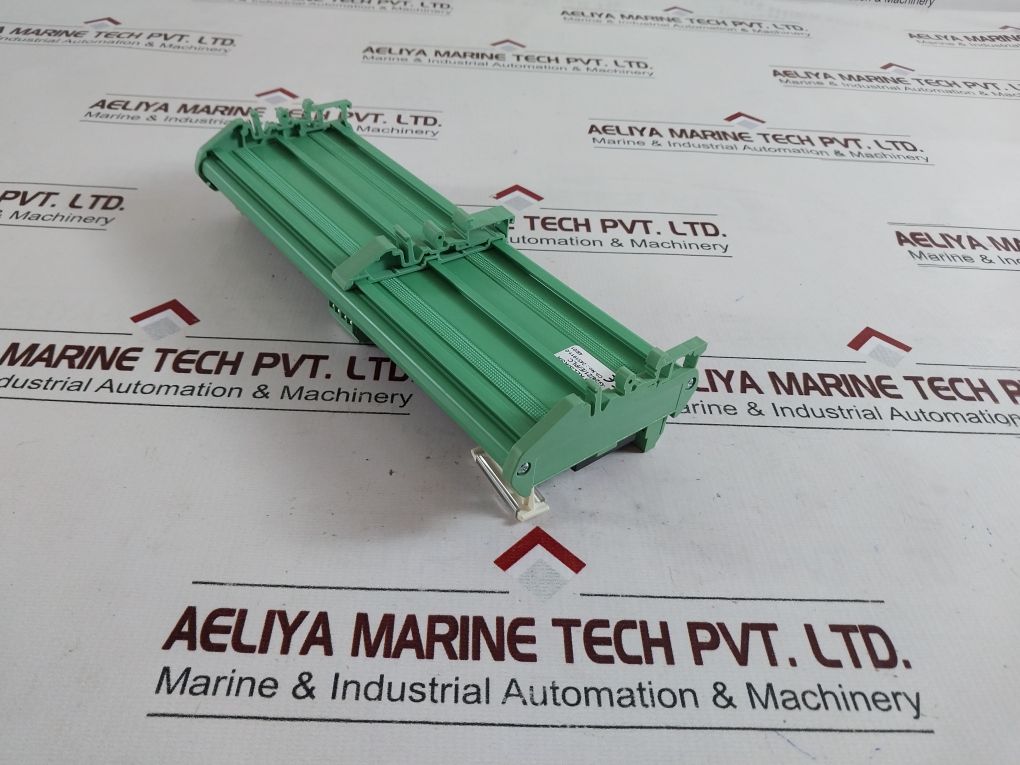

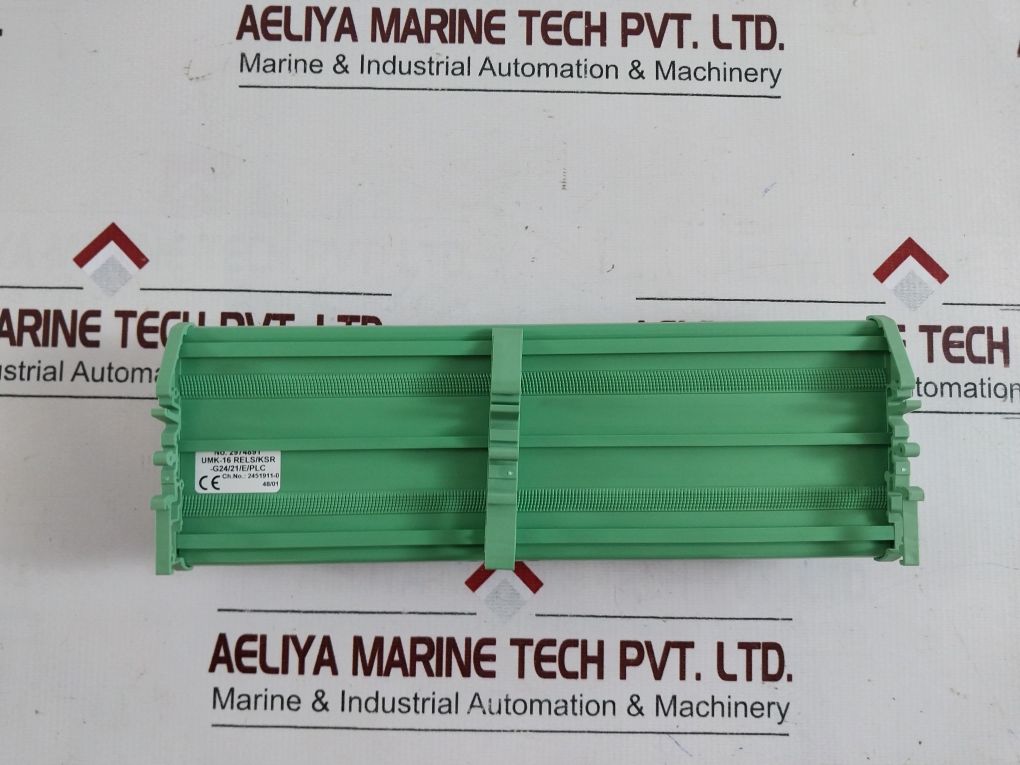

Phoenix Contact Umk-16 Rels/ksr-g24/21/e/plc Active Module

What is the Phoenix Contact UMK-16 Active Module?

The Phoenix Contact UMK-16 RELS/KSR-G24/21/E/PLC Active Module is an active interface module that links I/O signals between controllers (PLCs) and field devices. It offers signal conditioning, electrical isolation, and clear channel assignments to make communication between automation components smooth and safe.

The module is typically deployed alongside PLCs for signal interfacing and provides a high-density connection configuration—perfect for projects where both performance and space are priorities.

Important Features:

High Signal Density:

16 channels in a single, space-saving module provide efficient wiring and space-efficient installation.

Plug-and-Play Interface:

Pre-connected terminal blocks and simple mounting minimize setup time.

24V DC Operating Voltage:

Runs at a typical industrial voltage level, providing interoperability with most PLC systems.

Status Indicators:

Integrated LEDs on each channel ensure real-time diagnostics and troubleshooting.

Universal Compatibility:

Suitable for use with a large number of PLCs and I/O systems from various manufacturers.

DIN Rail Mounting:

Quick and easy mounting with standard DIN rails makes cabinet integration easy.

Durable Construction:

Designed to function in harsh industrial applications with resistance to shock, vibration, and temperature changes.

Technical Specifications:

Manufacturer: Phoenix Contact GmbH & Co.

Model: UMK-16 RELS/KSR-G24/21/E/PLC

Voltage Range: 24V DC

No. of Channels: 16

Mounting Type: DIN rail

Weight: Approx. 480 grams

Country of Origin: Germany

Applications:

The Phoenix Contact UMK-16 module is used in numerous industries where accurate and dependable I/O communication is necessary:

Factory Automation: To control and monitor sensors and actuators in automated production lines.

Process Control Systems: Facilitating interfacing field signals with DCS or SCADA systems.

Energy Sector: Power plant monitoring and control systems.

Marine and Offshore: Ship automation system signal control.

Manufacturing Equipment: Interfacing between motors, robots, and PLC controllers.

Why Use the Phoenix Contact UMK-16 Module?

Effective Signal Management: 16 channels in a compact package minimize wiring complexity.

Durable Performance: Phoenix Contact’s engineering provides long-term, rugged operation in harsh environments.

Safety & Diagnostics: LED status indicators in real-time assist in prompt fault recognition with decreased downtime.

Time & Cost Savings: Simple installation and lower wiring create quicker commissioning and service.
