Phoenix Contact Macx Mcr-ex-sl-sd-23-48-lfd Solenoid Driver 24v Dc

Phoenix Contact Macx Mcr-ex-sl-sd-23-48-lfd Solenoid Driver 24v Dc
Phoenix Contact Gmbh & Co. Kg.

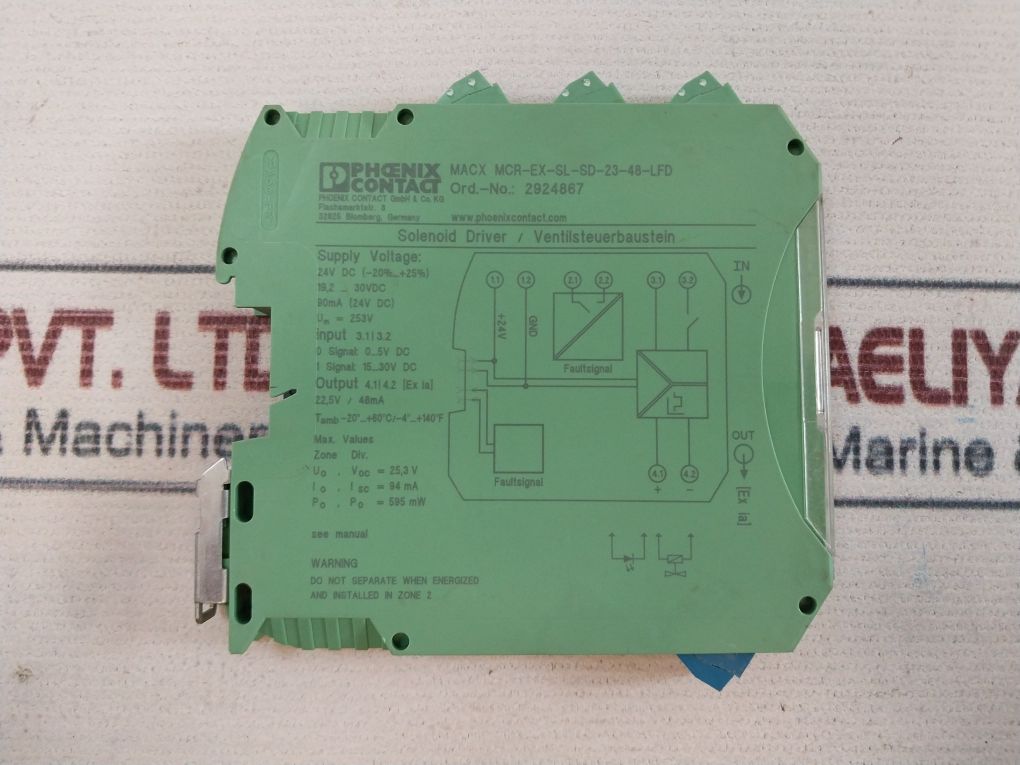

Solenoid Driver

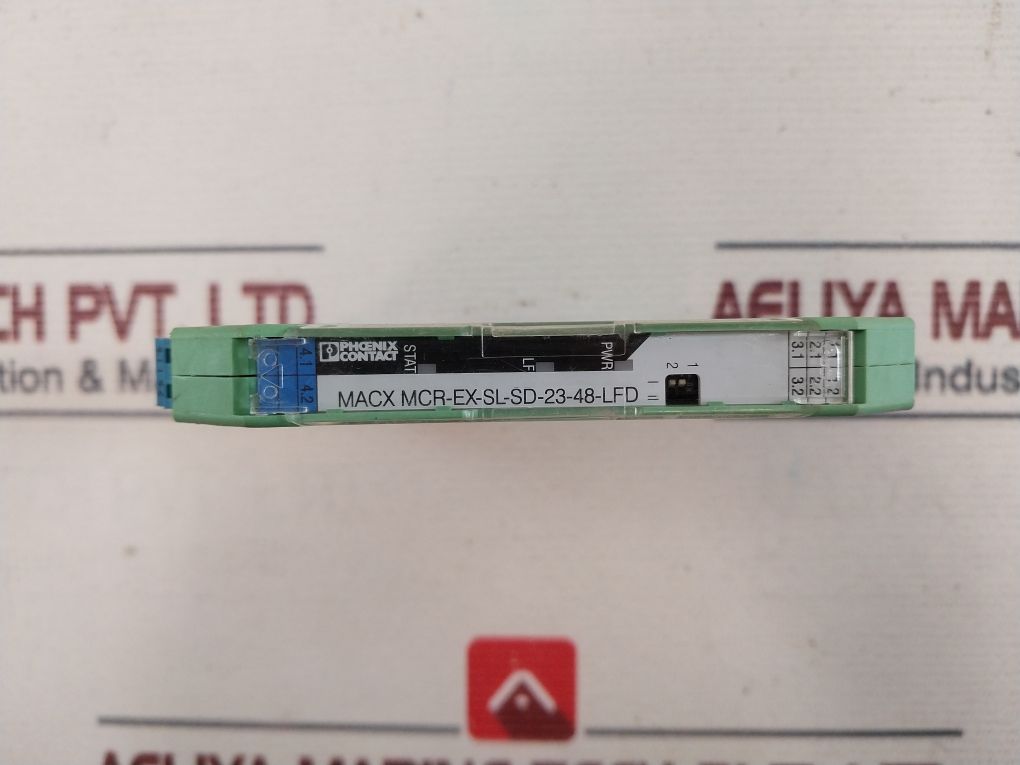

Macx Mcr-ex-sl-sd-23-48-lfd
Ord.-no.: 2924867
Supply Voltage:
24v Dc (-20%…+25%)
19.2_30vdc
90ma (24v Dc)
Um= 253v
Input 3.1|3.2
0 Signal: 0…5v Dc
1 Signal: 15…30v Dc
Output: 4.1|4.2 [ex Ia]
22,5v/48ma
Tamb: -20°…+60°c/-4°…+140°f
Max. Values
Zone Div.
Uo Voc = 25,3 V
Io Isc = 94 Ma
Po Po = 595 Mw

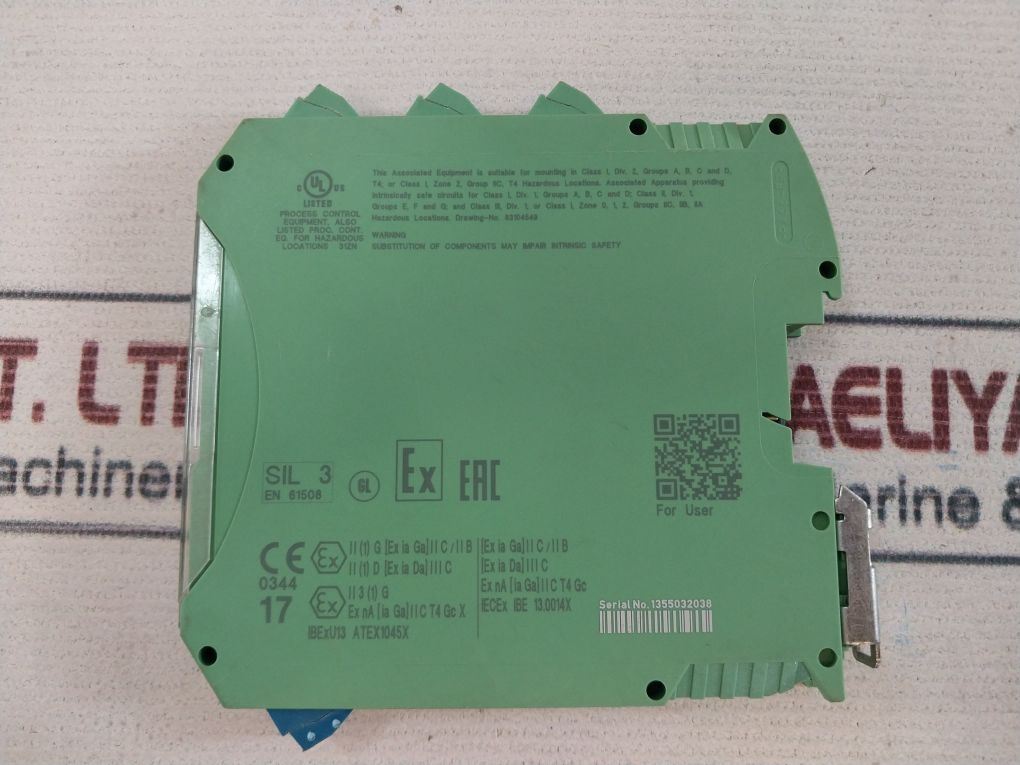

Class I, Div. 2, Groups A, B, C And D, T4;
Class I, Zone 2, Group Iic, T4
Class Ii, Div. 1, Groups E, F And G;
Class Iii, Div. 1, Or
Class I, Zone 0, 1, 2, Groups Iic, Iib, Iia
Ii (1) G [ex Ia Ga] Iic/iib
Ii (1) D [ex Ia Da ]iic
Ii 3 (1) G
Ex Na [ia Ga] Iic T4 Gc X
Ibexu13 Atex1045x
[ex Ia Ga] Iic/iib
[ex Ia Da] Iiic
Ex Na [ia Ga] Iic T4 Gc
Iecex Ibe 13.0014x
Germany
Weight : 100 Gm
Ref No : 82587
