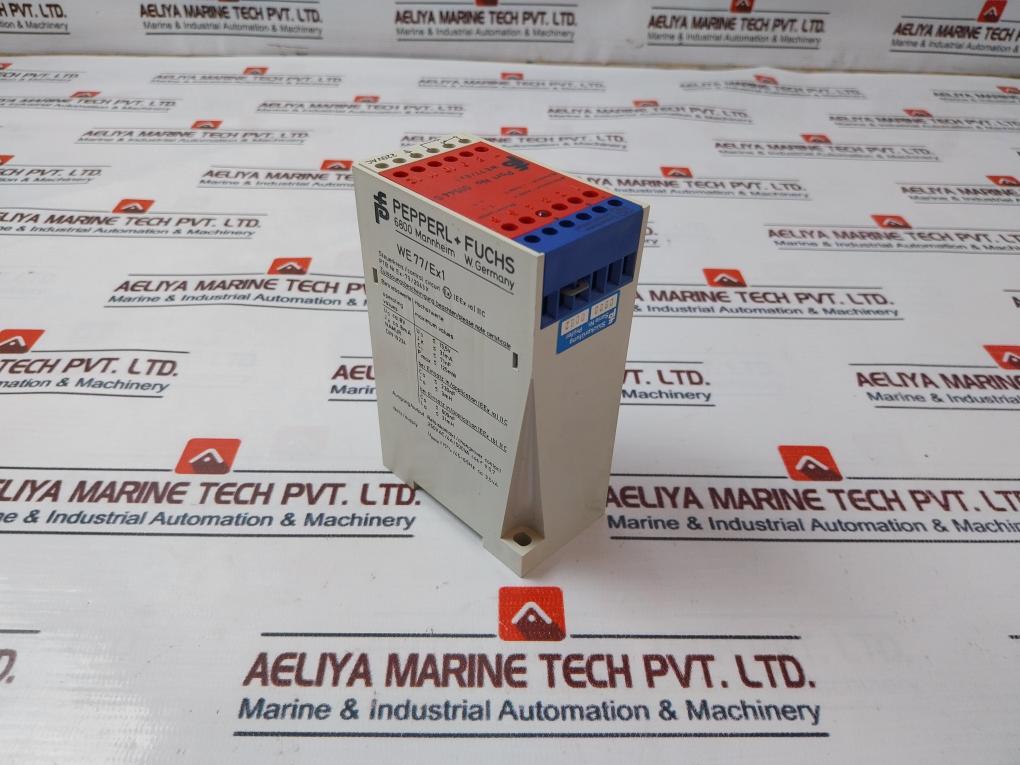

Pepperl+fuchs We77/ex1 Isolated Switch Amplifier Relay 220v

Pepperl+fuchs We77/ex1 Isolated Switch Amplifier Relay 220v
Pepperl+fuchs (Australia) Pty Ltd.,
P+f
Control Circuit
Ex Relay
We77/ex1

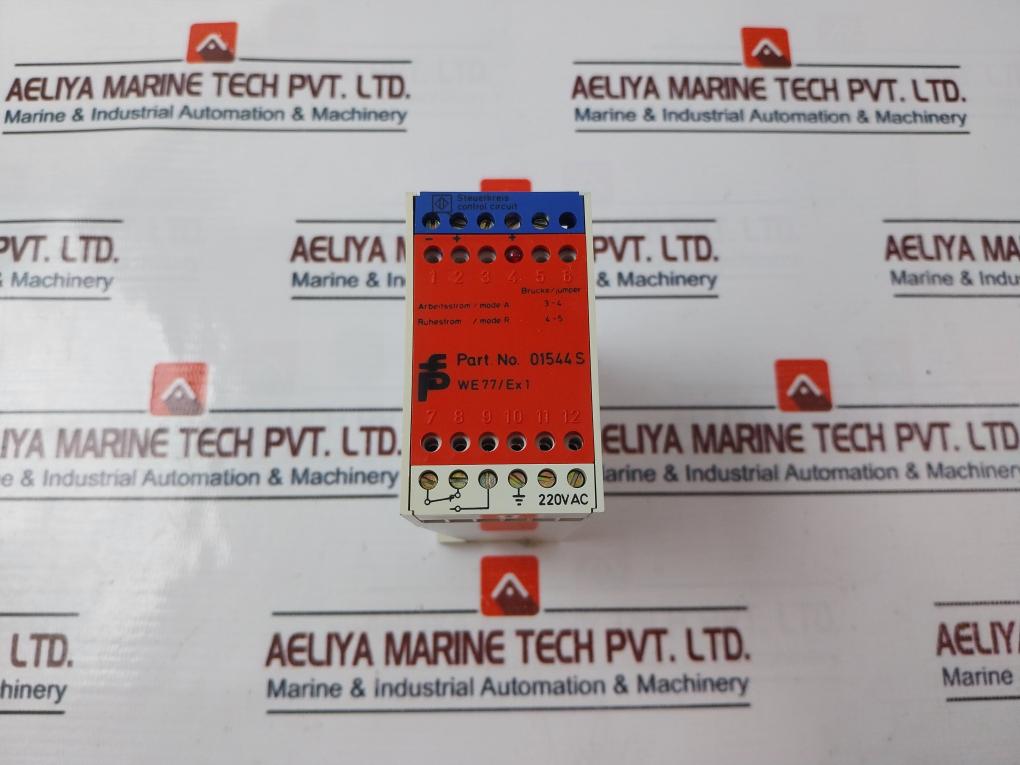

Part No: 01544s
220v Ac
[eex Ia] Iic
Ptb Nr Ex-79/2043x
Operating Values:
Uo: Ca/ac 8 V
Jk: Ca/ac 8 Ma
Namur
Din 19234
Maximum Values:
Uo: 13.5 V
Jk: 31 Ma
Ci: 71 Nf
Pmax: 125 Mw
Application [eex Ia] Iic
Ca: 230 Nf
La: 3 Mh
Application [eex Ib] Iic
Ca: 609 Nf
La: 31 Mh
Output Changeover Contact:
250v Ac/4a/500va Cosϕ 0.7
Supply: Unenn ±15%/ 45-65hz Ca/ac 3.5va
Ptb [eex Ia] Iic Ref.to En 50 014, En 50 020
Cl.i,ii,iii, Div.1. Applicable Gp. A-g.
W.germany
Weight : 330 Gm
Ref No : 128037
