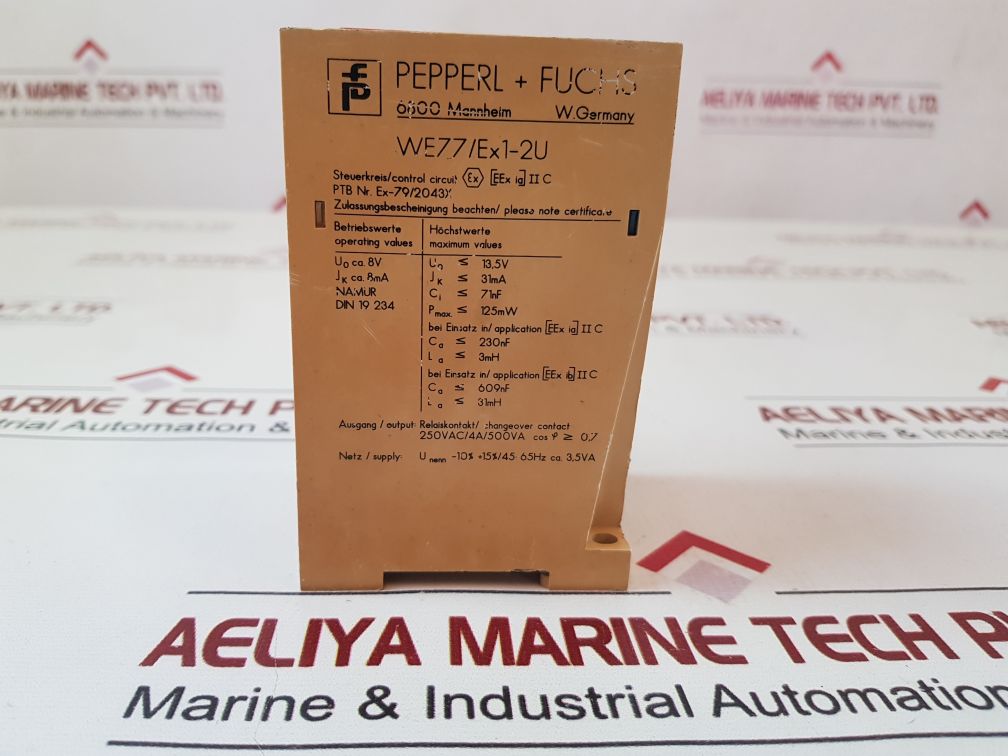

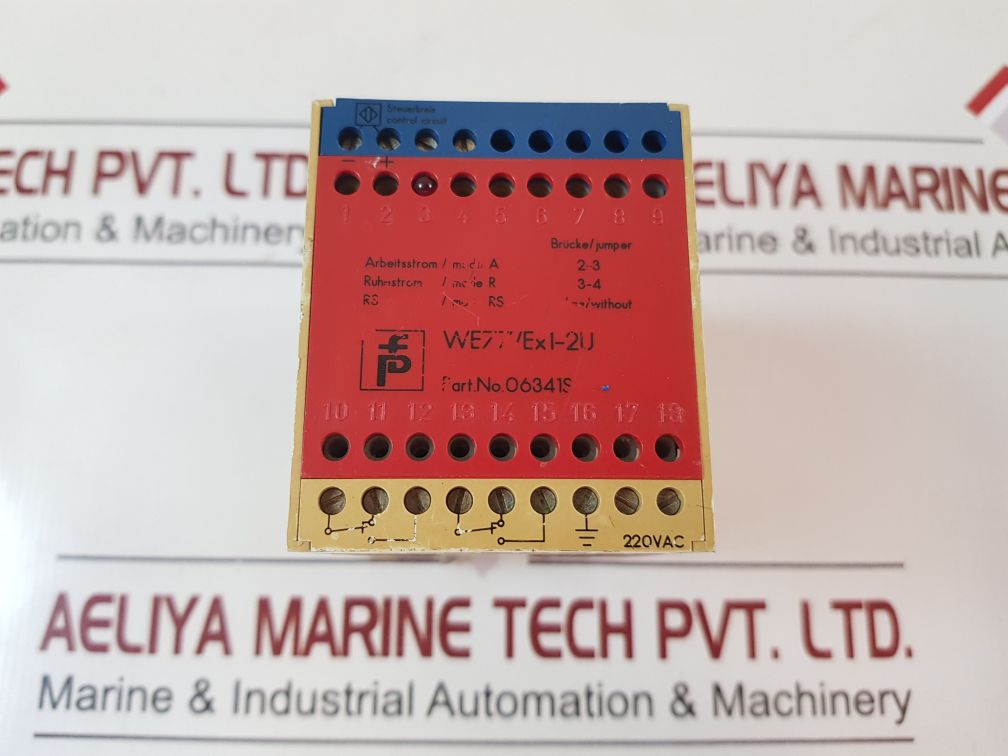

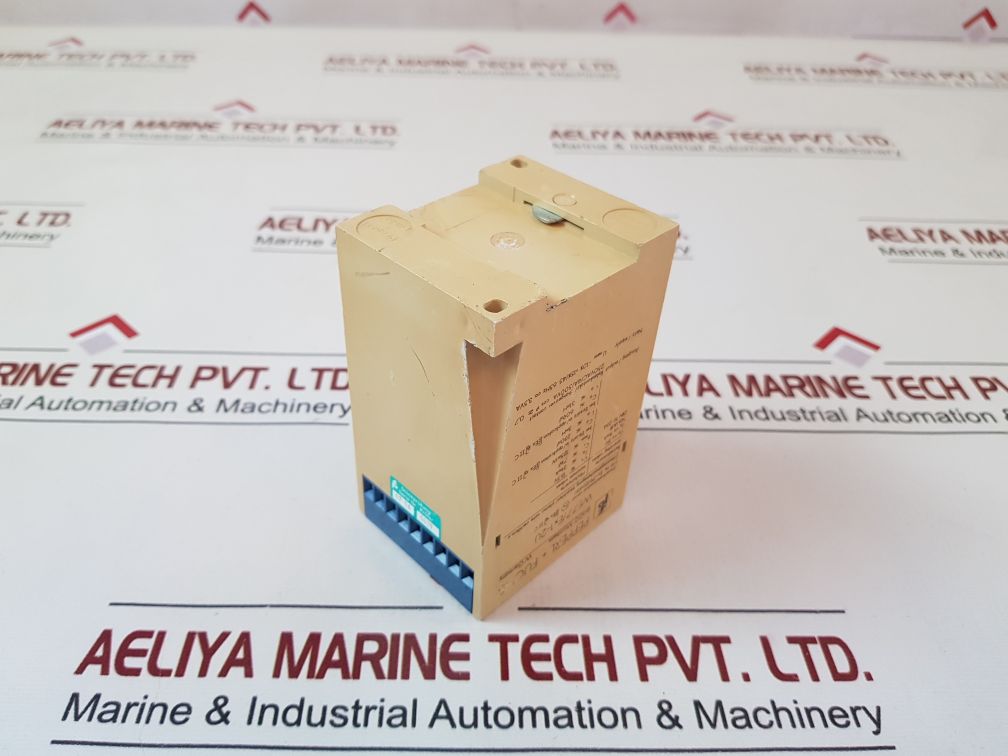

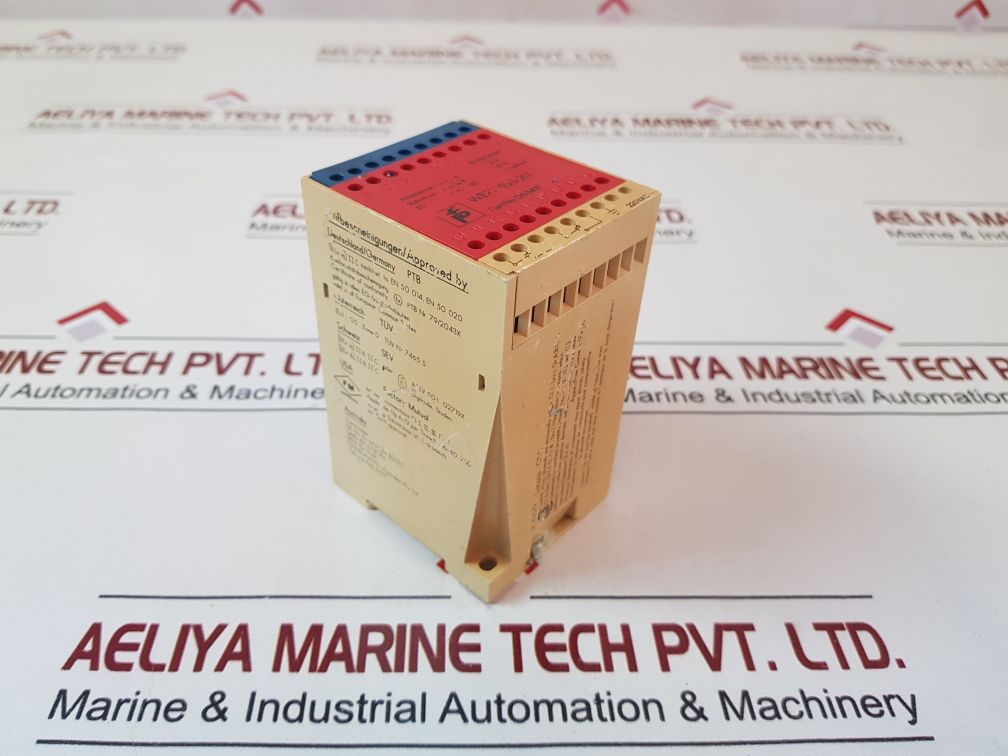

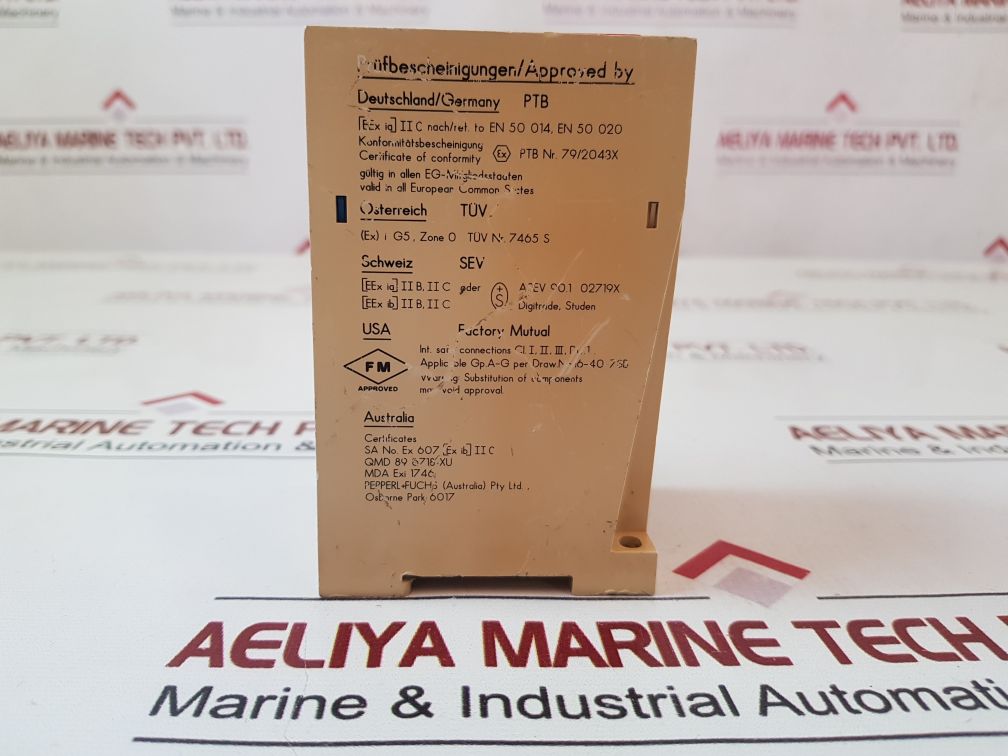

Pepperl+fuchs We77/ex1-2u Isolated Switch Amplifier Relay 06341s

Pepperl+fuchs We77/ex1-2u Isolated Switch Amplifier Relay 06341s
Pepperl+fuchs
We77/ex1-2u
Part No: 06341s
Steuerkreise/control Circuit
[eex Ia] Iic
Ptb Nr. Ex-79/2043 X
Betriebwerte/ Operating Values:
Uo: Ca.8v
Jk: Ca.8ma
Namur Din 19 234
Hochstwerte/ Maximum Values:
Uo 13,5v
Jk 31ma
Ci 71nf
Pmax. 125mw
Bei Einsatz In/ In Put In Application [eex Ia] Ii C
Ca 230nf
La 3mh
Bei Einsatz In/ In Put In/ Application [eex Ib] Ii C
Ca 609nf
La 31mh
Ausgang/output: Relaiskontakt/ Relay Contact/ Changeover Contact
250vac/4a/500va Cos Φ 0,7
Netz/supply: Unenn -10% +15%/ 45 – 65hz Ca.3,5 Va

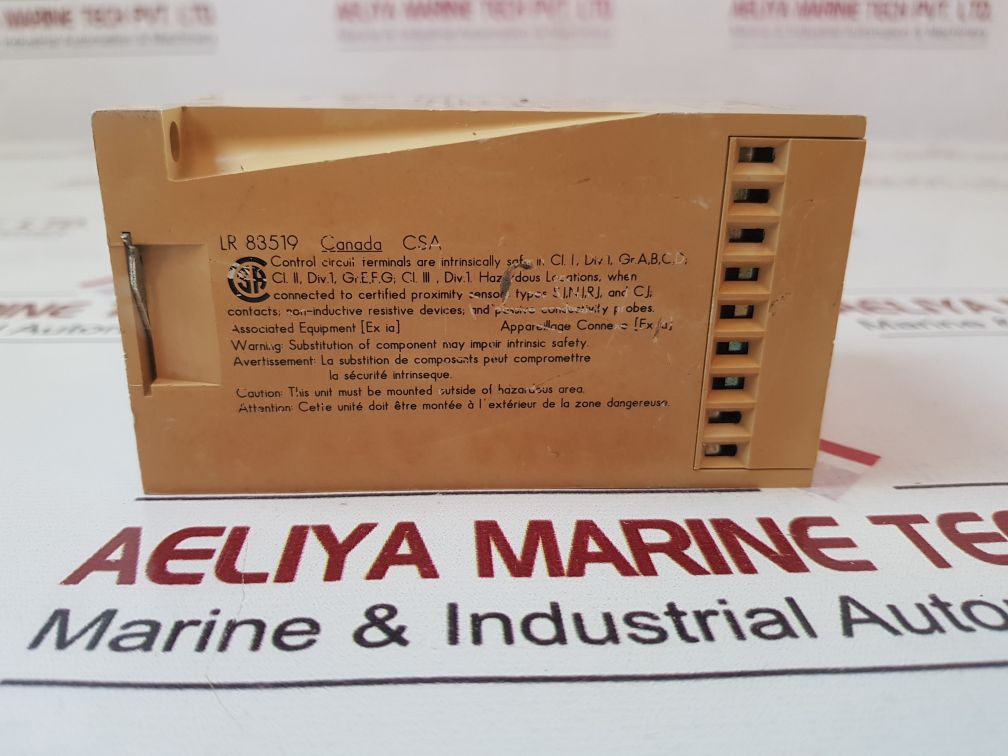

Cl.i, Div.1, Gr. A, B, C, D;
Cl.ii, Div.1, Gr. E, F, G; Cl. Iii, Div. 1
W.germany
Weight : 350 Gm
Condition : Used 1 Pcs
Ref No : 55280
