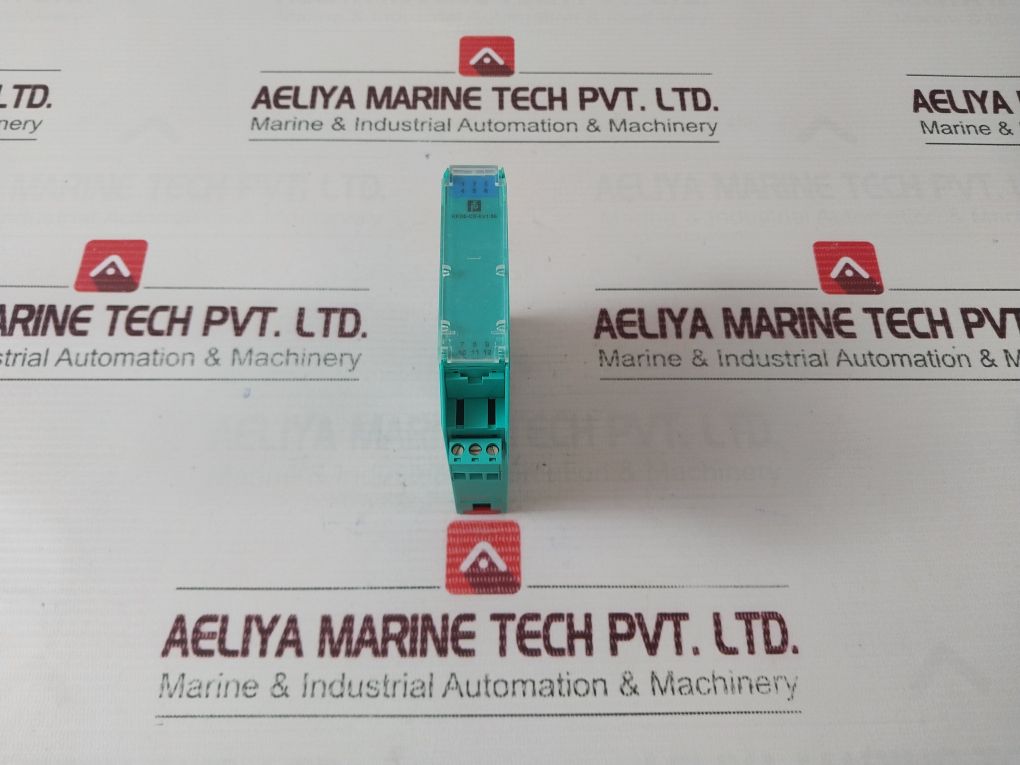

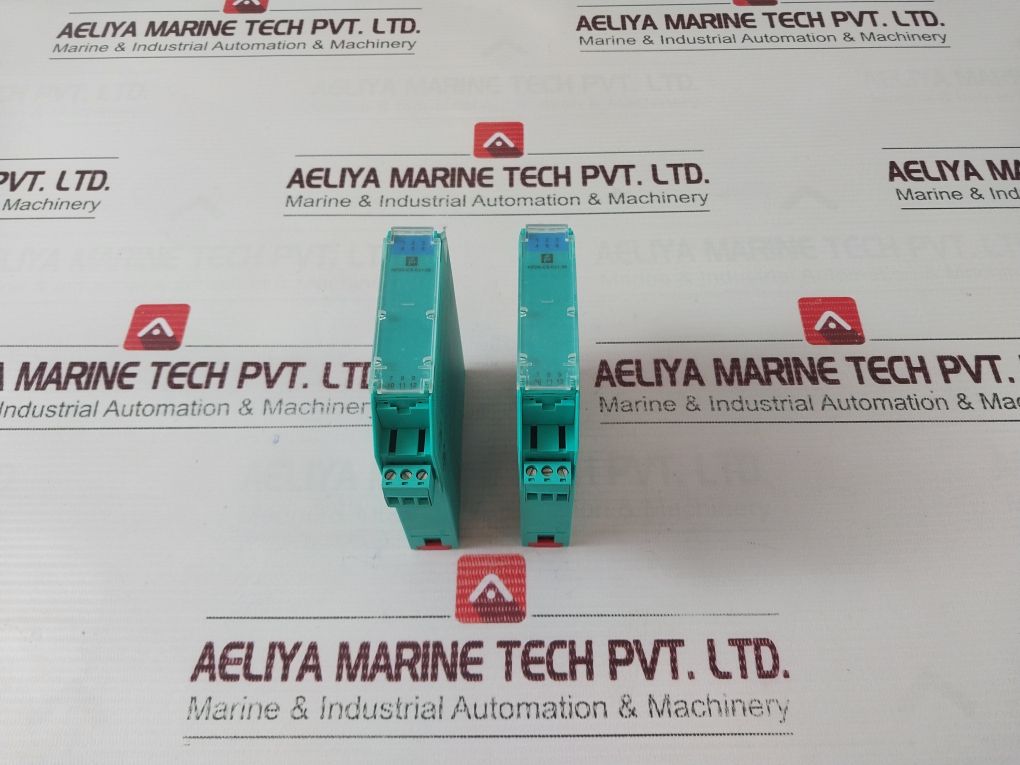

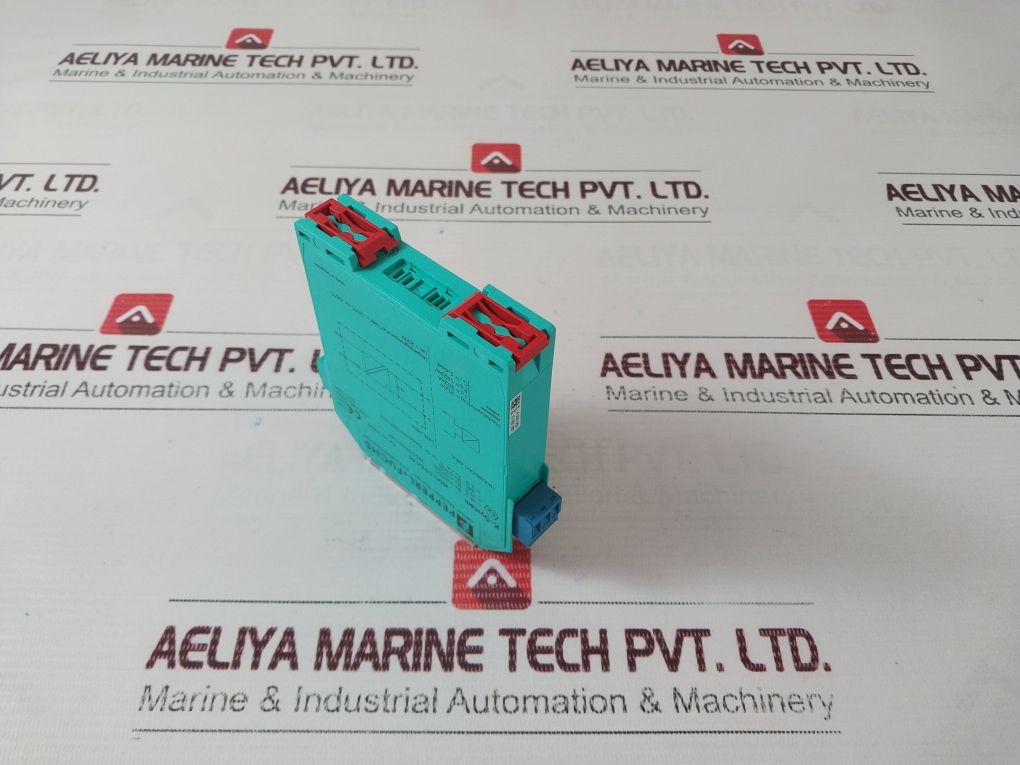

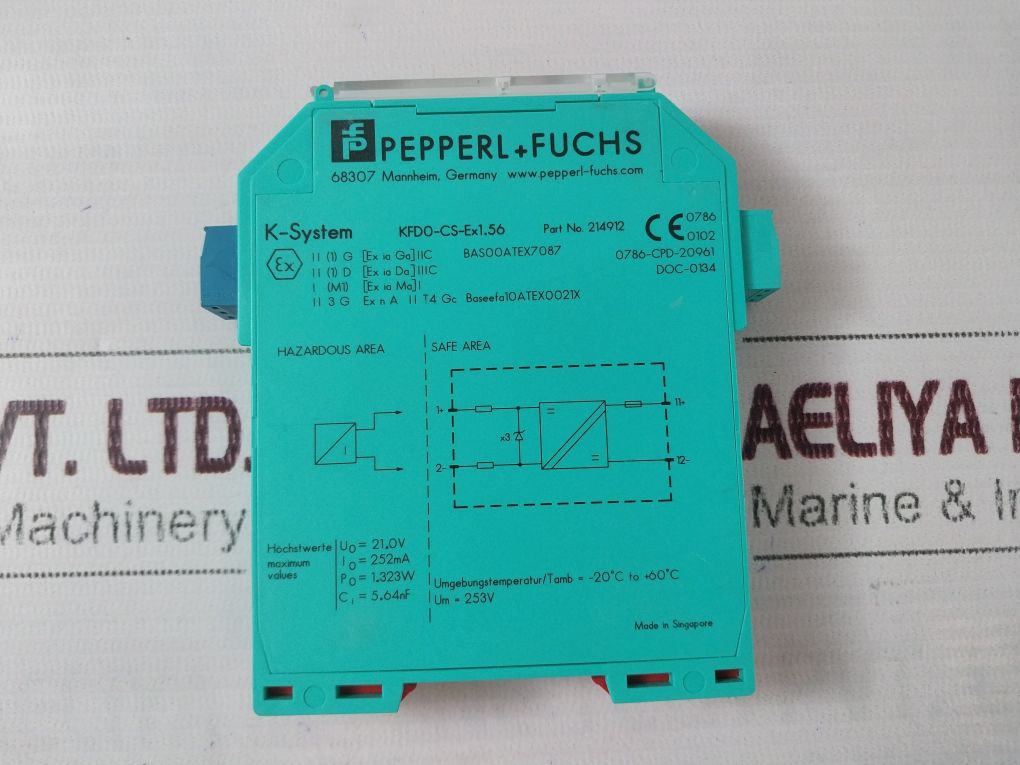

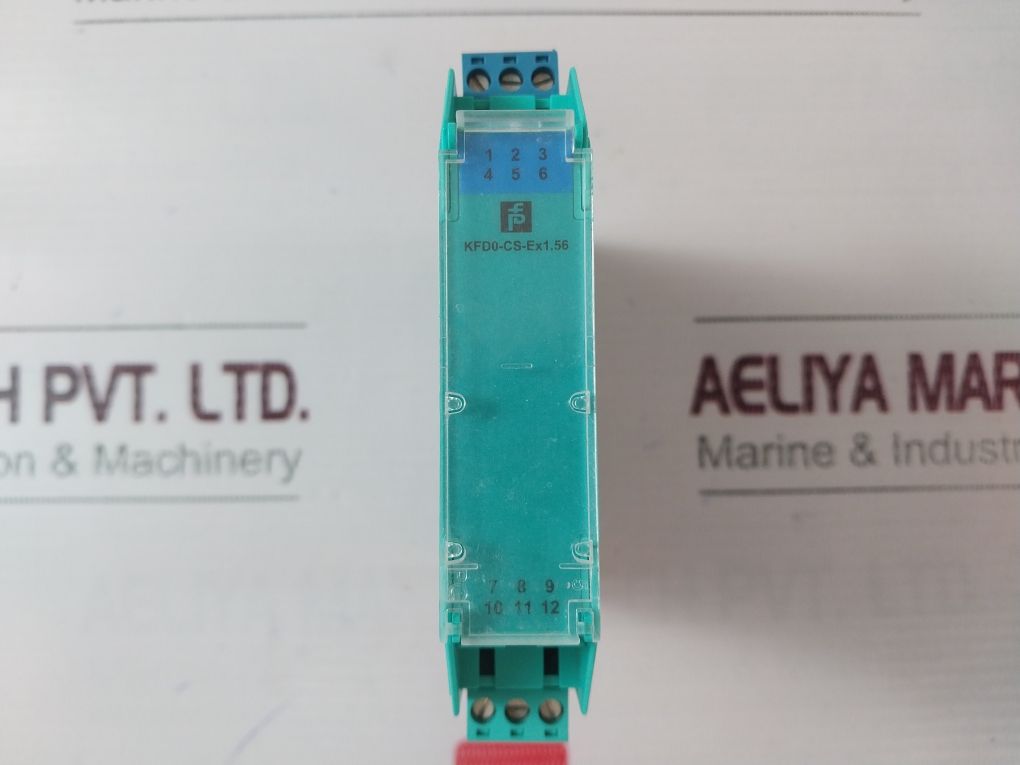

Pepperl+fuchs Kfdo-cs-ex1.56 Isolated Barrier

What is the KFDO-CS-EX1.56 Isolated Barrier?

The KFDO-CS-EX1.56 is an isolated signal barrier that is specifically designed and produced by Pepperl+Fuchs, a world-leading expert in explosion protection and sensor technology. The fundamental task of this device is to transmit signals from hazardous and safe zones securely by isolating input and output circuits electrically.

This device is a crucial part of process control systems where signal integrity is a primary need in explosive or sensitive conditions.

Key Features of the KFDO-CS-EX1.56

Following are the key specifications and features that make this device so effective:

1. Single-Channel Signal Isolator
The KFDO-CS-EX1.56 is a single-channel unit, which means it is best suited for specific, precise installations. It enables a single signal to pass securely across the barrier with full galvanic isolation.

2. High Signal Accuracy
One of the unit’s strengths is low signal distortion. It maintains the integrity of analog signals, which is vital to process control and feedback loops in industrial control systems.

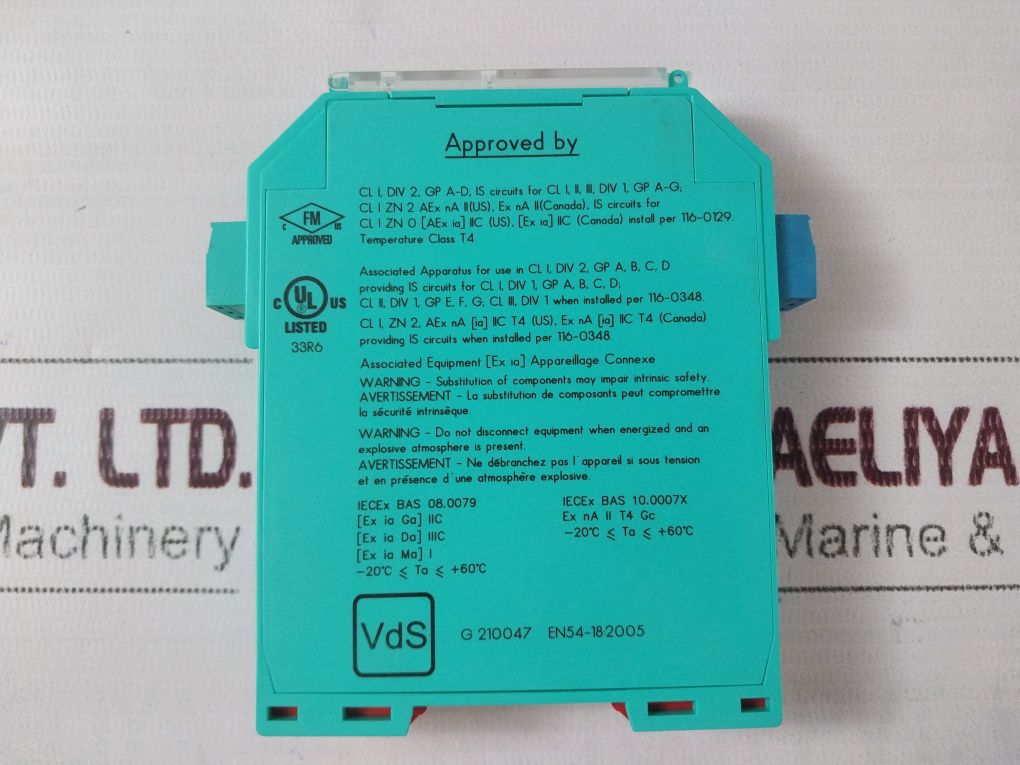

3. Ex i Intrinsic Safety Compliance
Designed to intrinsic safety standards (Ex i), the isolated barrier keeps your devices compliant with global safety regulations in potentially explosive atmospheres like chemical plants, refineries, and mining sites.

4. Electrical Isolation
The barrier offers 3-way isolation—between input, output, and power supply. This reduces the issues of ground loop and electrical noise effectively, enhancing system stability.

5. Compact DIN Rail Mounting
Space is never available in industrial control panels. The small DIN rail mountable design allows easy implementation without using too much panel real estate.

6. Universal Power Supply Compatibility
With broad power supply compatibility (usually 20 to 30 VDC), it seamlessly integrates into most system architectures, minimizing compatibility issues.

Applications of the KFDO-CS-EX1.56

The Pepperl+Fuchs KFDO-CS-EX1.56 is used in numerous industrial and automation environments:

• Oil and Gas
Where explosive atmospheres are ever-present, this barrier provides a means of ensuring analog signals from field sensors and transmitters are safely communicated to the control room.

• Pharmaceutical Plants
In settings where safety compliance and product integrity are not negotiable, standalone barriers keep control systems isolated and maintain regulatory compliance.

• Water and Wastewater Treatment
Precise and reliable measurement by flow meters and pressure sensors in long distances and noisy power environments is facilitated with such barriers.

• Chemical Processing Units
Such systems tend to be located in hazardous areas. KFDO-CS-EX1.56 provides safe processing of signals without any risk of sparking or overheating.

• Food and Beverage Automation
Despite being less hazardous, many food facilities use steam, cleaning chemicals, or gases where isolation enhances both protection and performance.

Why Choose Pepperl+Fuchs?

Pepperl+Fuchs is synonymous with high-quality automation and explosion protection technologies. Their products undergo rigorous testing, and their customer support ensures long-term satisfaction. Choosing a device like the KFDO-CS-EX1.56 from a trusted brand means you’re investing in peace of mind.
