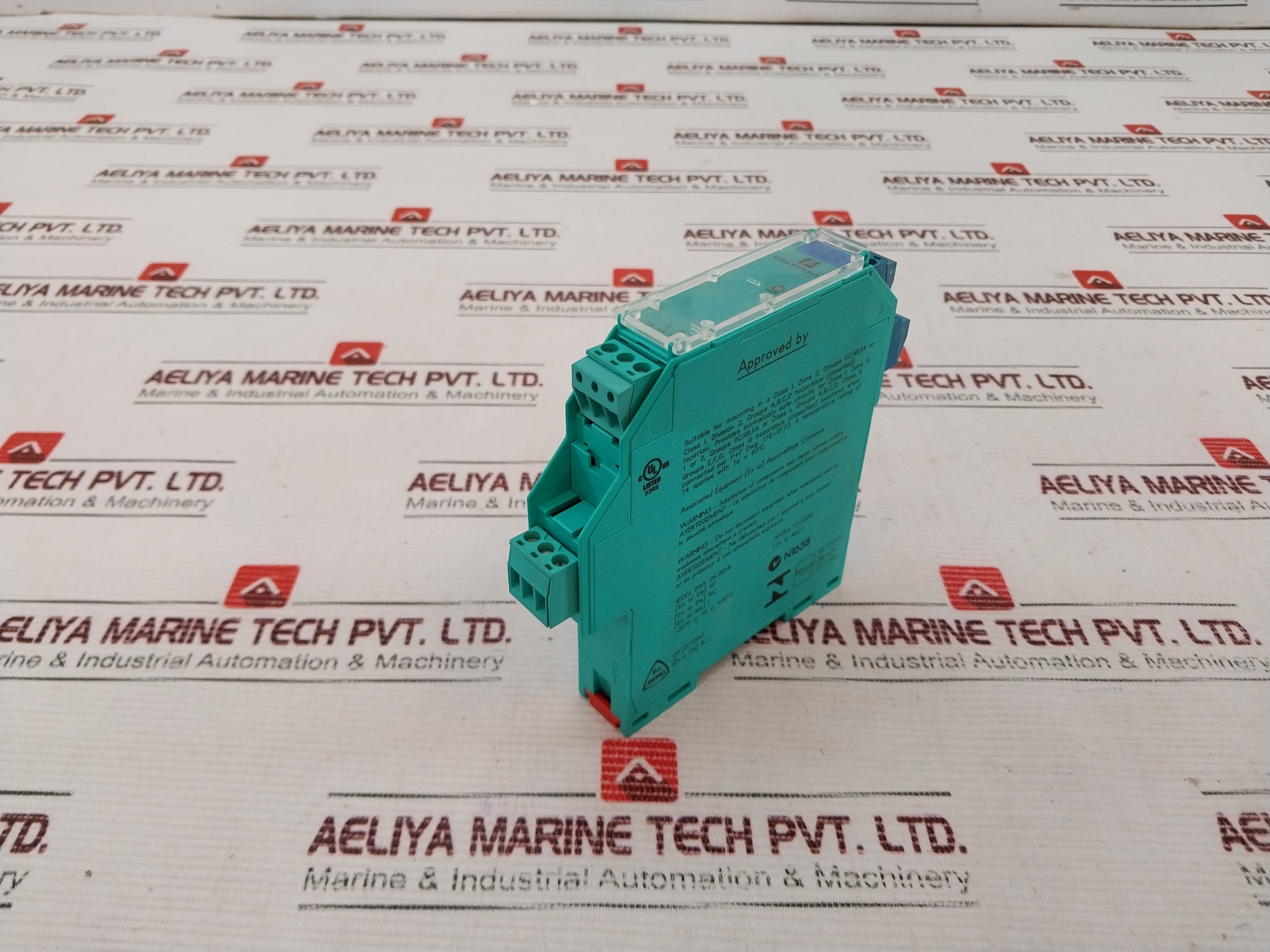

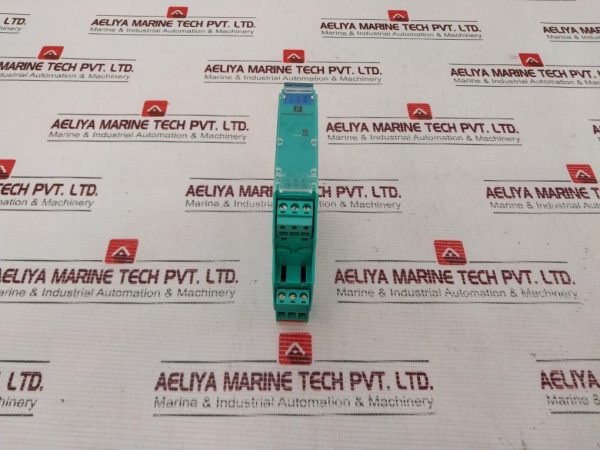

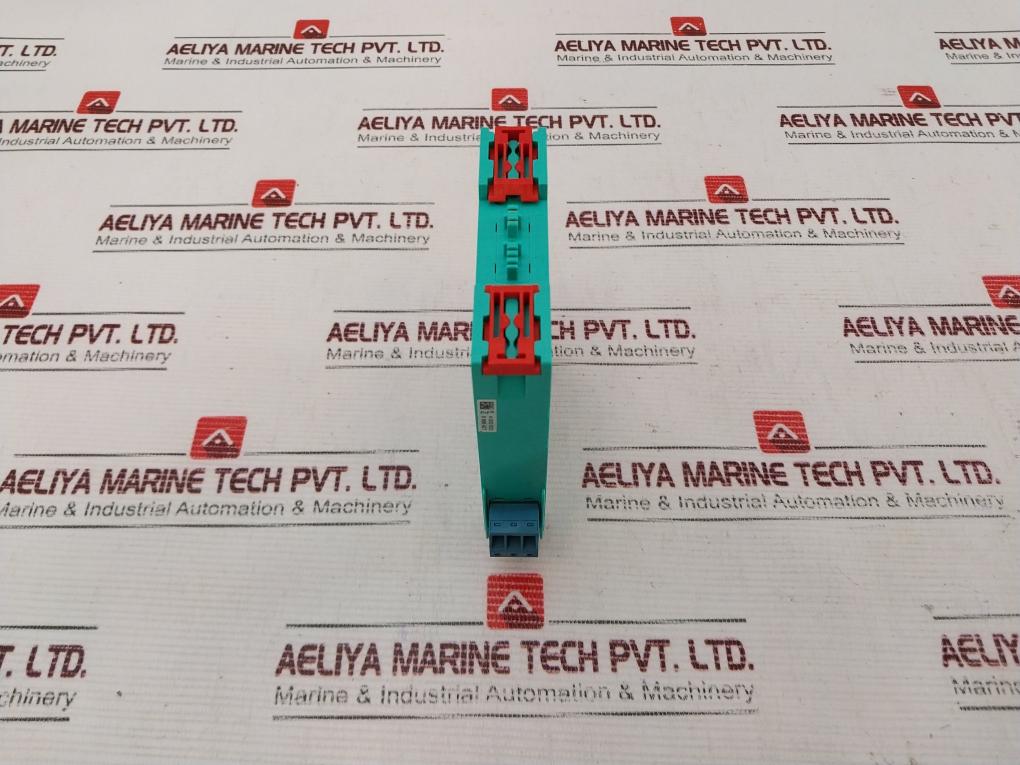

Pepperl+fuchs Kfd2-stc4-ex1.h Transmitter Power Supply

Pepperl+fuchs Kfd2-stc4-ex1.h Transmitter Power Supply
Pepperl+fuchs
Maker: Hydralift
K-system
Kfd2-stc4-ex1.h
Part No. 231393
Ii (1) G [ex Ia Ga] Iic Bas99atex7060
Ii (1) D [ex Ia Da] Iiic
I (M1) [ex Ia] I Dmt 01 Atex E133
Ii 3 G Ex Na Ii T4 Tuv99atex1499x
Maximum Values:
Uo= 27.2v
Io= 93ma
Po= 0.632w
Ci= 12nf
Uo= 3.5v
Io= 73ma
Po= 64mw
Ui= 30v
Ii= 117ma
Uo= 27.2v
Io= 117ma
Po= 0.639w
Ci= 12nf
Uo= 8.7v
Io= 0ma
Ui= 30v
Ii= 117ma
Supply: Dc 20-35v / 95-55ma
Um= 250v
Ambient Temp: -20°c Ta 60°c
Class I, Zone 2, Groups Iic. Iib, Iia Or
Class I. Division 2, Groups A, B, C, D
Class I. Zone 0, 1 Or 2, Groups Iic, Iib, Iia Or
Class I, Groups A, B, C, D;
Class Ii, Groups E, F, G; Class Iii
Temperature Rating Of T4
Ta= 60°c
Iecex Bas 04.0016
[ex Ia Ga] Iic
[ex Ia Da] Iiic
[ex Ia Ma] I
Anzex 13.2004
[ex Ia Ma] I
-20°c Ta +60°c
Gy J12 1080
[ex Ia Ga ] Iic
Iee 12 0127
[ex Ia ] Iic
[ex Ia] Iiic
Part/item: 250564-001
Desc.: Smart Transm, Power Supplies 1cg, In/
Item Code: 91u01000497
Item Name: Transm.repeater/power Eexi1ch4-20/4-20
Maker Ref: 50815
Made In Singapore
Weight : 150 Gm
Ref No(S) : 117675
