PEPPERL+FUCHS KFD2-STC4-EX1.2O SMART TRANSMITTER POWER SUPPLY / SMART TRANSMITTER ISOLATOR 122581

Pepperl+fuchs kfd2-stc4-ex1.2o smart transmitter isolator

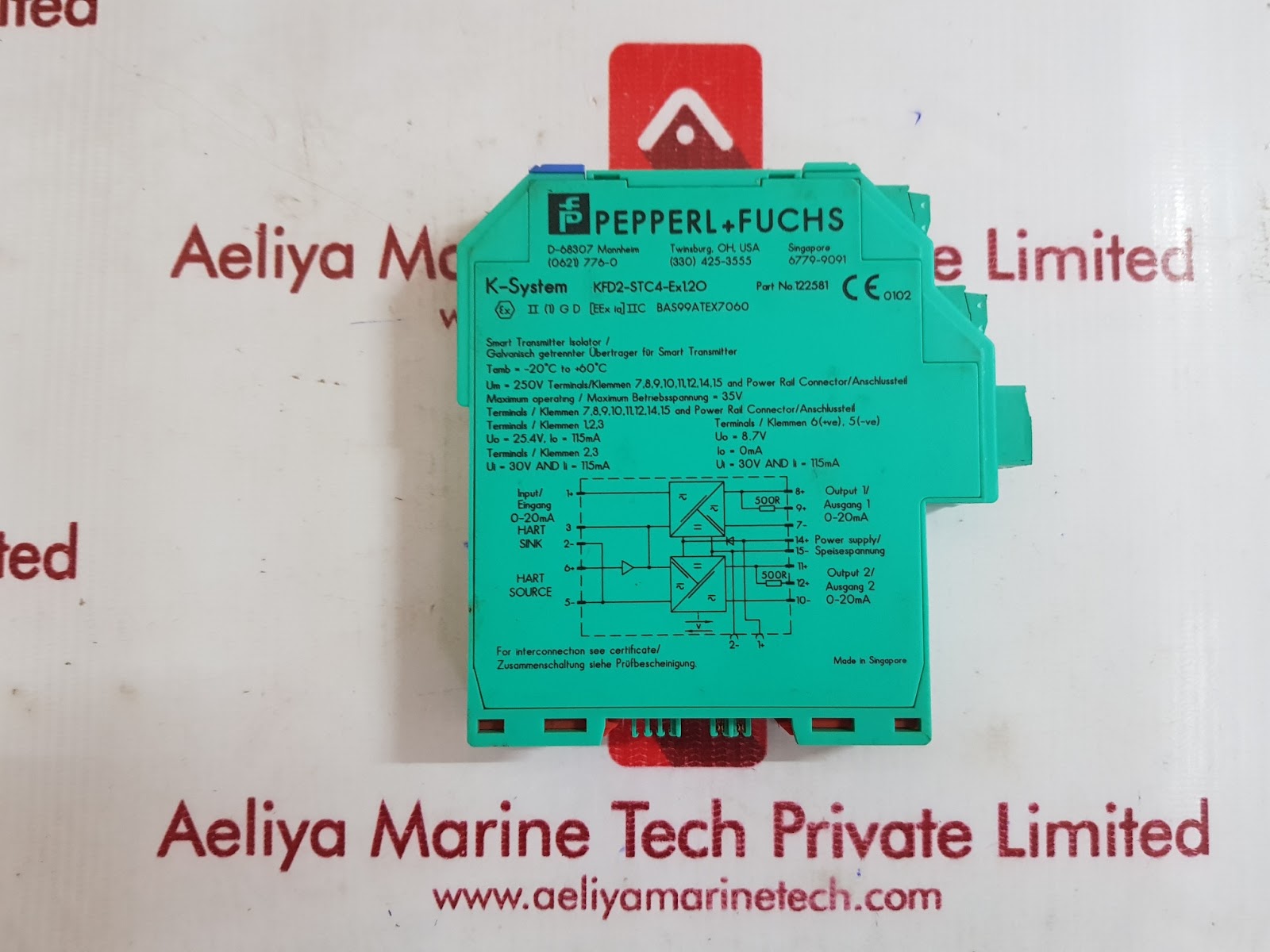

pepperl+fuchs
kfd2-stc4-ex1.2o/ kfd2-stc-ex1.20
k-system
part no. 122581
ii (1) g d [eex ia] iic bas99atex7060
smart transmitter isolator
tamb = -20°c to +60°c
um= 250v terminals 7,to 12, 14, 15 and power rail connector
maximum operating = 35v
terminals 1, 2, 3
uo= 25.4v, lo= 115 ma
terminals 2, 3
ui = 30v and li = 115 ma
terminals 6(+ve), 5(-ve)
uo= 8.7v, lo= 0ma, ui= 30v and li = 115ma
input/eingang: 0-20ma hart sink
output 1 & 2/ausgang 1 & 2: 0-20ma
class i, zone 0,1 or 2, groups iic,iib,iia or class i, groups a,b,c,d;
class ii, groups e,f g; class iii hazardous (classified) locations
when connected per p+f dwg.
116-0173. a temperature rating of t4 applies with ta=60⁰c.
iecex bas 04.0016
made in singapore
weight: 135 gm
