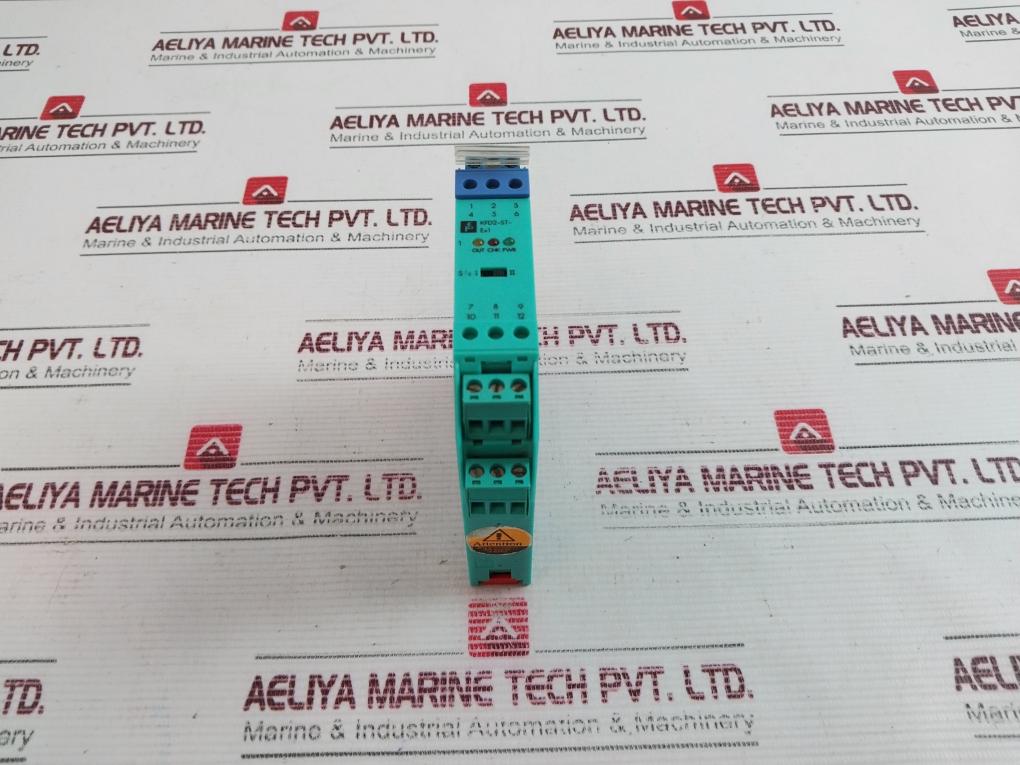

Pepperl+fuchs Kfd2-st-ex1 Isolating Switching Amplifier Dc 20-35v

Pepperl+fuchs Kfd2-st-ex1 Isolating Switching Amplifier Dc 20-35v
Pepperl+fuchs
K-system
Kfd2-st-ex1
Part No: 34786s
Ptb Nr. Ex-89.c.2073 [eex Ia] Iic
Namur Din 19234
Maximum Values:
Uo= 12,7v
Jk =17,3ma
P= 55mw
Eex Ia Iic
Ca= 450nf
La= 2mh
Output: Dc 40v
100ma
Um= 40v
Supply Voltage: Dc 20-35v
Current Consumption: 13-8ma
Ambient Temperature Max. 65°c
Class I, Div 1, Groups A, B, C, D;
Class Ii, Div 1, Groups E, F, G;
Class Iii
10140704063045
Made In Singapore
Weight : 120 Gm
Ref No(S) : 119919
