Pepperl+fuchs Kfd2-sr2-ex2.w Switch Amplifier Ac 253v

Pepperl+fuchs Kfd2-sr2-ex2.w Switch Amplifier Ac 253v

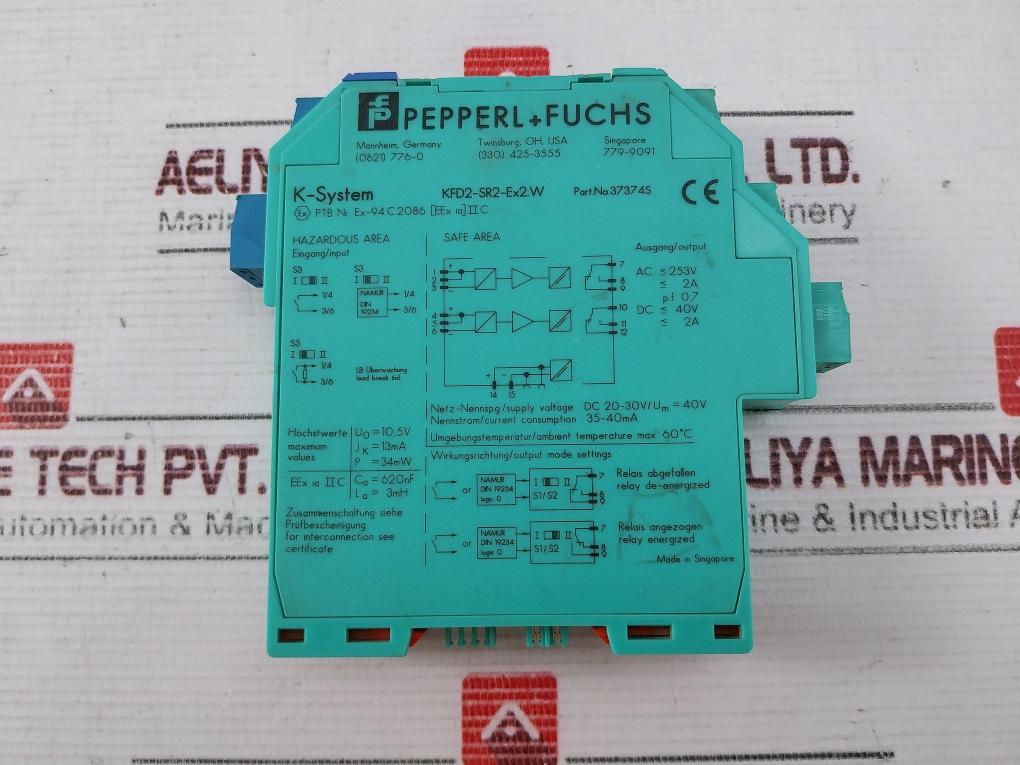

Pepperl+fuchs
K-system
Kfd2-sr2-ex2.w
Part No: 37374s
Ptb Nr.ex-94.c.2086 [eex Ia ] Iic
Output:
Ac 253v
2a
P.f. 0.7
Dc: 40v
2a
Supply Voltage: Dc 20-30v / Um= 40v
Current Consumption: 35-40ma
Ambient Temperature Max: 60°c
Uo= 10,5v
Jk= 13ma
P= 34mw
Eex Ia Iic
Ca= 620nf
La= 3mh
[eex Ia] Iib,iic
Class I, Div. 1, Groups A, B, C, D;
Class Ii, Div. 1, Groups E, F, G; Class Iii, Div. 1

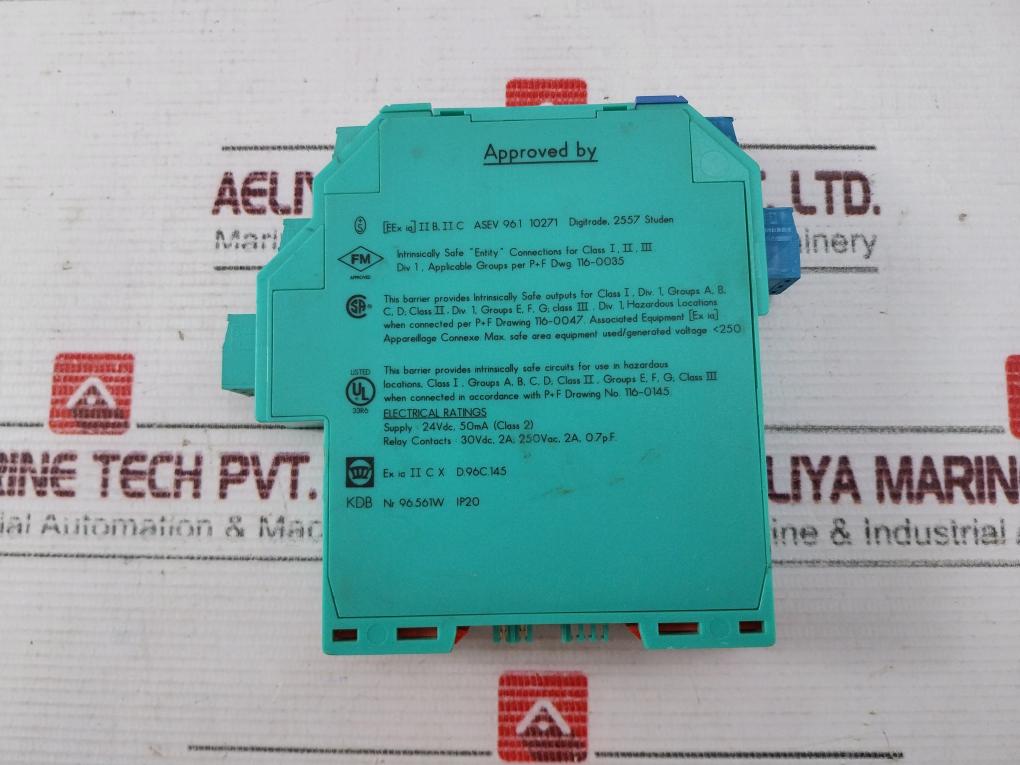

Electrical Ratings:
Supply: 24vdc, 50ma (Class 2)
Relay Contacts: 30vdc, 2a; 250vac, 2a, 0.7 P.f.
Ex Ia Ii C X D.96c.145
Kdb Nr 96.561w Ip20
10518090710155
Made In Singapore
Weight : 150 Gm
Ref No : 118407
