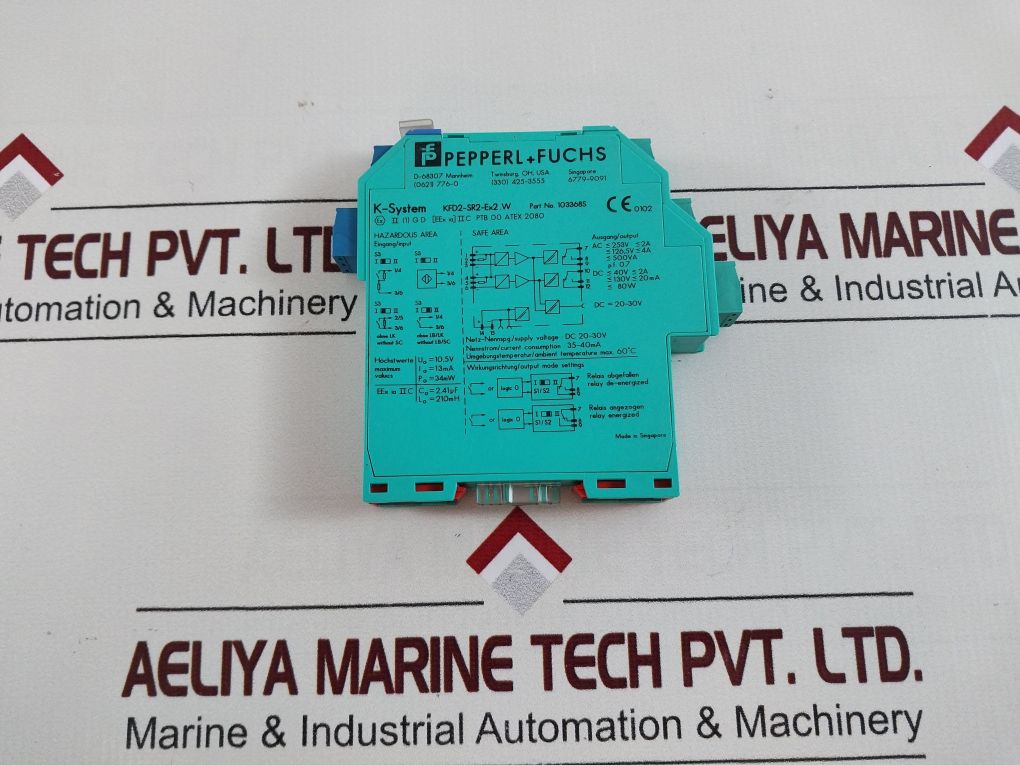

Pepperl+fuchs Kfd2-sr2-ex2.w Switch Amplifier

Pepperl+fuchs Kfd2-sr2-ex2.w Switch Amplifier

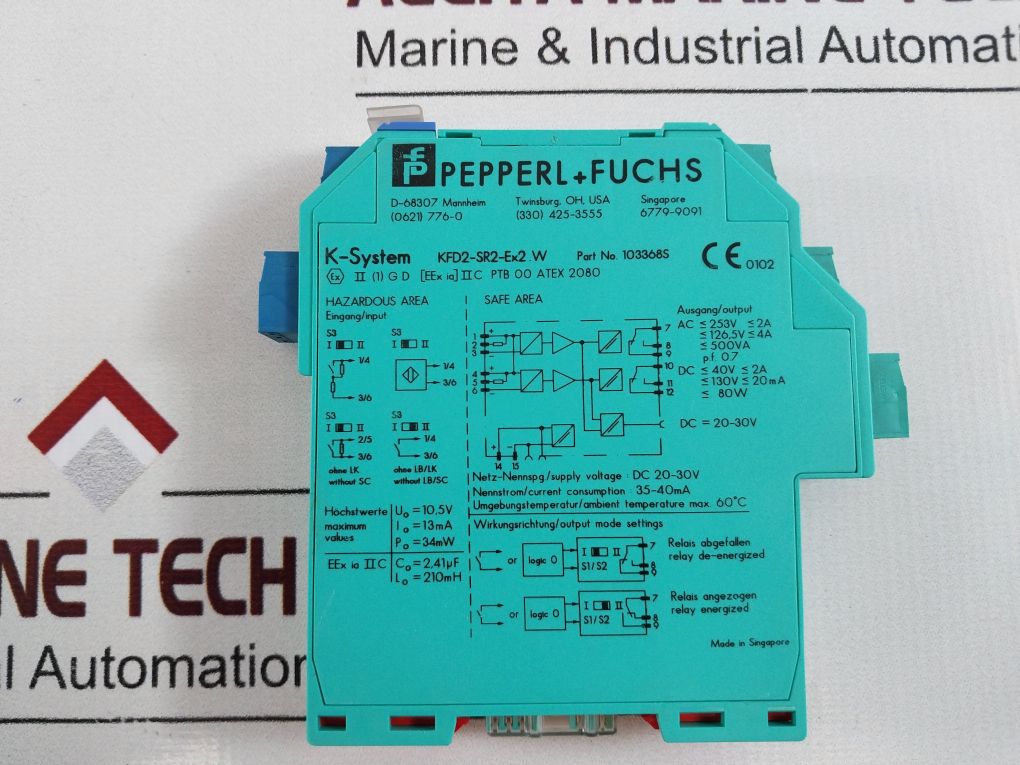

Pepperl+fuchs
K-system

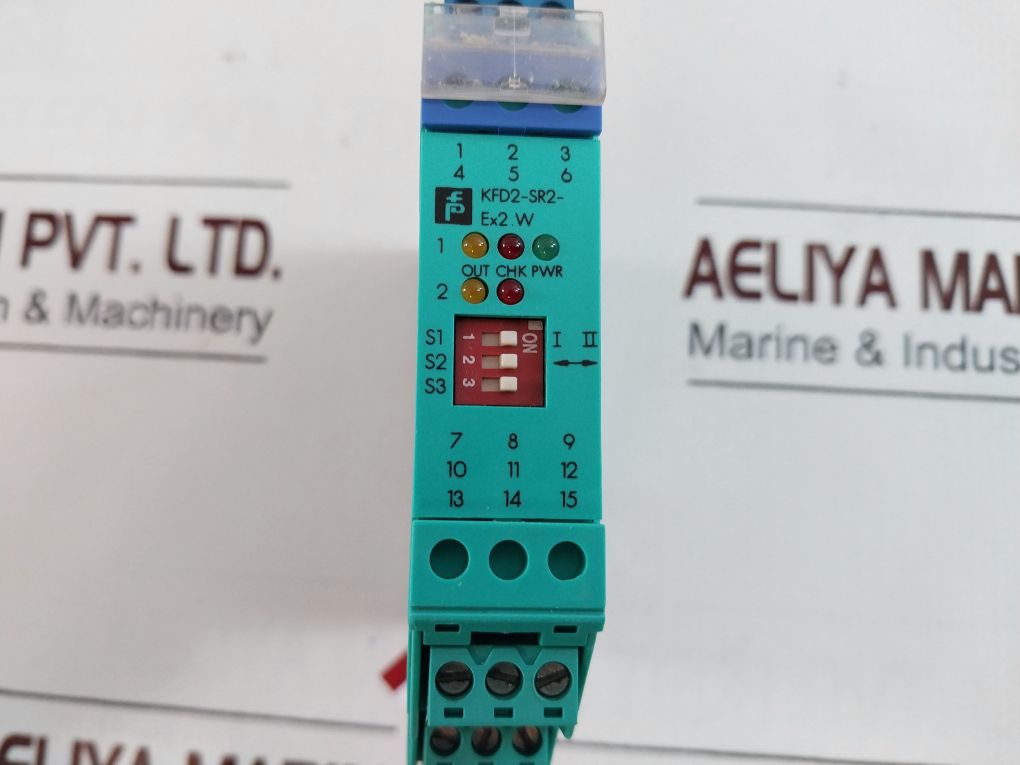

Kfd2-sr2-ex2.w
Part No. 103368s
Ii (1) G D [eex Ia]iic Ptb 00 Atex 2080
Maximum Values
Uo= 10,5v
Io= 13 Ma
Po= 34mw
Eex Ia Iic
Co= 2,41 Μf
Lo= 210 Mh
Output
Ac 253v 2a
126,5v 4a
500va
P.f. 0.7
Dc 40v 2a
130v 20ma
80w
Supply Voltage: Dc 20-30v
Current Consumption: 35-40ma
Ambient Temperature Max. 60°c
Class I, Div. 1, Groups A,b,c,d
Class Ii, Div. 1, Groups E,f,g
Class Iii, Div. 1

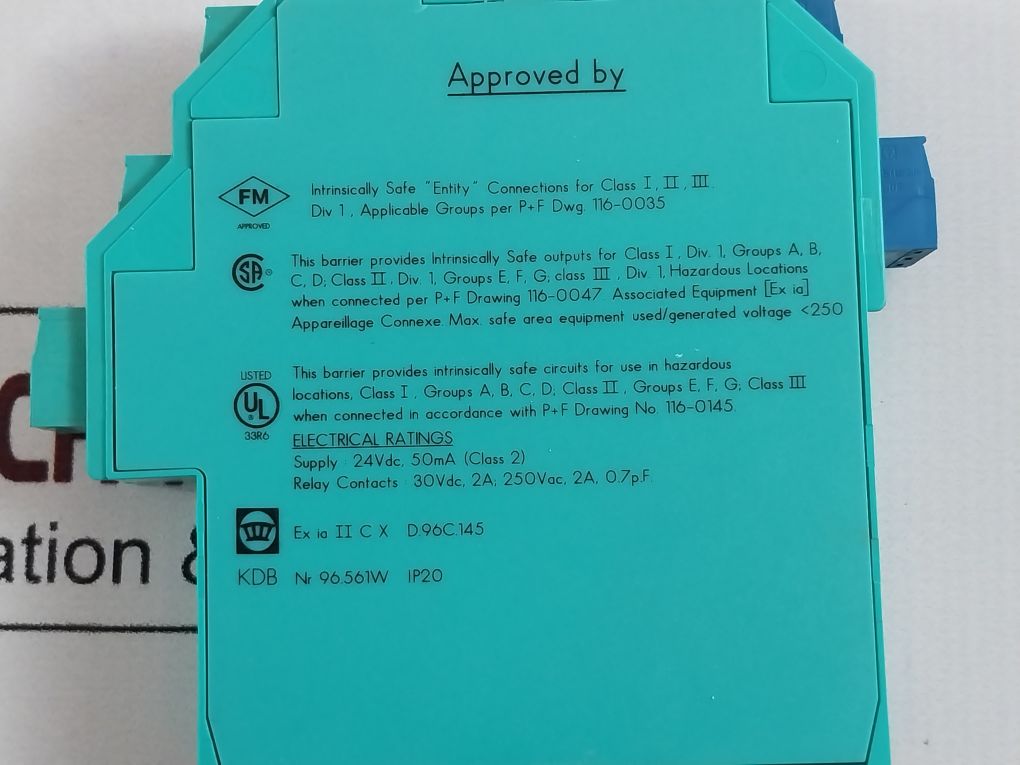

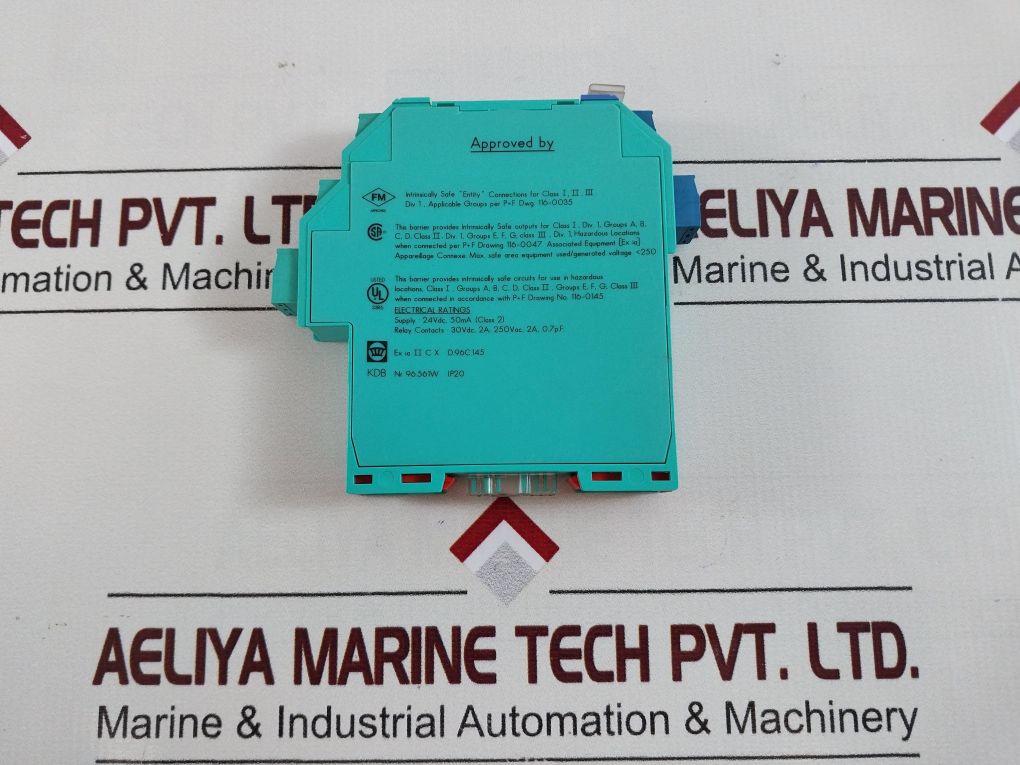

Electrical Ratings
Supply: 24vdc, 50ma (Class 2)
Relay Contacts: 30vdc, 2a; 250vac, 2a, 0.7p.f.
Ex Ia Ii C X D.96c.145
Kdb Nr 96.561w Ip20

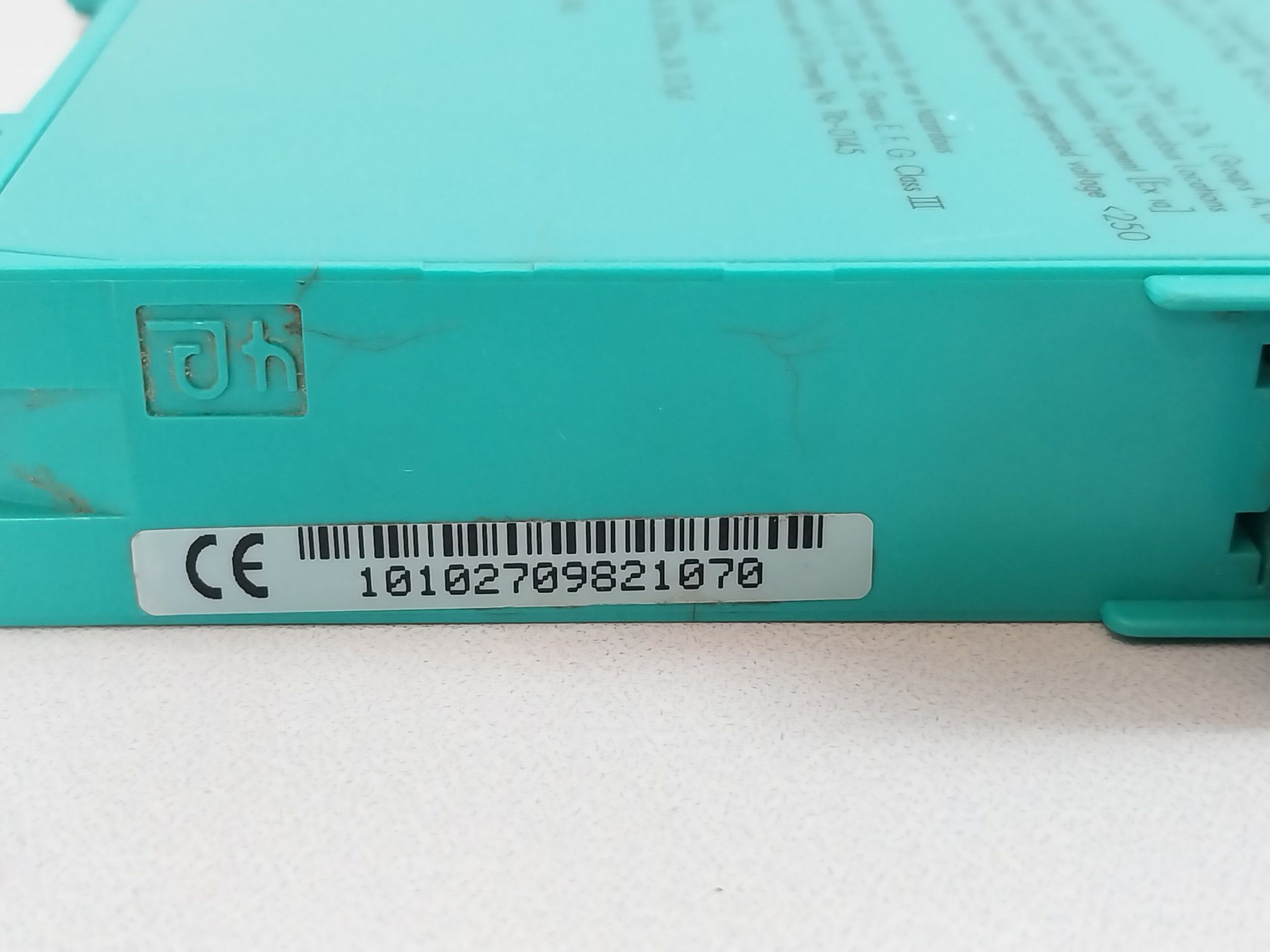

10102709821070
Made In Singapore
Weight : 130 Gm
Ref No : 66175
