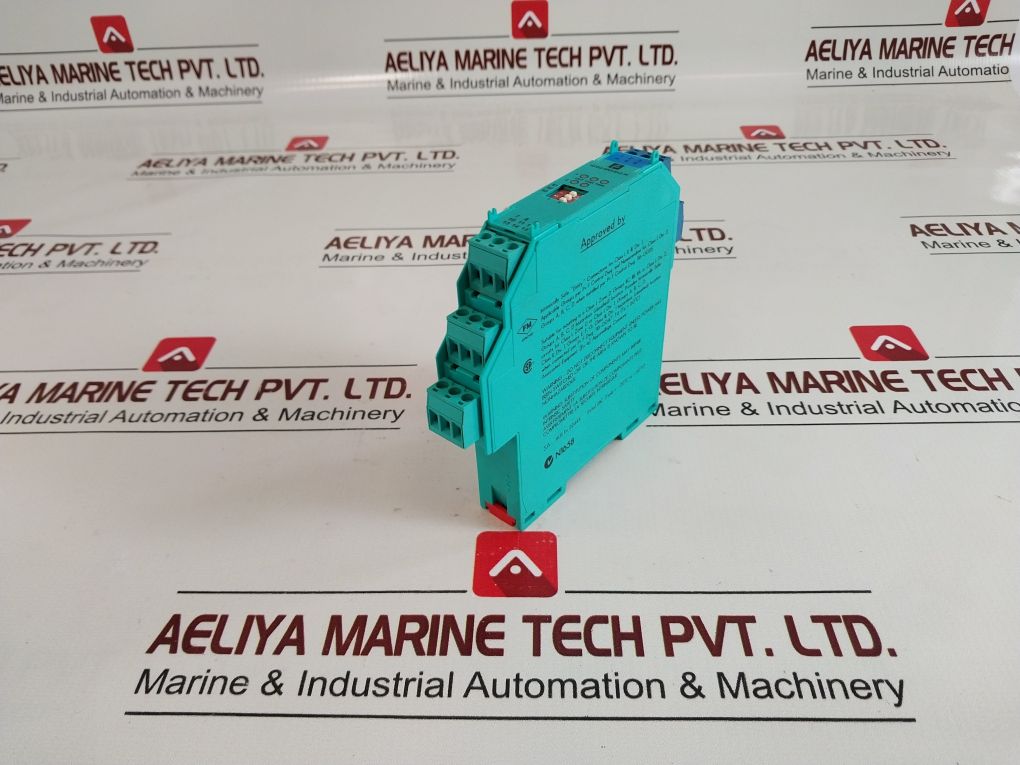

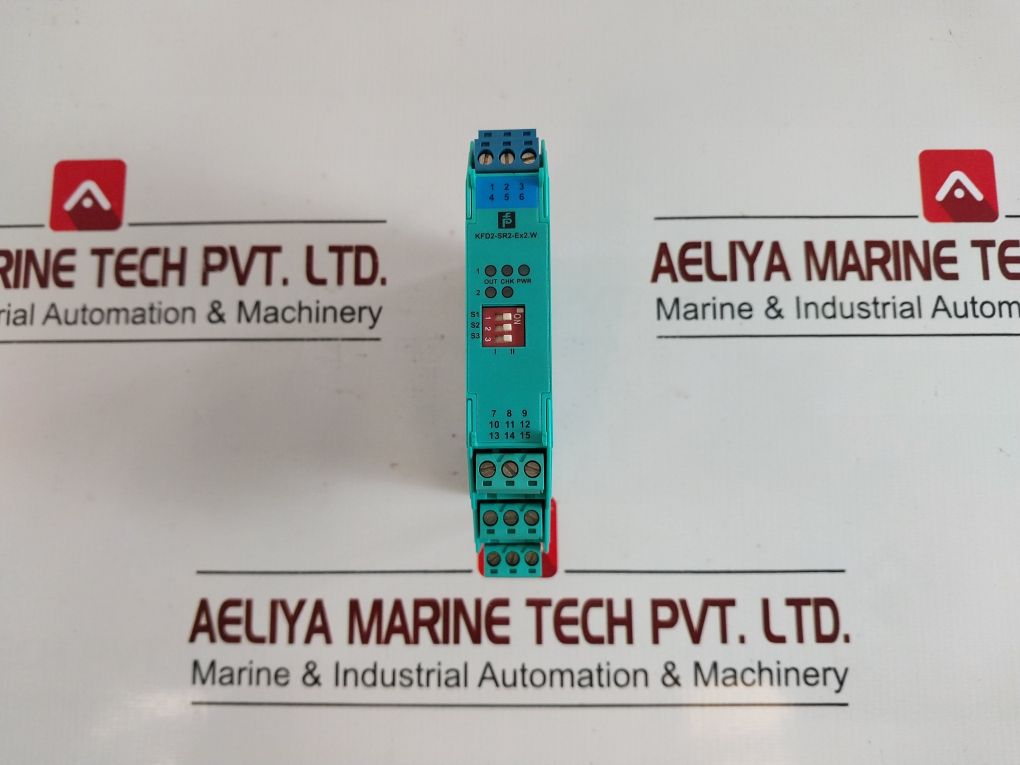

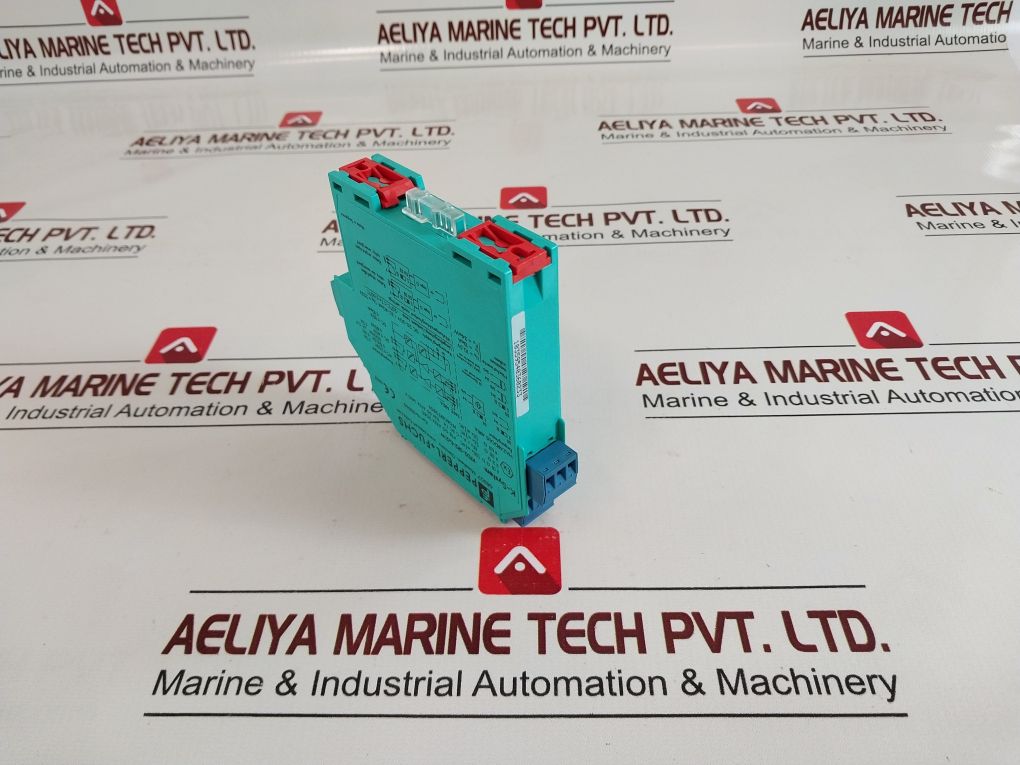

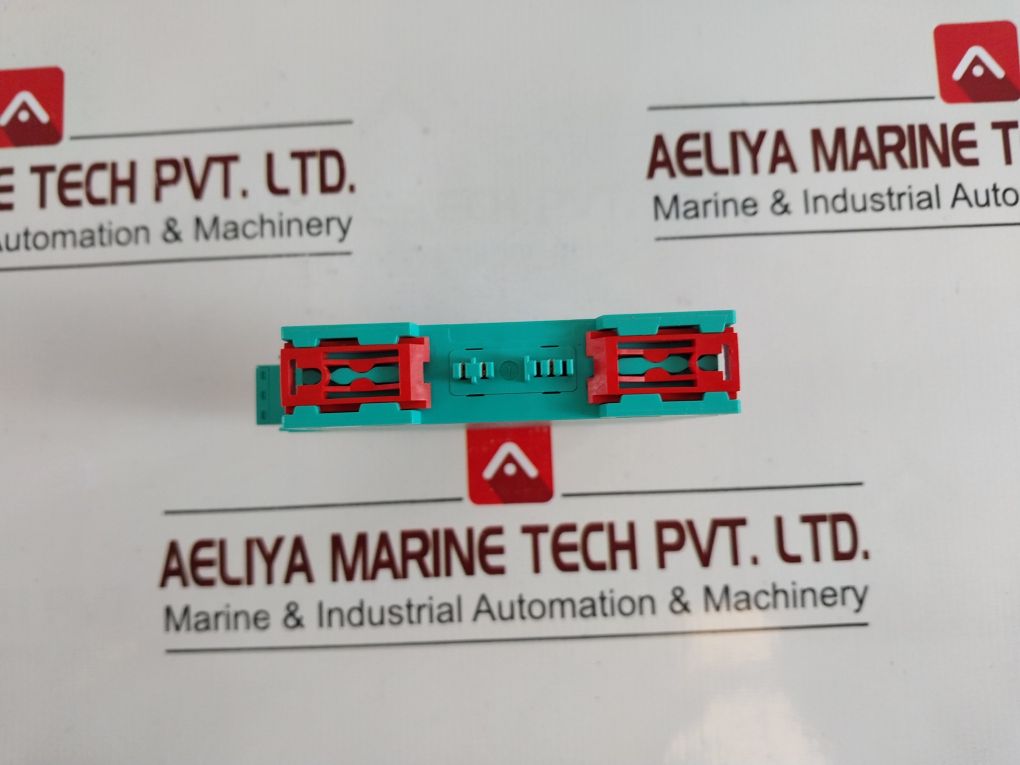

Pepperl+fuchs Kfd2-sr2-ex2.w Switch Amplifier

Out of stock

Brand

Condition

New with original Box

Country of Manufacturer

SINGAPORE

Weight

170 GRAMS

SKU 62181 Category Tags ,

Note: Aeliya Marine Tech Pvt. Ltd. is NOT an authorized distributor for any of the brands mentioned on this website.

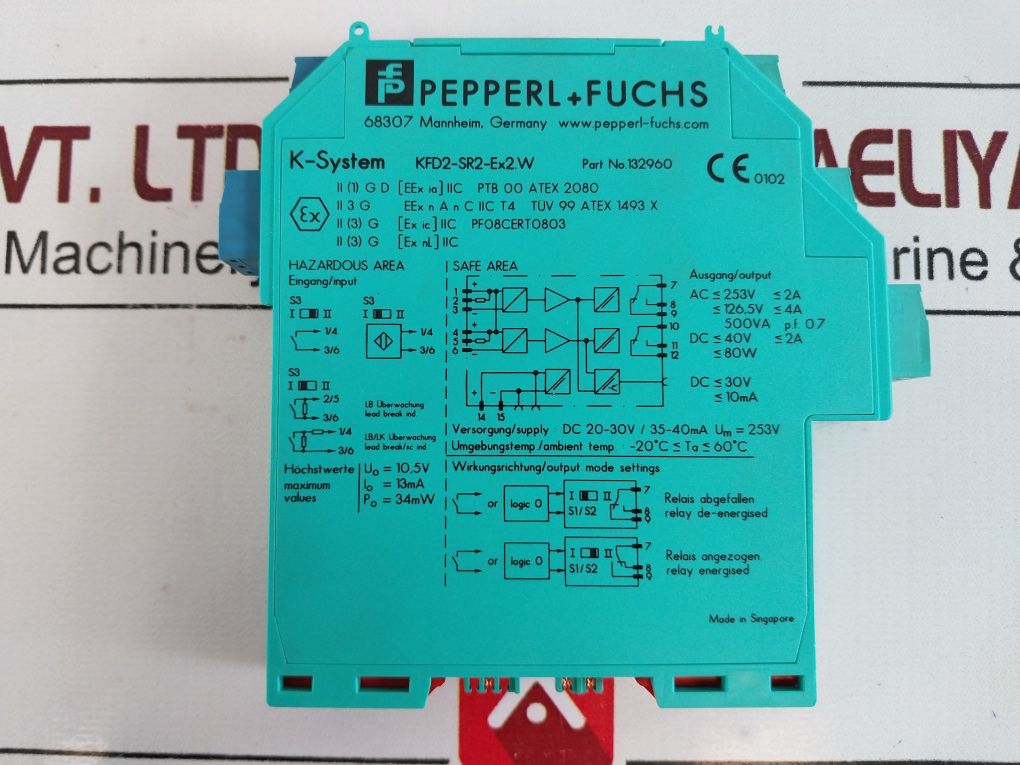

Pepperl+fuchs Kfd2-sr2-ex2.w Switch Amplifier
Pepperl+fuchs
K-system
Kfd2-sr2-ex2.w
Part No. 132960
Ii (1) G D [eex Ia] Iic Ptb 00 Atex 2080
Ii 3 G Eex N A A C Iic T4 Tuv Atex 1493 X
Ii (3) G [ex Ic] Iic Pf08cert0803
Ii (3) G [ex Nl] Iic
Maximum Values
Uo= 10,5v
Io= 13ma
Po= 34mw
Output
Ac 253v 2a
126,5v 4a
500va P.f. 0.7
Dc 40v 2a
80w
Dc 30v
10 Ma
Supply: Dc 20-30v/35-40ma
Um= 253v
Ambient Temp.: -20°c Ta 60°c

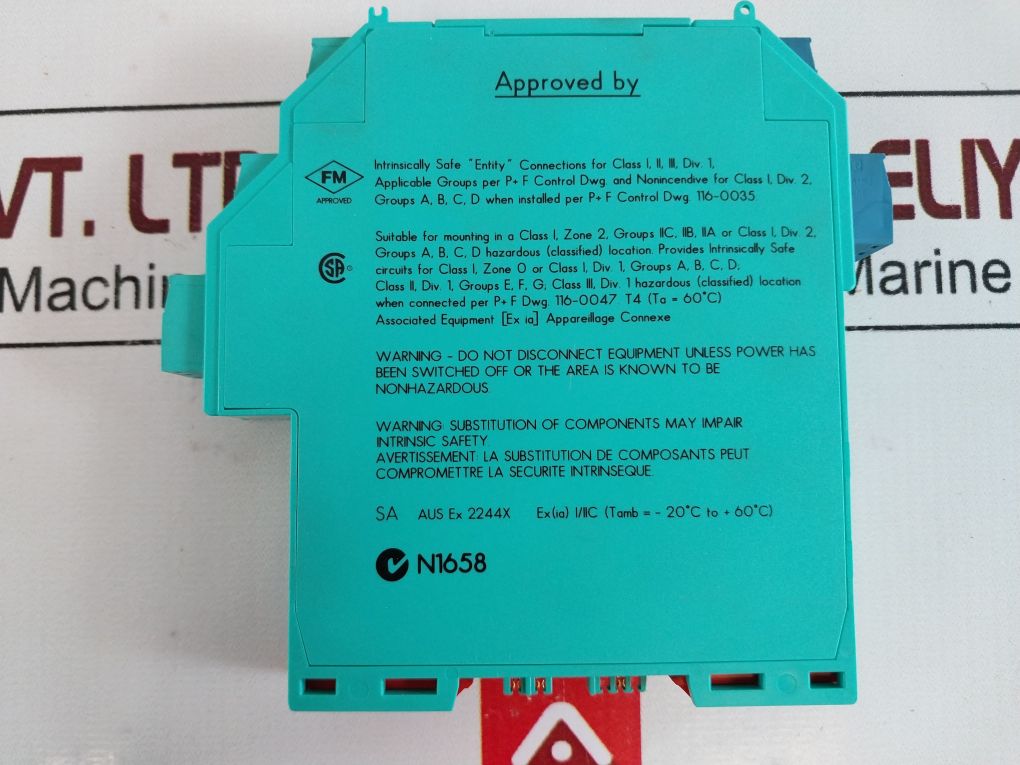

Class I, Zone 0
Class I, Div. 1, Groups A,b,c,d;
Class Ii, Div. 1, Groups E,f,g;
Class Iii, Div. 1
10359540360233
Made In Singapore
Weight : 170 Gm
Ref No(S) : 62181
