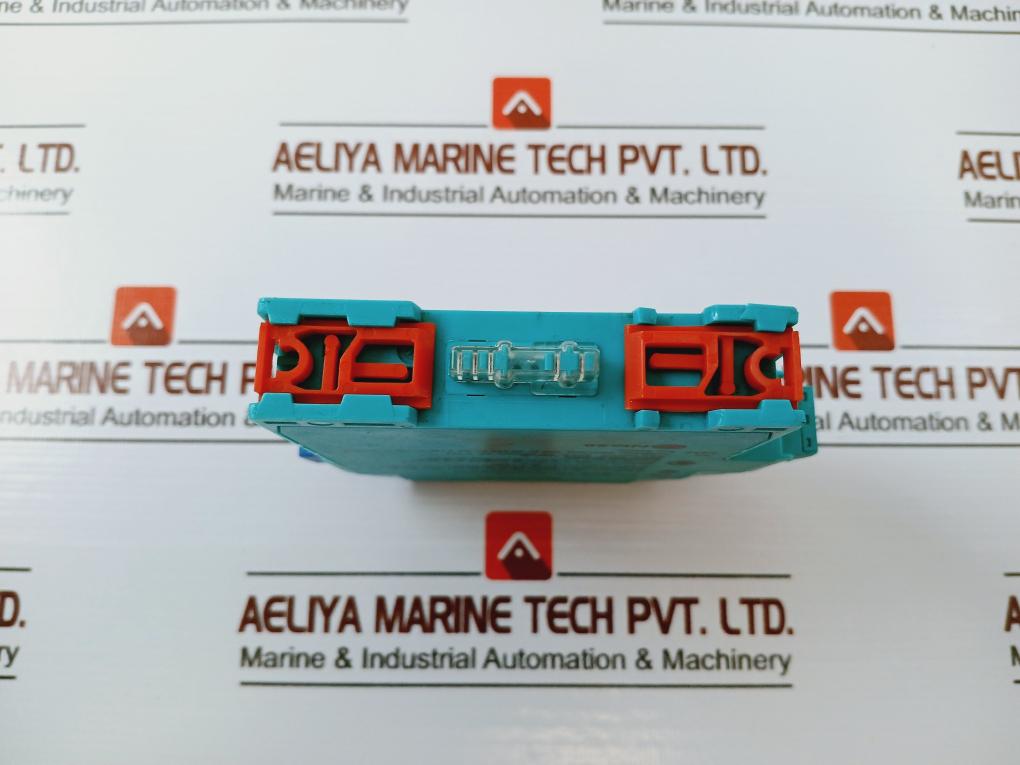

Pepperl+Fuchs Kfd2-sr2-ex1.W.Lb Switch Amplifier

Pepperl+Fuchs Kfd2-sr2-ex1.W.Lb Switch Amplifier
Pepperl+Fuchs
K-system
Kfd2-sr2-ex1.W.Lb
Part No.: 103369S
Ii (1) G D [Eex Ia] Iic Ptb 00 Atex 2080
Hazardous Area
Input:
Maximum Values:
Uo= 10,5V
Io= 13Ma
Po= 34Mw
Eex Ia Iic
Co= 2,41µF
Lo= 210Mh
Safe Area
Output:
Ac 253V 2A
126,5V 4A
500Va
P.F.: 0.7
Dc 40V 2A
130V 20Ma
80W
Lb/Sc Output: Dc= 20-30V
Supply Voltage: Dc 20-30V
Current Consumption: 35-40Ma
Ambient Temperature Max.: 60°C
Cl I, Div 1, Gps A, B, C, D; Cl Ii, Div 1, Gps E, F,G
Electrical Ratings:
Supply: 24Vdc, 50Ma (Class 2)
Relay Contacts: 30Vdc, 2A; 250Vac, 2A, 0.7P.F.
10272709846472
Made In Singapore
Weight : 150 Gm
Ref No : 141227
