PEPPERL+FUCHS KFD2-SR2-EX1.W.LB SWITCH AMPLIFIER 132959

PEPPERL+FUCHS KFD2-SR2-EX1.W.LB SWITCH AMPLIFIER 132959

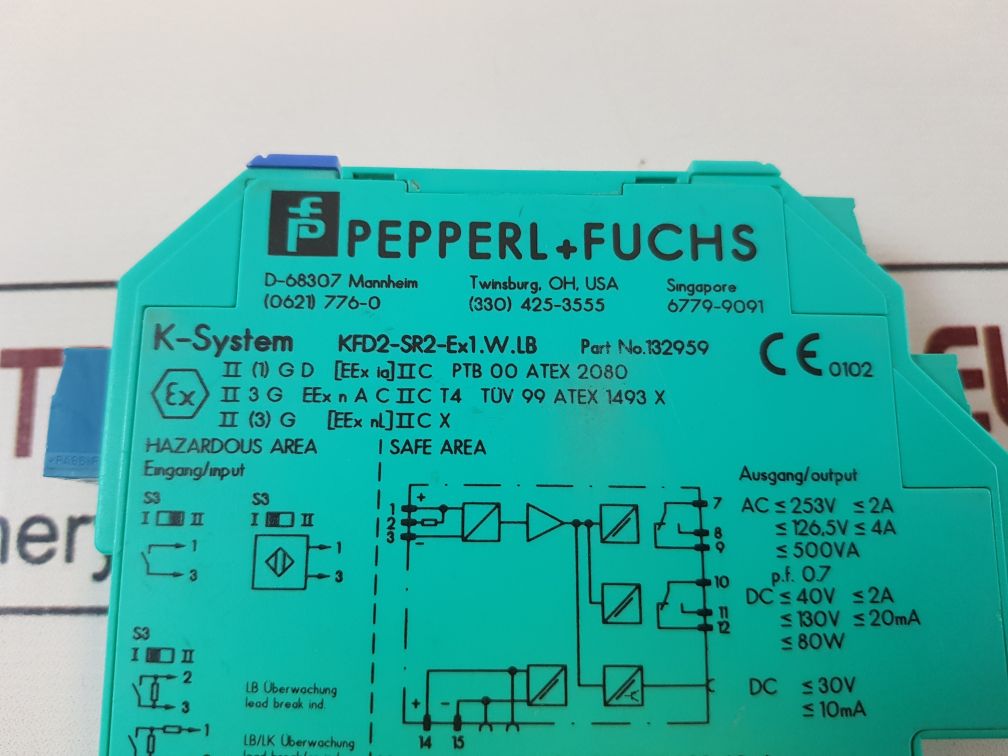

PEPPERL+FUCHS
KFD2-SR2-EX1.W.LB
K-SYSTEM
PART NO: 132959
0102
II (1) G D [EEX IA] IIC PTB 00 ATEX 2080
II 3 G EEX N A C IIC T4 TUV 99 ATEX 1493 X
II (3) G [EEX NL] IIC X
AUSGANG/OUTPUT:
AC 253V 2A
126,5V 4A
500VA
P.F. 0.7
DC 40V 2A
130V 20MA
80W
DC 30V
10MA
VERSORGUNG/SUPPLY: DC 20-30V/35-40MA
UMGEBUNGSTEMP./AMBIENT TEMPERATURE MAX.: 60°C
HOCHSWERTE/MAXIMUM VALUES:
UO= 10.5V
IO= 13 MA
PO= 34MW
EEX IA IIC
CO= 2.41µF
LO= 210MH

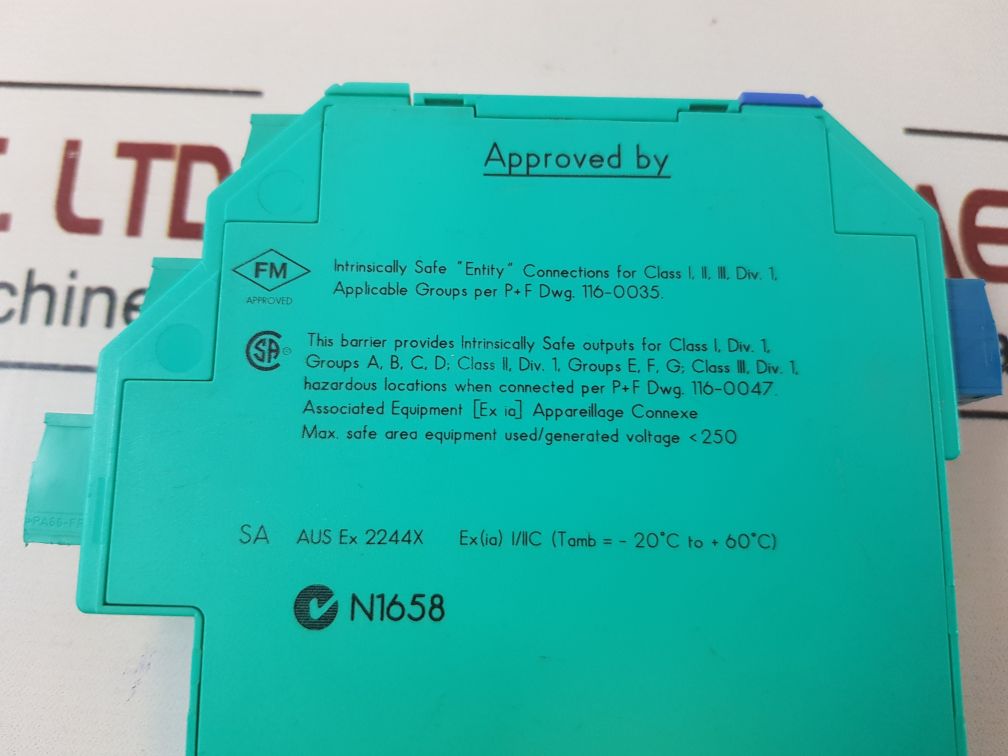

CLASS I, DIV. 1, GROUPS A, B, C, D;
CLASS II, DIV. 1, GROUPS E, F, G;
CLASS III, DIV. 1
EX (IA) I/IIC (TAMB= -20°C TO + 60°C)
MADE IN SINGAPORE
WEIGHT : 130 GM
CONDITION : USED 5 PCS
REF NO : 52908
