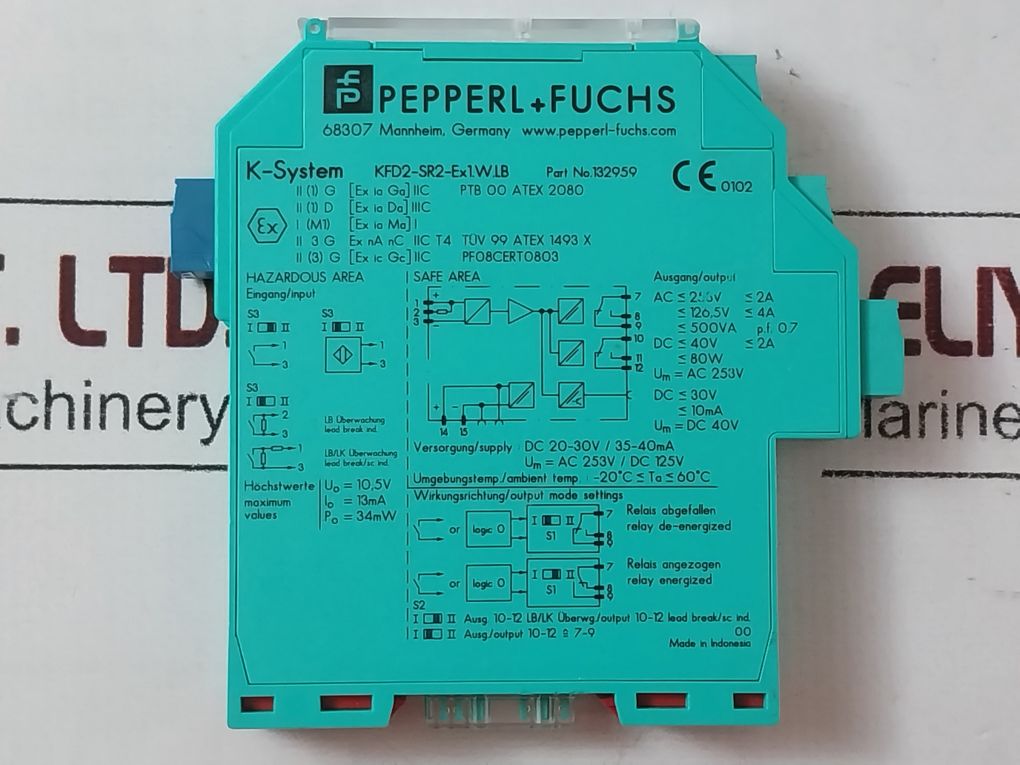

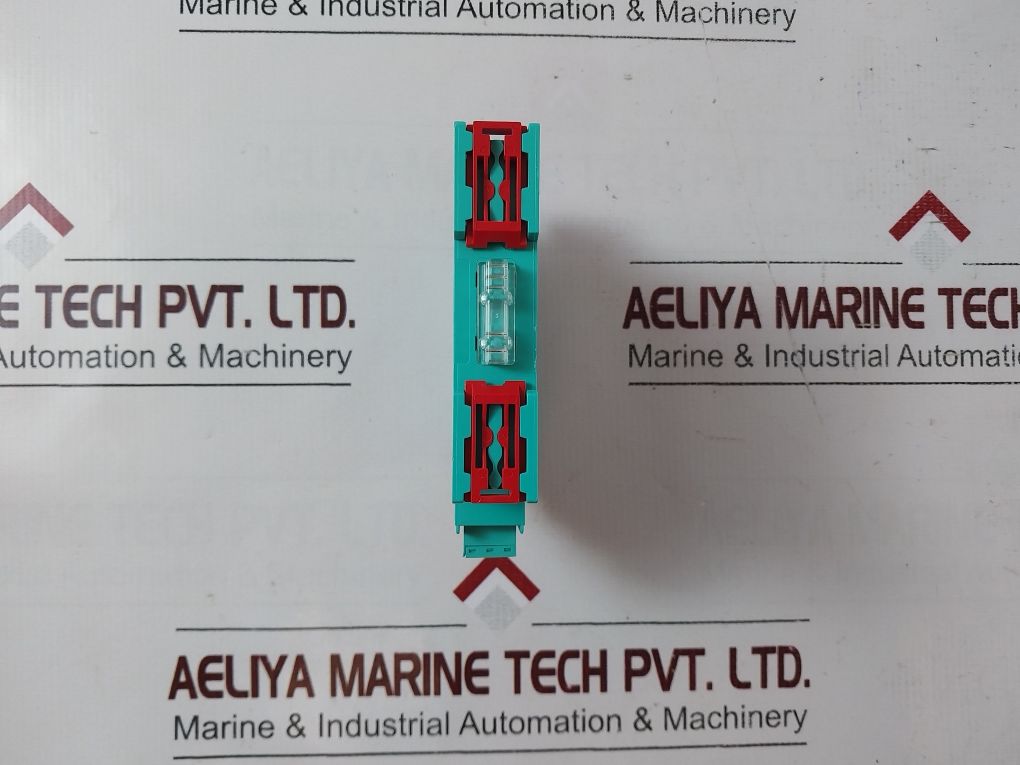

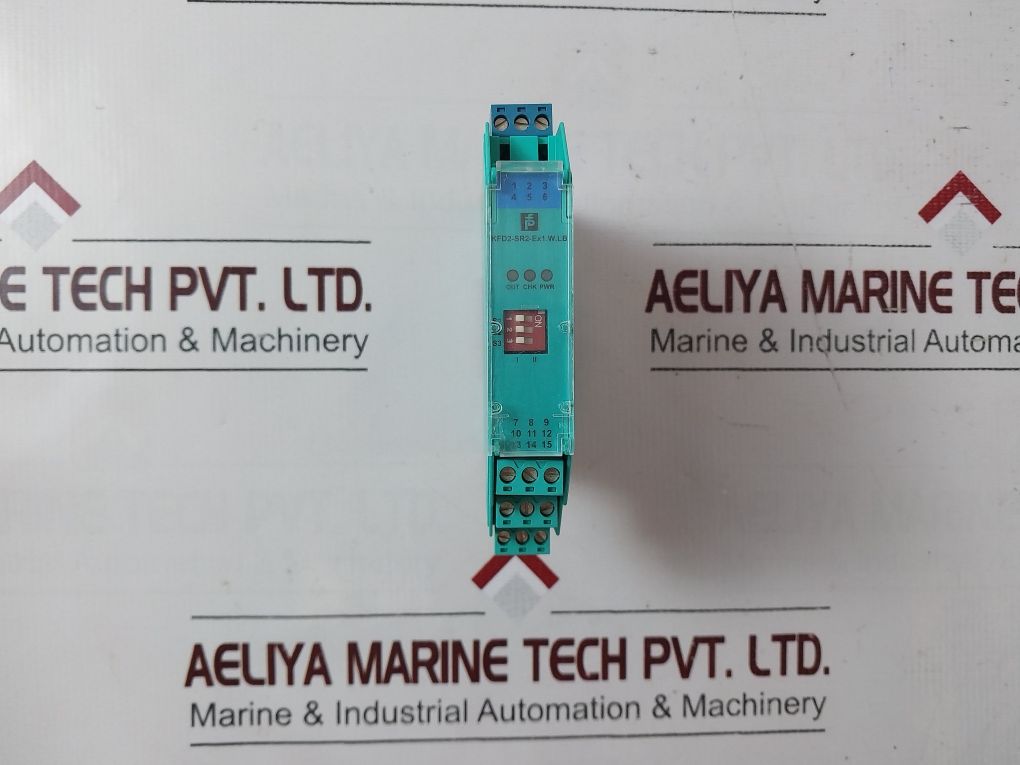

Pepperl+fuchs Kfd2-sr2-ex.1.w.lb Switch Amplifier 132959

Pepperl+fuchs Kfd2-sr2-ex.1.w.lb Switch Amplifier 132959
Pepperl+fuchs
K-system
Kfd2-sr2-ex.1.w.lb
Part No: 132959
Ii (1) G [ex Ia Ga] Iic Ptb 00 Atex 2080
Ii (1) D [ex Ia Da] Iiic
I (M1) [ex Ia Ma] I
Ii 3 G Ex Na Nc Iic T4 Tuv 99 Atex 1493 X
Ii (3) G [ex Ic Gc] Iic Pf08cert0803
Output:
Ac 253v 2a
126,5v 4a
500va P.f. 0.7
Dc 40v 2a
80w
Um= Ac 253v
Dc 30v
10ma
Um= Dc 40v
Supply: Dc 20-30v/ 35-40ma
Um= Ac 253v/ Dc 125v
Ambient Temp.: -20°c Ta 60°c
Maximum Values:
Uo= 10,5v
Io= 13ma
Po= 34mw
Cl I, Div 2, Gp A-d
Cl I, Div 1, Gp A-d, Cl Ii, Div 1, Gp E-g, Cl Iii And Cl I, Zn 0, Gp Iic

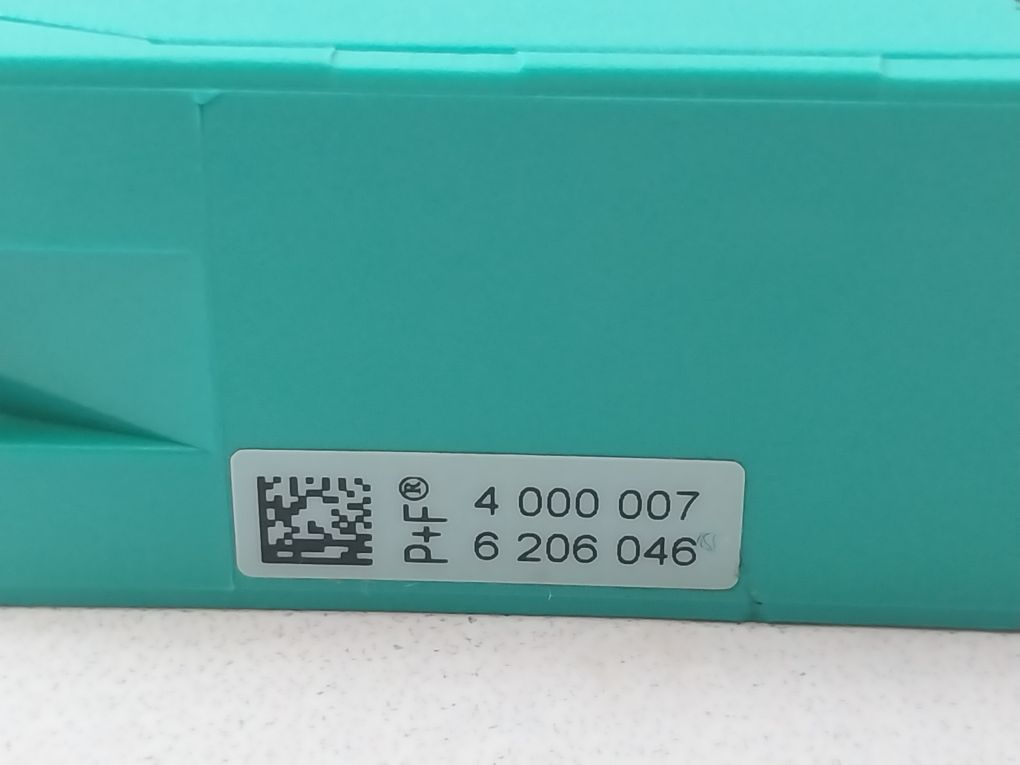

4 000 007
6 206 046
Made In Indonesia
Weight : 130 Gm
Ref No : 67015
