Pepperl+fuchs Kfd2-sh-ex1 Switch Amplifier 46903

Pepperl+fuchs Kfd2-sh-ex1 Switch Amplifier 46903
Pepperl+fuchs
K-system
Kfd2-sh-ex1
Part No: 46903
Ii (1) G D [eex Ia]iic Ptb 00 Atex 2042
Ii 3 G Eex N A C Iic T4 Tuv 99 Atex 1493 X
Tuv Nr. 70/007/10.d00140/96
Operating Values
Uo= 8,4v
Ik= 11,7 Ma
Maximum Values
Uo= 9,56v
Io= 16,8 Ma
Po= 41 Mw
Eex Iic
Co= 3,6 Μf
Lo= 130 Mh
Output
Ac 50v
1a
P.f. 0.7
Dc 24v
1a
Error Output: Dc=10-30v
7 Ma
Supply: Dc 20-35v/150-85ma
Ambient Temperature Max. 60°c

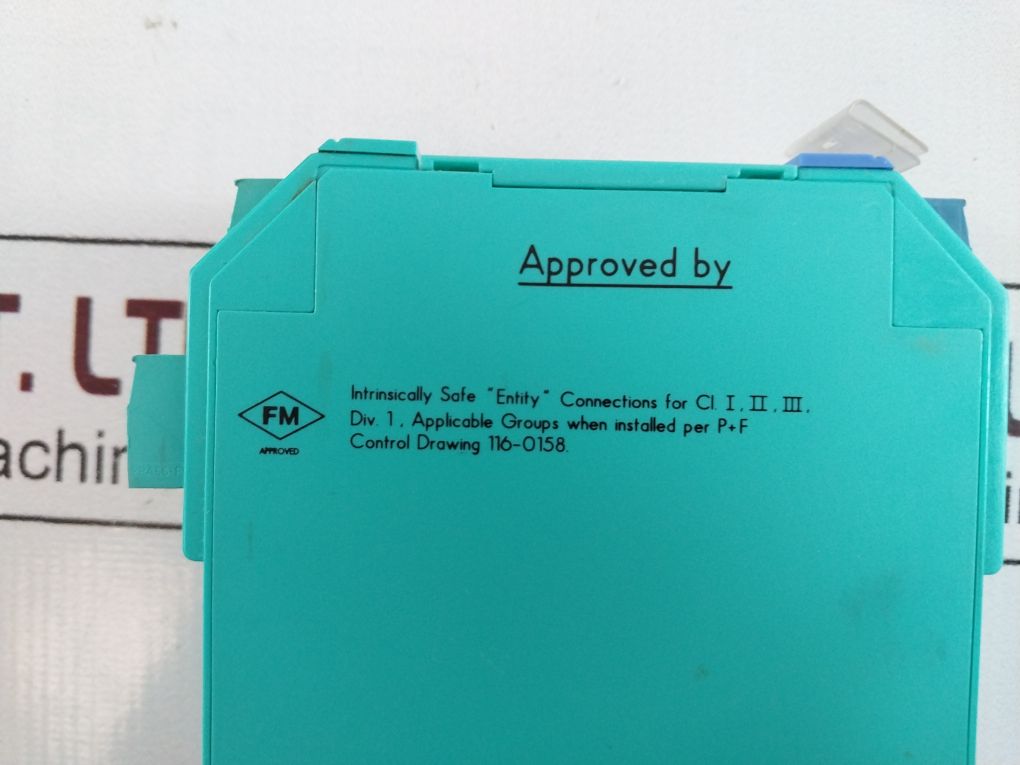

Cl. I, Ii, Iii, Div. 1
10158527243050
Made In Singapore
Weight : 220 Gm
Ref No : 66172
