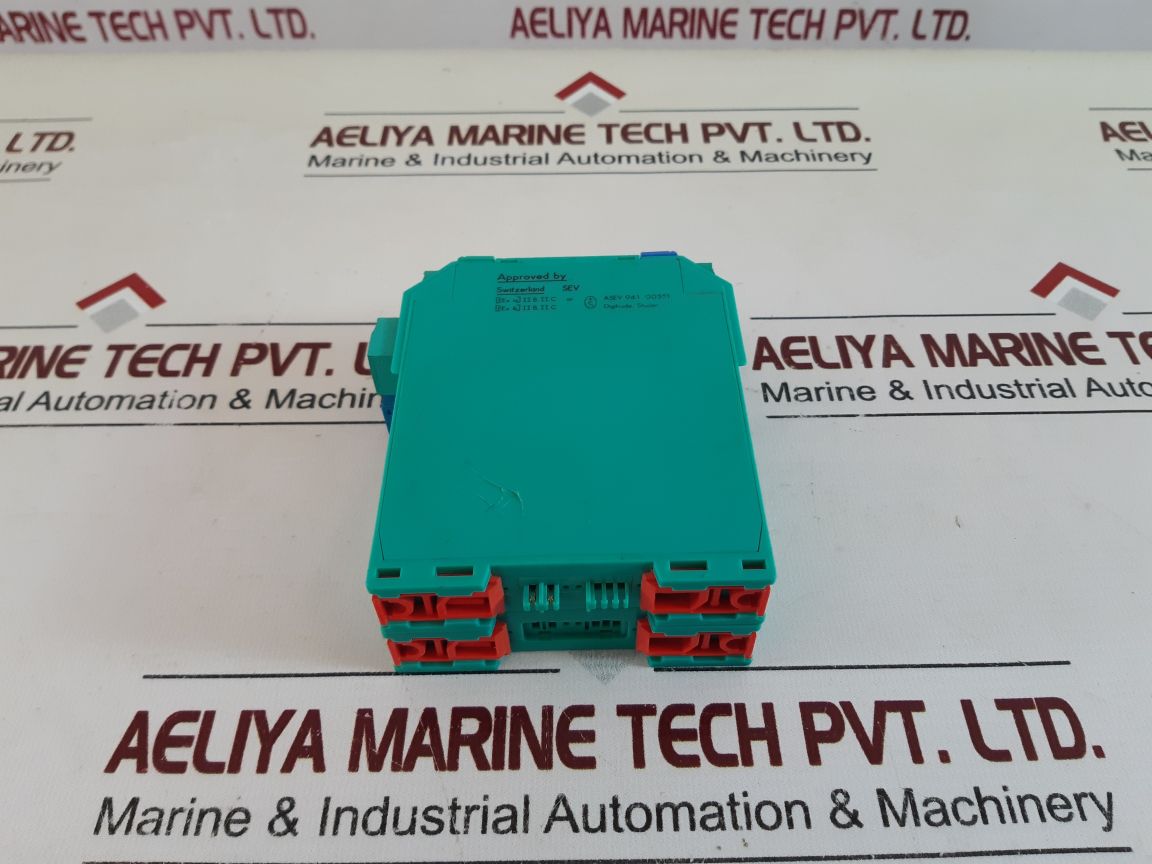

Pepperl+fuchs Kfd2-sh-ex1 Switch Amplifier

Pepperl+fuchs Kfd2-sh-ex1 Switch Amplifier
Pepperl+fuchs
Bg
Kfd2-sh-ex1
A.bia 930147
K-system
Part No: 34233
Ptb Nr. Ex-93.c.2065 [eex Ia]iic
Vde 0660 T.209
Operating Values
Uo=8.4v
Jk=11.7ma
Maximum Values
Uo=9.6v
Jk=19ma
P=45mw
Application
[eex Ia] Iic
Ca=650nf
La= 5mh
Output
Ac U 253v
J 1a
P 253va
Cosϕ 0.7
Dc U 24v
J 1a
P 24w
Vde 0660/t200
Utilization Category
Ac 11: 230v/1a
Dc 11: 24v/1a
Error Output: Dc U=10-30v
J 7ma
Supply Voltage: Dc 20-35v 10%
Current Consumption: 150ma-85ma
Ambient Temperature Max. 60°c
Made In Germany
Weight : 230 Gm
Condition : Used 3 Pcs
Ref No : 58571
