PEPPERL+FUCHS KFD2-GU-EX1 TEMPERATURE TRIP AMPLIFIER

Pepperl+fuchs kfd2-gu-ex1 temperature trip amplifier 126797
pepperl+fuchs
kfd2-gu-ex1
k-system
part no: 126797
bas98atex7152
ii 3 g ex na nc iic t4 tuv 99 atex 1493 x

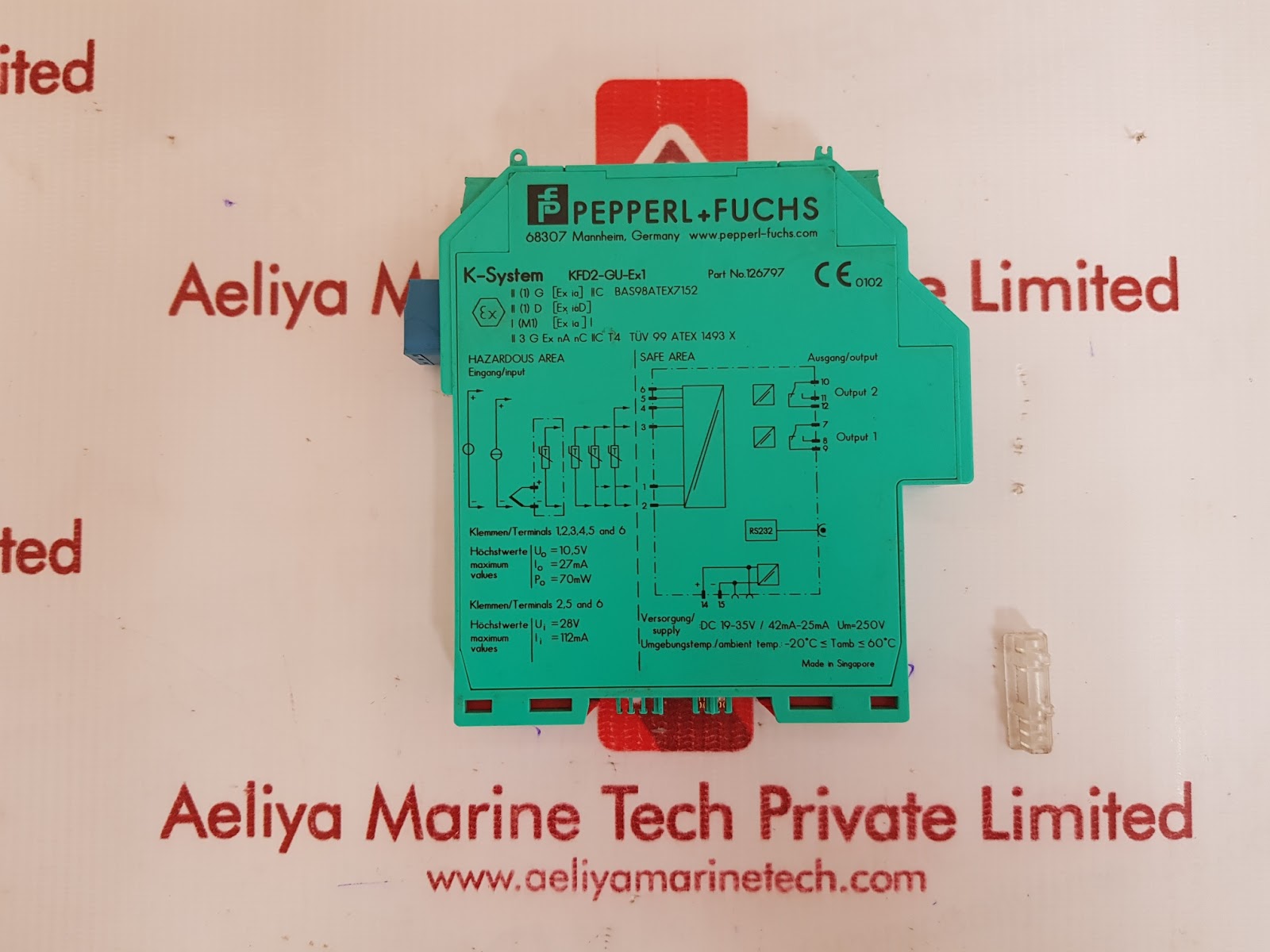

terminals 1, 2, 3, 4, 5 and 6
höchstwerte/maximum values:
uo=10,5v
io=27ma po=70mw
klemmen/terminals 2, 5 and 6
höchstwerte/maximum values:
ui = 28v ii = 112ma
versorgung/supply: dc 19-35v/ 42ma-25ma um=250v
umgebungstemp./ambient temp: -20°c tamb 60°c
class i, zone 0,1 or 2, groups iic, iib,iia or class i, groups
a,b,c,d, class ii, groups e,f,g; class iii hazardous (classified)
locations when connected per p+f dwg. 116-0173
a temperature rating of t4 applies with ta = 60°c
iecex bas 06.0022
p+f 4 000 001 7 706 689
made in singapore
weight: 135 gm
