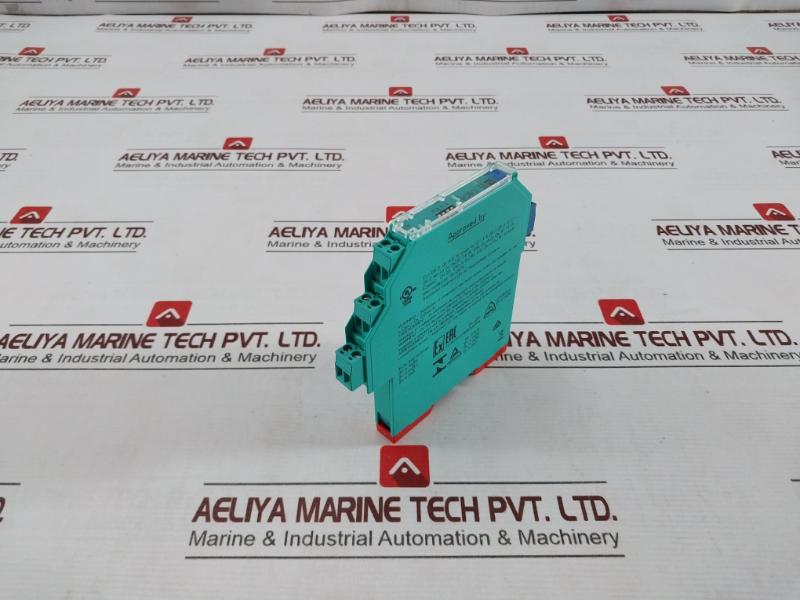

Pepperl+Fuchs Kcd2-Son-Ex1.R3 Switch Amplifier 30v

Pepperl+Fuchs Kcd2-Son-Ex1.R3 Switch Amplifier 30v
Pepperl+Fuchs
K-System
Type: Kcd2-Son-Ex1.R3
Part No.: 320208
Ii (1) G [Ex Ia Ga] Iic
Ii (1) D [Ex Ia Da] Iiic
I (M1) [Ex Ia Ma] I
Ii 3 G Ex Na Iic T4 Gc
Baseefa13atex0080
Pf13cert2760x
Maximum Values:
Uo= 10,5v
Io= 17,1ma
Po= 45mw
Output:
20…28 V Dc
With Ext. Resistance Greater Than 2kΩ
Dc 30v
10ma
Supply: Dc 19-30v/18-14ma Um= 250v
Ambient Temp.: -20˚C Ta 60˚C
Cl I, Ii, Iii, Div 1, Gp A-G;
4 000 009
2 178 346
Made In Singapore
Weight : 110 Gm
Ref No : 166642
