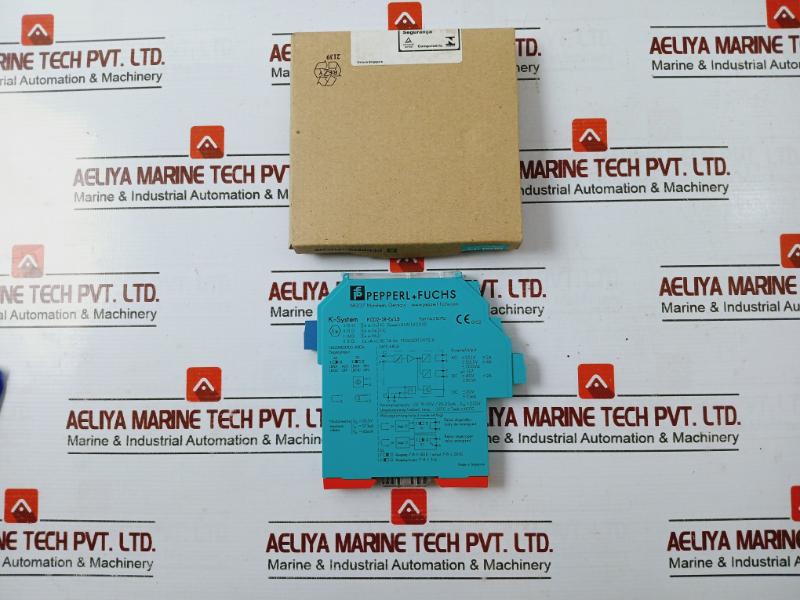

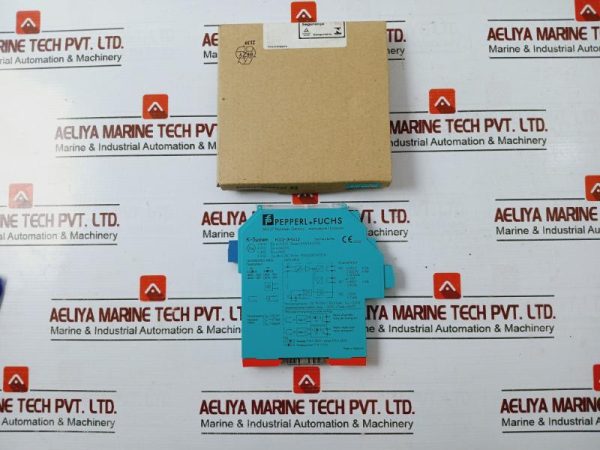

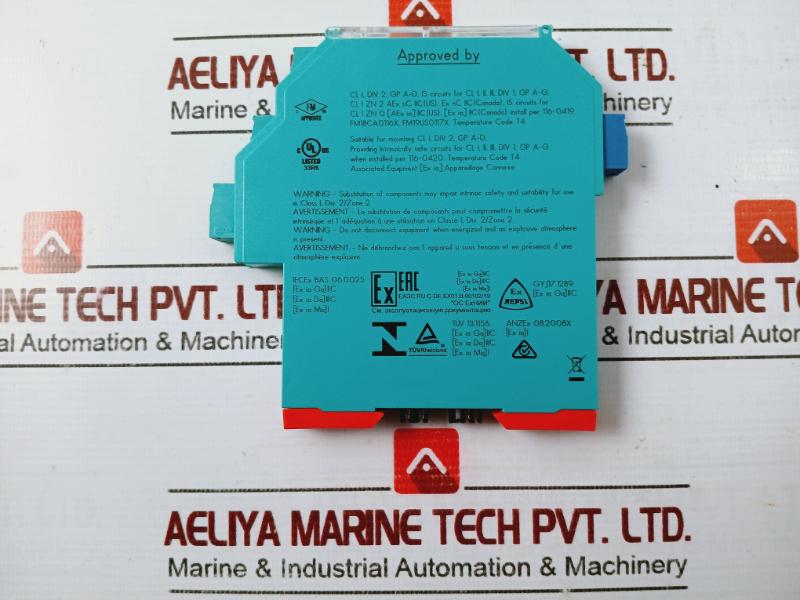

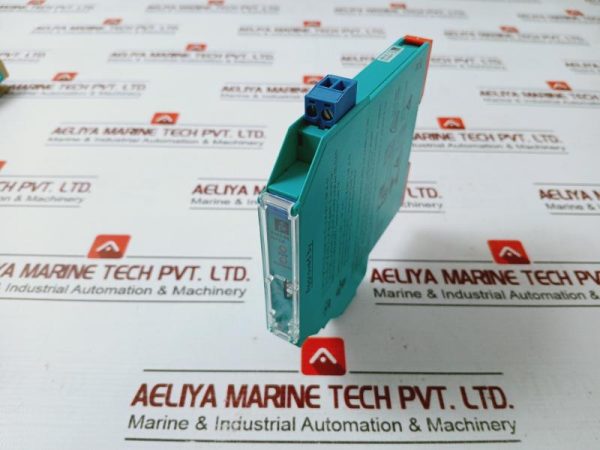

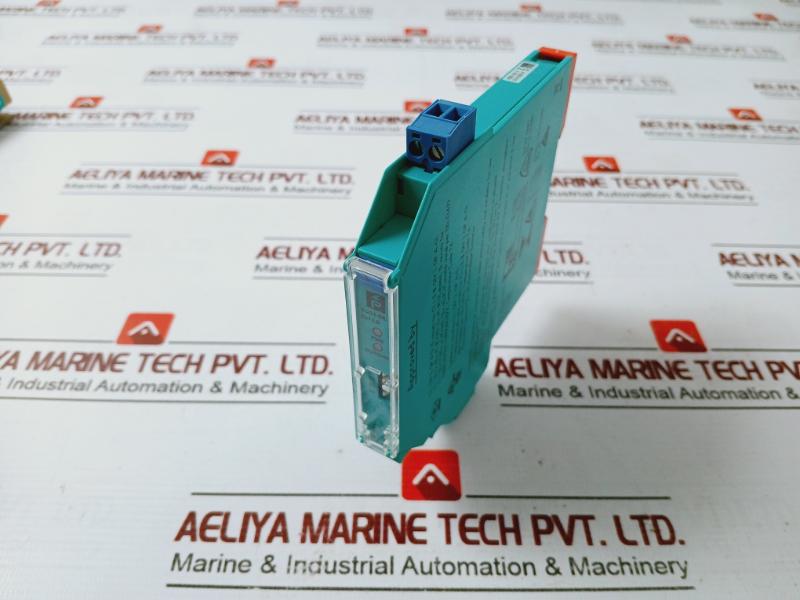

Pepperl+Fuchs K-System Kcd2-Sr-Ex1.Lb Switch Amplifier 500v

Pepperl+Fuchs K-System Kcd2-Sr-Ex1.Lb Switch Amplifier 500v
Pepperl+Fuchs
K-System
Type: Kcd2-Sr-Ex1.Lb
Part No: 216712
Ii (1) G [Ex Ia Ga] Iic Baseefa06atex0092
Ii (1) D [Ex Ia Da] Iiic
I (M1) [Ex Ia Ma] I
Ii 3 G Ex Na Nc Iic T4 Gc Pf06cert0972 X
Output:
Ac 253v 2a
126.5v 4a
500va
P.F.: 07
Dc 40v 2a 80w
Dc 30v 10ma
Supply: Dc 19-30v/ 25-20ma Um= 250v
Ambient Temp.: -20°C Tamb 60°C
Maximum Values:
Uo= 10.5v
Io= 17.1ma
Po= 45mw
Cl I, Div 2, Gp A-D
Cl I, Ii, Iii, Div 1, Gp A-G
Cl I, Zn 2 Aex Nc Iic, Ex Nc Iic
Temperature Code T4
Made In Singapore
Weight : 130 Gm
Ref No : 160072
