Panasonic Sf4b-H28c Safety Light Curtain Emitter 24v

Panasonic Sf4b-H28c Safety Light Curtain Emitter 24v
Panasonic Industrial Devices Sunx Co.,Ltd.
Newtex
Emitter
Sf4b- C Series
Sf4b-H28c
Type 4
Ver.1.0

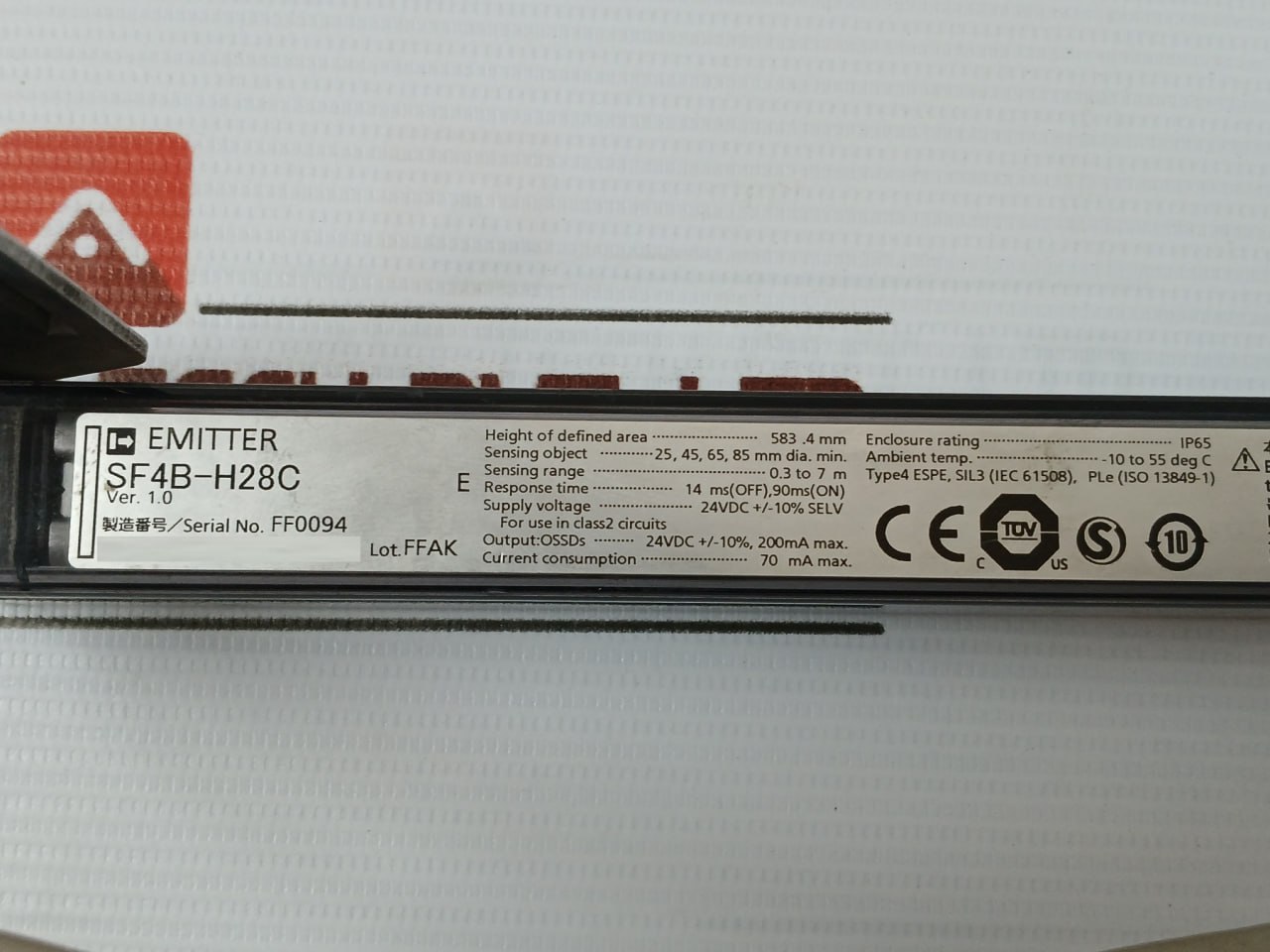

Height Of Defined Area: 583.4 Mm
Sensing Object: 25, 45, 65, 85 Mm Dia.Min.
Sensing Range: 0.3 To 7 M
Response Time: 14 Ms(Off),90ms(On)
Supply Voltage: 24vdc+/-10% Selv
Class 2 Circuits
Output: Ossds—24vdc +/-10%, 200ma Max.
Current Consumption: 70 Ma Max.
Enclosure Rating: Ip65
Ambient Temp: -10 To 55 Deg C
Type4 Espe, Sil3 (Iec 61508), Ple (Iso 13849-1)
Cc0000021
3w9
E120411-I
Awm Vw-1 Style 20276
Made In Japan
Weight : 380 Gm
Ref No : 165132
