| Attribute | Value |
|---|---|
| Product Name | Omron SDV-FH6 Voltage Sensor |
| Manufacturer | Omron Corporation |
| Model | SDV-FH6 |
| Type | Voltage Sensor |
| Pick-up Range | 1.0 – 3.0% |
| Hold Range | 5 – 30% |
| Series | SDV-FH |

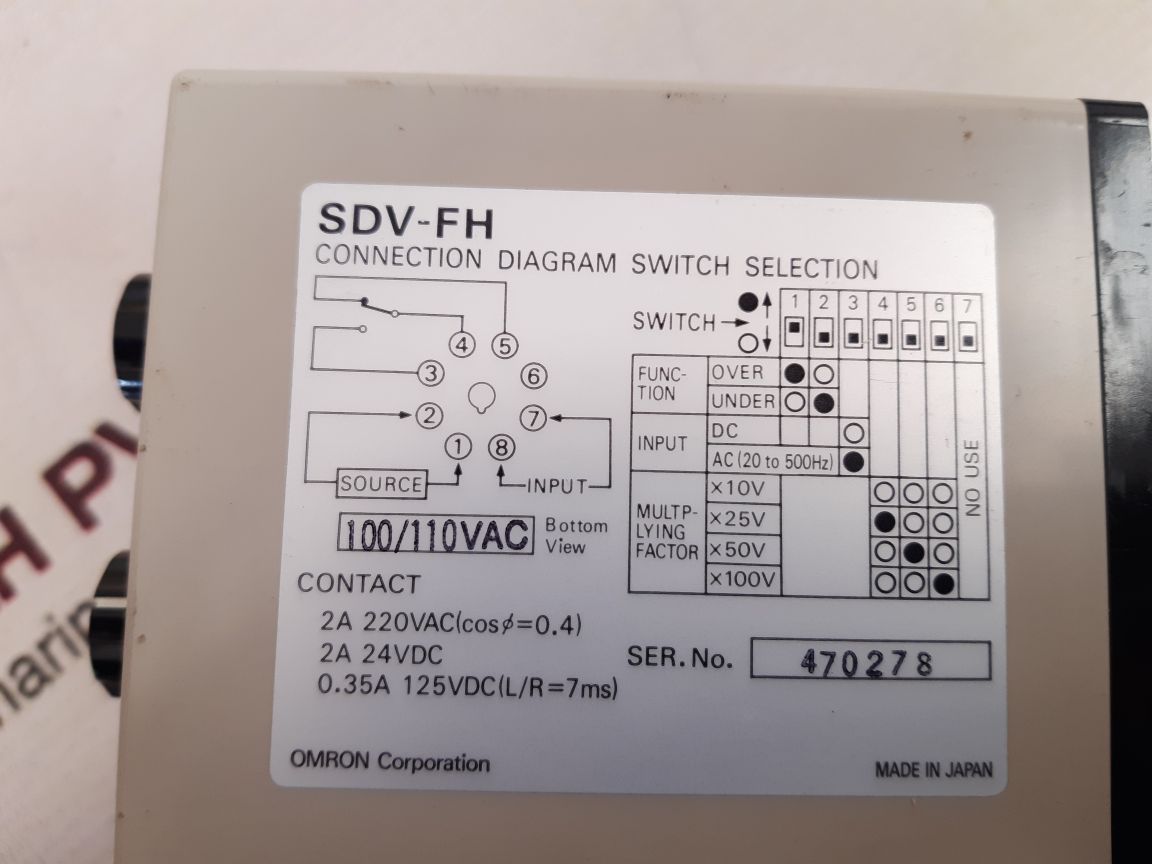

| Switch Selection | Connection Diagram Switch Selection |
| Rated Voltage | 100/110 VAC |
| Contact Rating | 2A 220 VAC (cosø = 0.4) 2A 24 VDC 0.35A 125 VDC (L/R = 7 ms) |
| Input Frequency | AC (20 to 500 Hz) |
| Country of Origin | Made in Japan |
| Weight | 340 gm |
What is the Omron SDV-FH6 Voltage Sensor?
The Omron SDV-FH6 is a sophisticated voltage sensing sensor that can detect AC voltage with extraordinary accuracy. It’s one of Omron’s esteemed series of monitoring products and is designed for dependability, simplicity of integration, and lasting sturdiness.
This voltage sensor will sense the existence or nonexistence of voltage within a circuit for real-time monitoring and control within systems where safety and performance are most critical.
Key Features
Let’s separate what makes SDV-FH6 unique:
1. Large Voltage Detection Range
The SDV-FH6 is able to monitor various voltages and is versatile enough to be compatible with various power systems and settings.
2. Accurate Monitoring
With high-performance circuitry and a responsive design, the sensor accurately measures voltage changes—essential for applications that rely on real-time feedback.
3. LED Indicators for Visual Status
It includes LED indicators that immediately indicate the voltage status, allowing technicians to quickly identify a problem or confirm normal operation.
4. Compact and Easy to Install
Its compact body is designed to fit into tight control panels, and the wiring is straightforward—minimizing setup time and maximizing convenience.
5. Durable and Long-Lasting
Built to withstand harsh industrial environments, the SDV-FH6 maintains performance over long periods, reducing maintenance needs and downtime.
Applications of the Omron SDV-FH6
The SDV-FH6 isn’t just a component—it’s a critical piece of your monitoring ecosystem. Here’s where you’re likely to see it in action:
Industrial Automation Systems
Ensures equipment functions within safe voltage ranges to prevent damage or malfunction.
Power Distribution Panels
Alerts to unusual voltage levels in advance, preventing overloads or power outages.
Elevator Control Systems
Tracks voltage input to motors and control units for uninterrupted operation.
HVAC and Building Systems
Applied in monitoring circuits to increase safety and performance in commercial structures.
Renewable Energy Installations
Prevents solar and wind systems from malfunctioning by continuously monitoring voltage levels.
Benefits of Using the Omron SDV-FH6
Still having doubts about this sensor being a good fit for your installation? Here’s how it contributes:
More Operational Safety
Immediately alerts you to danger of unsafe voltage levels, stopping electrical danger.
Less Downtime
Identification of voltage abnormalities early on will enable you to correct problems before they become too serious.
More System Efficiency
Monitoring in real time means that systems are kept within optimal limits at all times.
Maintenance Cost Savings
Tough construction and stable performance equal less replacement and service calls.
Scalability and Flexibility
Ideal for many different uses, integration is possible across systems.
Why Omron?
Omron has a worldwide reputation for creating top-quality automation components and sensors that can stand up to the rigorous demands of today’s industries. With the SDV-FH6, they’ve again provided a product with innovation, reliability, and performance.
Whether you’re replacing an existing system or starting from scratch, adding the Omron SDV-FH6 voltage sensor is a wise step toward improved power management and system protection.
