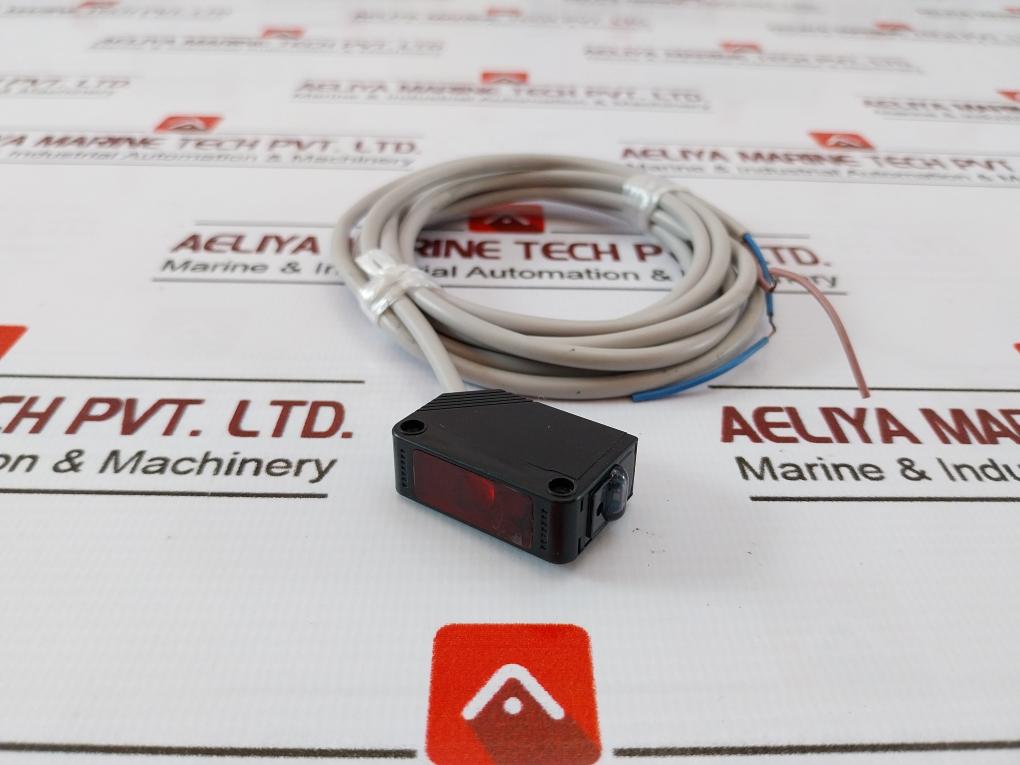

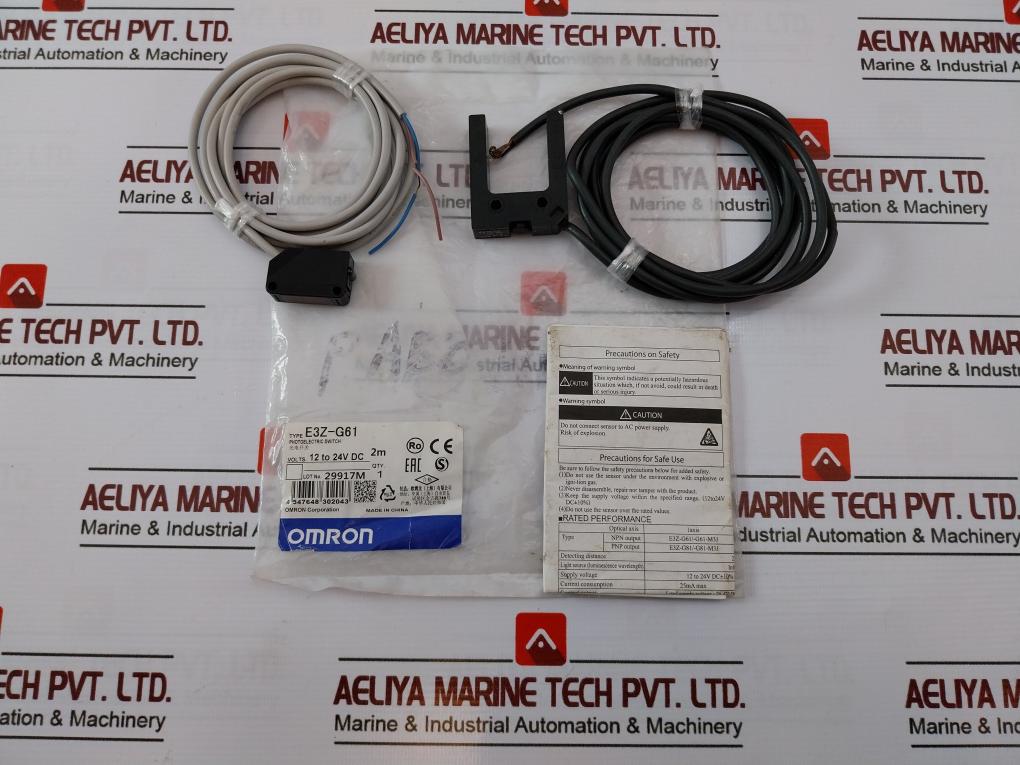

Omron E3z-G61 Photoelectric Sensor 24v

Omron E3z-G61 Photoelectric Sensor 24v
Omron Corporation
Manufacturing; Omron (Shanghai) Co., Ltd.
Azbil Corporation
Photoelectric Switch
Photoelectric Sensor
Type: E3z-G61
06×08
Model: E3z-G
2m
4 547648 302043
Detecting Distance: 25mm
Light Source (Luminescence Wavelength): Infrared Led (940 Nm)
Supply Voltage/ Volts: 12 To 24v Dc ±10% (Ripple (P-P) 10% Max.)
Current Consumption: 25/40ma Max.
Control Output:
Load Supply Voltage: 26.4v Dc Max. Load Current: 100ma Max.
(Residual Voltage: 1v Max.)
Response Time: 1ms Max.
Ambient Temperature: Operating: -25 To +55°C, Storage: -40 To +70°C (No Freezing And Condensation)
Ambient Humidity: Operating: 35 To 85%Rh, Storage: 35 To 95% Rh (No Freezing And Condensation)
Protection Structure: Iec60529: Ip64
Materials: Case: Abs, Cap: Nbr
Hp7-E11
Class 2
01
Made In China
Origin: China
Weight: 120 Gm
Ref No: 158031
