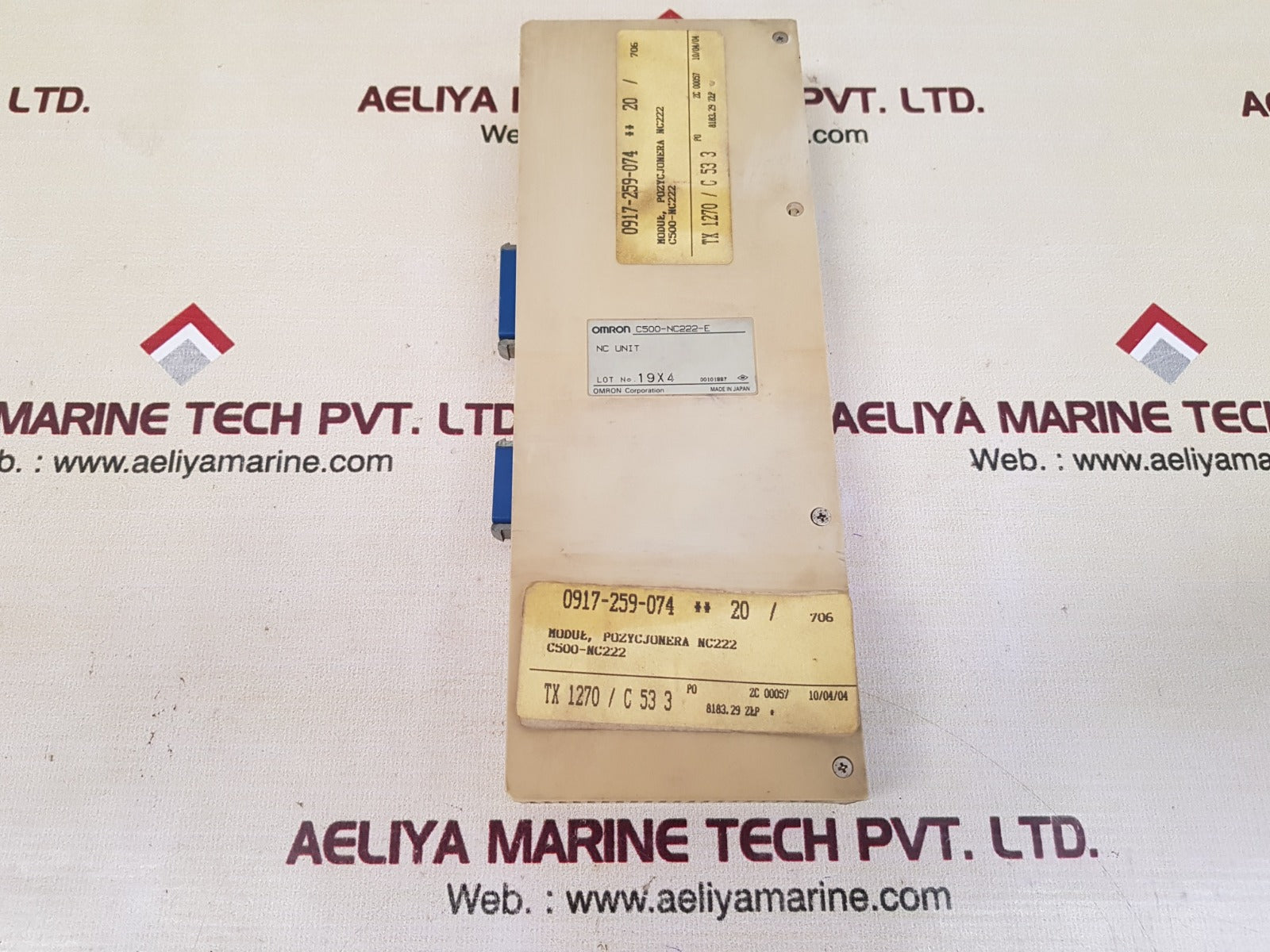

| Attribute | Value |
|---|---|

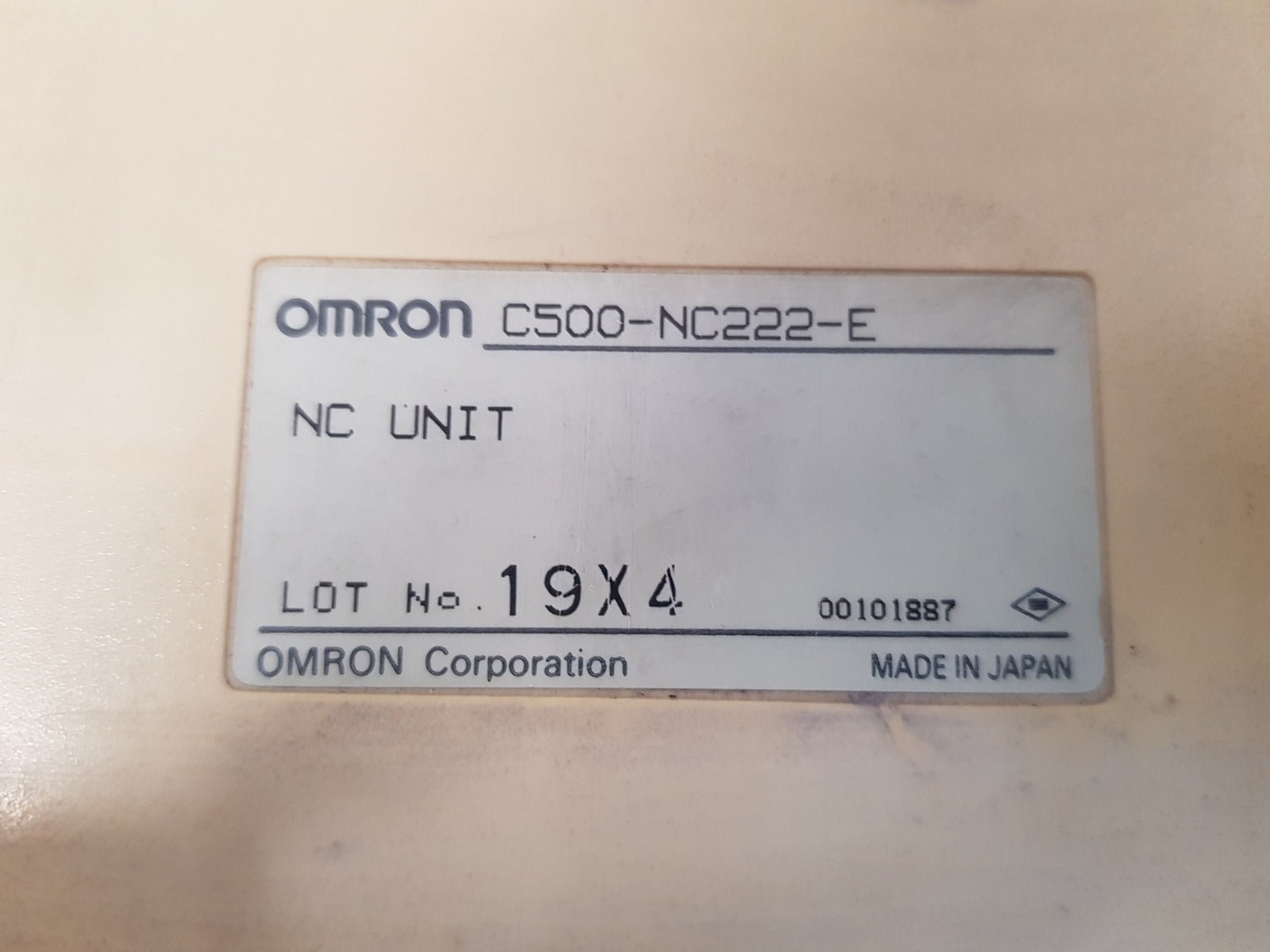

| Product Name | Omron C500-NC222-E NC Unit |
| Brand | Omron Corporation |
| Model | C500-NC222-E |
| Module | NC Unit |
| Part Number | 00101887 |

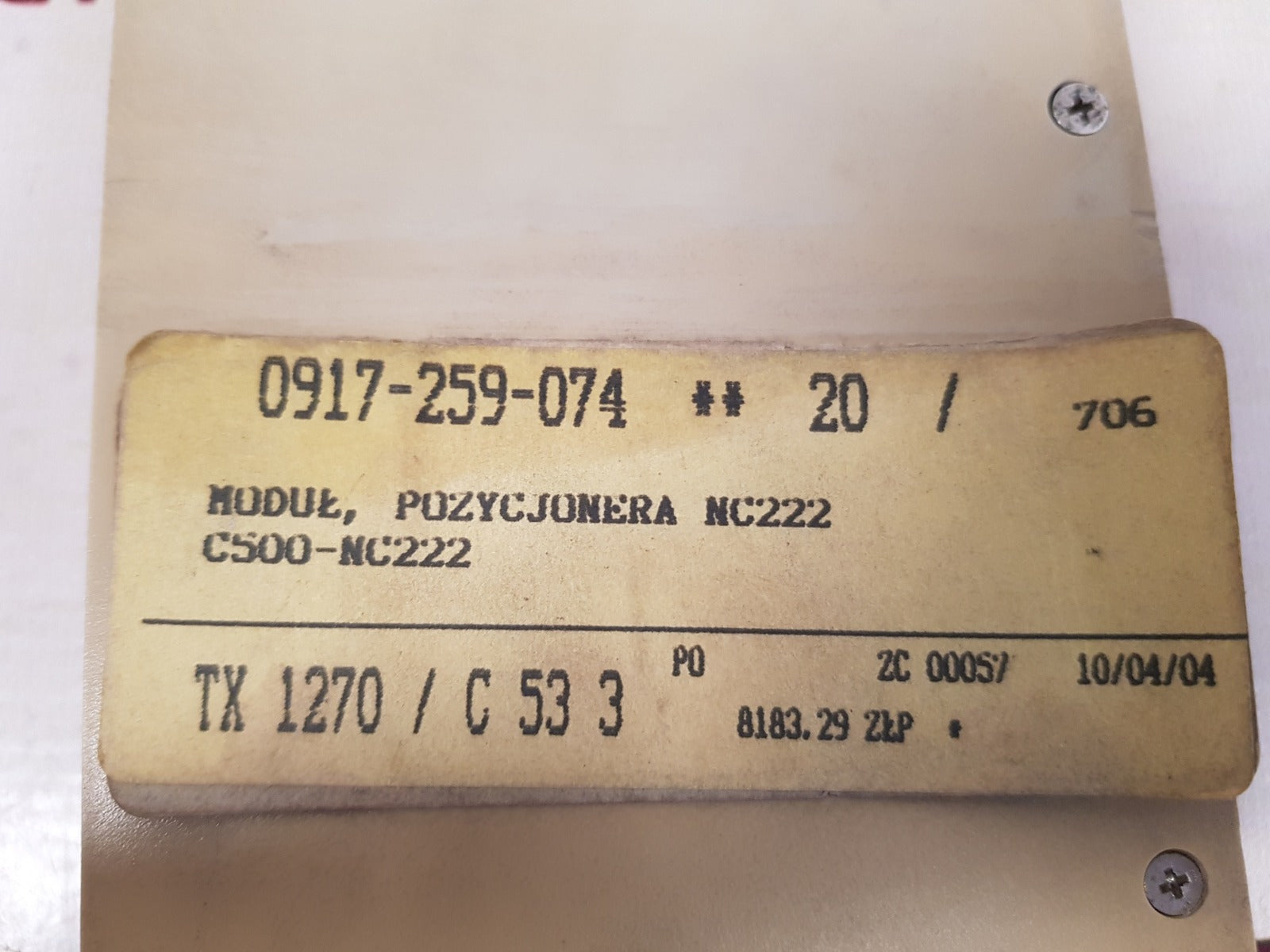

| Serial Number | 0917-259-074 ** 20/ 706 |
| Module Type | Pozycjonera NC222 |
| Model Number | C500-NC222 |
| TX Number | TX 1270/C 53 3 |
| PO Number | P0 2C 00057 |
| Price | 8183.29 ZEP |
| Made In | Japan |
| Weight | 606 GM |
What is the Omron C500-NC222-E NC Unit?
The Omron C500-NC222-E is a 2-axis Position Control Unit (NC Unit) that can be used in conjunction with the Omron C500 PLC Series. A sophisticated motion control module, it offers unparalleled positioning precision, rapid processing, and effortless communication with stepper motors and servo drives. Developed for industrial automation, it is an integral part of machinery that needs accurate, programmable linear and rotational movement—such as CNC machines, robotics, and automated assembly lines.
Designed with Omron’s renowned quality and compatibility, this NC Unit enables users to perform intricate control sequences with its capability for high-speed counters and pulse train output directly from the PLC rack.
Key Features
The following are the best features that make the C500-NC222-E a worthwhile addition to your automation system:
2-Axis Control: Enables simultaneous and independent control of two motion axes.
Fast Pulse Output: Provides quick and precise pulse trains to drive stepper or servo motors.
Programmable Parameters: Positioning information and settings can be programmed conveniently using Omron’s ladder logic.
Direct Mount Capability: Supports Omron C500 racks for easy integration.
Encoder Feedback Capability: Facilitates real-time synchronization and position correction.
Positioning Precision: Suitable for high-accuracy industrial uses such as pick-and-place and CNC machining.
Error Detection: With in-built self-diagnostics and error flags to reduce downtime.
Applications
This NC Unit has applications across a wide industry spectrum because of its versatility and control features:
Industrial Automation
Utilized in automated production lines where coordinated motion needs to be achieved between components—like in packaging, material handling, and assembly.
CNC and Machining
Ideal for operating X-Y or X-Z axes in CNC lathes, mills, and engraving machines with high repeatability and accuracy.
Robotics
Best suited for driving robotic arm joints in synchronization with PLC-based logic.
Laboratory Automation
Employed in analytical instruments or sampling systems needing high-precision stage movement.
Why Select the Omron C500-NC222-E?
Here’s why engineers, system integrators, and factory managers keep relying on this motion control unit
Smooth Omron PLC Compatibility: Simple installation with C500 series PLCs and common programming platform.
Scalable and Modular: Grow your automation system without the need to redesign your architecture.
Strong and Solid: Built for tough industrial conditions with long life cycle.
Short Processing Time: Supports faster cycle times for manufacturing processes.
Economical Solution: Provides robust performance without the high-end price of independent motion controllers.
