| Specification | Details |
|---|---|
| Product Name | Omron C200H-IA222, C200H-OC225, PA204 I/O Power Supply Unit With Base 200-240V |
| Manufacturer | Omron Corporation |
| Input Unit | C200H-IA222 |
| Input Unit Details | 200-240 VAC, 10 mA |
| Output Unit | C200H-OC225 |
| Output Unit Details | 250V AC / 24V DC, 2A/p, 8A/u |
| 250V (240V Haz. Loc.) AC, General Purpose, 2A/p, 8A/u | |
| 30V DC, Res., 2A/p, 8A/u | |
| 250V (240V Haz. Loc.) AC, Pilot Duty, 220VA/p, 1440VA/u | |
| 120V AC, Tungsten, 2A/p, 8A/u | |
| Classification | CL. I, Div. 2, GP A, B, C, D |
| CL. I, Zn. 2, GP IIC | |
| Base Unit | C200HW-BI031 |
| Base Unit Part Number | 02901080 |

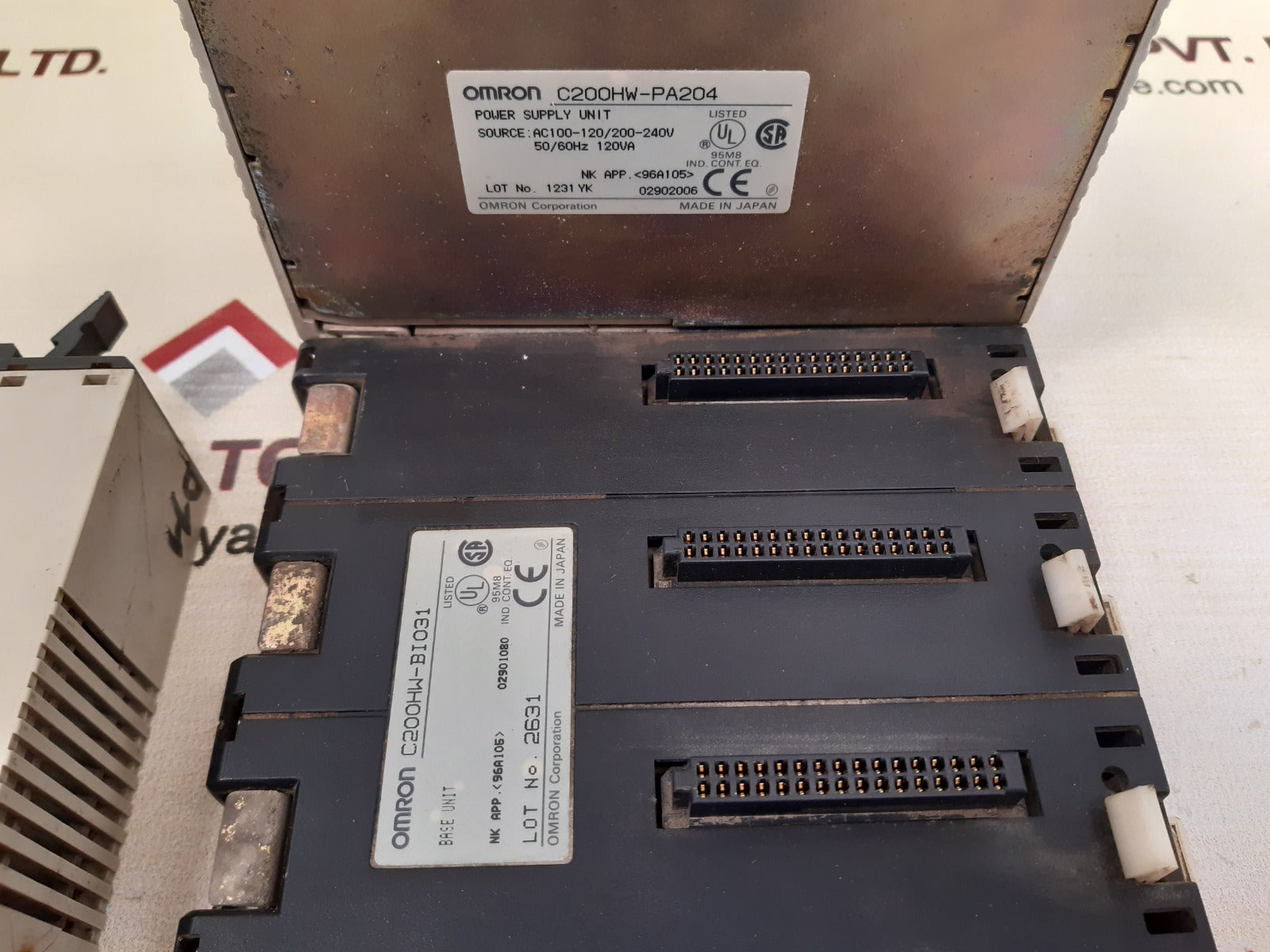

| Power Supply Unit | C200HW-PA204 |
| Power Supply Unit Details | Source/Input: AC 100-120/200-240V, 50/60Hz, 120VA |
| 100-120V Close, 200-240V Open | |
| Made In | Japan |
| Weight | 1.570 kg |

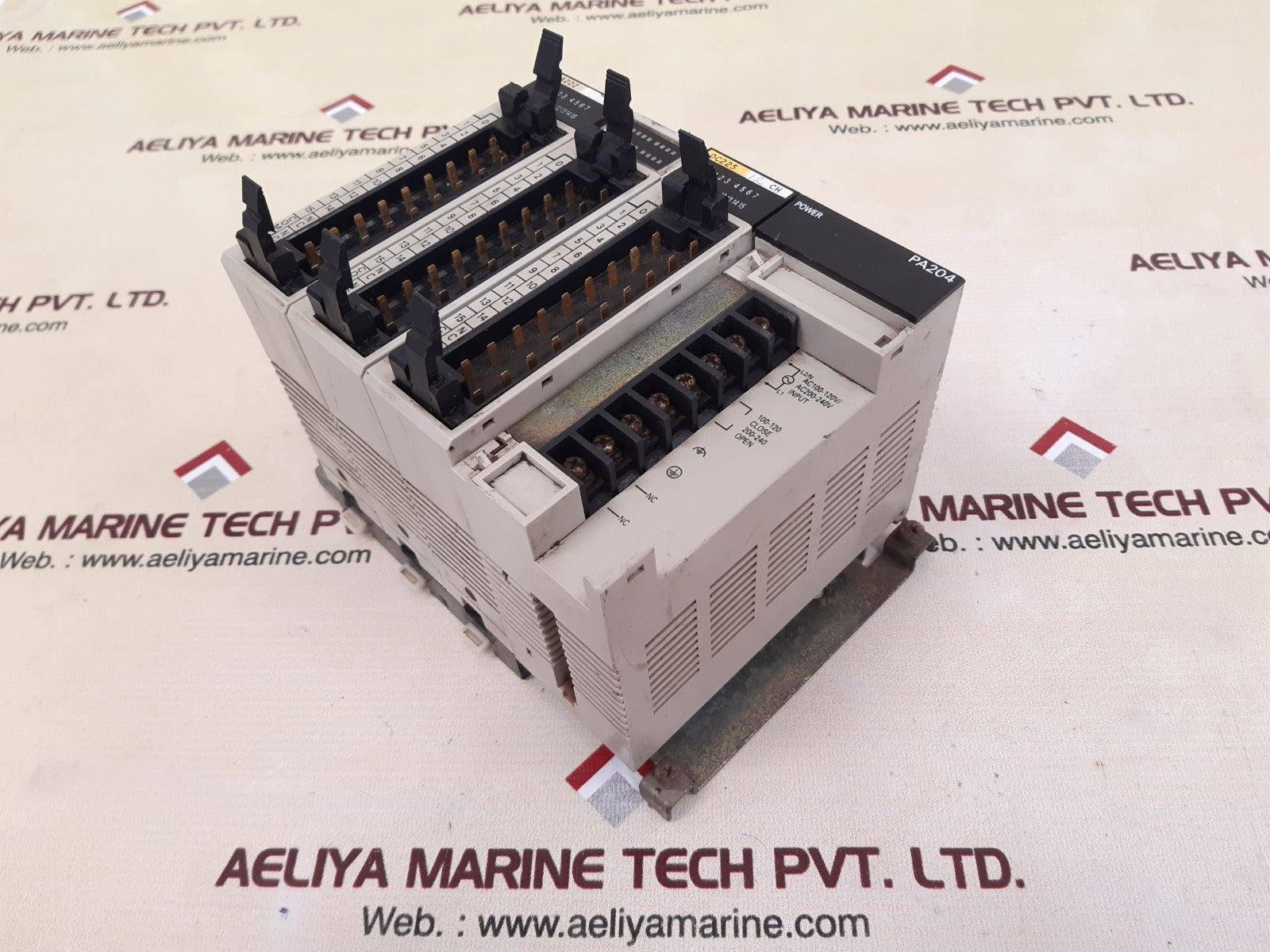

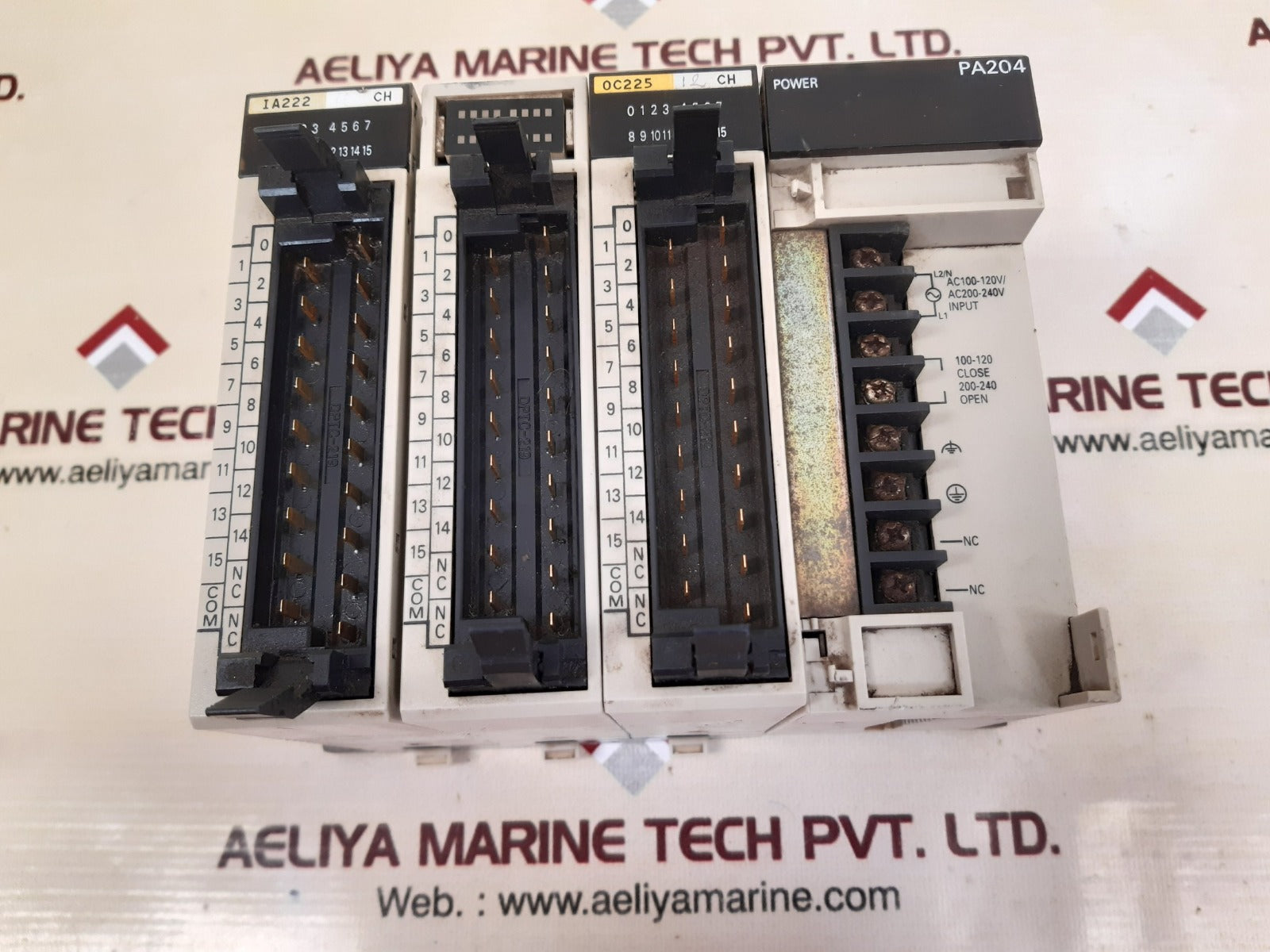

C200H-IA222/OC225 I/O Power Supply Unit
The Omron C200H-IA222, C200H-OC225, and PA204 I/O Power Supply Unit are a highly reliable solution designed for industrial automation applications. This unit features the C200H-IA222 input module, which supports input voltages ranging from 200-240V AC with a current rating of 10mA. The C200H-OC225 output module offers versatile output options, including 250V AC and 24V DC, with a current rating of 2A per point and 8A per unit, making it suitable for a range of general-purpose and pilot duty applications. It also handles resistive loads up to 30V DC with similar current ratings. For hazardous locations, it can manage 250V AC with a 2A per point and 8A per unit rating. The system is designed to comply with Class I, Division 2, Groups A, B, C, D, and Class I, Zone 2, Group IIC standards, ensuring safe operation in various conditions.
The PA204 power supply unit is an integral component, providing reliable power with input options of AC 100-120V or 200-240V at 50/60Hz with a power rating of 120VA. This unit features a switchable voltage setting, allowing for easy adaptation to different power sources. The base unit, C200H-W-BI031, is essential for housing and connecting the modules, ensuring a secure and organized setup. Manufactured in Japan, this power supply unit is built with high-quality standards and robust construction, weighing 1.570 kg. With its versatile and reliable performance, the Omron C200H series provides a dependable solution for managing inputs and outputs in complex automation systems, enhancing operational efficiency and safety.
