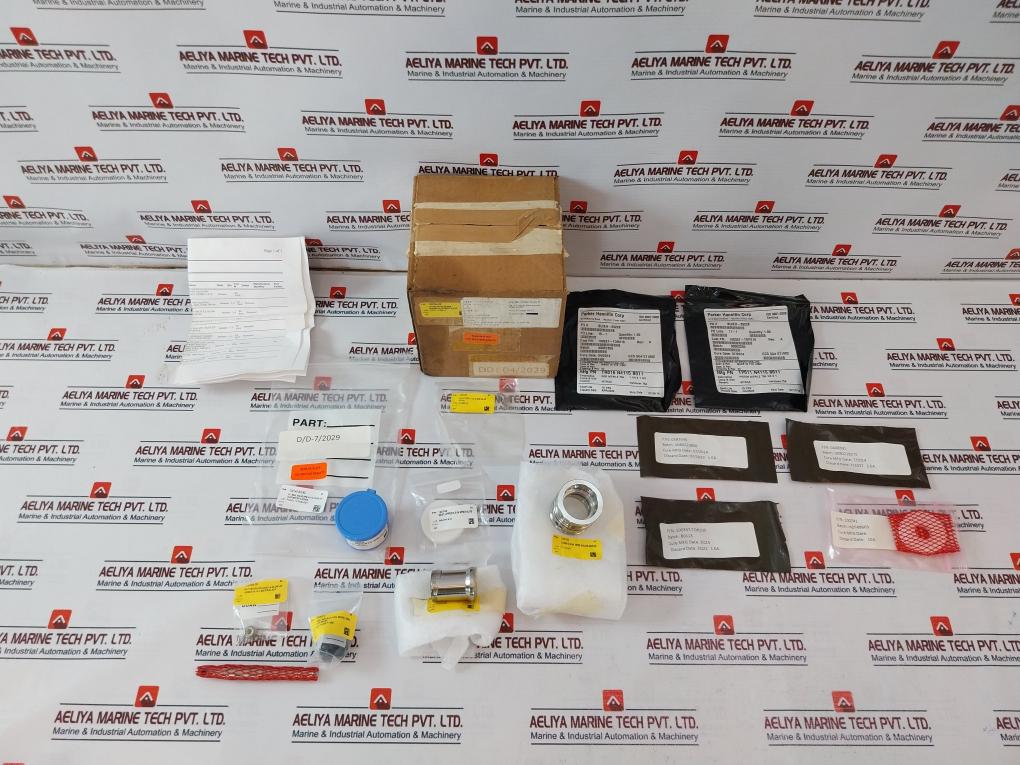

Oceaneering Parker Hannifin Corp 100755-rk Valve Repair Kit

Oceaneering Parker Hannifin Corp 100755-rk Valve Repair Kit
Manf: Oceaneering International Inc.
Parker Hannifin Corp
P#: 100755-rk Rev: Ad
Desc: Kit, Repair, Vlv, Spm, Nc, 0.5in 3k
Mat#: 449942
Xref: X200284303
Cust Pn: 100337-t0r216 Rev: A
Mfg Pn: Tr016 N4115 B011
Comp & Size: 1 1/8 X 1 3/8
Generic: Nitrile
Hardness: 75 A
Description: Rod Nitrile 75a. T-seal Rod 1.13 Id Nitrile W/pfte Back-up Rings.
Cust Pn: 100337-t0p210 Rev: A
Mfg Pn: Tp011 N4115 B011
Comp & Size: 3/4 X 1
Description: Piston Nitrile 75a. T-seal Piston 1 Od Nitrile W/pfte Back-up Rings.

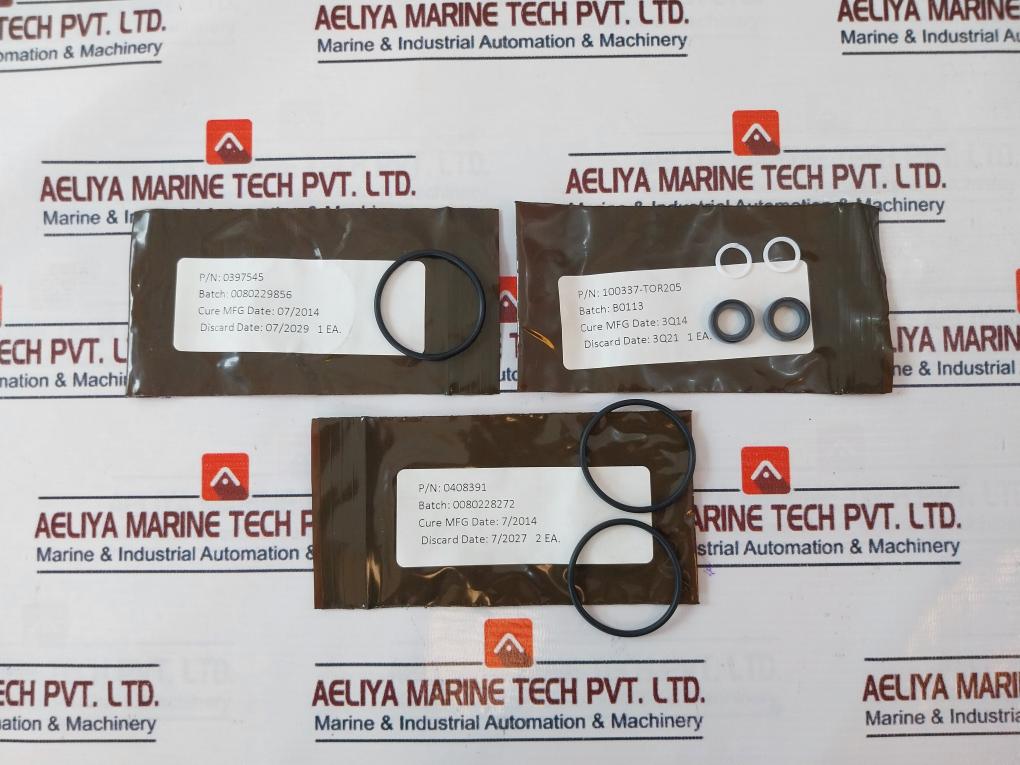

P/n: 0397545 Rev: A
Description: O-ring 2-129 Buna-n 90 Duro N0552
P/n: 100337-t0r205 Rev: A
Description: T-seal Rod 0.44 Id Nitrile W/pfte Back-up Rings
P/n: 0408391 Rev: A
Description: O-ring Buna-n 2-130-n0552-90 Duro
P/n: 100741 Rev: Ad
Description: Seat, Lower 0.5 Inch Spm Valve Detail
P#: 100743 Rev: B
Description: Seat Upper 0.5in Spm Valve
T-seal Piston 1od Nitrile W/pfte Back-up Rings.
P#: 100666-04 Rev: A
Description: Nut Hex Nylon Lock 1/4-28 Unf-2b Asme 18.16.6, Material Aus. Stainless Steel Group 2 Condition Cw1
P#: 100746 Rev: Aa
Description: Collet Split 0.5in Spm Valve Detail

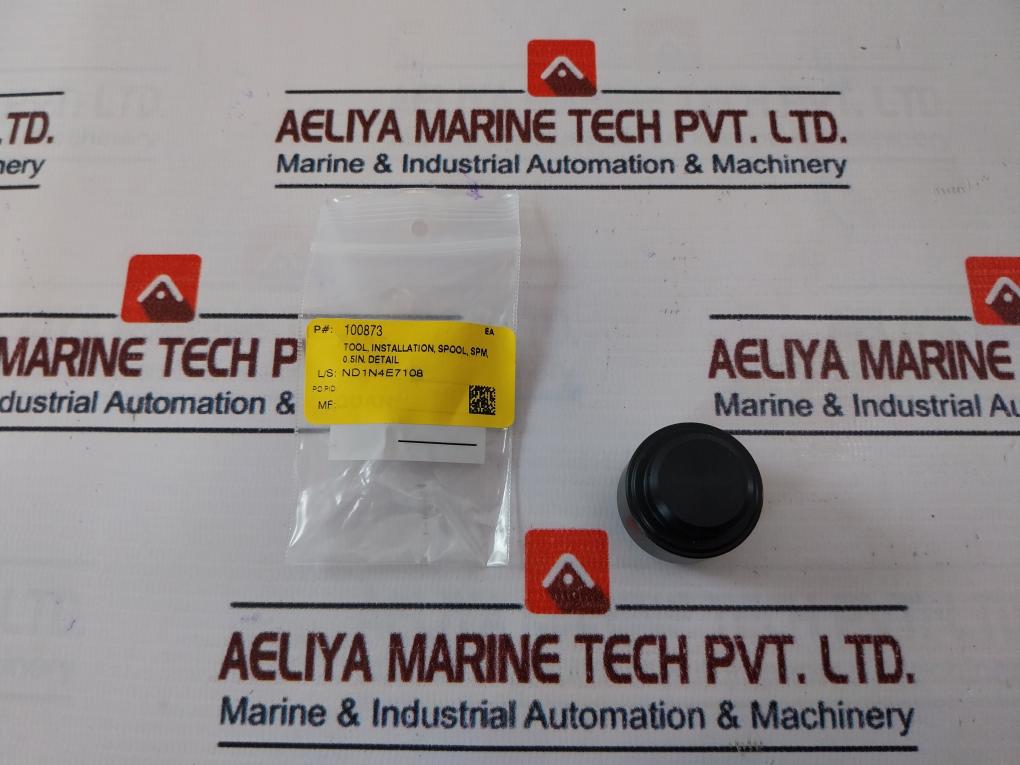

P#: 100873 Rev: B
Description: Tool, Installation, Spool, Spm, 0.5in. Detail
Name: 100747 Rev: Aa
Rev: Ab
258029
Description: Stem 0.5-in Spm Valve 3/5 Ksi Wp Detail
P#: 100748 Rev: B
Description: Spool Nc Vlv Spm 0.5” 3/5 Ksi Detail
Ht# K13483
P#: 100742 Rev: E
Description: Cage 0.5in. Spm Valve Detail
P#: 100740-sk-90 Rev: Aa
Description: Kit Seal Valve Spm 0.5in 3-5 Ksi, 90 Durometer O-rings
P#: 100749 Rev: B
W04607
Description: Piston 0.5” Spm Valve
Iso 9001
Made In The Usnc
Weight : 720 Gm
Ref No : 130266
