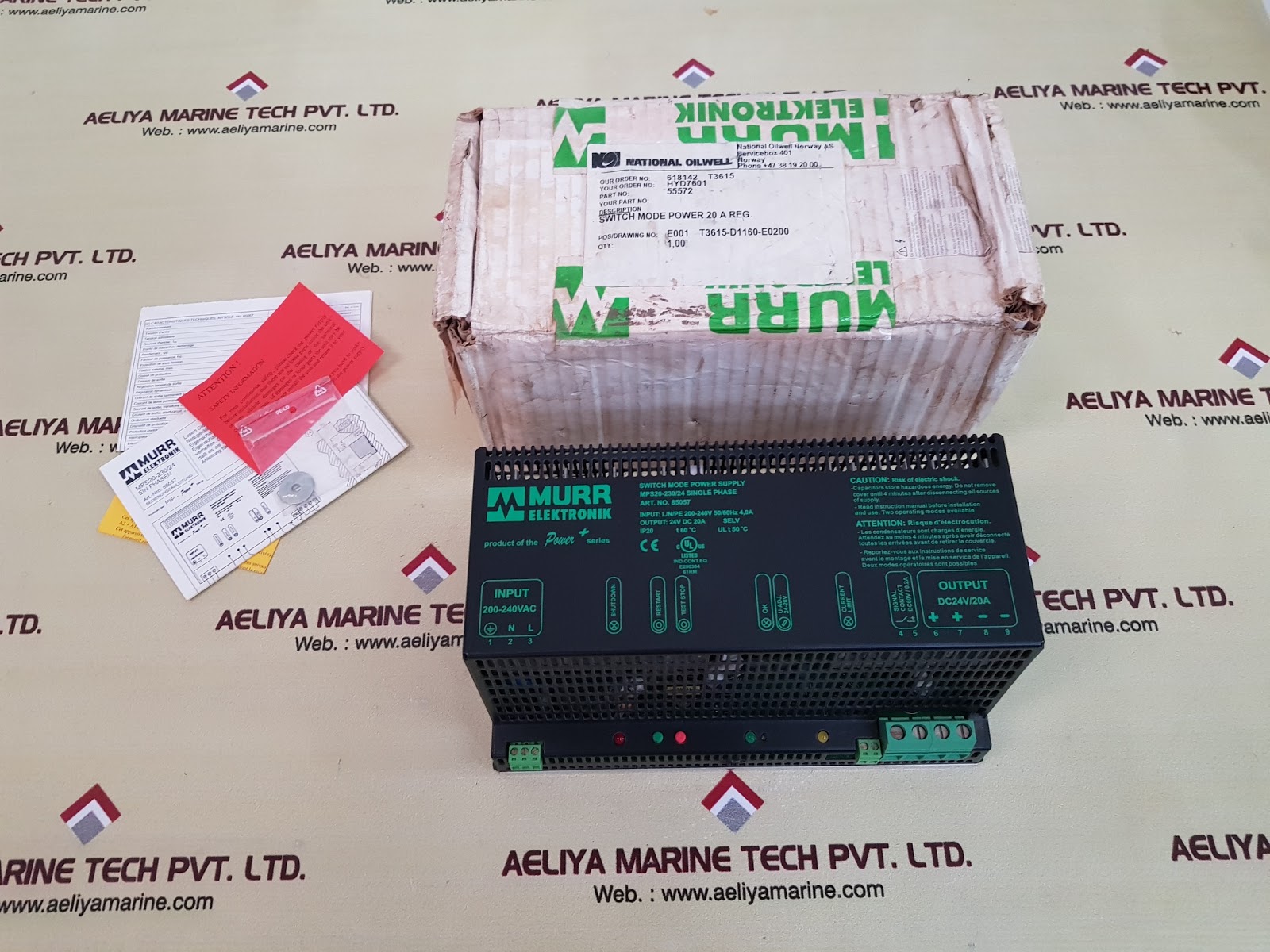

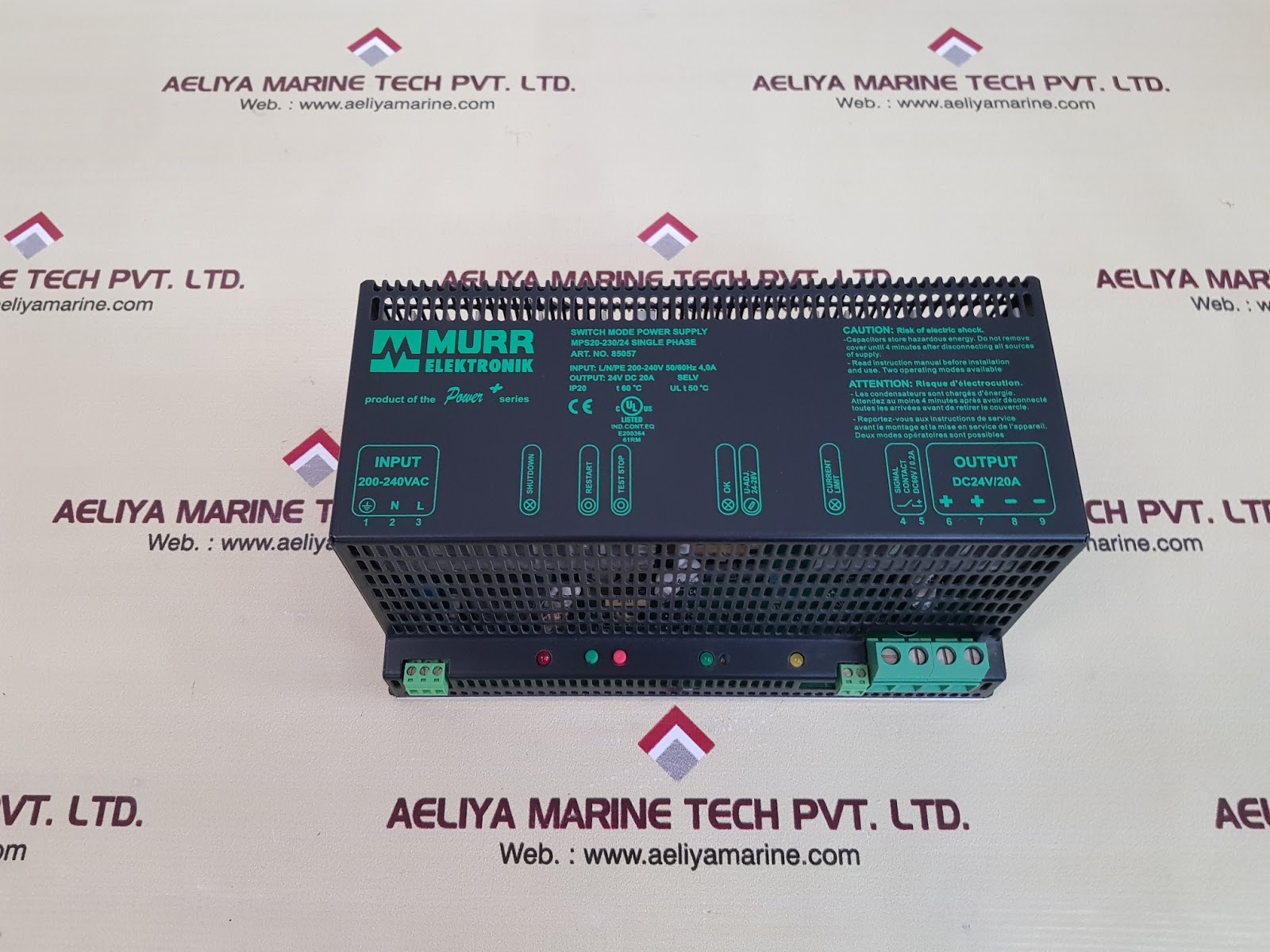

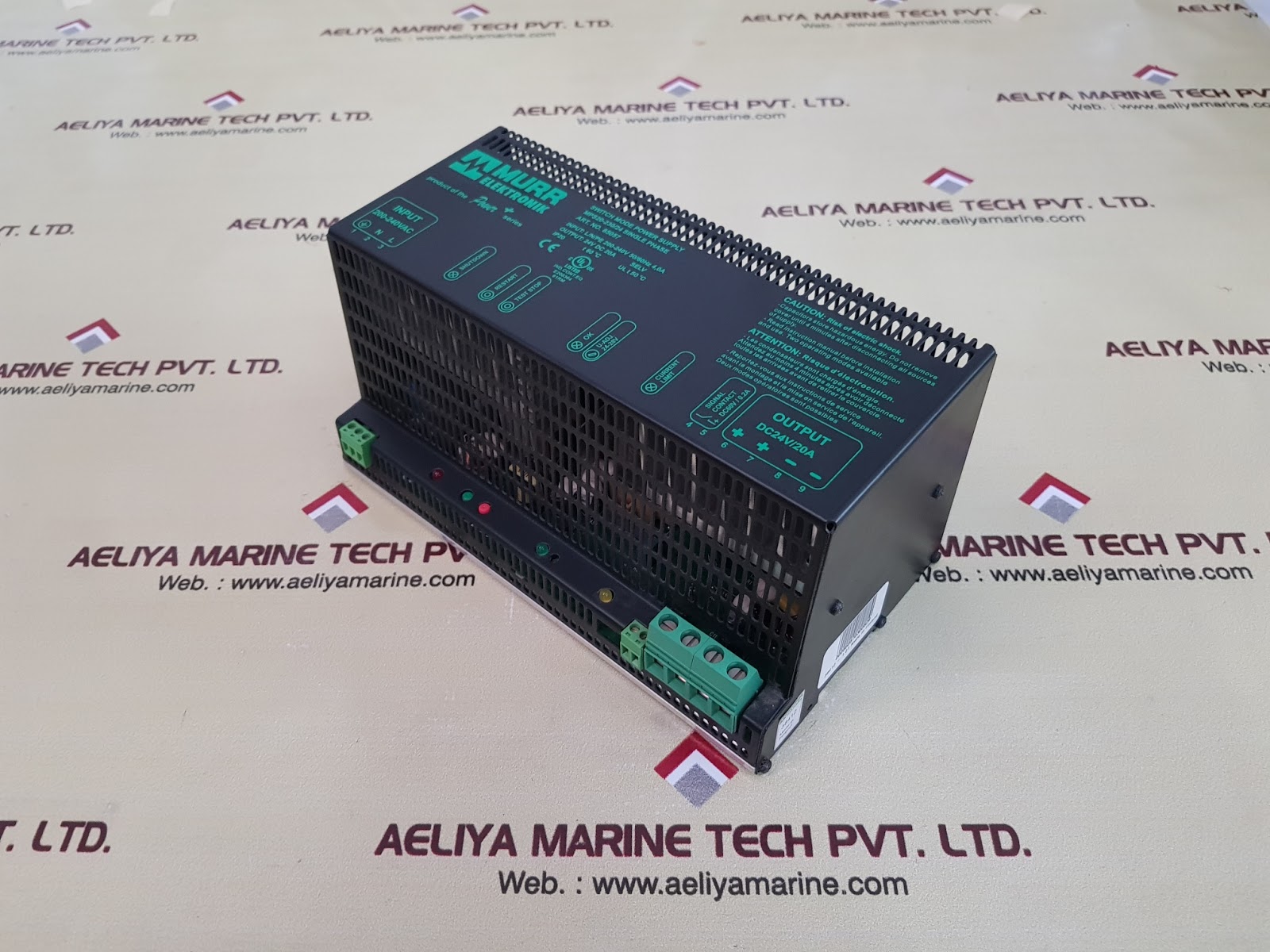

MURR ELEKTRONIK MPS20-230/24 SINGLE PHASE SWITCH MODE POWER SUPPLY

Murr elektronik mps20-230/24 switch mode power supply 85057
murr elektronik
mps20-230/24 single phase
national oilwell norway as
switch mode power 20 a reg.
part no : 55572
product of the power + series
switch mode power supply
art.no. 85057
input: l/n/pe 200-240v 50/60hz 4,0a
output: 24v dc 20a selv
ip20 t60 ˚c ul t50˚c
000850570300829
38412 -1.01
input terminal
wire size(cu) 1.5-2.5mm2/16-12 awg
tightening torque 0.5-0.6 nm
insulation temperature rating 75˚c
output terminal
wire size(cu) 4-10 mm2/ 10-8 awg
tightening torque 1.2 nm
insulation temperature rating 75˚c
made in finland
weight: 2.980 kg
