Murr 85184 maintenance-free buffer module 23-30v dc

Murr 85184 maintenance-free buffer module 23-30v dc

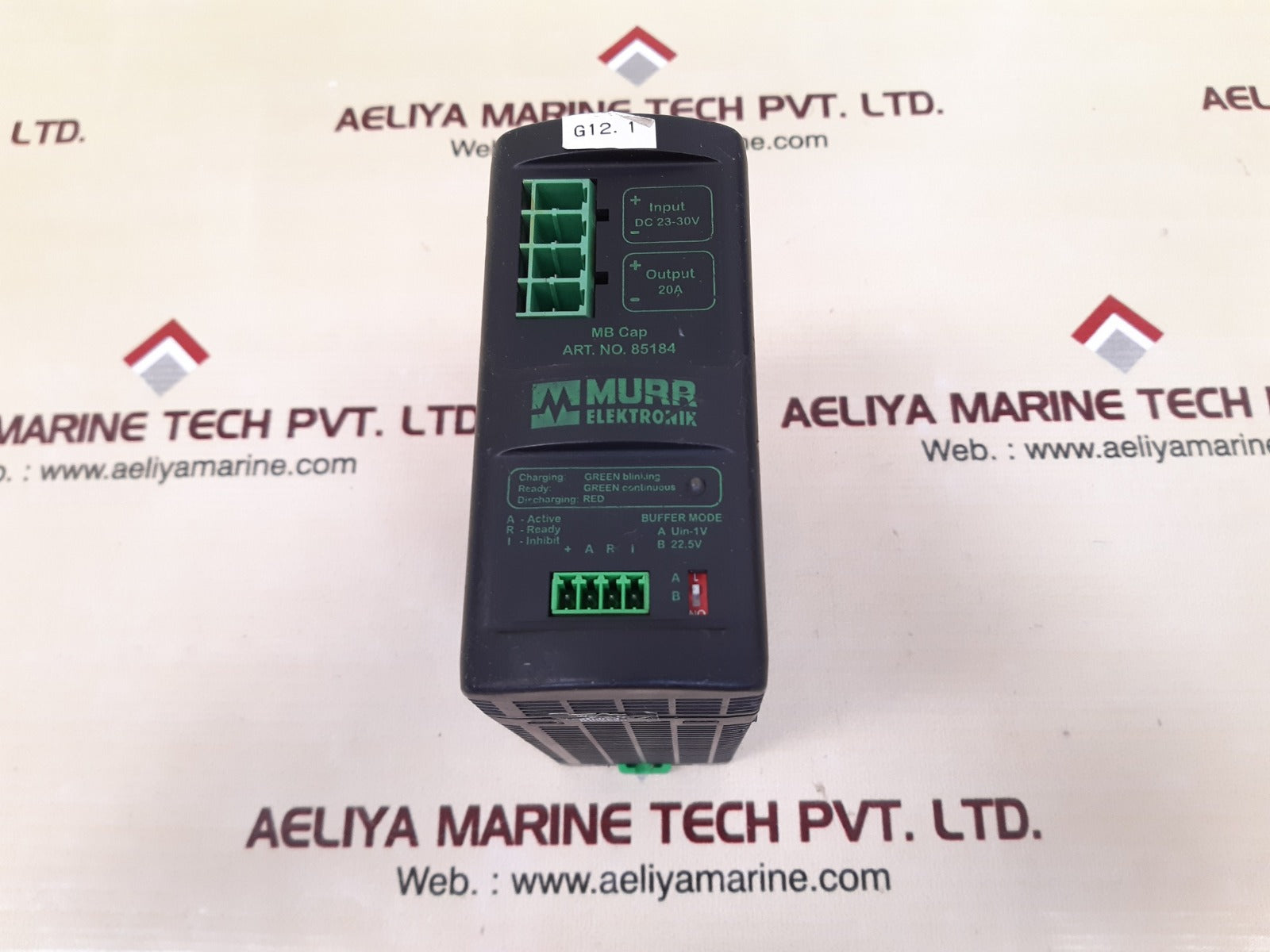

murr elektronik
mb cap 20/24
mb cap

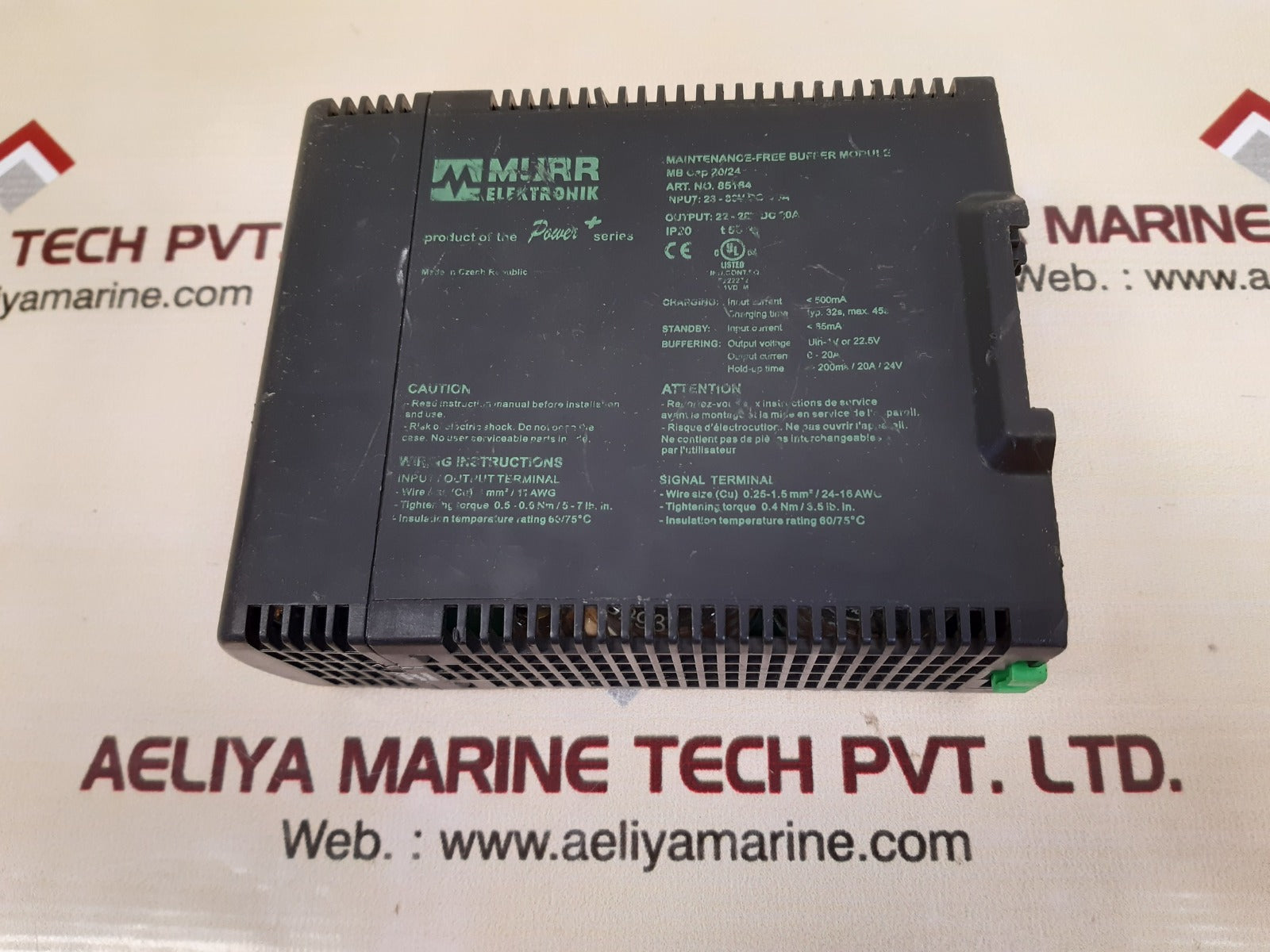

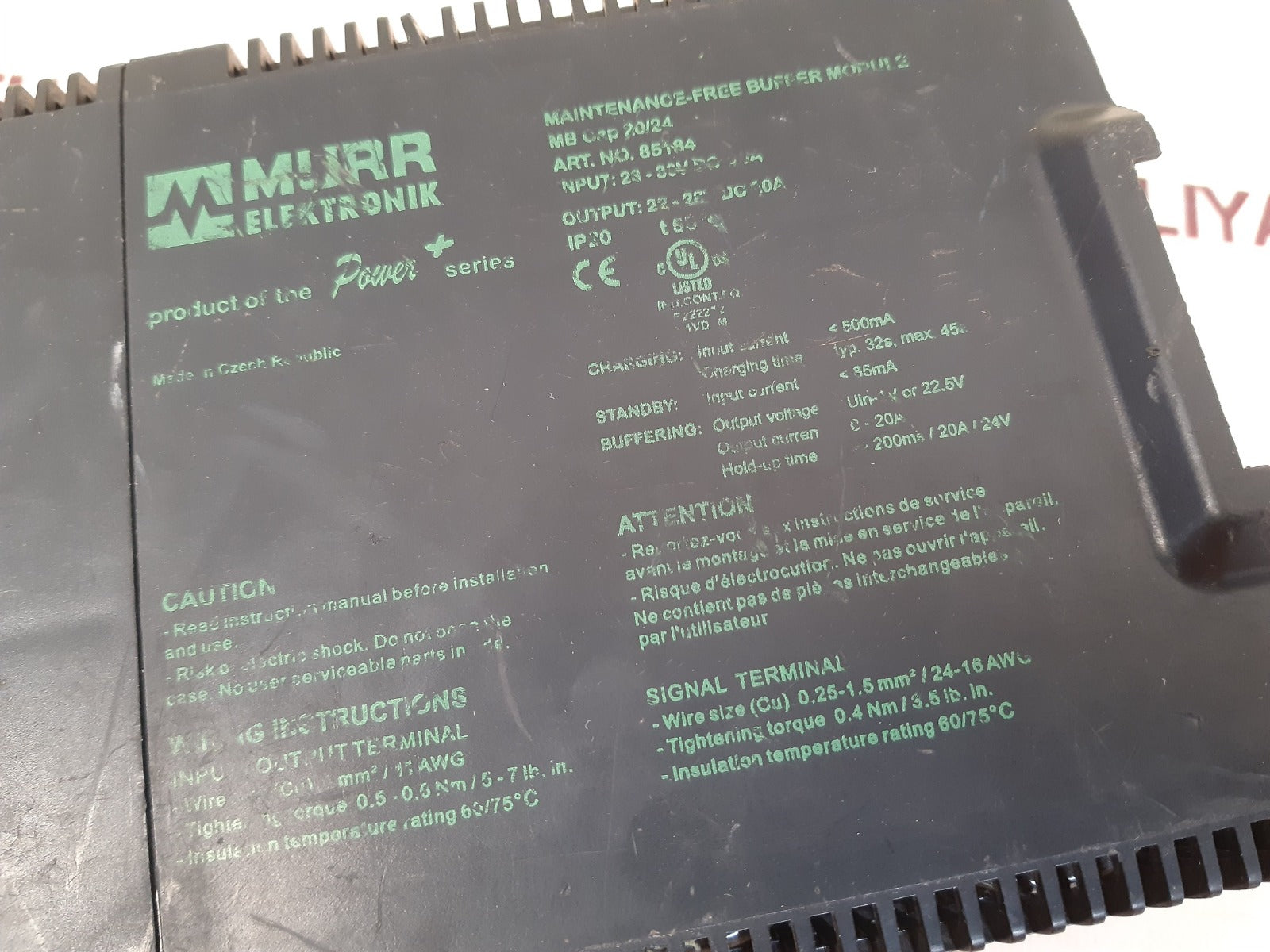

maintenance-free buffer module
art.no.85184
input: 23-30v dc
ip20 t 55’c
charging: input current 500ma
charging time typ.32s, max 45s
standby: input current 85ma
buffering: output voltage uin-1v or 22.5v
output current 0-20a
hold-up time 200ma/20a/24v
input/output terminal
-wire size(cu)4mm2/11awg
-tightening torque 0.5-0.6nm/5-7 lb.in.
-insulation temperature rating 60/75’c
signal terminal
-wire size(cu) 0.25-1.5mm2/24-16 awg
-tightening torque 0.4 nm/3.5 lb.in.
-insulation temperature rating 60/75’c

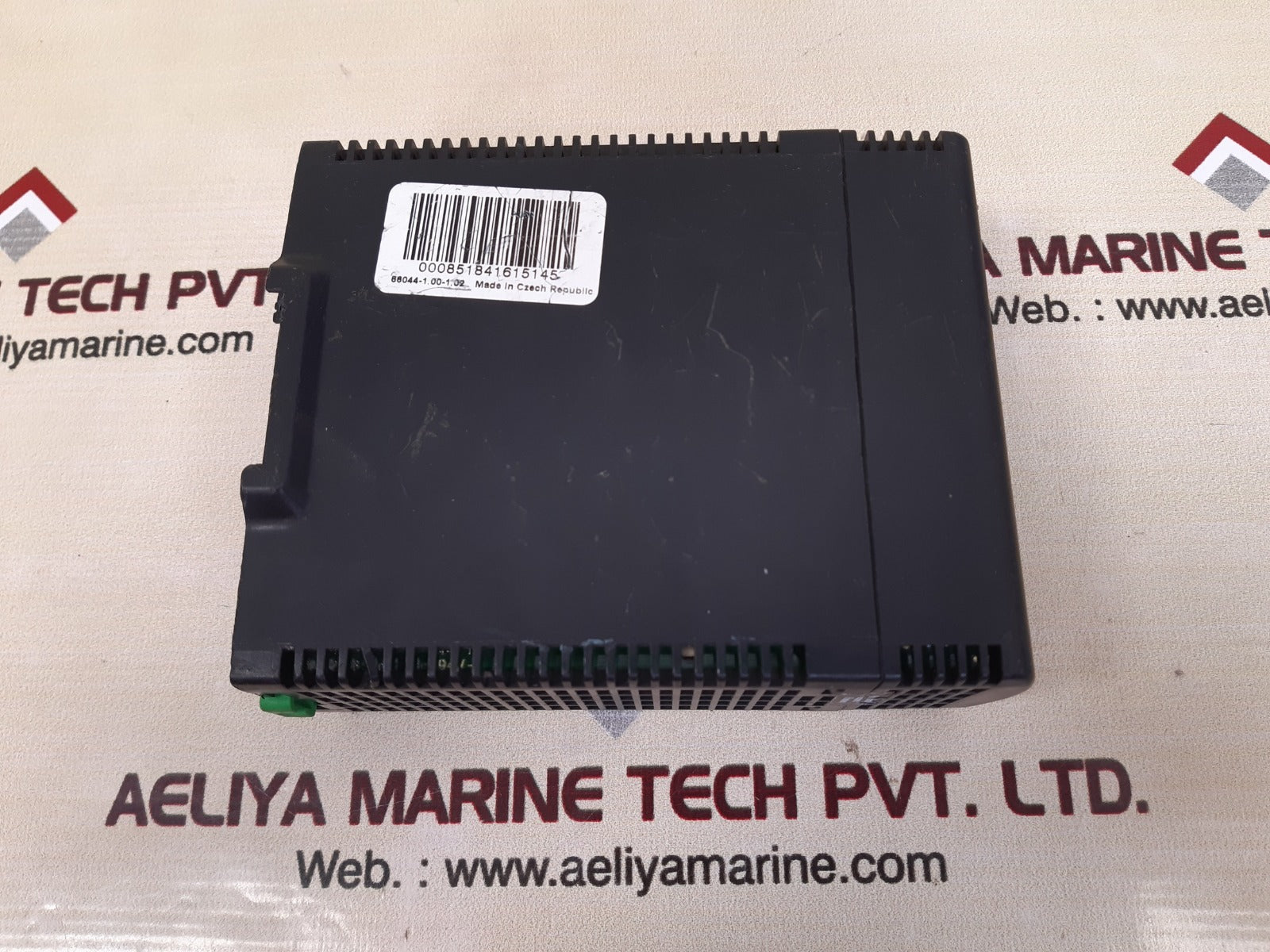

000851841615145
g12.1
product of the power+ series
made in czech republic
weight : 690 gm
