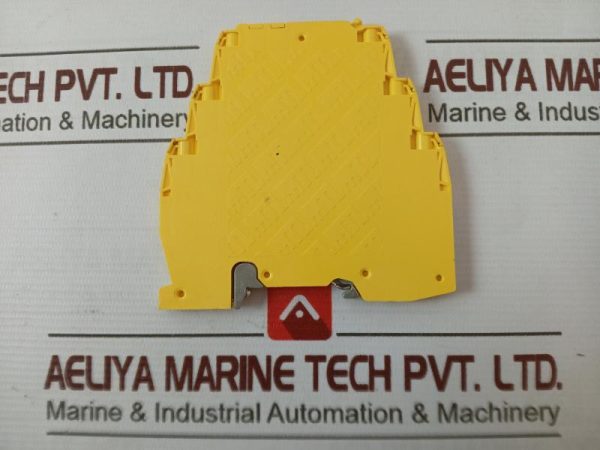

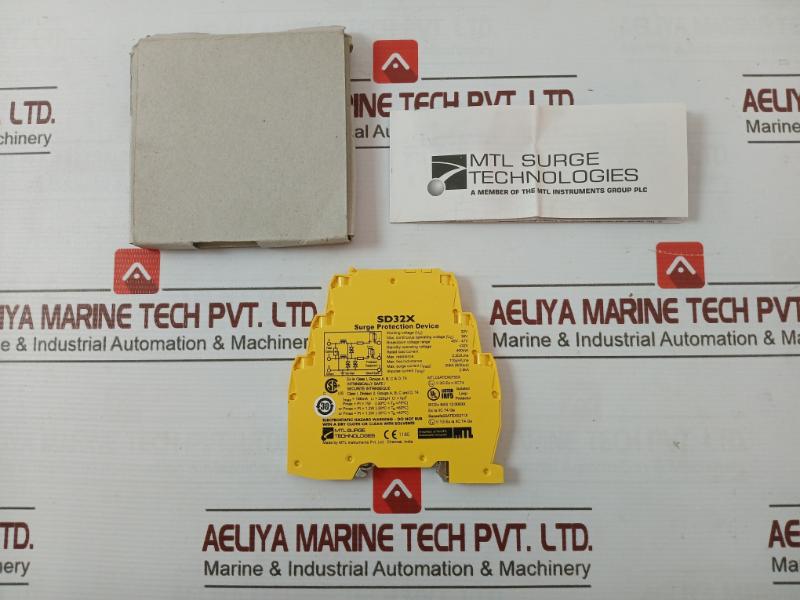

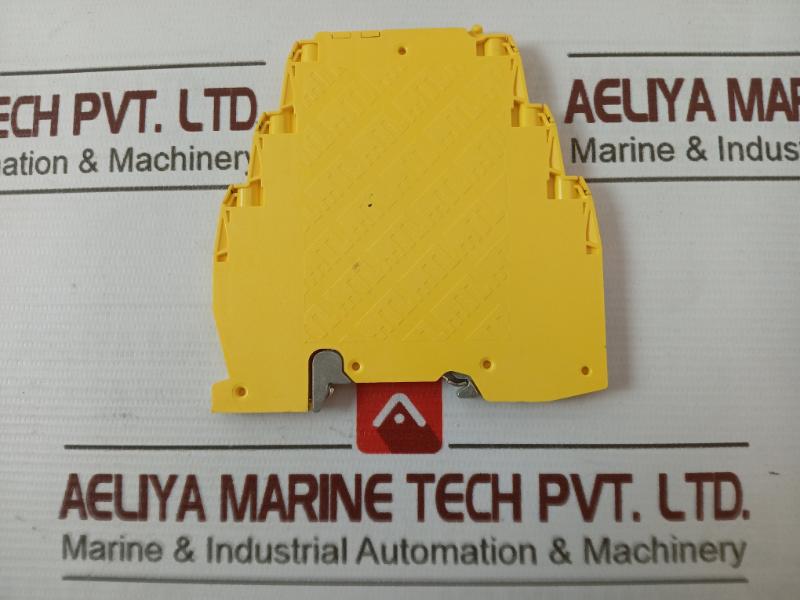

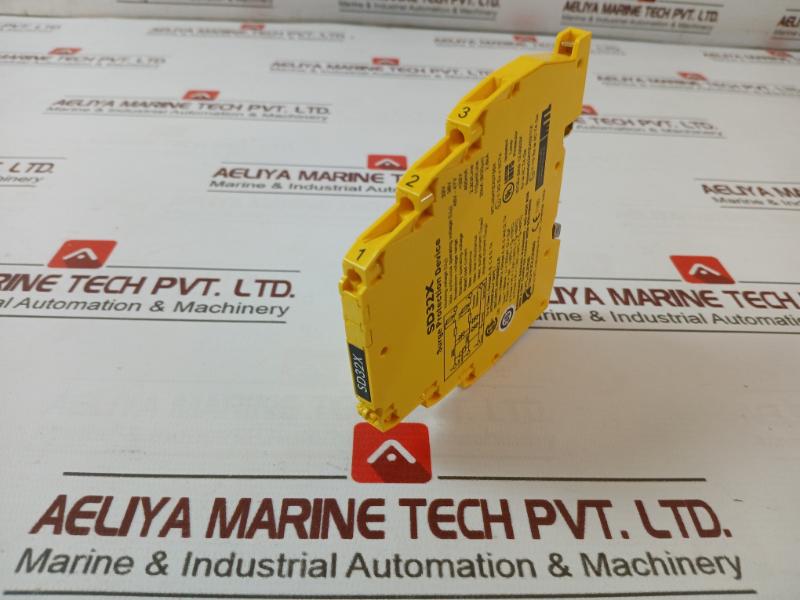

Mtl Sd32x Surge Protection Device 47v

Mtl Sd32x Surge Protection Device 47v
Mtl Surge Technologies
Made By Mtl Instruments Pvt. Ltd.
Mtl Instruments Group Plc
Surge Protection Device
Sd Series
Sd32x
Working Voltage (Un): 32v
Max. Continuous Operating Voltage (Uc): 36v
Breakdown Voltage Range: 45v-47v
Standby Operating Voltage: Less Than 32v
Rated Load Current: 400ma
Max. Resistance: 2.2Ω/Line
Max.Line Inductance: 110µH/Line
Max. Surge Current (Imax): 20ka (8/20µS)
Impulse Current (Iimp): 2.8ka
Ex Ia Class I, Division 2, Groups A, B, C And D, T4
Imax= 186ma
Li= 220µH
Ci= 0µF
Pmax=Pi=1w (-30°C Less Than Ta Less Than 75°C)
Or Pmax=Pi=1.2w (-30°C Less Than Ta Less Than 60°C)
Or Pmax=Pi=1.3w (-30°C Less Than Ta Less Than 40°C)
Mtl03atex0755x
Ii 3g Ex N Iic T4
Iecex Bas 12.0003x
Ex Ia Iic T4 Ga
Baseefa02atex0211x
Ii 1g Ex Ia Iic T4 Ga
3317021183
India
Weight : 90 Gm
Ref No : 165201
